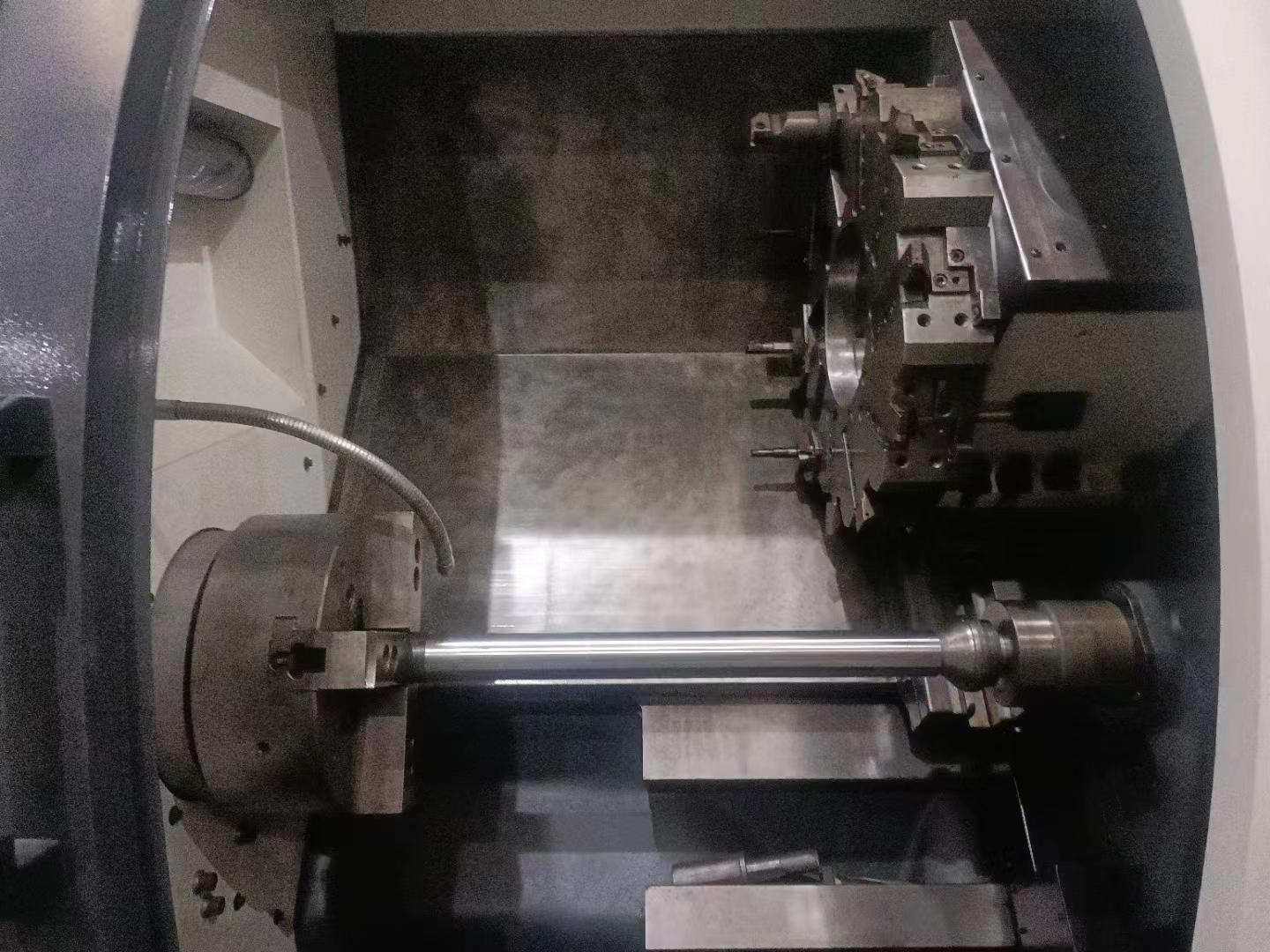

YCM GT320 Machining centre

Swing diameter over bed: 550mm

Swing over cradle:380mm

Maximum turning diameter: 470mm

Maximum cutting length:580mm

Distance between spindle nose and center:730mm

X*Z axis travel:240*590mm

Spindle speed:25~2000rpm

Spindle nose:220mm

Spindle bore:101mm

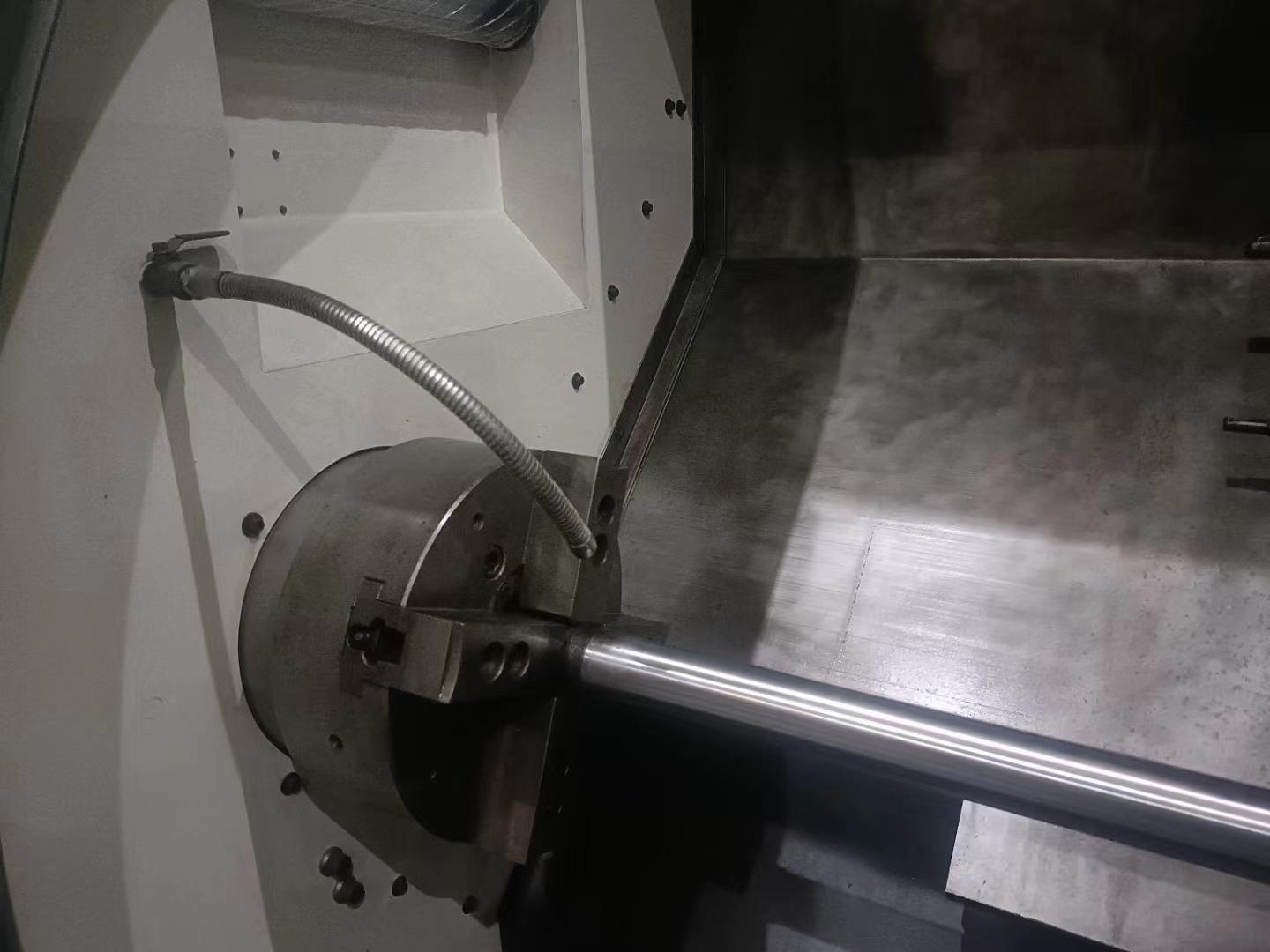

Chuck:12 inches

Bar machining capacity:90mm

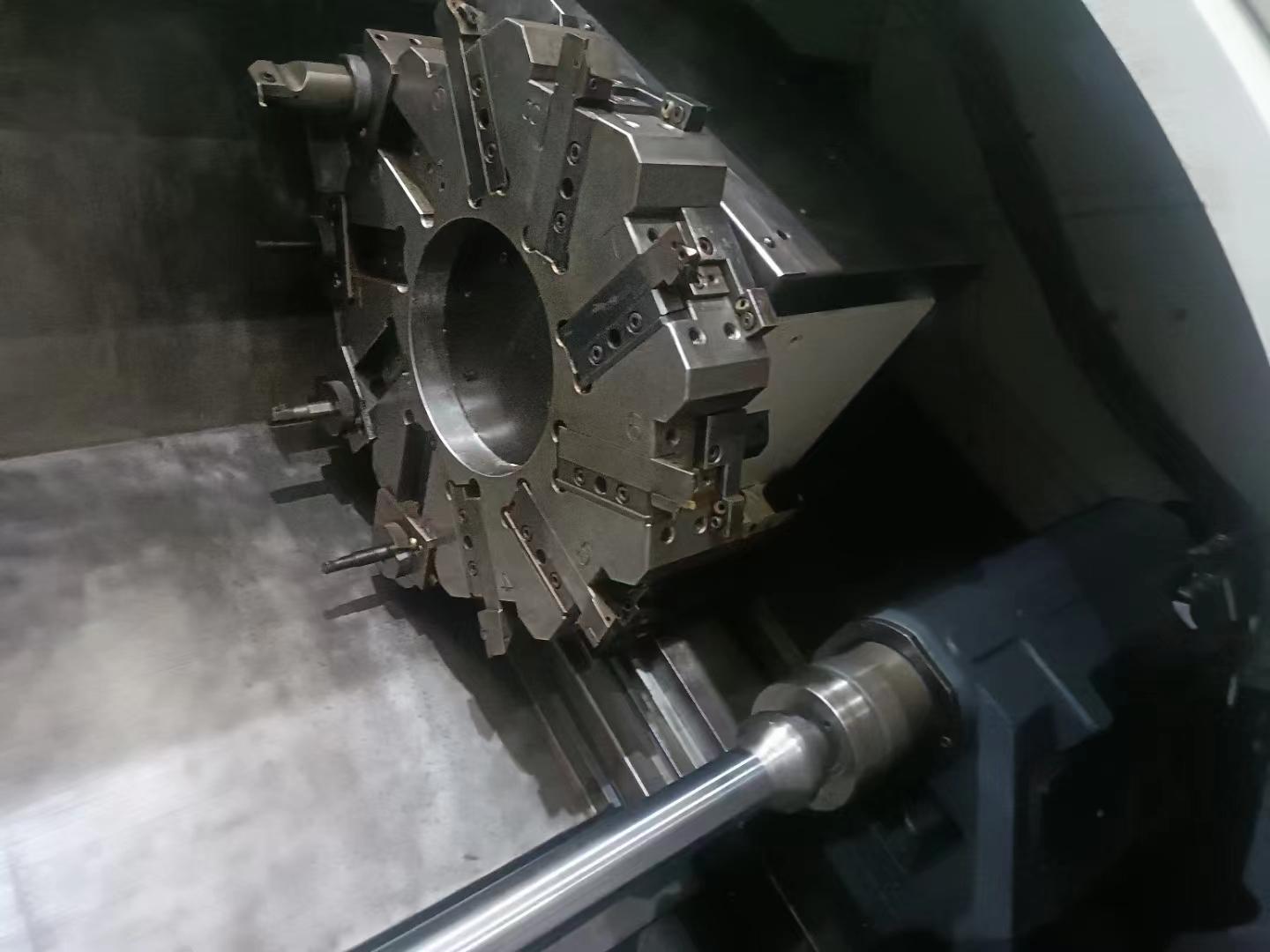

Tool magazine:10

Tool shank:25mm

External circular tool holder diameter: 25mm

Internal circular tool holder diameter:40mm

X-axis feed rate:20m/min

Z-axis feed rate:20m/min

Tailstock travel:460mm

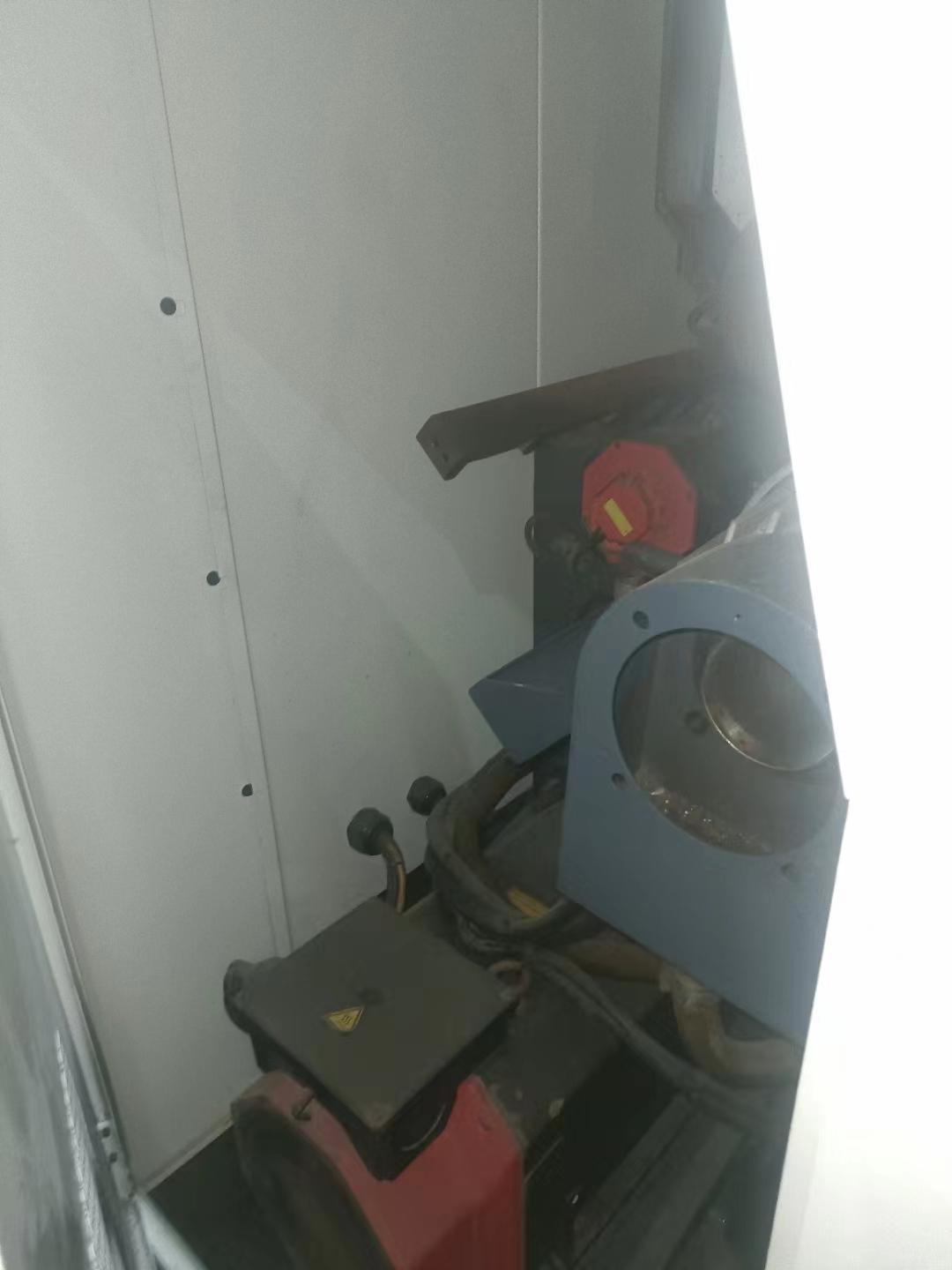

Main motor: 22KW/30HP

Machine dimensions(length*width*height): 3940*1900*1934mm

Weight:5500kgs
