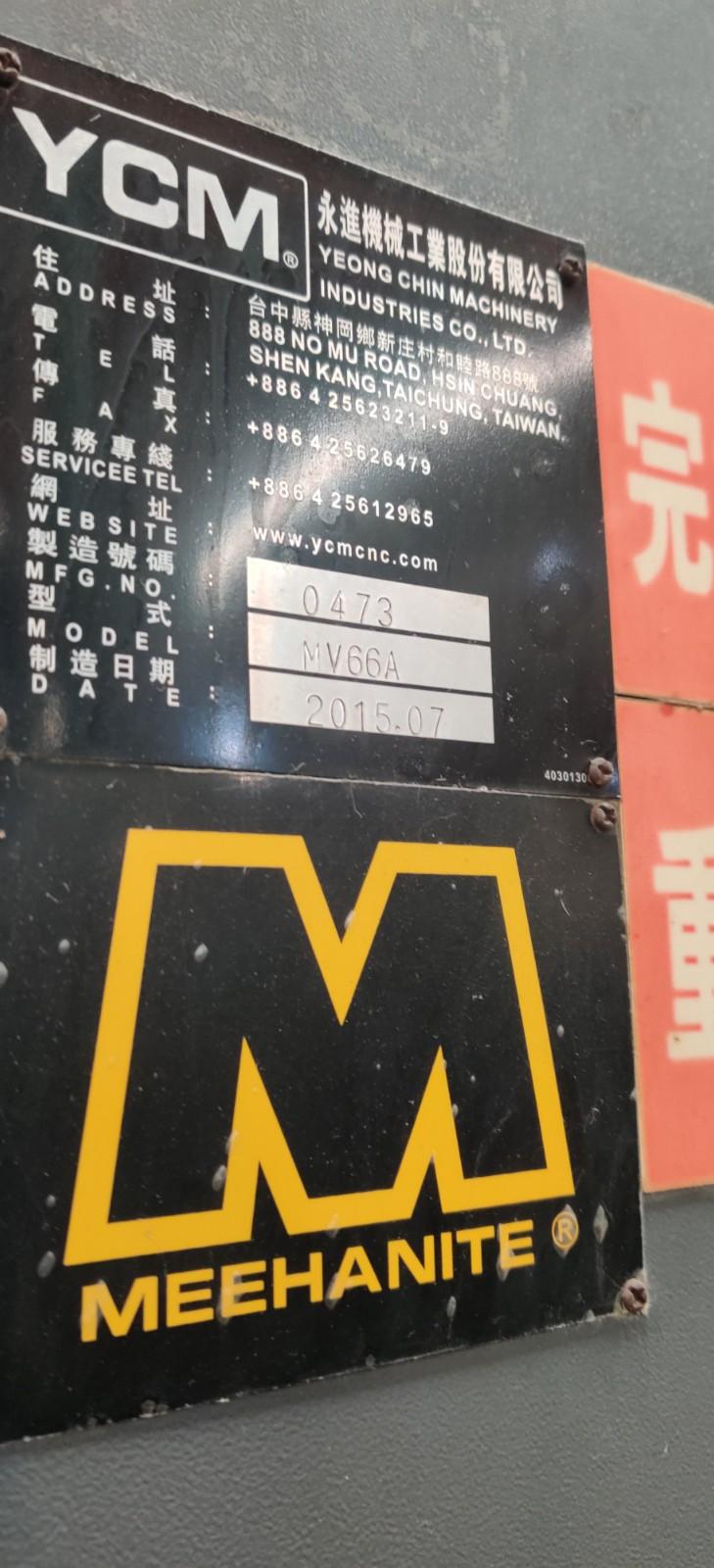

YCM MV 66A Machining centre

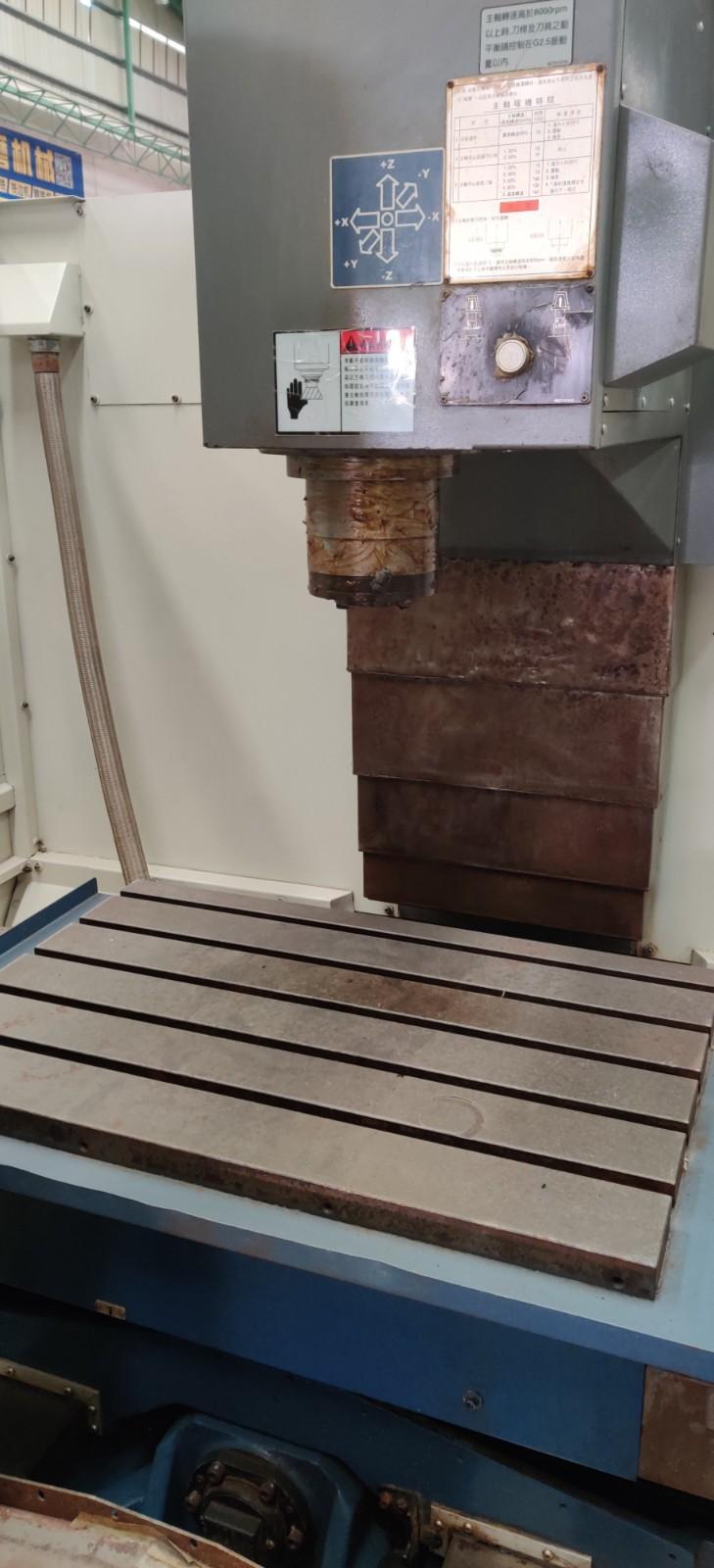

Spindle:

Spindle speed (optional) 8000 (10000) rpm

Maximum spindle power (optional) 11 (15) kW

Spindle nose taper BT40

Travels:

X axis travel 660 mm

Y-axis travel 510 mm

Z-axis travel 560 mm

Distance from spindle nose to worktable: 120~680 mm

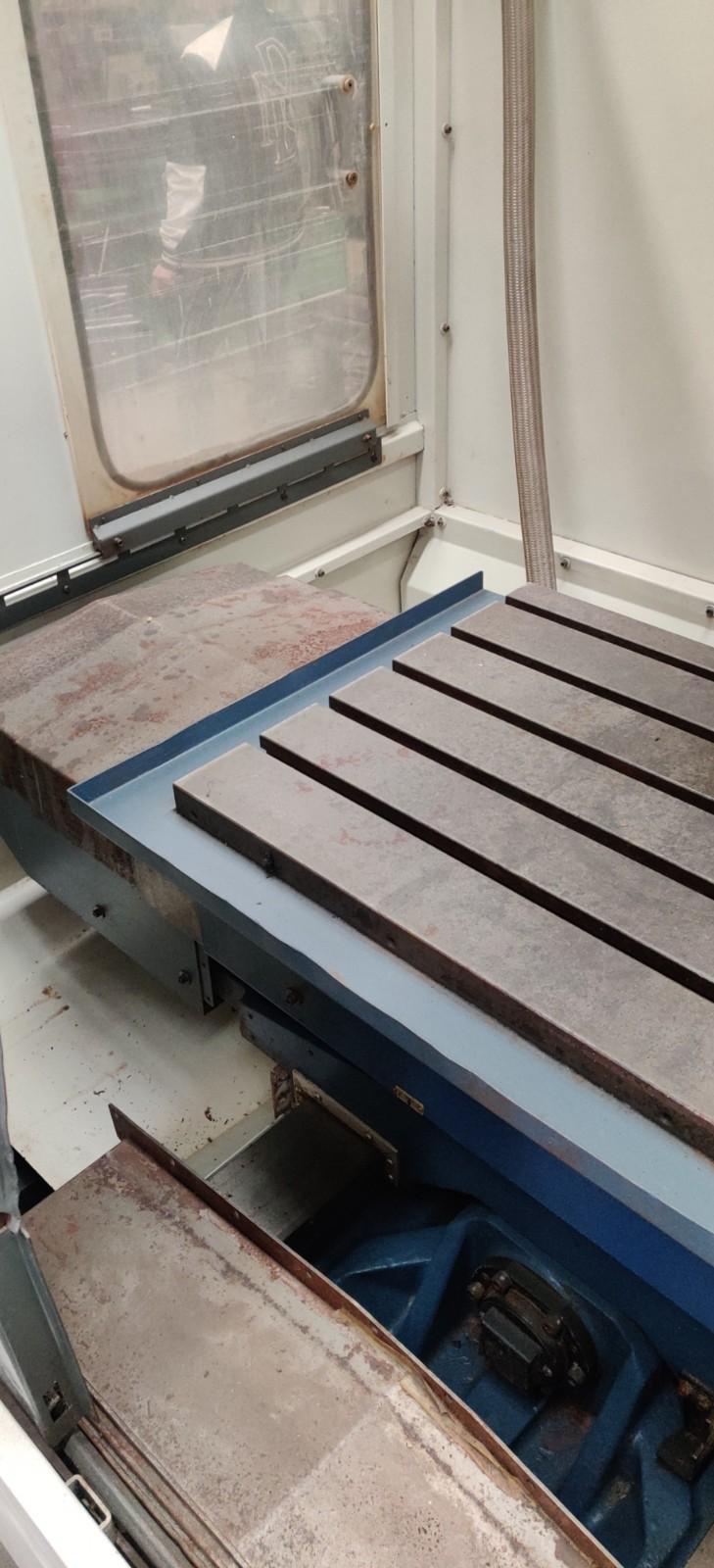

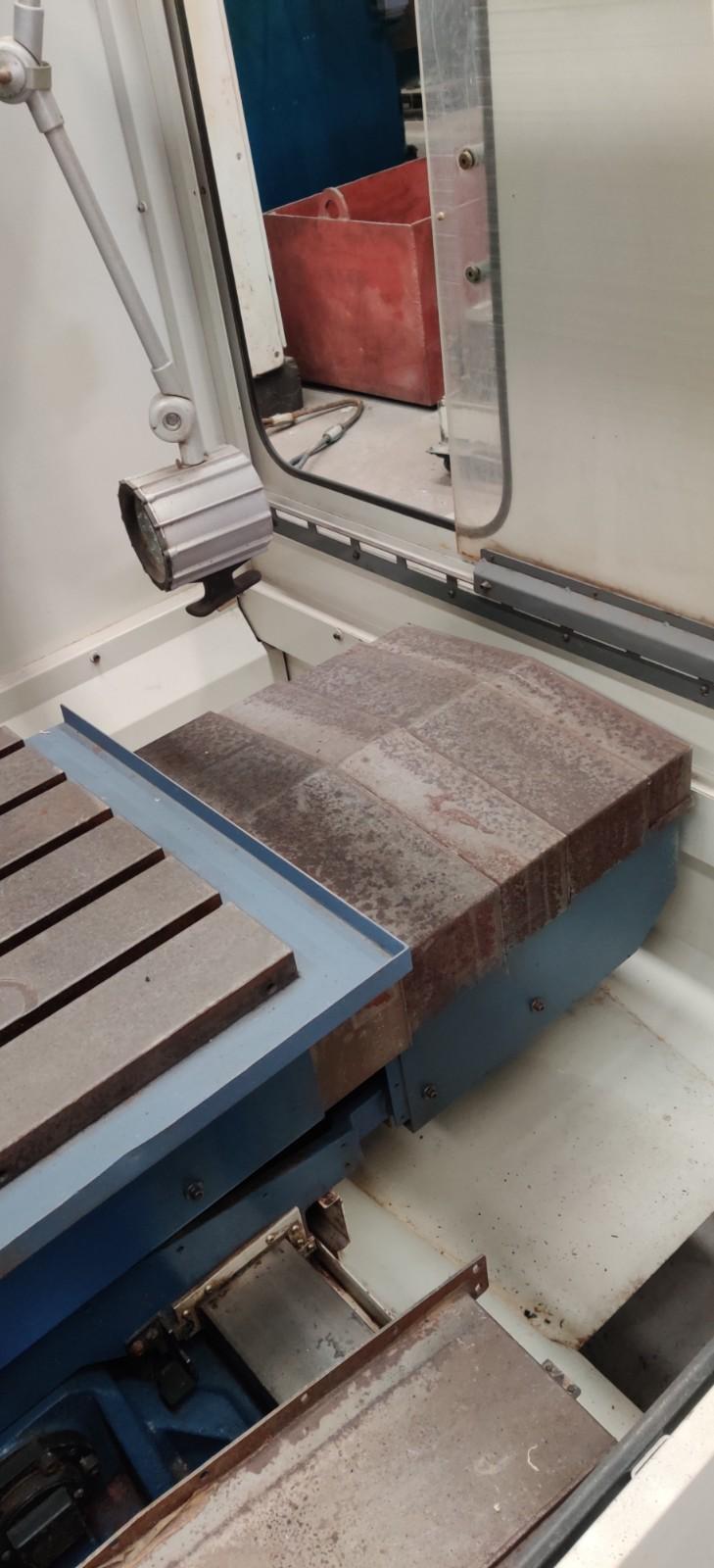

Worktable:

Worktable size 840 x 560 mm

T-slot size (number of slots *Width *Spacing) 5 x 18 x 100 mm

Worktable load 500 kg

Feed:

Fast feed speed (X/Y/Z) 30/30/24 m/min

Cutting feed rate 1~10000 mm/min

Others:

Air pressure source 5.5 kg/c ㎡

Power source 25kVA

Machine weight 5000kg
