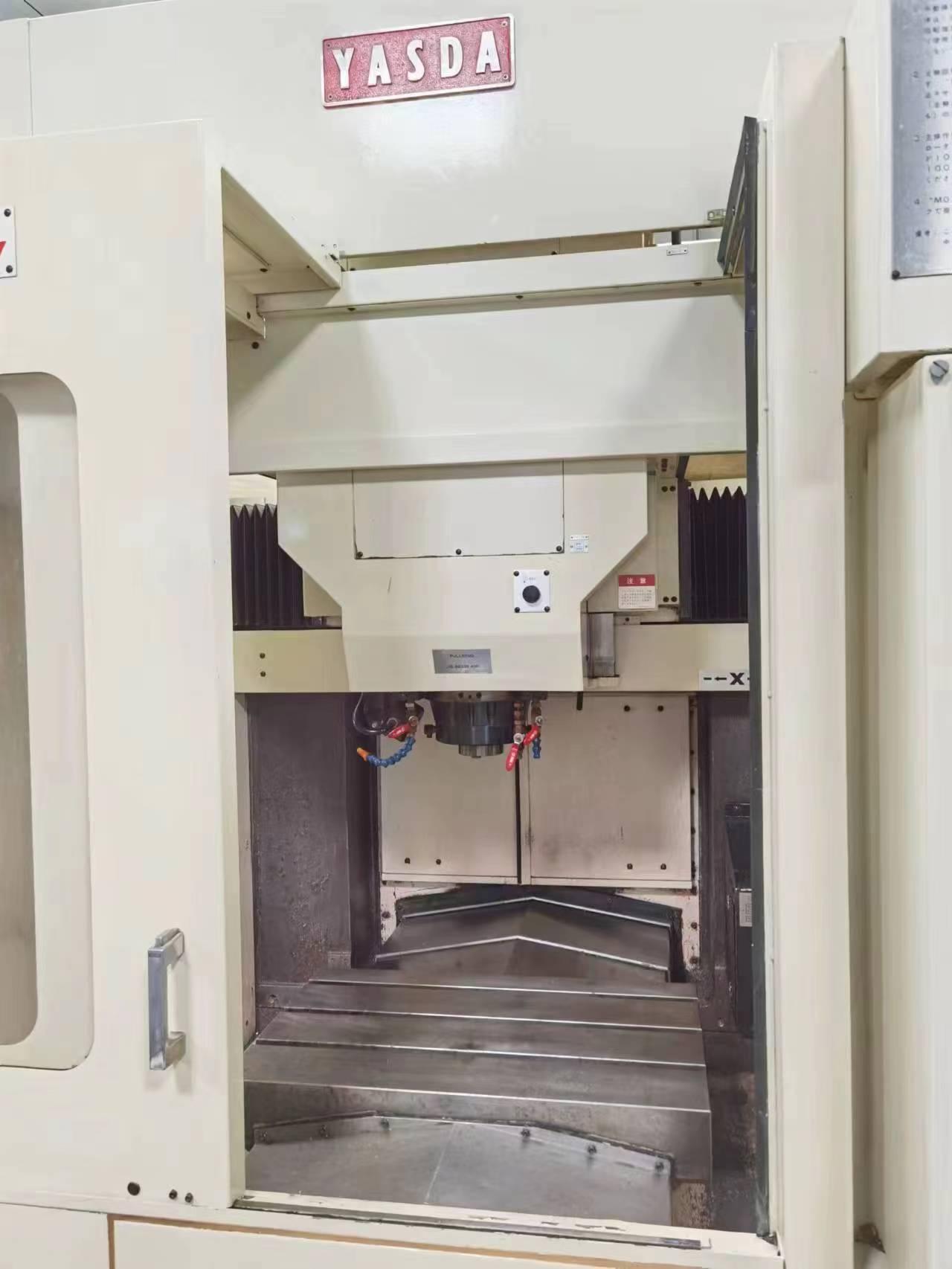

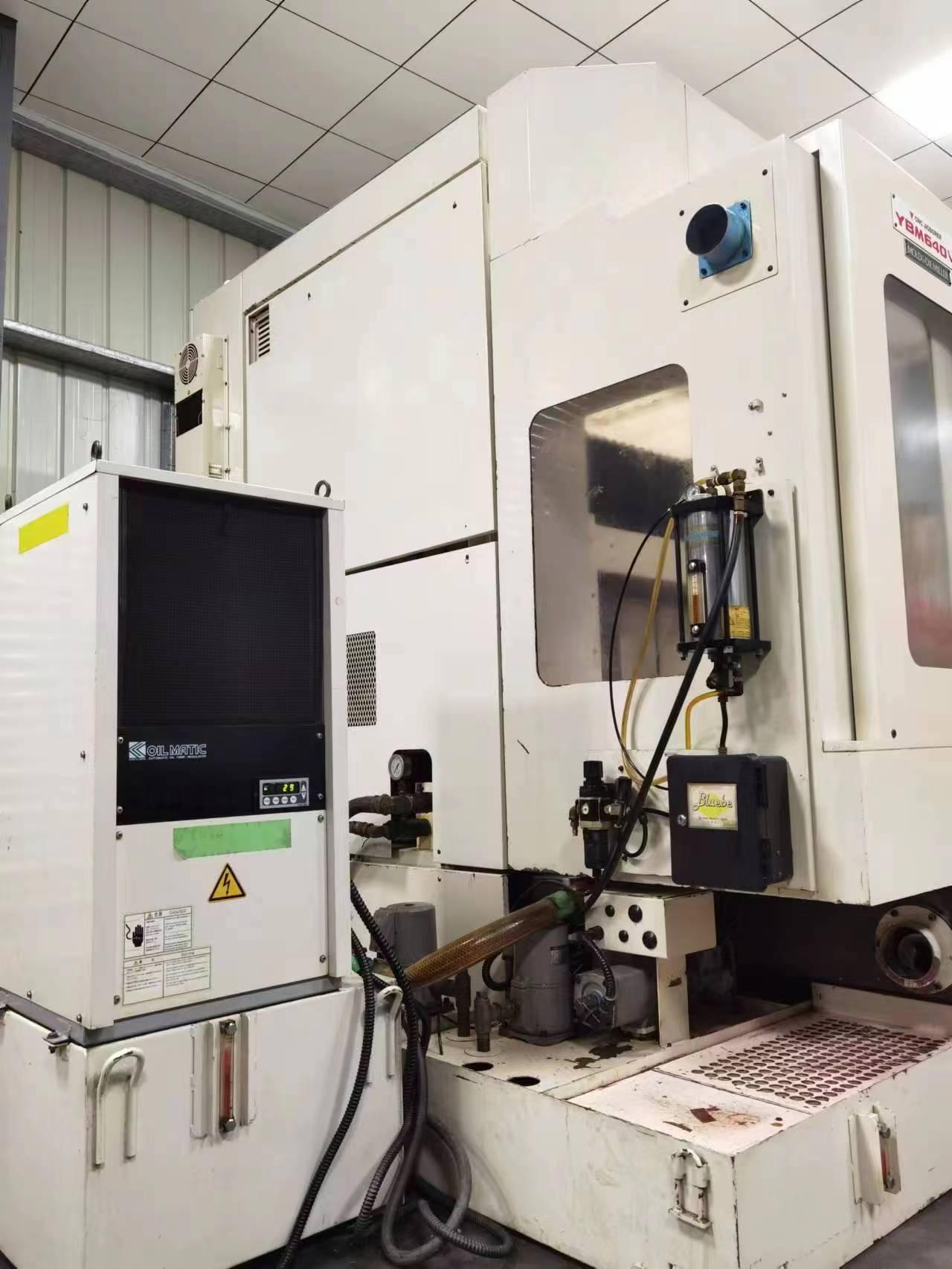

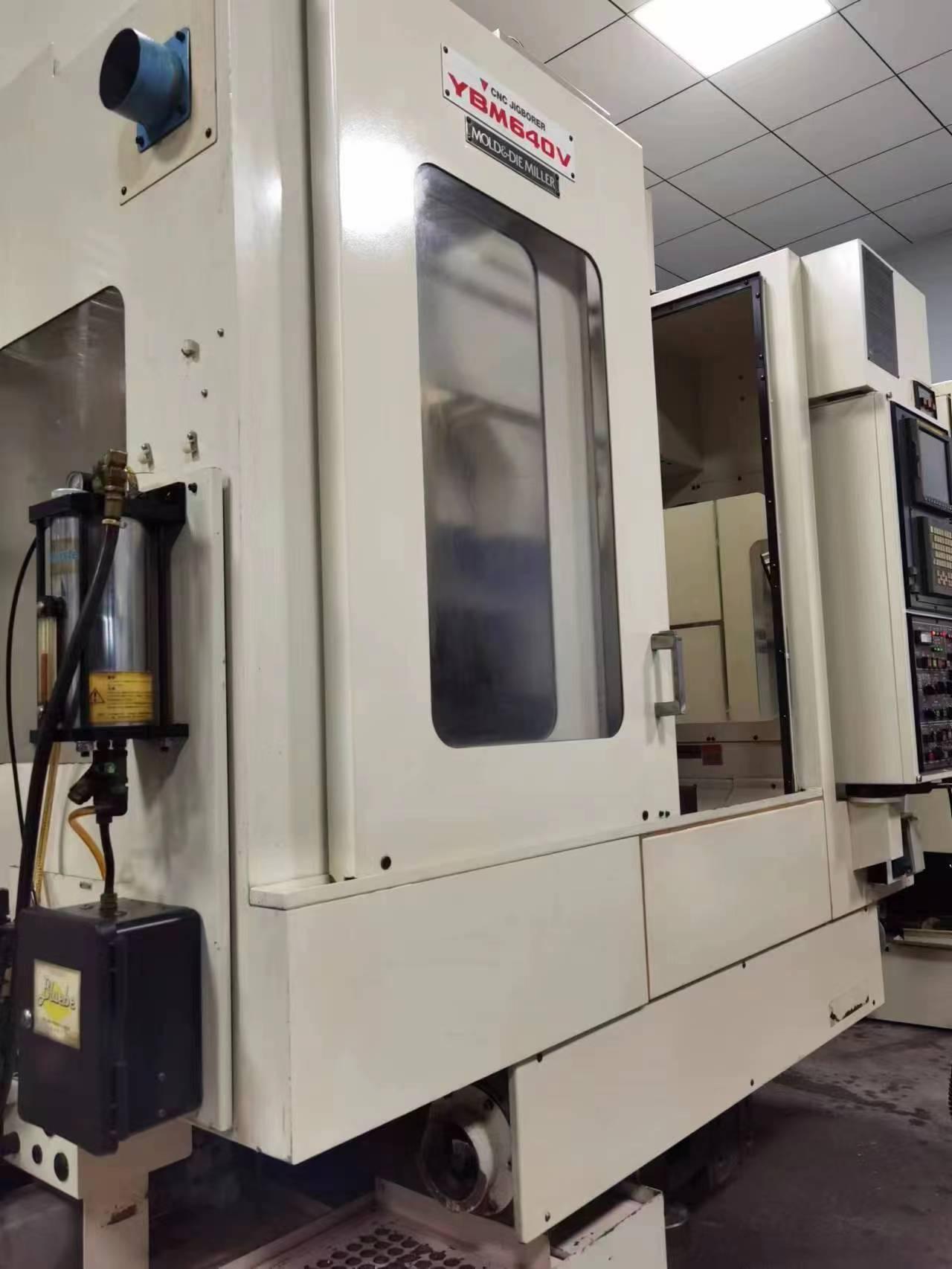

YASDA YBM-640 Machining centre

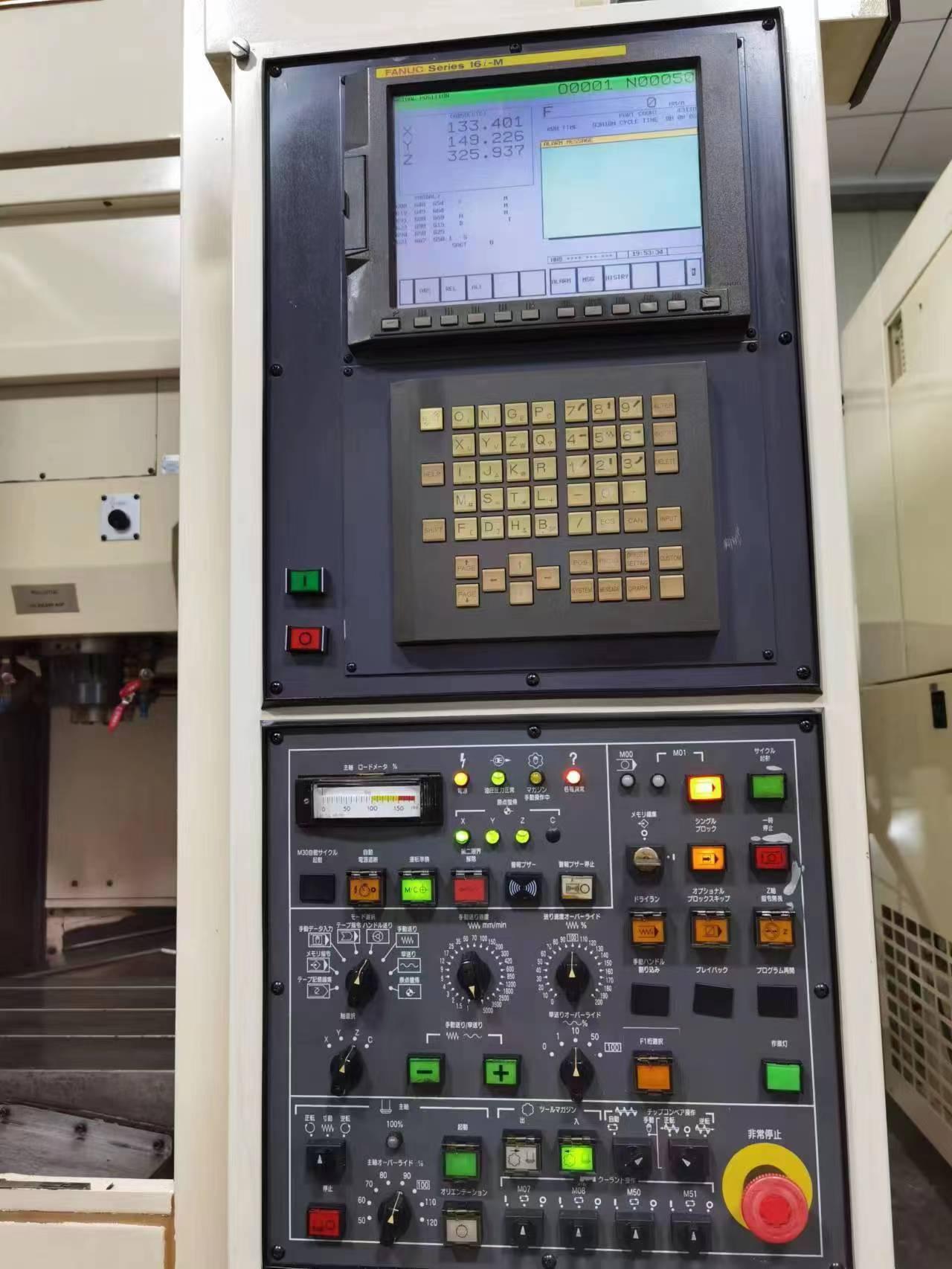

CNC System :Fanuc 31i

X-axis travel: 600mm

Y-axis travel: 400mm

Z-axis travel:350mm

Worktable load:300KG

Distance between worktable surface and spindle end face:200*550mm

Working area size: 700*450mm

Spindle speed :100-20000rpm

Spindle tapping speed:6000rpm

Taper:7/24 No.40

X*Y*Z axes fast moving rate:20*20*20m/min

Cutting feed rate:1mm/min~12000mm/min(X, Y)

Tool holder type: MAS-403 BT40

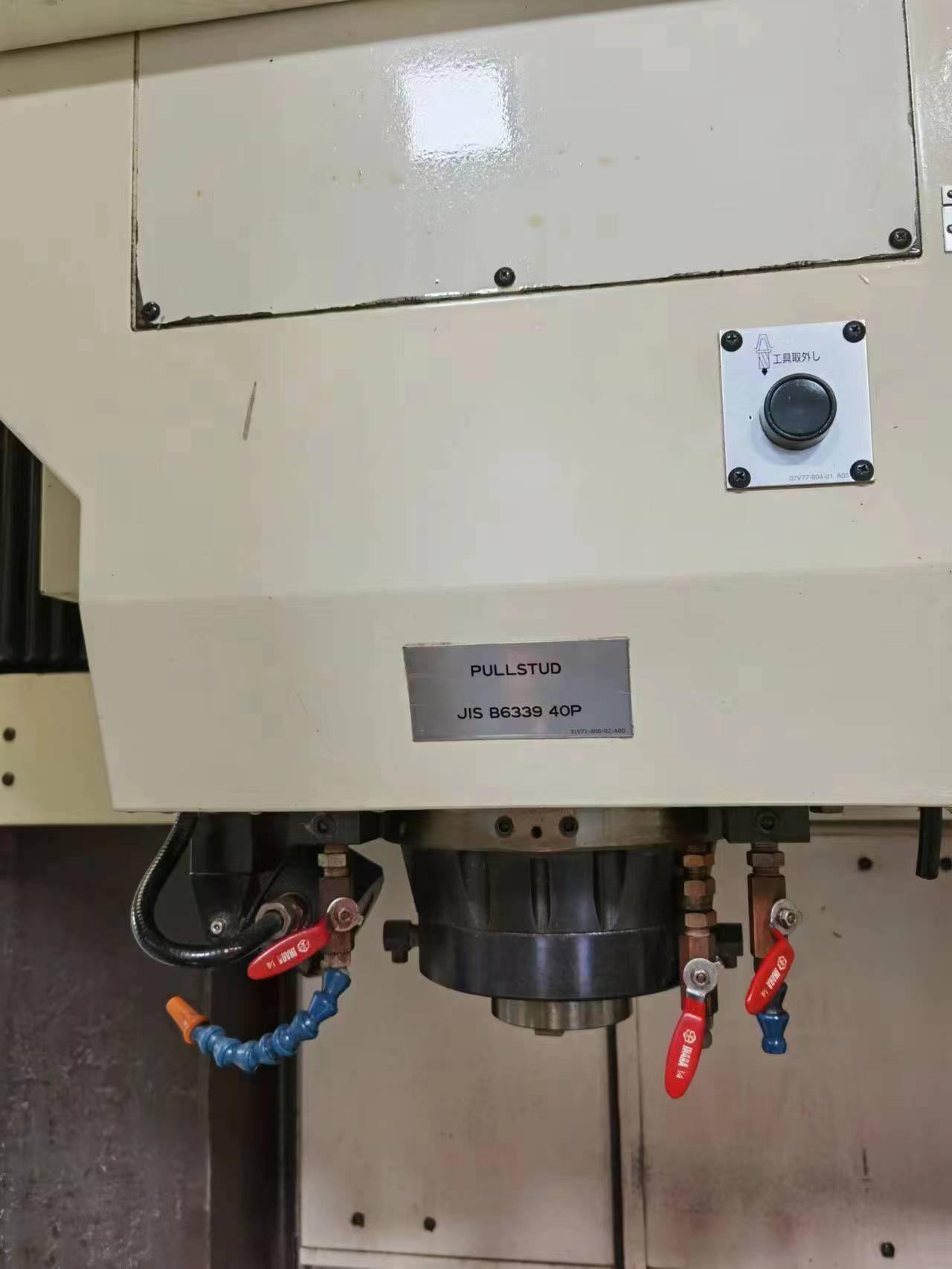

Pull stead: JISB6339-40P *4

Tool magazine :30

Tool length:250mm

Tool diameter:100mm

Spindle motor power:7.5KW

Three axes motor power:3.7kw

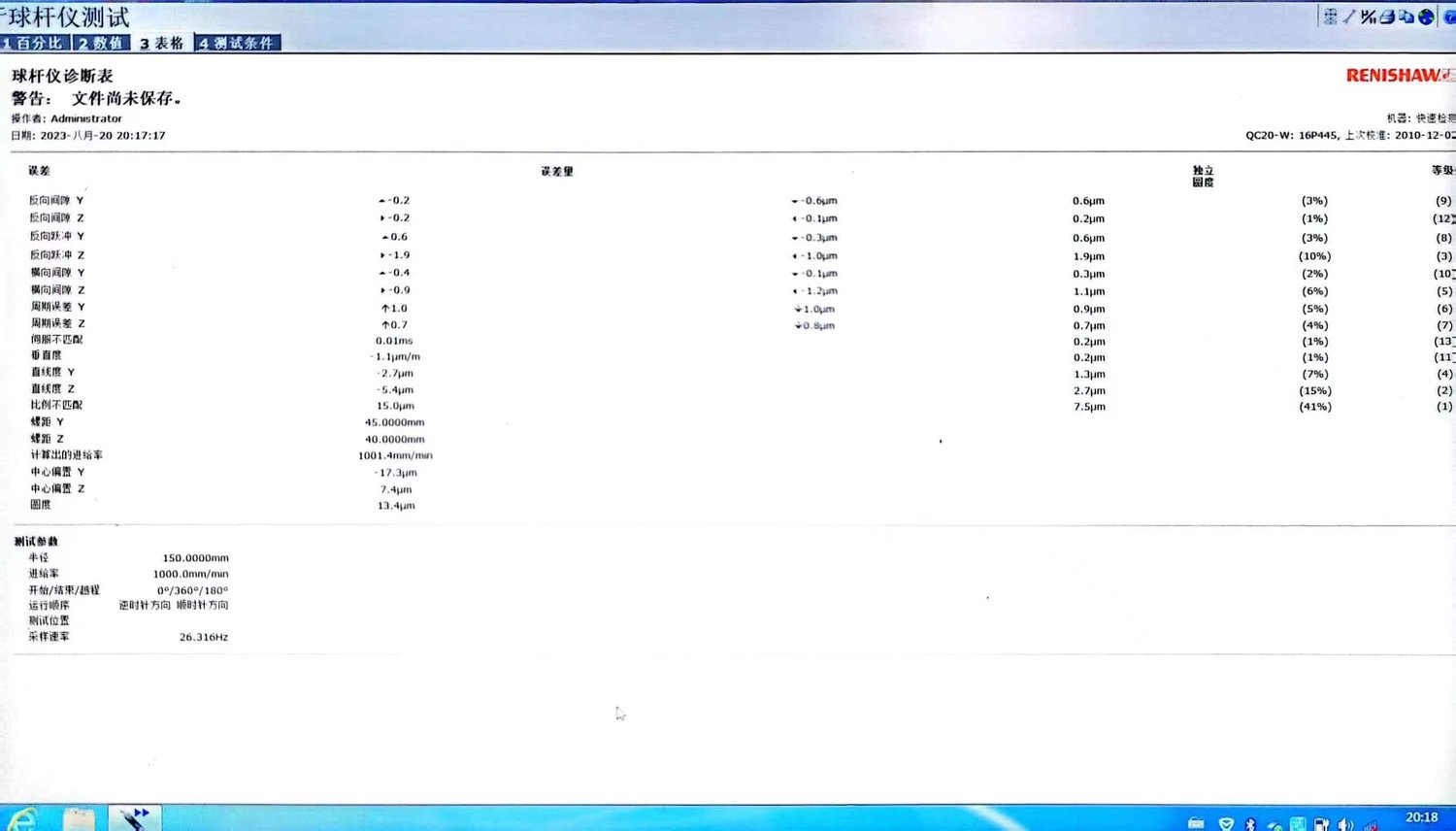

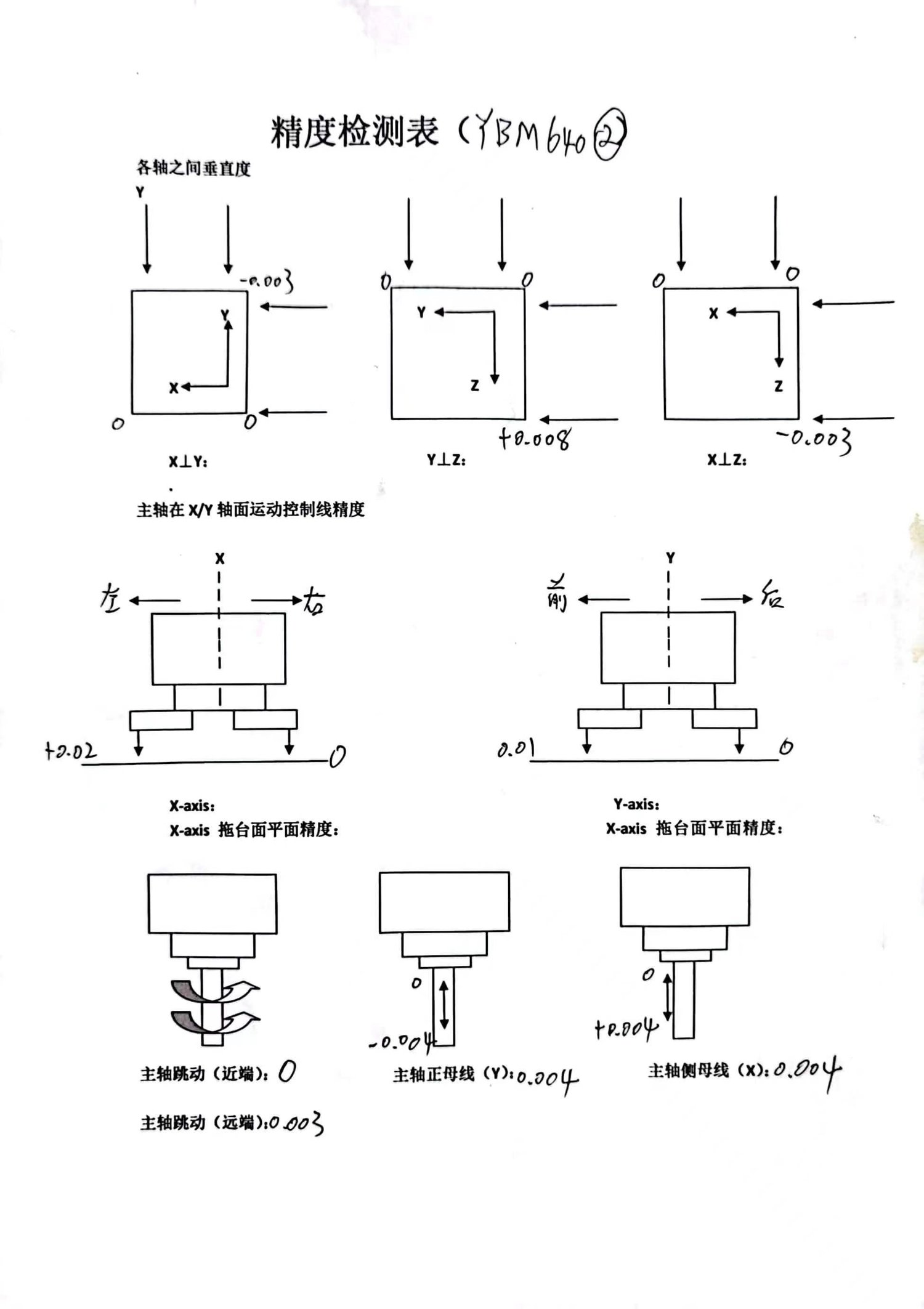

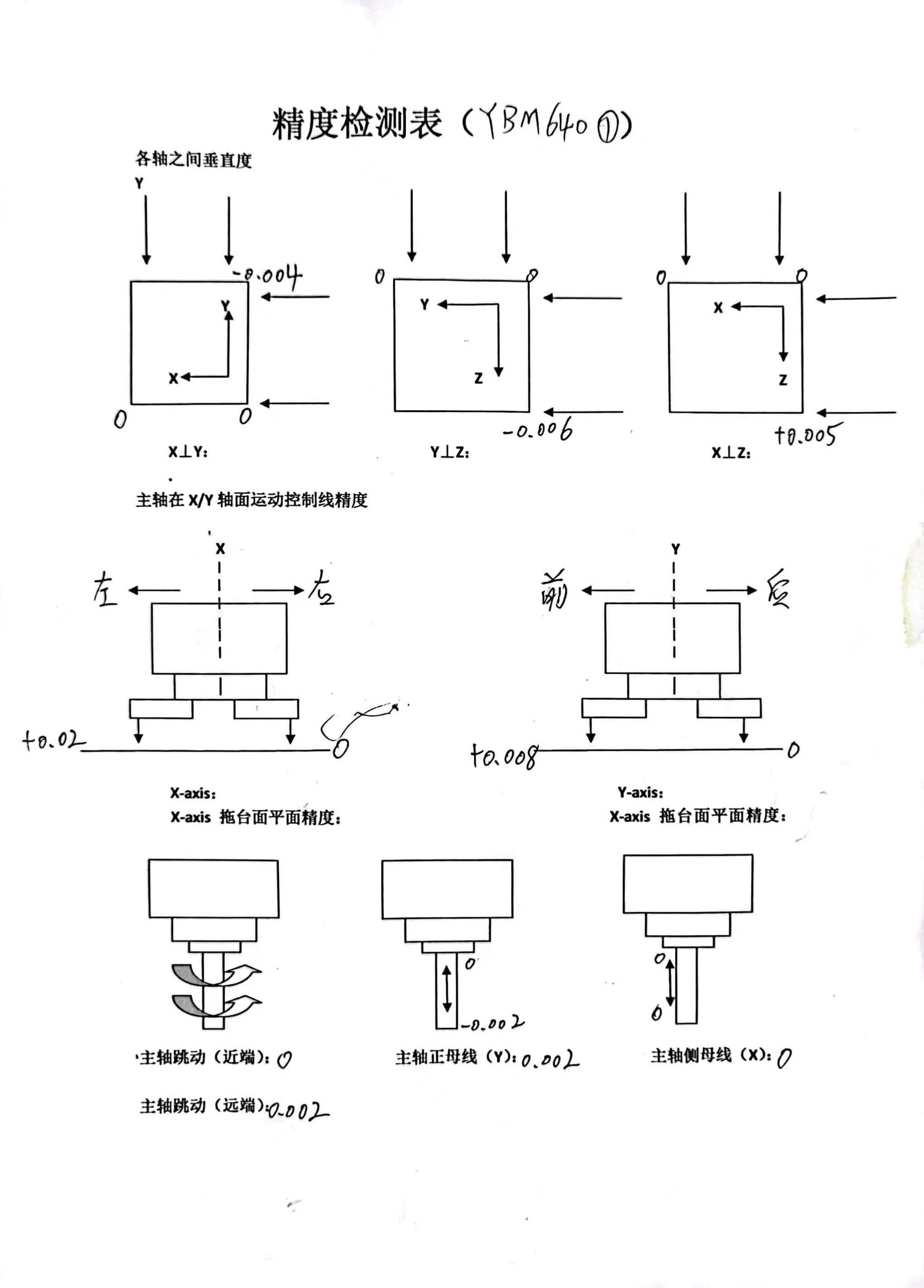

Positioning accuracy:0.005m

Machine weight:8500kg
