JIRFINE VMC-1060L Machining centre

[Product Information]:

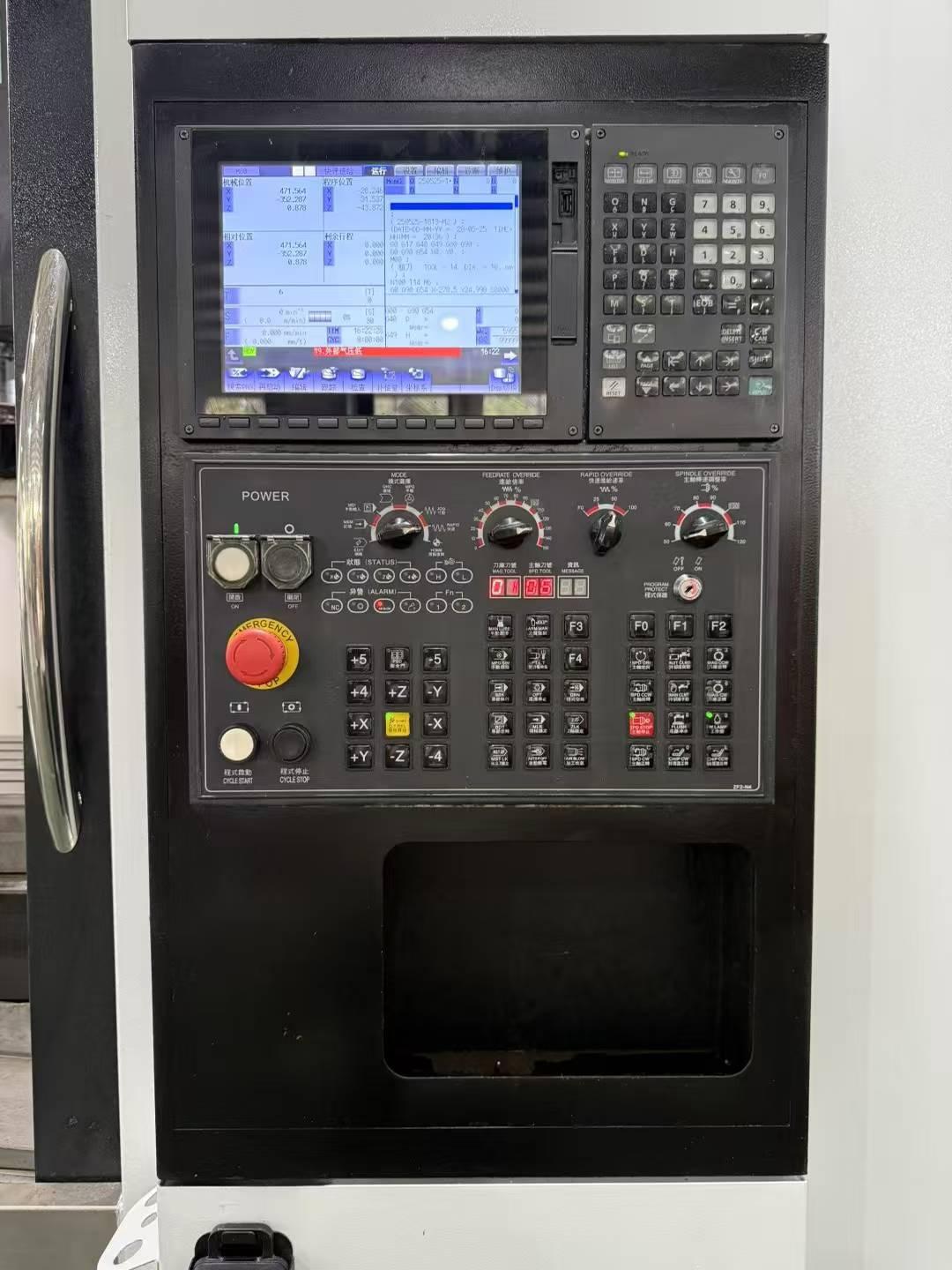

CNC System: Mitsubishi M80

WorkWorktable size ‌ : 1200x600mm

‌ X-axis travel ‌ : 1000mm

‌ Y-axis travel ‌ : 600mm

‌ Z-axis travel ‌ : 600mm

‌ Spindle speed ‌ : 10,000 RPM

Distance from the nose end of the ‌ spindle to workWorktable ‌ : 120-720mm

Distance from the center of the ‌ spindle to the track surface of the column ‌ : 650mm

The maximum load of the ‌ WorkWorktable ‌ : 800kg

‌ main motor power ‌ : 7.5-11kW

The taper of the through hole of the ‌ spindle ‌ : BT40
