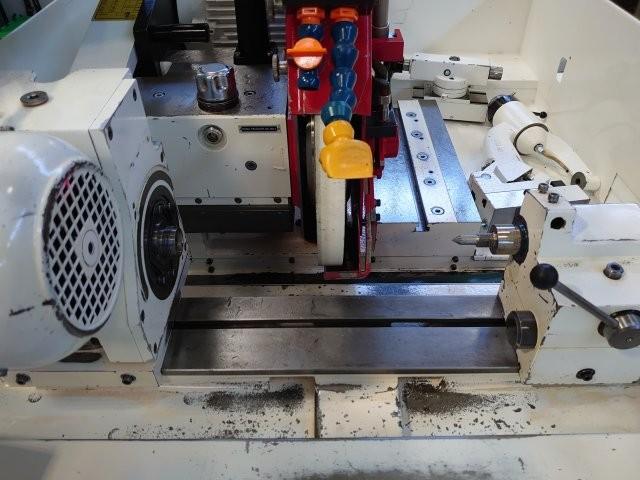

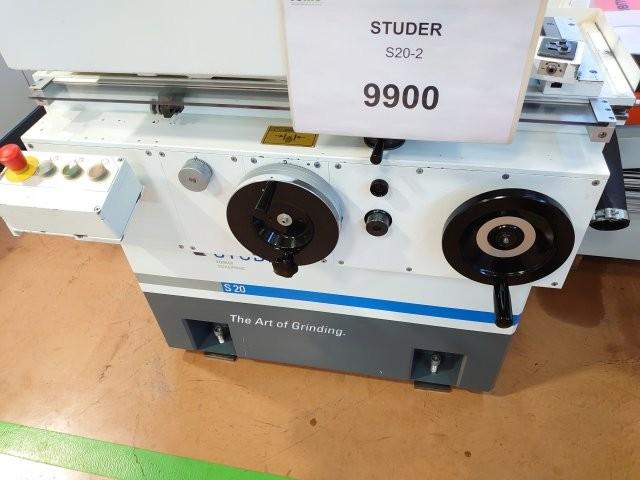

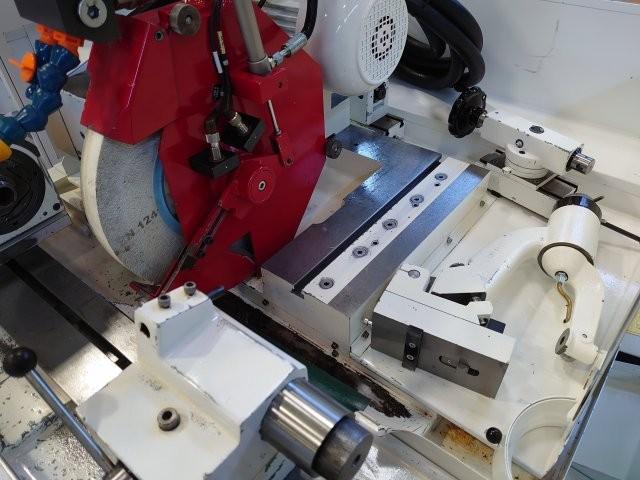

STUDER S20-2 Cylindrical grinder

Center height: 100mm

Distance between centers: 650mm

Internal grinding length: 100mm

Internal grinding diameter: 3-40mm

Maximum worktable orientation: 30°

- Workhead:

Spindle speed(Derailleur)：60-1200rpm

Motor power: 0.5kW

Inner cone No. : morse4/2

Wheel size: 350 x 30 x 127mm

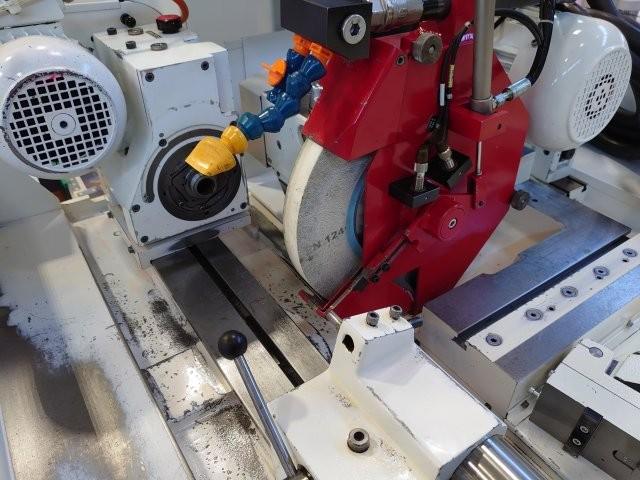

Grinding wheel head:

Power: 3kW

Azimuth: 15/30°

Maximum workpiece weight: 20kg

Maximum power required: 5kW

Weight and size:

Machine floor area: 3000 x 1400mm

Machine height: 1600mm

Machine weight: 1900kg

Equipment:

All internal grinding accessories

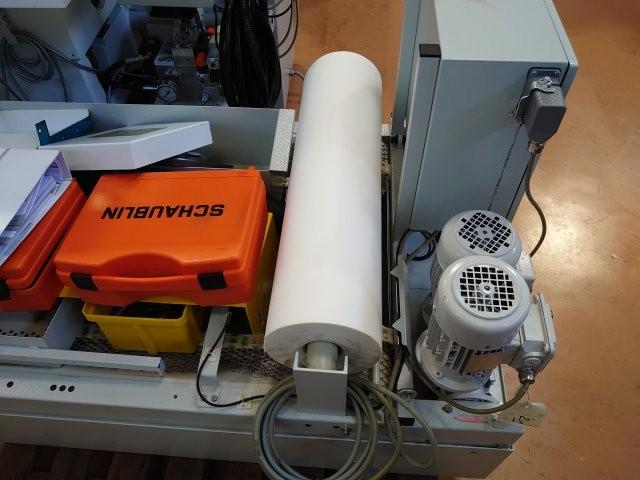

1 Complete cooling unit

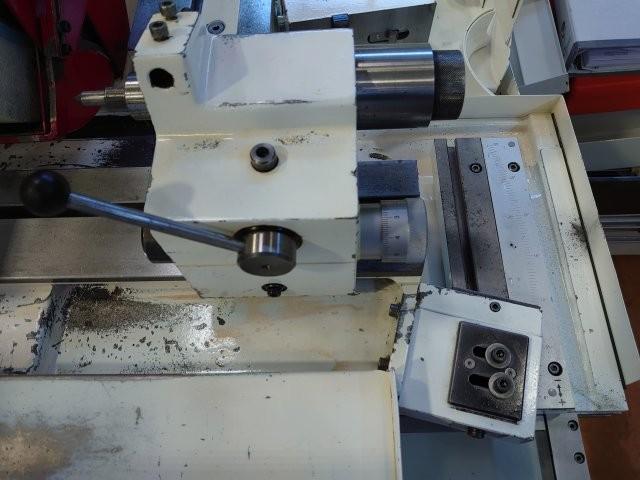

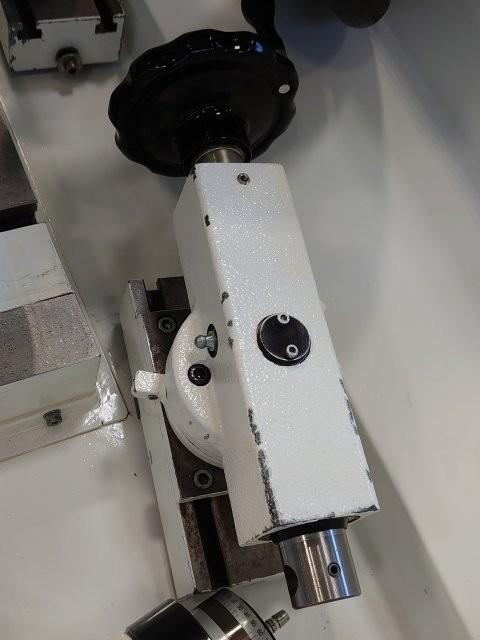

1 reverse headstock with fine tuning

1 reversible and adjusted worktable correction device

1 directional diamond bracket

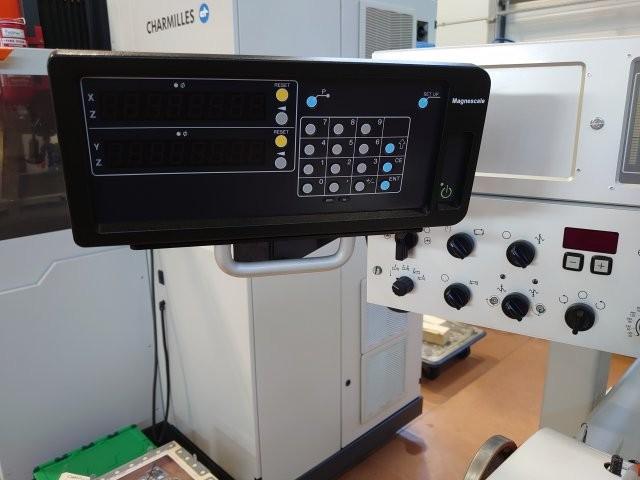

 2-axis X, Y digital display

 One 3-point stabilizer
