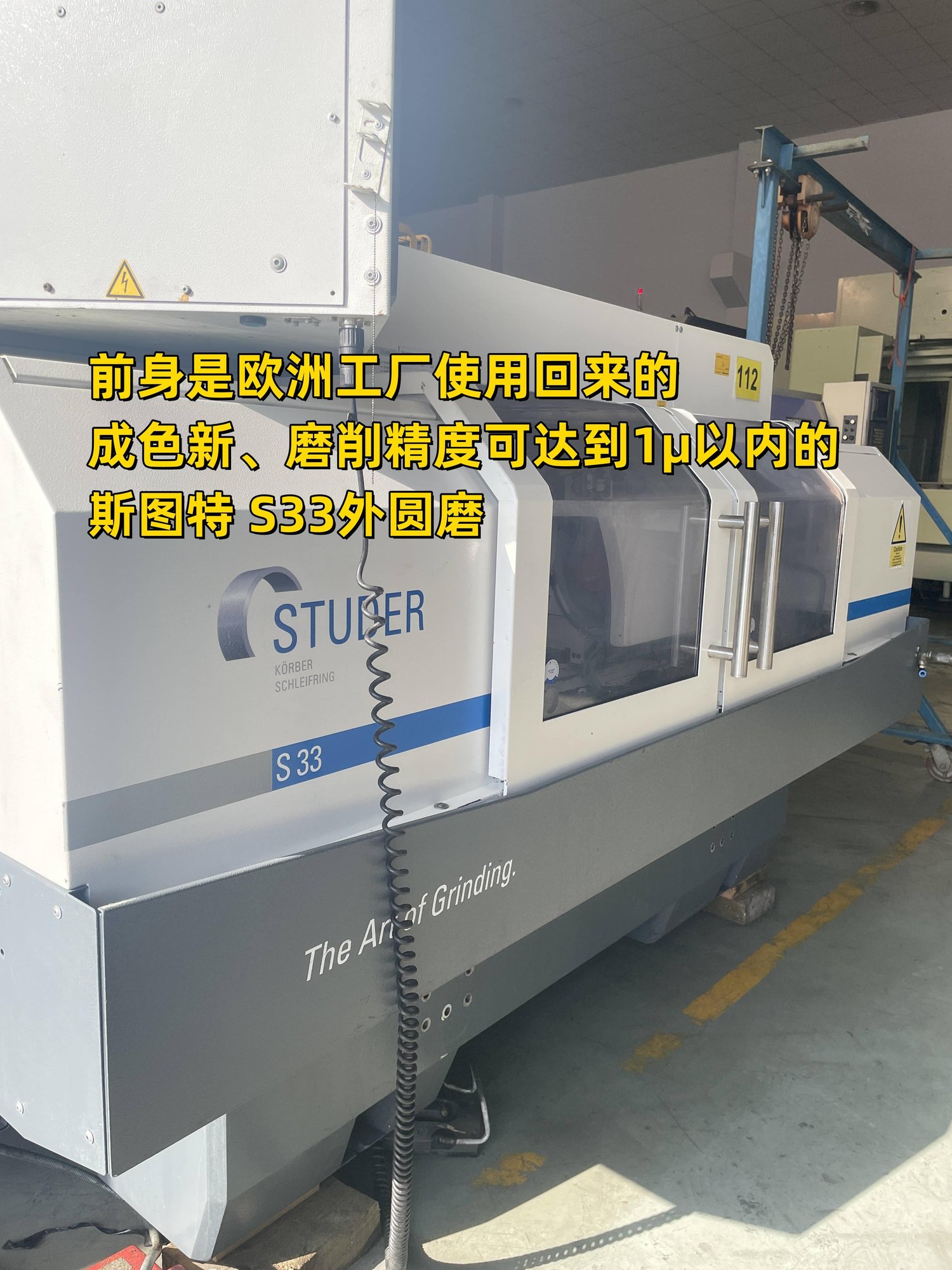

STUDER S33 Cylindrical grinder

Maximum machining  length (Distance between centers) : 1000mm

Maximum machining  diameter: 349mm

Maximum workpiece weight: 150KG

Center height: 175mm

Z-axis travel: 1155mm

Speed: 20,000 mm/min

X-axis travel: 582mm

Speed: 10,000 mm/min

The Z/X axes are equipped with glass scale

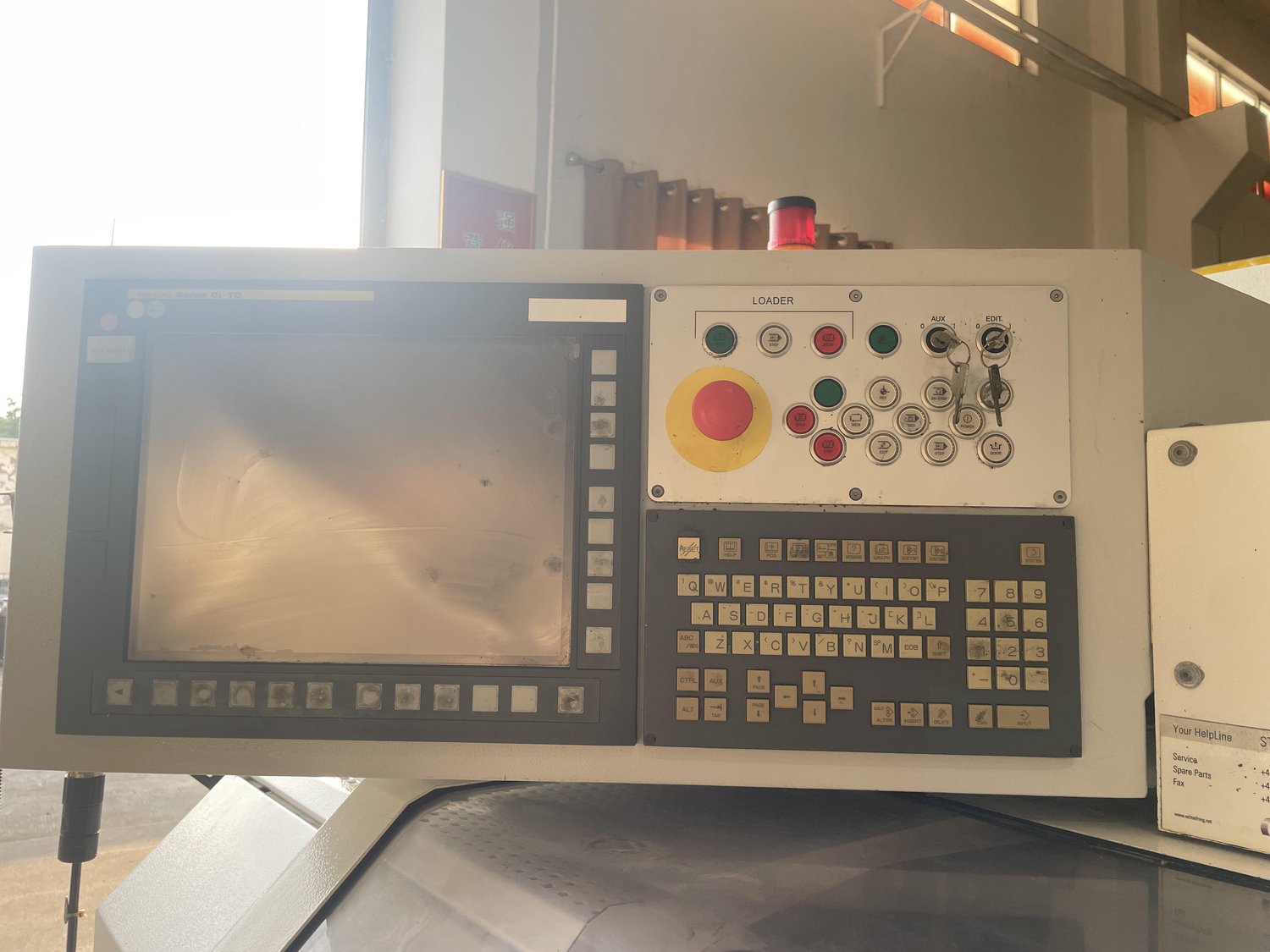

CNC System: FANUC 0i-TD

grinding wheel diameter: 508mm

grinding wheel width: 80mm
