Hartford VMC850 CNC Machining centre

Worktable size: 500*1000mm

X/Y/Z axes travel :  800/500/500mm

Distance from spindle nose to worktable :100-600mm

Distance from spindle center to column :540mm

Worktable load :400kg

Worktable T-slot :  5-18-150mm

X/Y/Z axes fast feed :48/48/36m/min

Spindle taper: BT40-150

Spindle speed: 8000rpm

Positioning unit :0.001/300mm

Disk type tool magazine: 24Tpcs

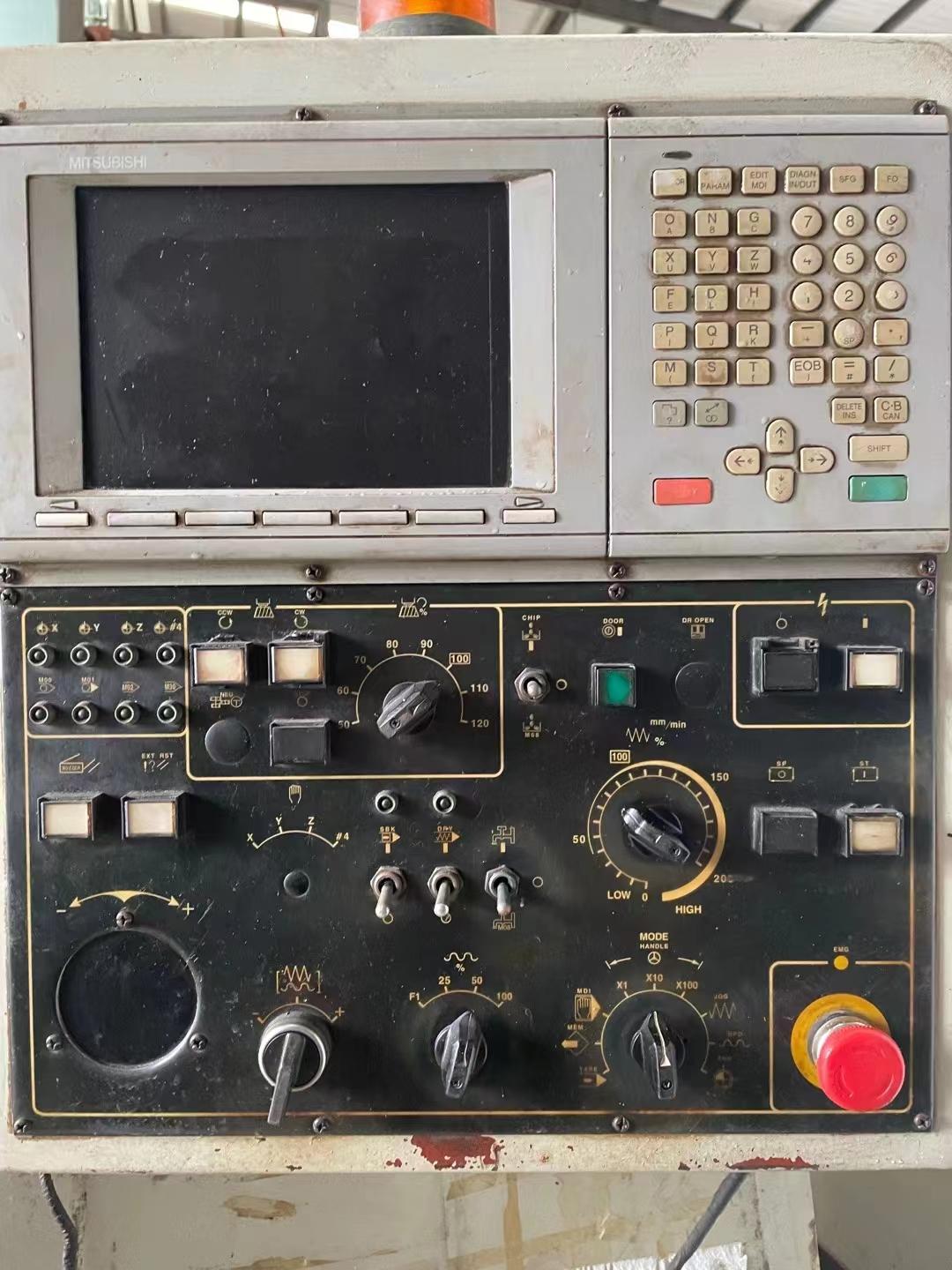

CNC System：KND CNC

Spindle motor power: 7.5kw

Footage: 2600x2360x2400mm

Machine weight :5500kg
