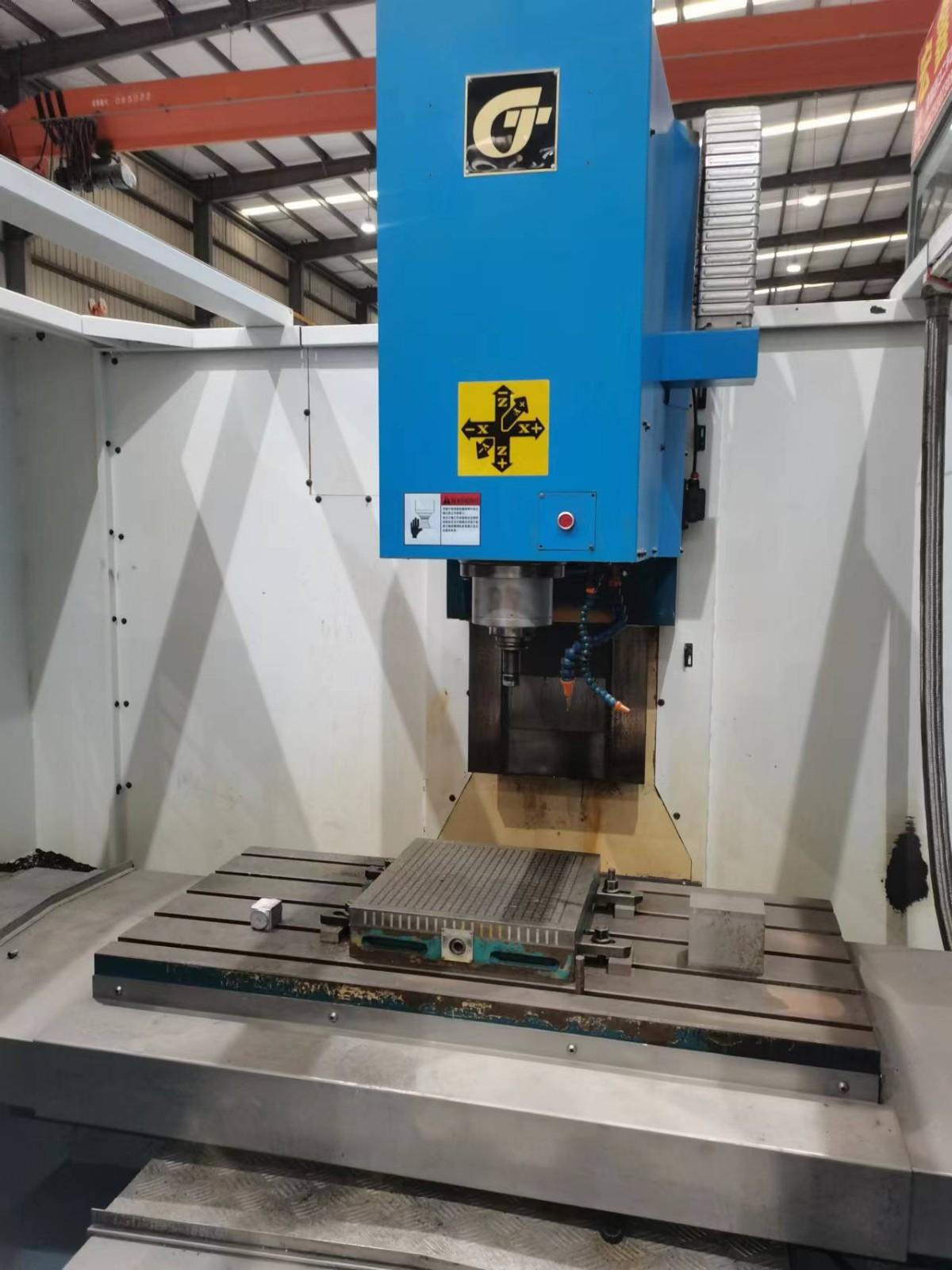

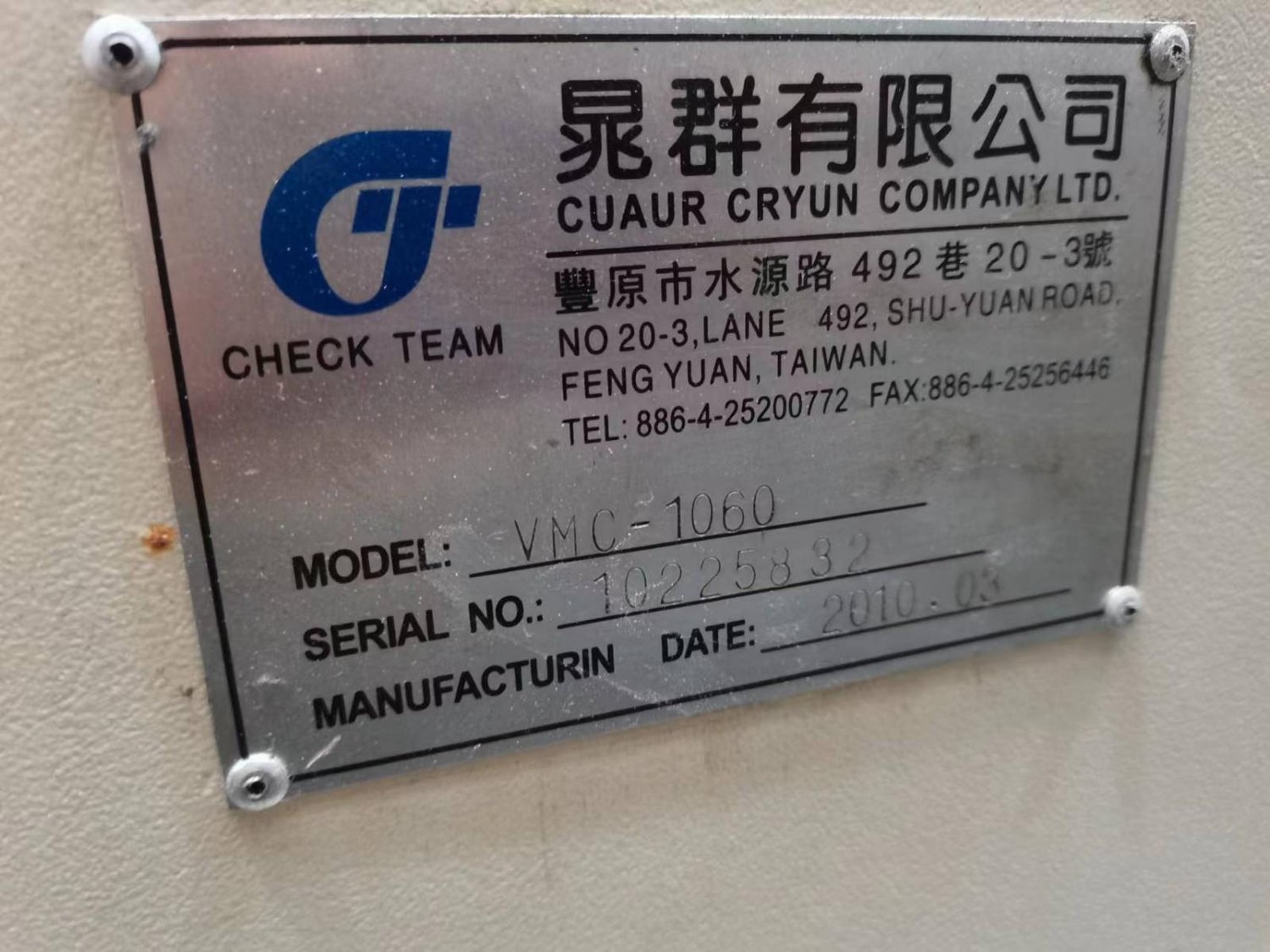

CUAUR VMC-1060 CNC Machining centre

[Product Information]:

Worktable size: 1300 * 600mm

Worktable load: 800kg

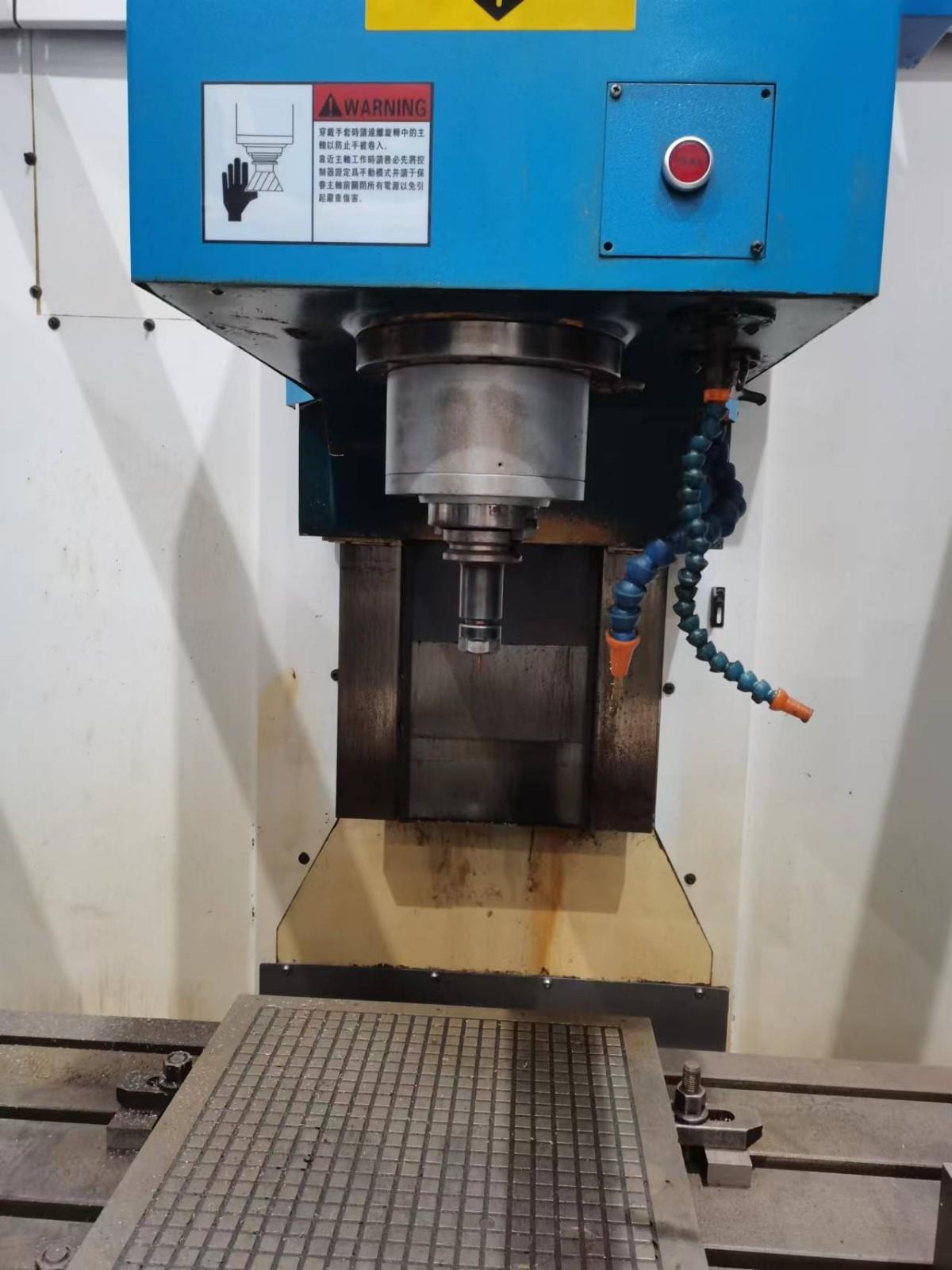

Spindle : Taiwan Posa

Spindle motor: 11kw

Spindle speed: 8000rpm

Spindle gear BT50

Three axes travel: 1000 * 600 * 600mm

Distance from spindle nose to worktable surface: 120-720mm

Fast moving rate: 36000mm/min

Accuracy: 0.005/0.003mm

Overall dimensions: 2300 * 2000 * 2450mm

System: FANUK 0iMD

Rated voltage: 110V

Main motor power: 11kW

Weight: 4000kg

Three axes with rigid guideway
