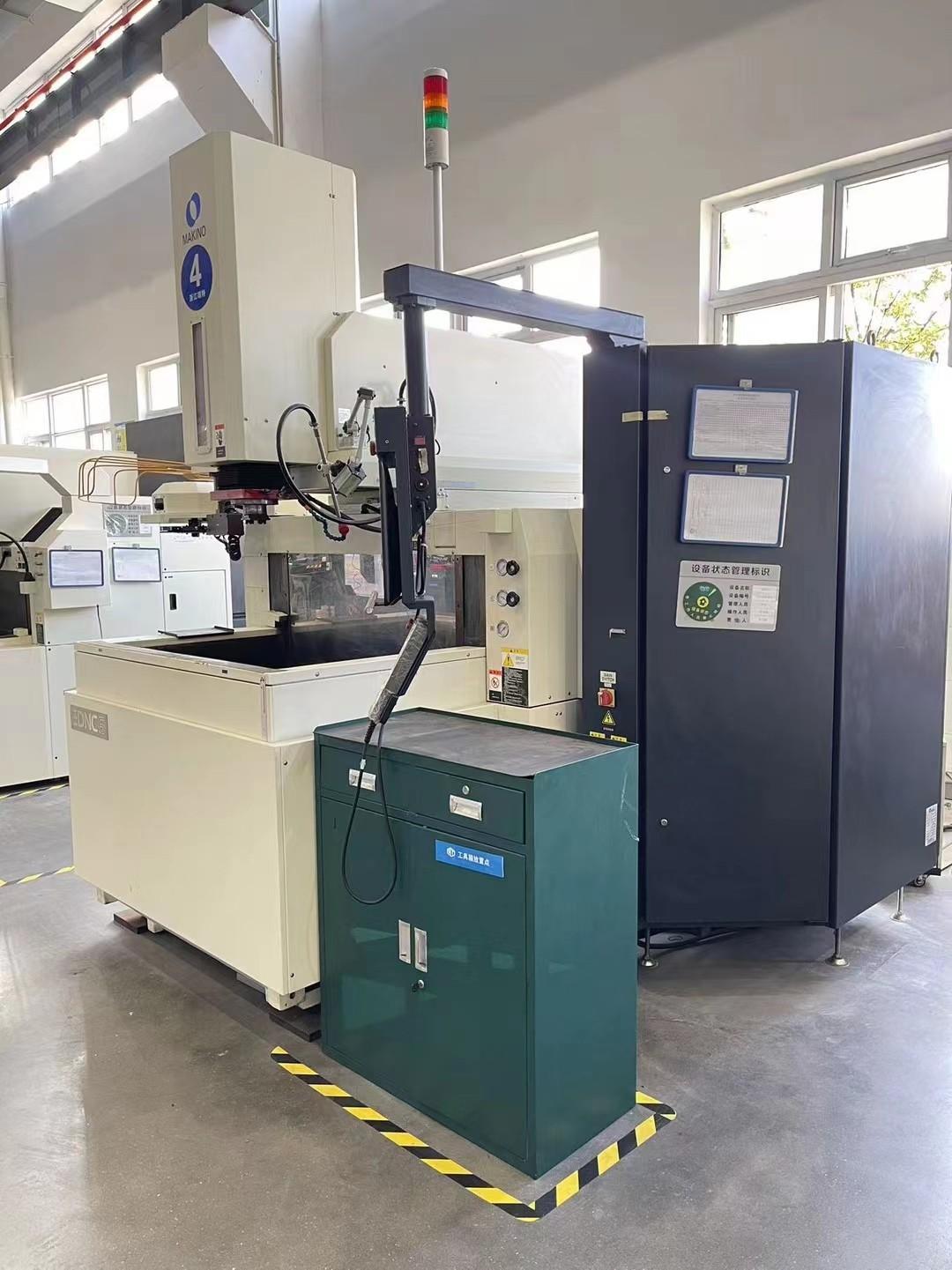

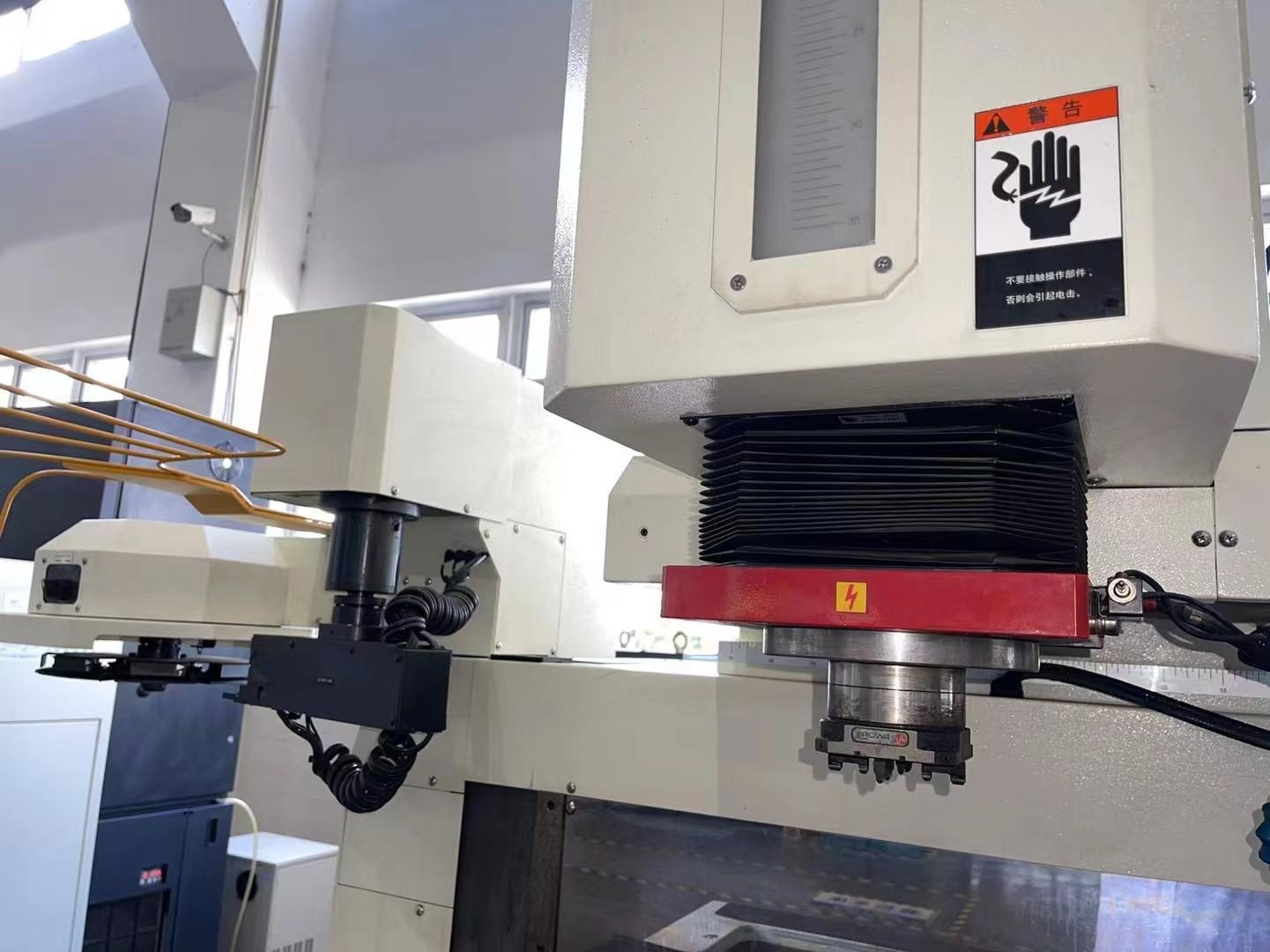

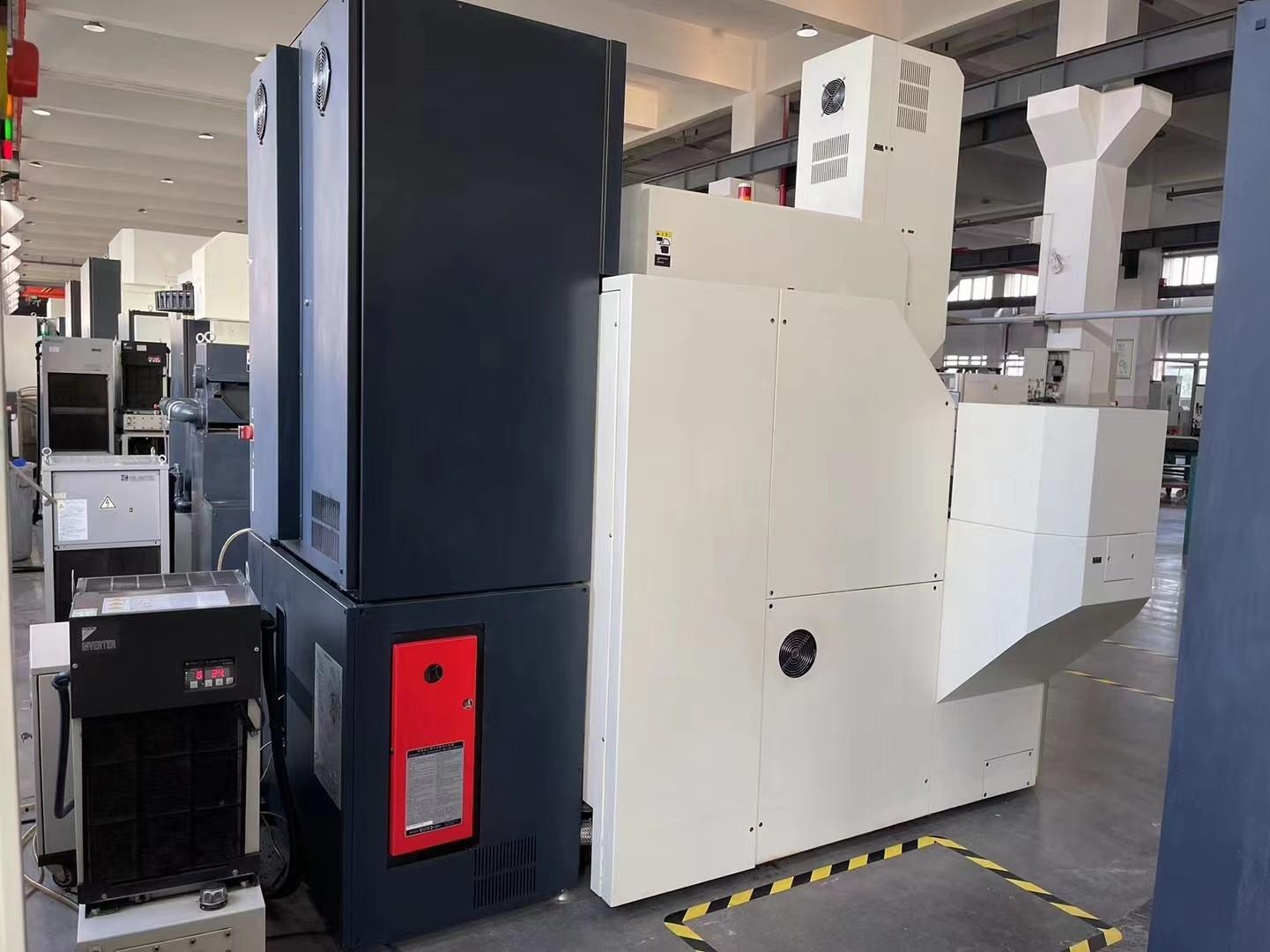

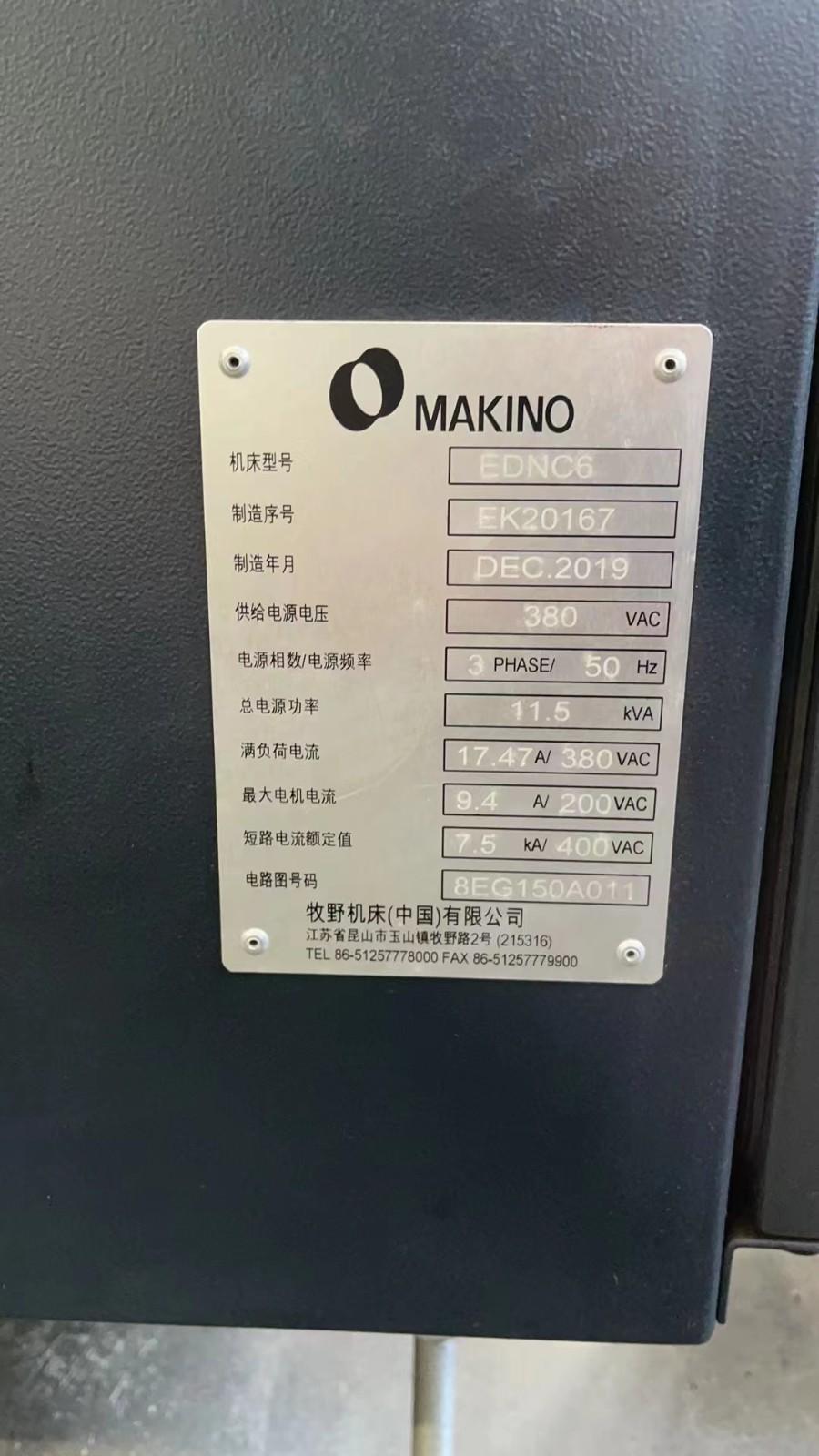

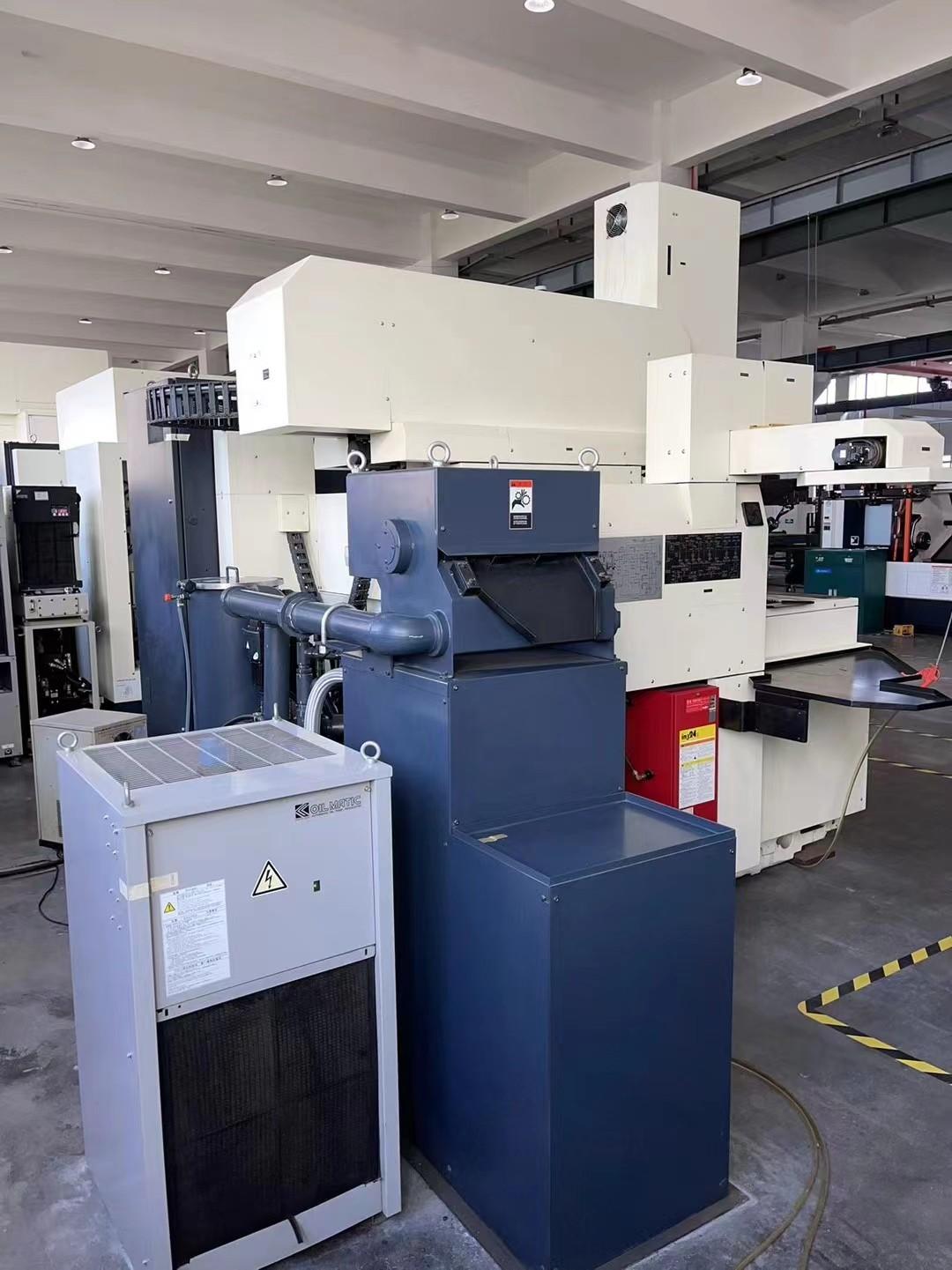

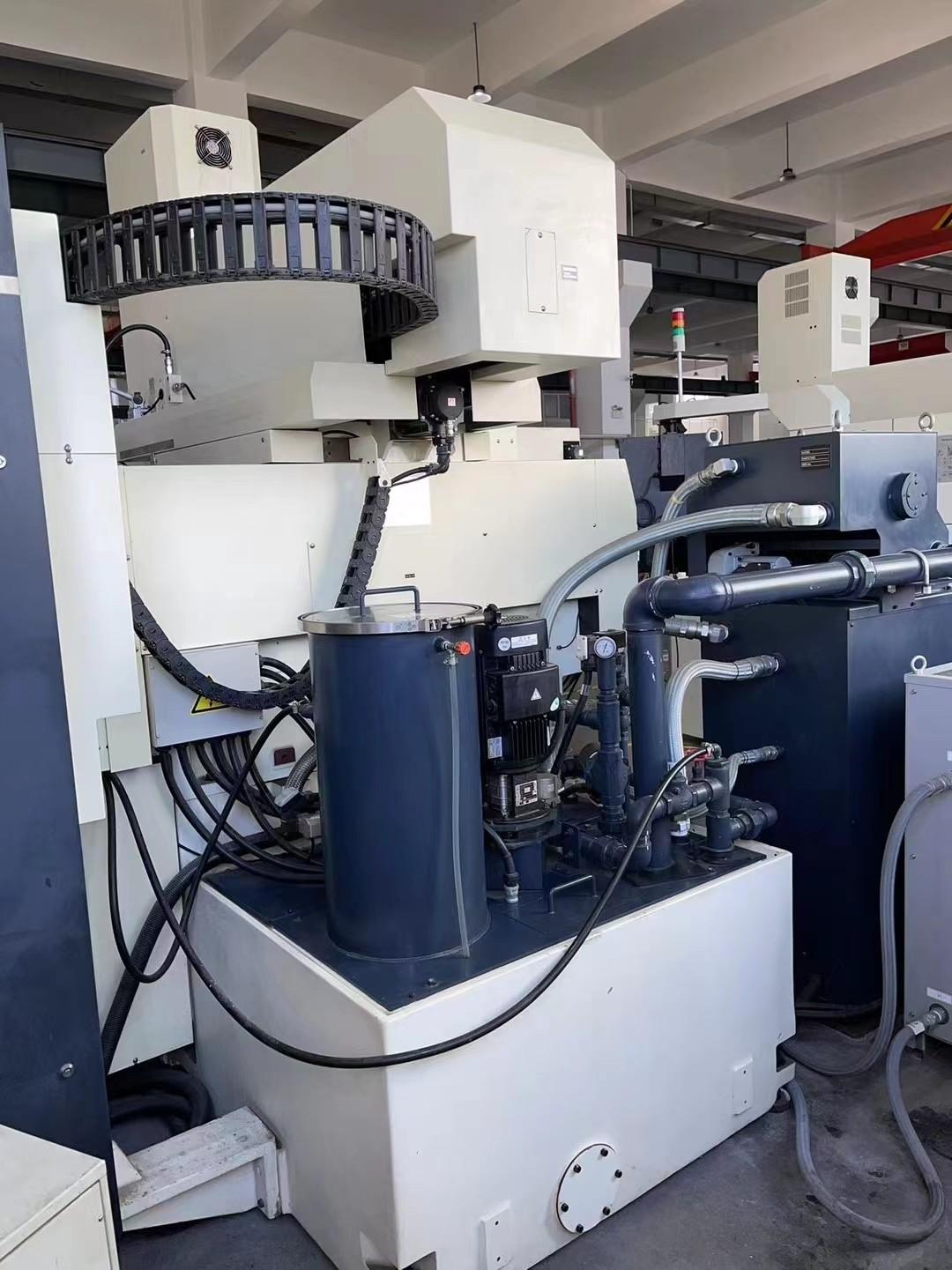

Makino EDNC6 Spark eroder

Travel (X*Y*Z) : 650*450*350mm

Working tank internal size(W*D*H):1100*750*450mm

Maximum liquid level: 400mm

Worktable size: 800*550mm

Worktable height: 900mm

Maximum workpiece weight: 1500kg

Maximum electrode weight: 100kg

Machine footage (W*D*H) : 2450*2705*2690mm

Glass scale

HQSF mirror device ,containing iron chip separation

USC1 type gloss additive

Fixture set
