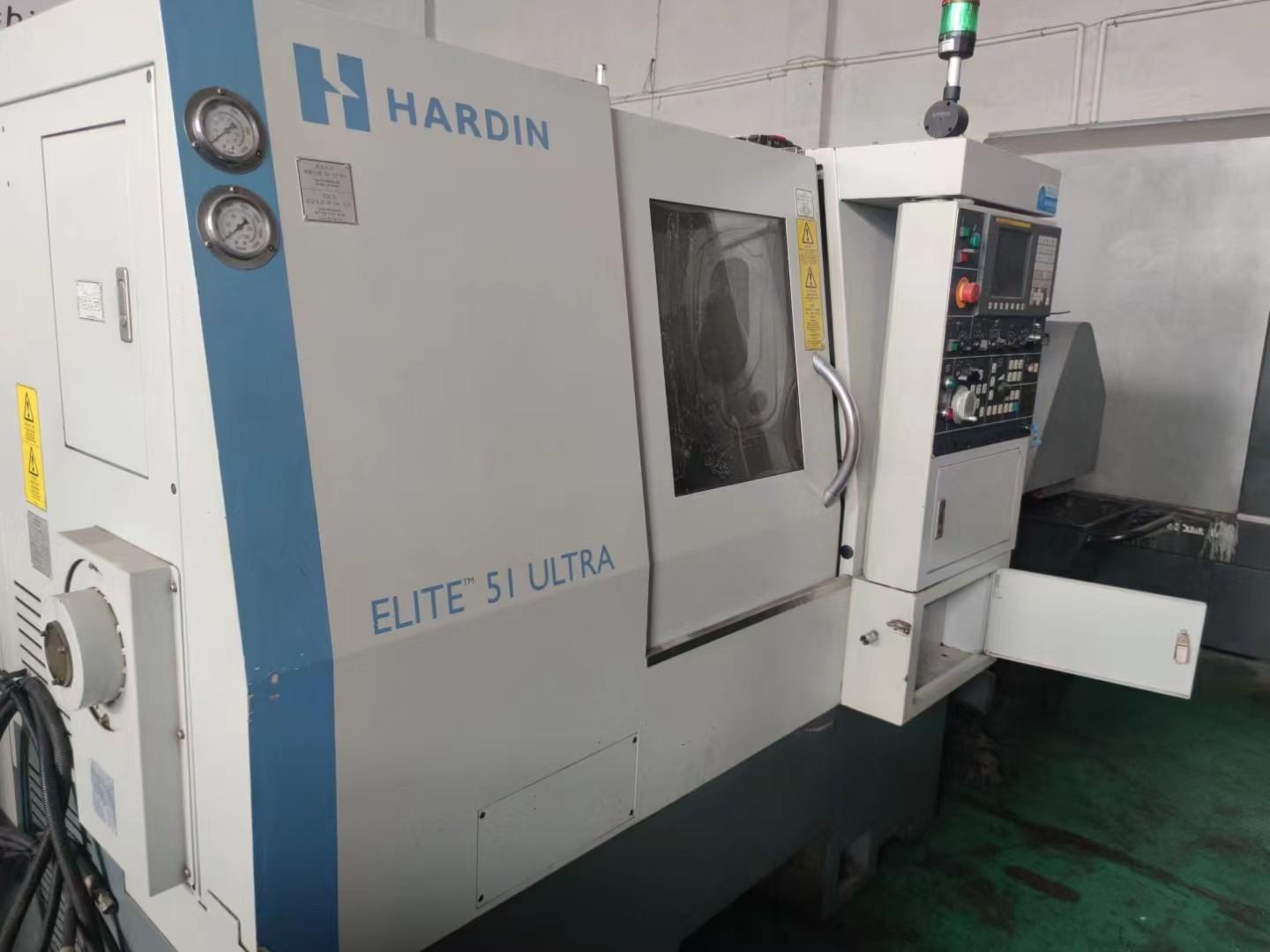

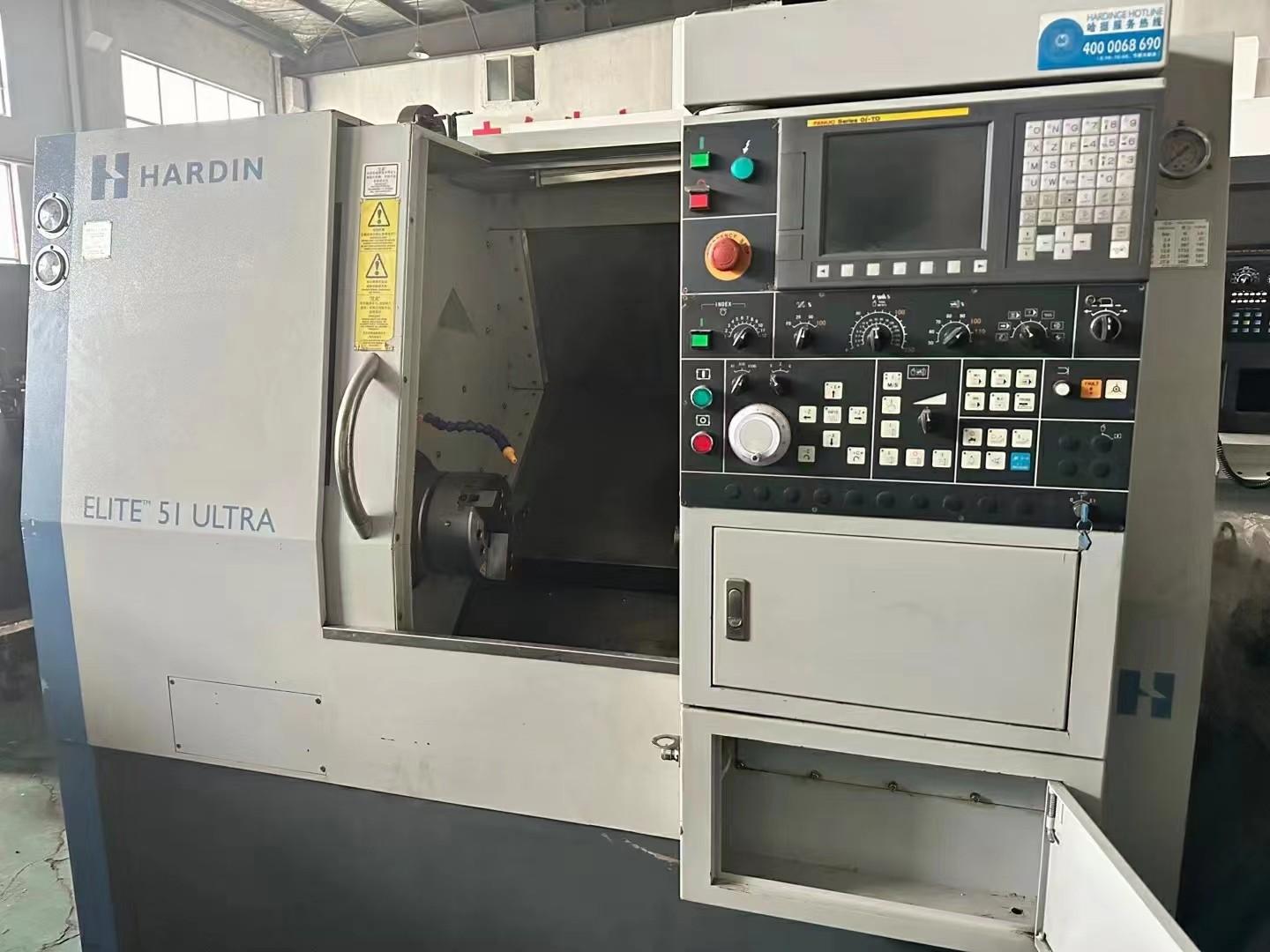

HARDINGE ELITE 51ULTRA CNC turning lathe

Maximum rotating diameter of the bed :457mm

Maximum machining diameter x length :284mmX406mm

Horizontal inclination of bed :45 degrees

X*Z axis maximum travel :153*465mm

X*Z axis fast feed rate:30*30m/min

Spindle front bearing through hole :100mm

Spindle nose type :20C, A2-

Maximum spindle torque :137.3Nm/15min

Spindle speed :5000rpm

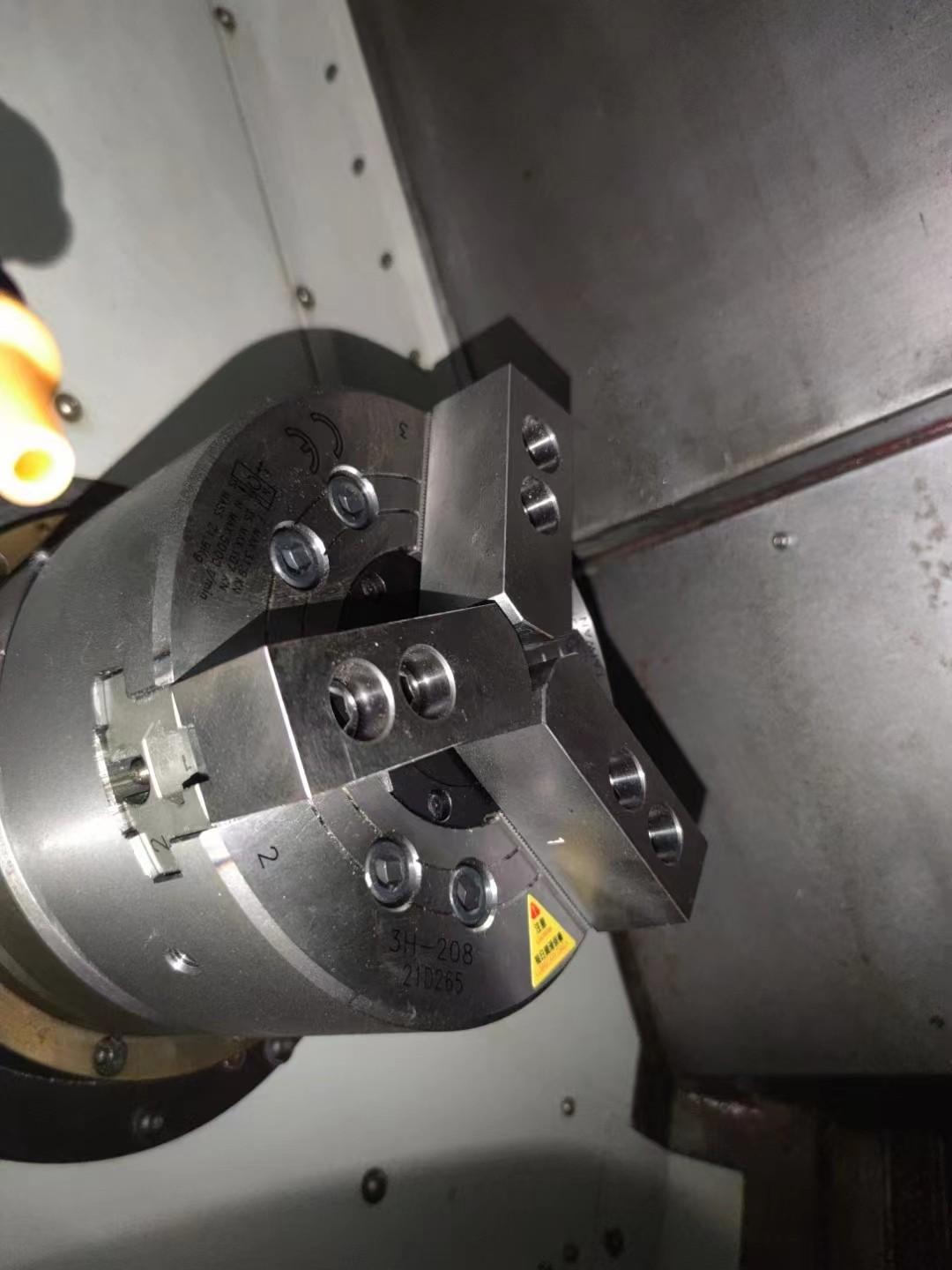

Chuck: 8 inches

Tailstock

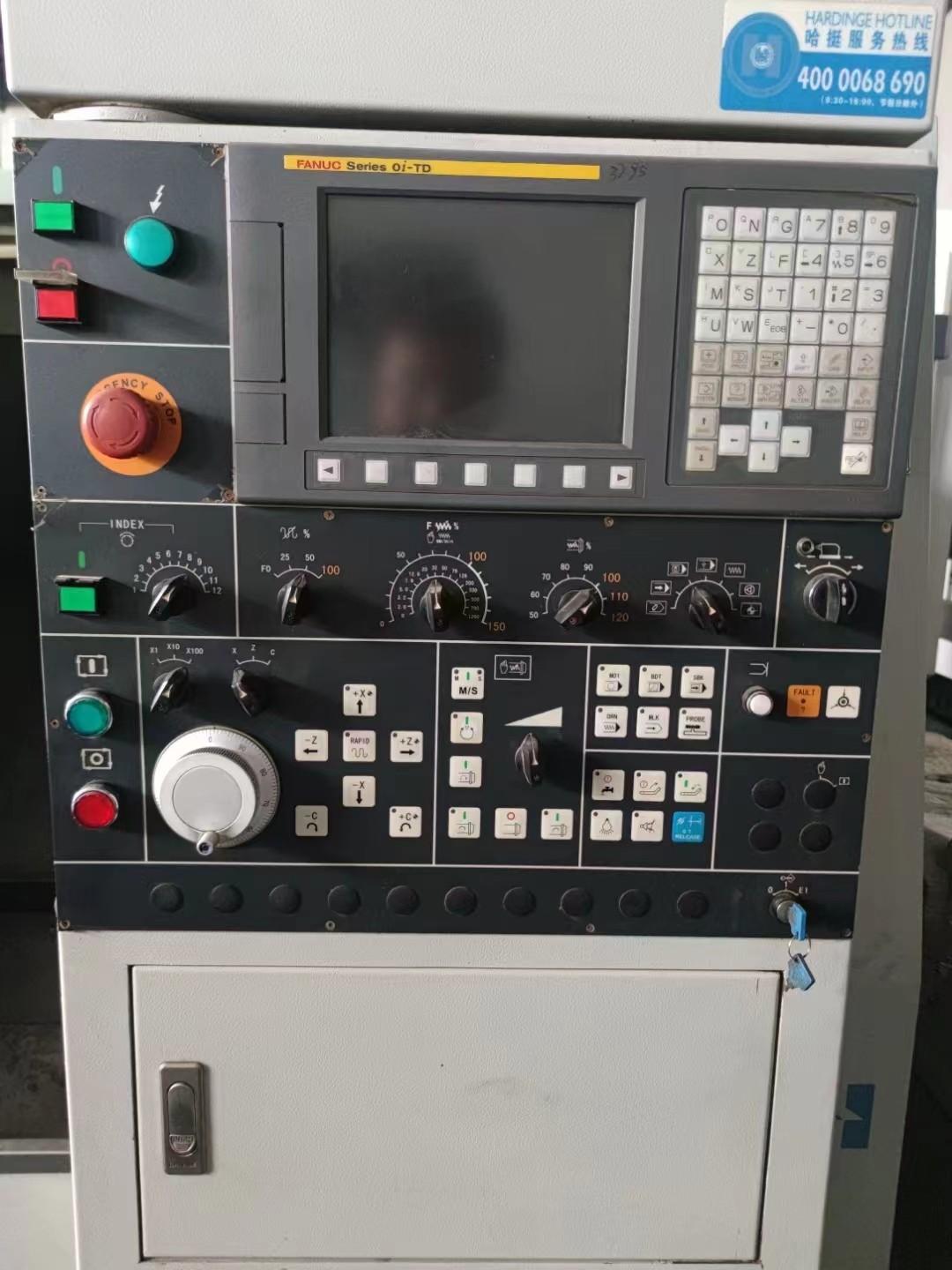

Fanuc Oi-TD system

Glass scale
