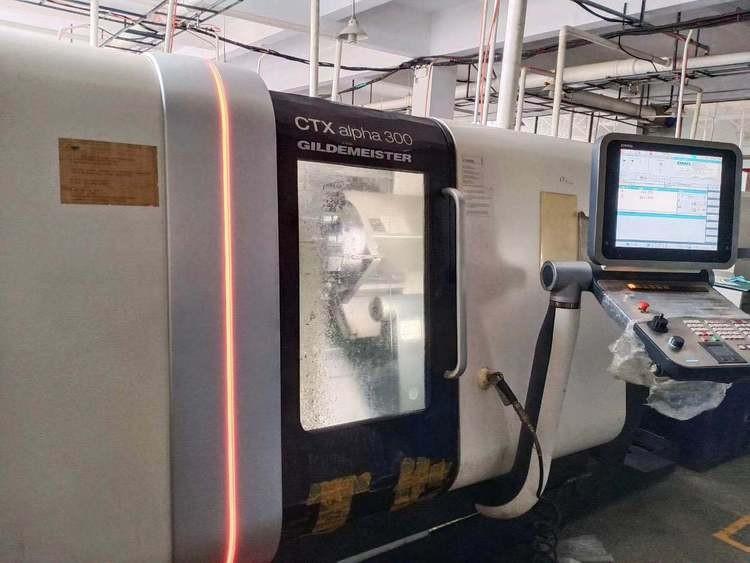

DMG SEIKI CTX alpha 300 Turn Mill Machining Centre
[Product Information]:
- Inventory number：81155
- Brand：DMG SEIKI
- Model：CTX alpha 300
- Origin：Germany
- Location：China
- Year：2007
- Create Time：2023-05-25

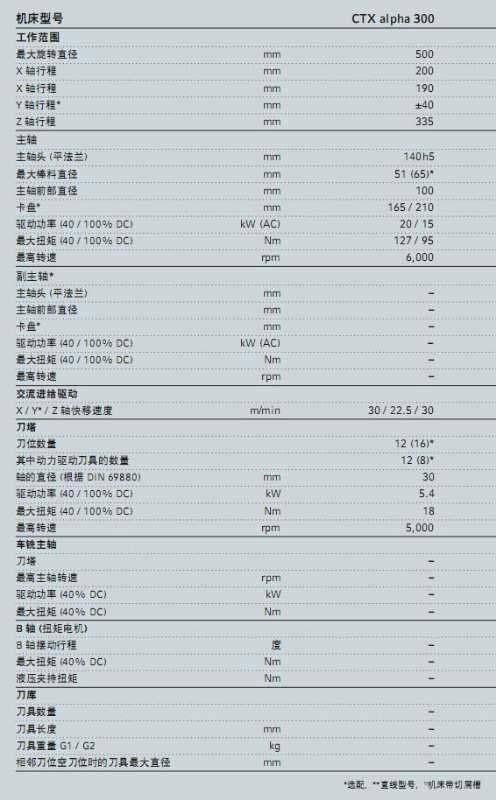

Specifications:
Three-axis travels: 200*40*335mm
Maximum rotational diameter 500mm
Spindle head (flat flange) 140h5mm
Maximum bar diameter 51mm
Spindle front diameter 100mm
Spindle driving power (40/100%DC ) 20/15kW
Maximum spindle torque (4D/100MDC) 127/95Nm
Maximum spindle speed 6000 RPM
X/Y/Z axes fast moving rate 30/22.5/30 m/min

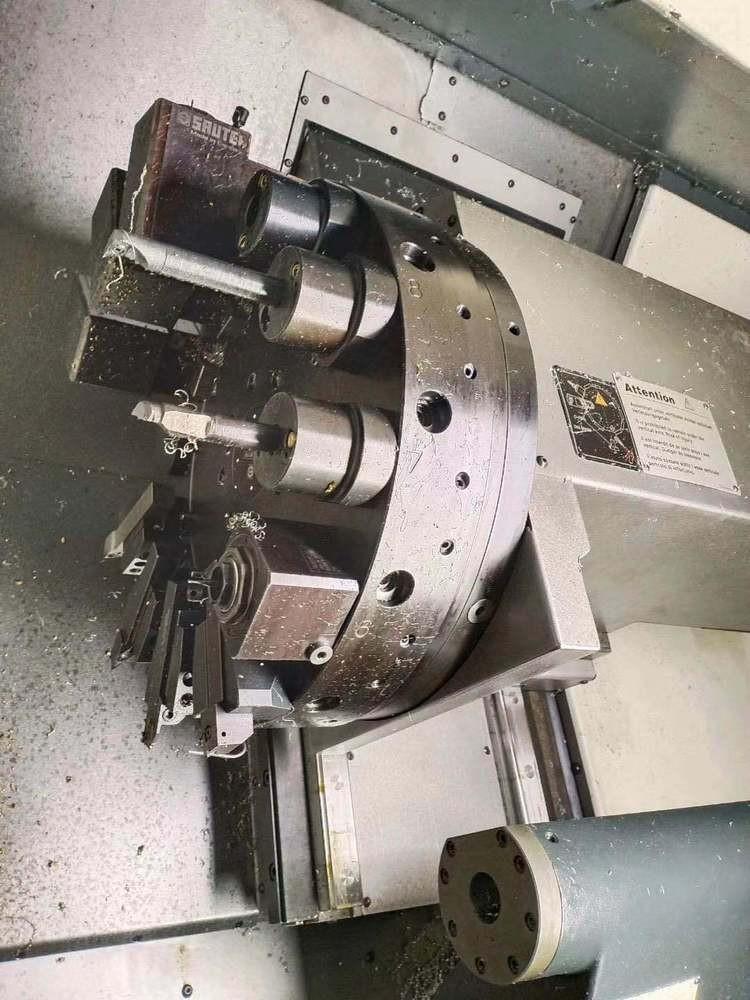

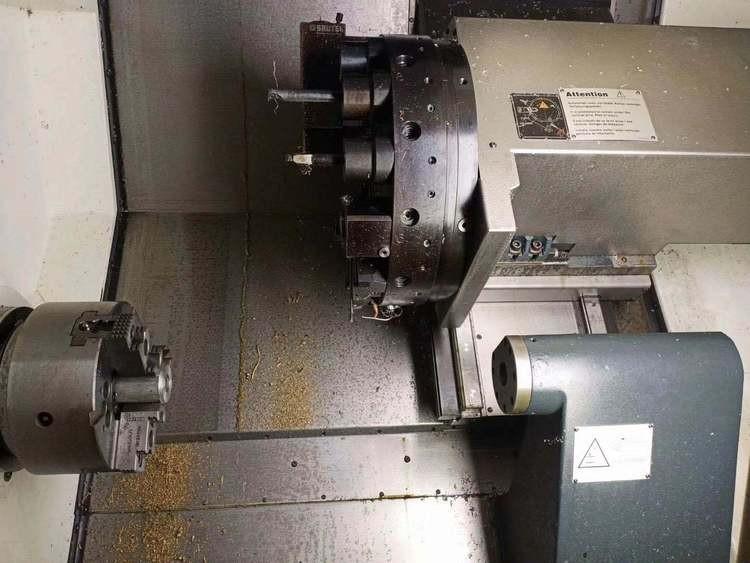

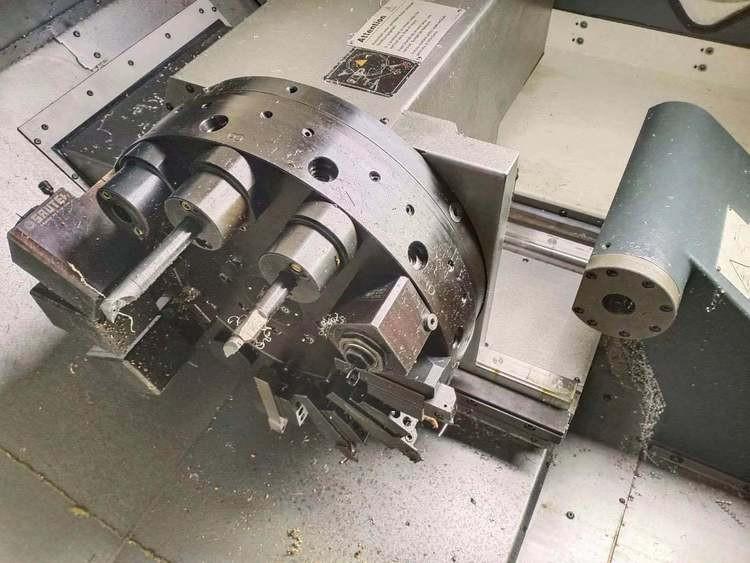

12 positions turret
Y axis
