Hwacheon HI-TECH 250B Turn Mill Machining Centre
[Product Information]:
- Inventory number：4812290
- Brand：Hwacheon
- Model：HI-TECH 250B
- Origin：South Korea
- Location：China
- Year：2009
- Create Time：2026-07-06
Specifications:

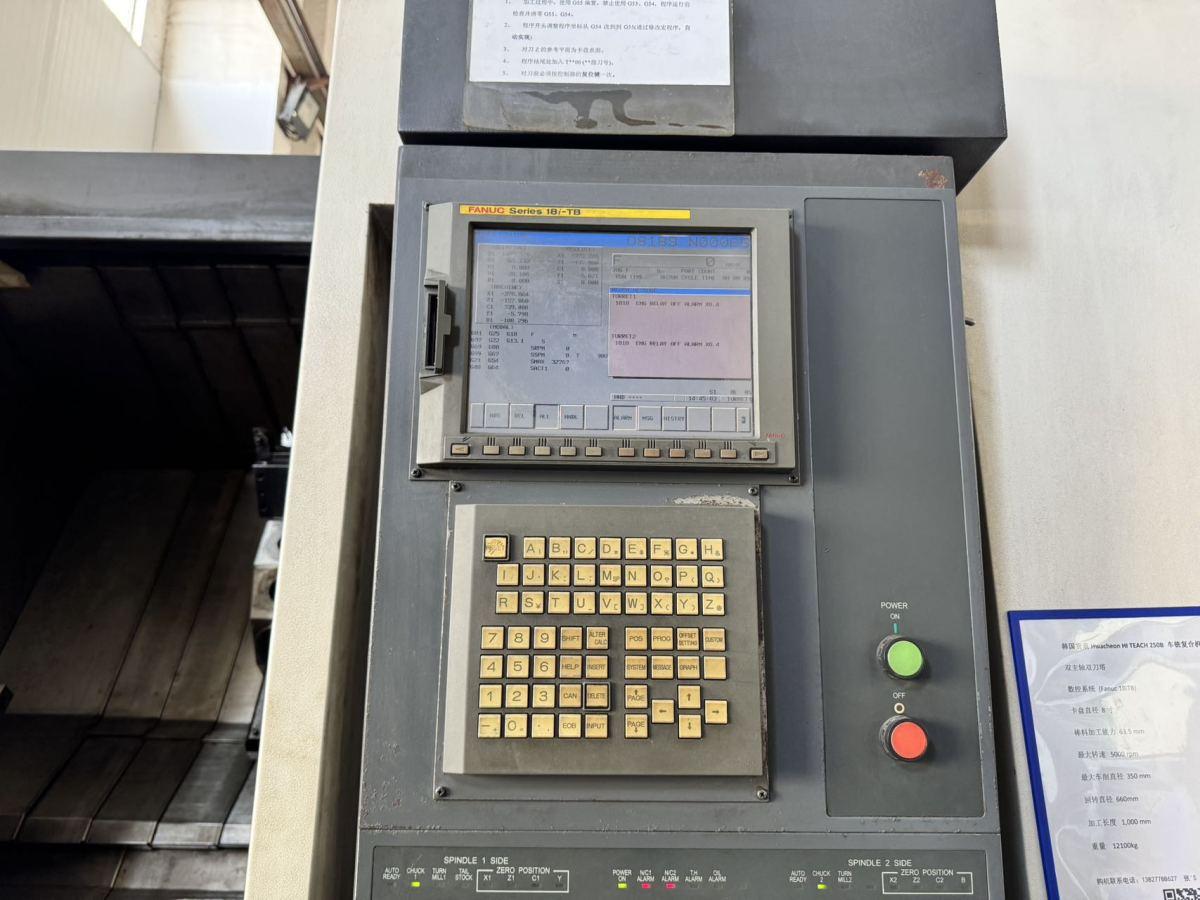

CNC System: FANUC 18i-TB
Maximum machining diameter: 350 mm
Maximum machining length: 1000 mm
Maximum swing diameter: 688 mm
Main Spindle
Chuck size: 8 inch
Max spindle speed: 5000 rpm
Spindle power: 15 kW
Max bar capacity: 63 mm
Chuck size: 6 inch
Max spindle speed: 5000 rpm
Spindle power: 11 kW
Upper turret: 12-position power turret
Lower turret: 12-position power turret
Rapid traverse: 30 m/min
Machine dimensions (L × W × H): 3100 × 2180 × 2100 mm
Machine weight: 12,100 kg
