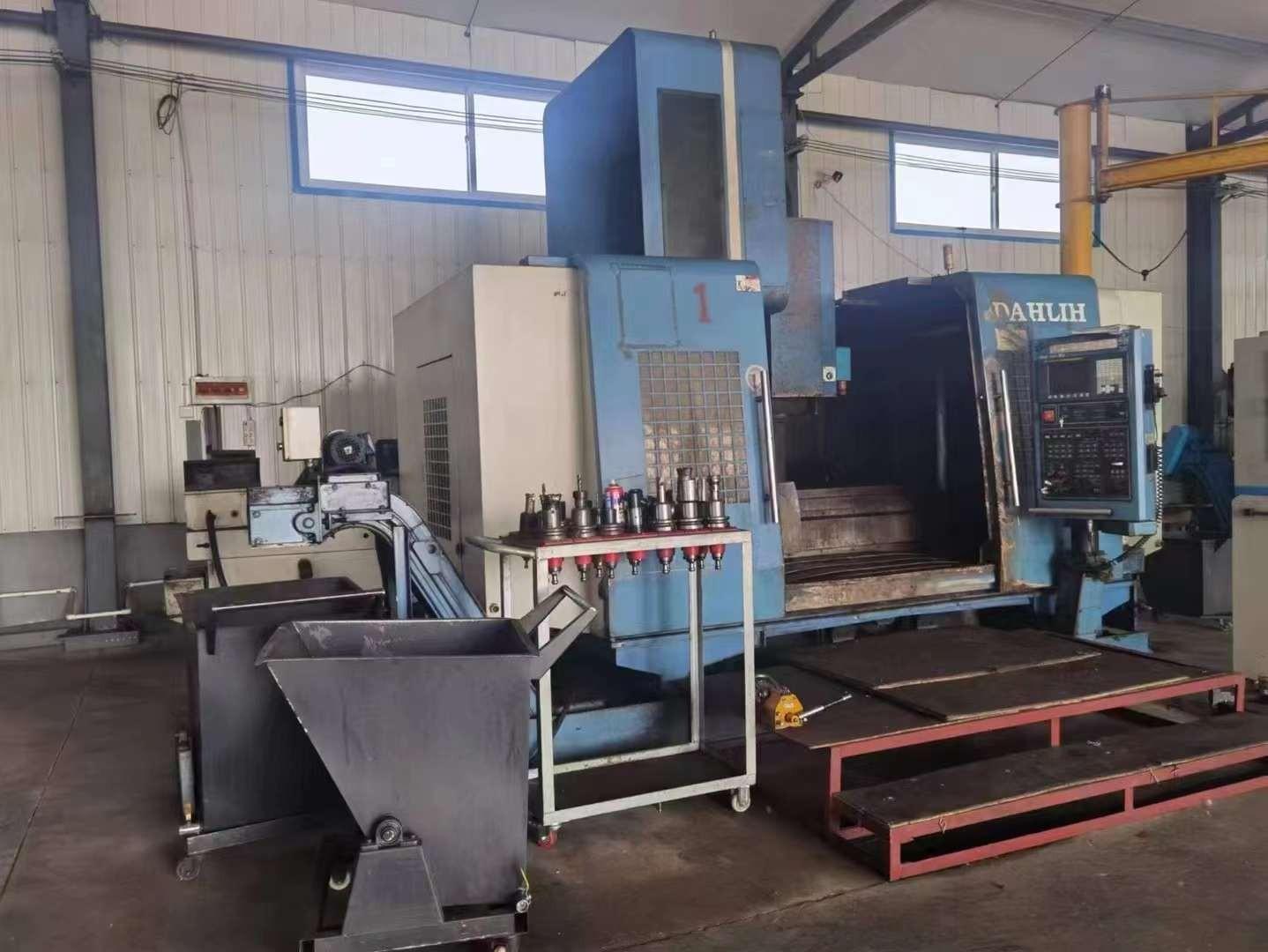

DAHLIH DL-MCV1450 Machining centre

Travels: 1450*750mm

Spindle type: BT50

Worktable size: 1600*800mm

T-slot: 22x5mm

Worktable load: 2000kg

Spindle nose to worktable distance: 200-50mm

Distance from spindle center to column guideway surface: 850mm

Spindle speed: 10000rpm

Main motor power: 11-15kw

Machine weight: 14500kg

Floor area: 5330x4150mm

Center flushing

Gear spindle

Chip conveyor
