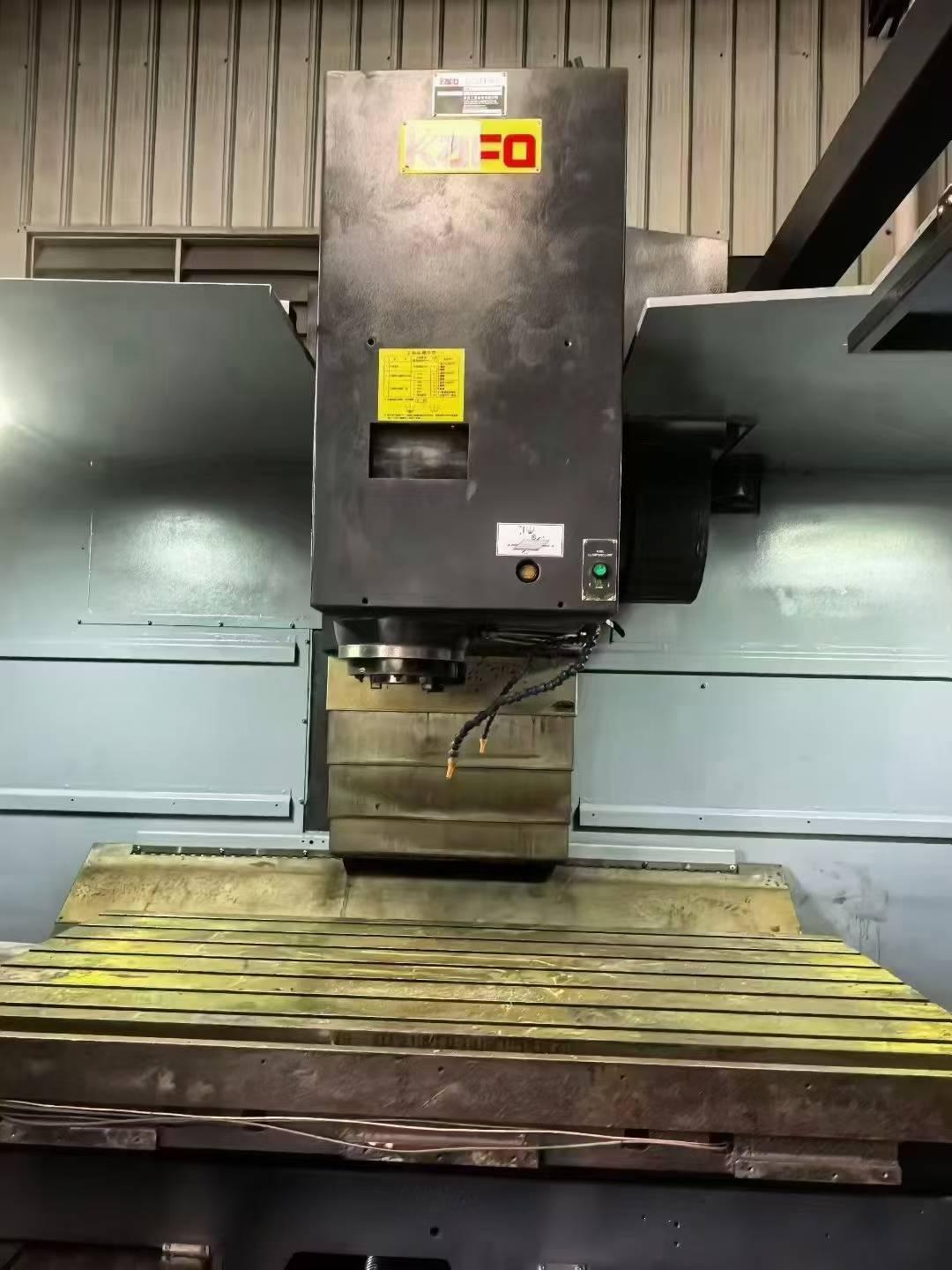

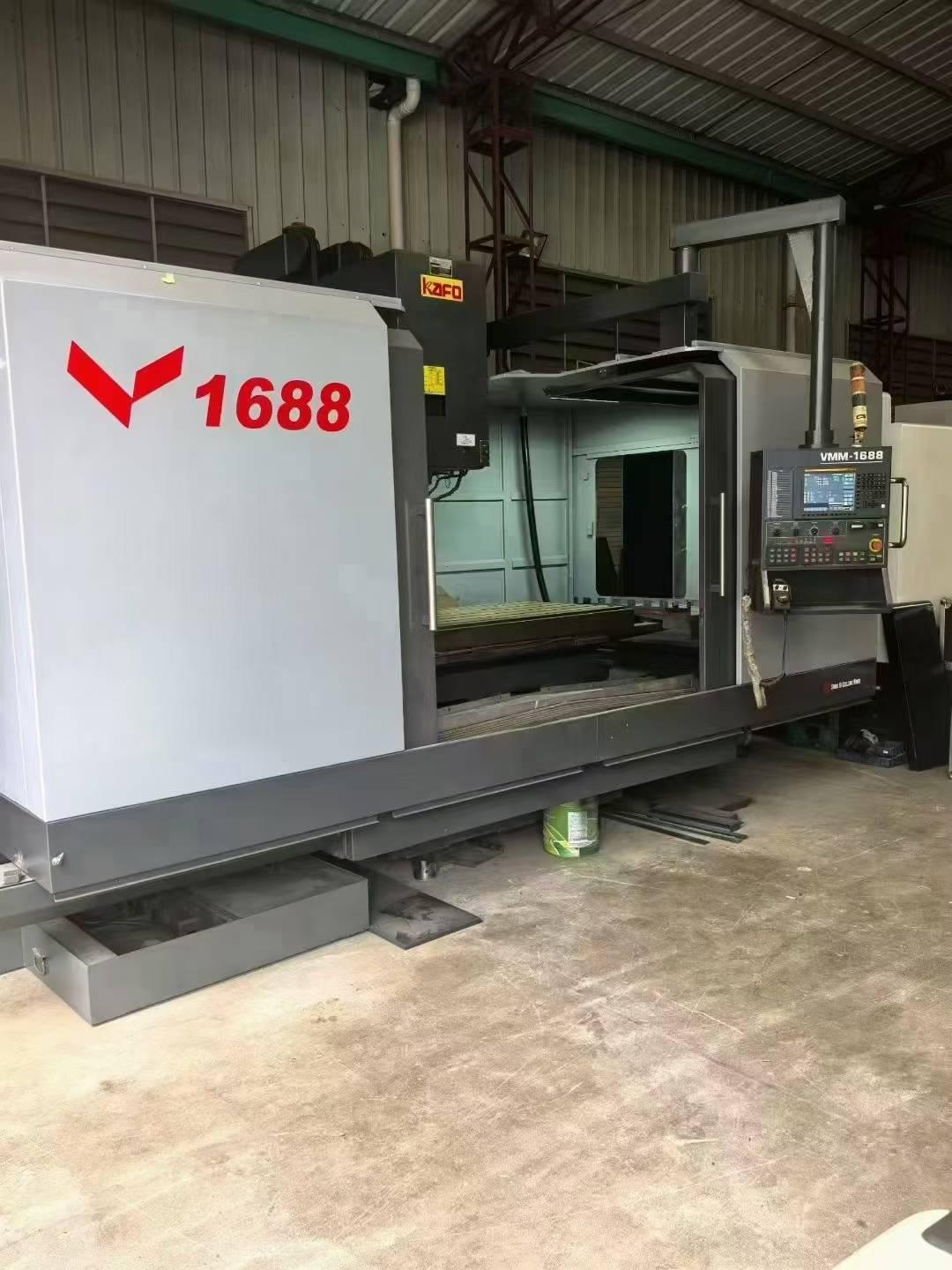

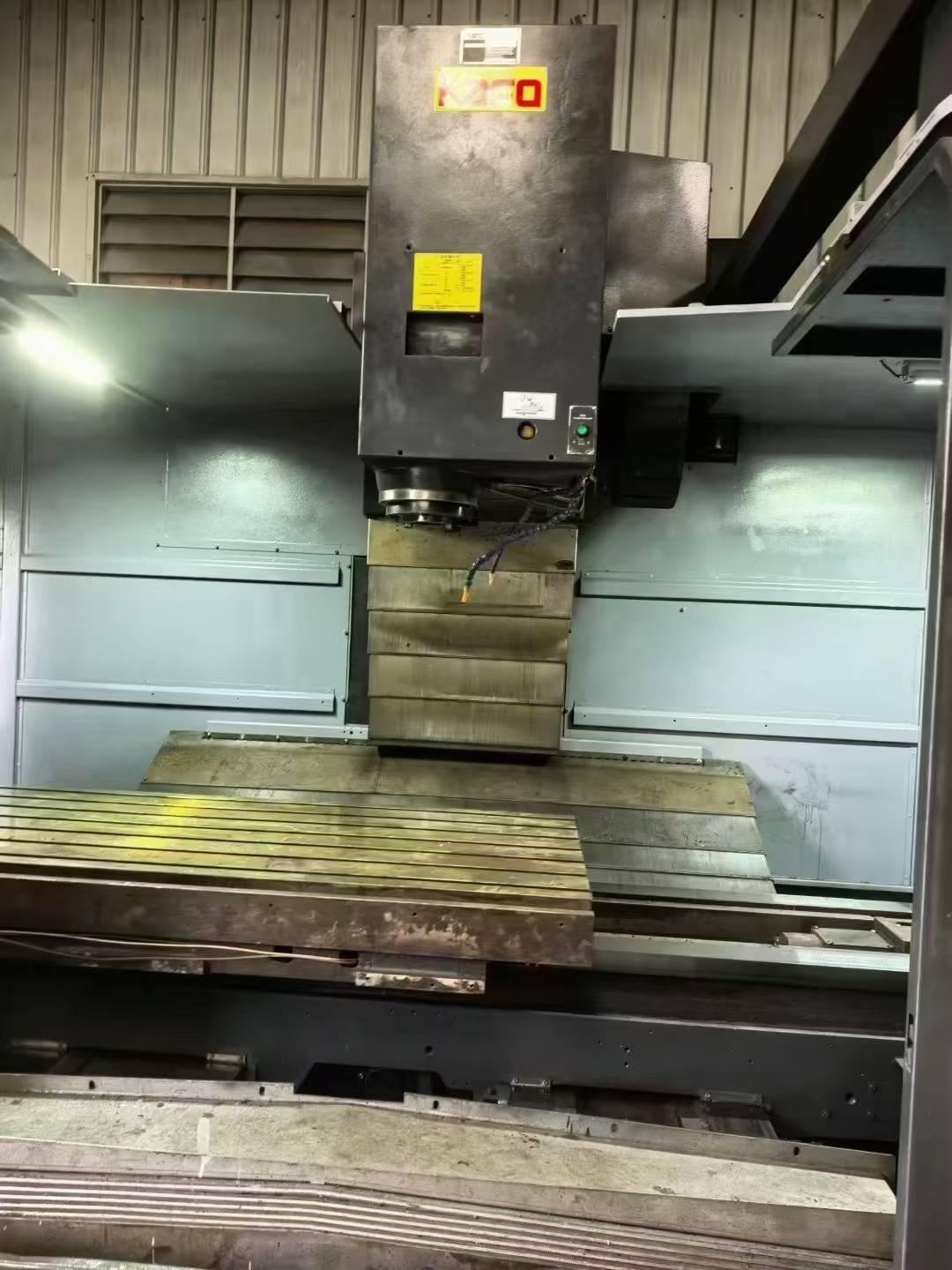

KAFO VMM-1688 Machining centre

[Product Information]:

Inventory number：67115
Brand：KAFO
Model：VMM-1688
Origin：Taiwan, China
Location：China
Year：2022
Create Time：2026-03-14

Specifications:

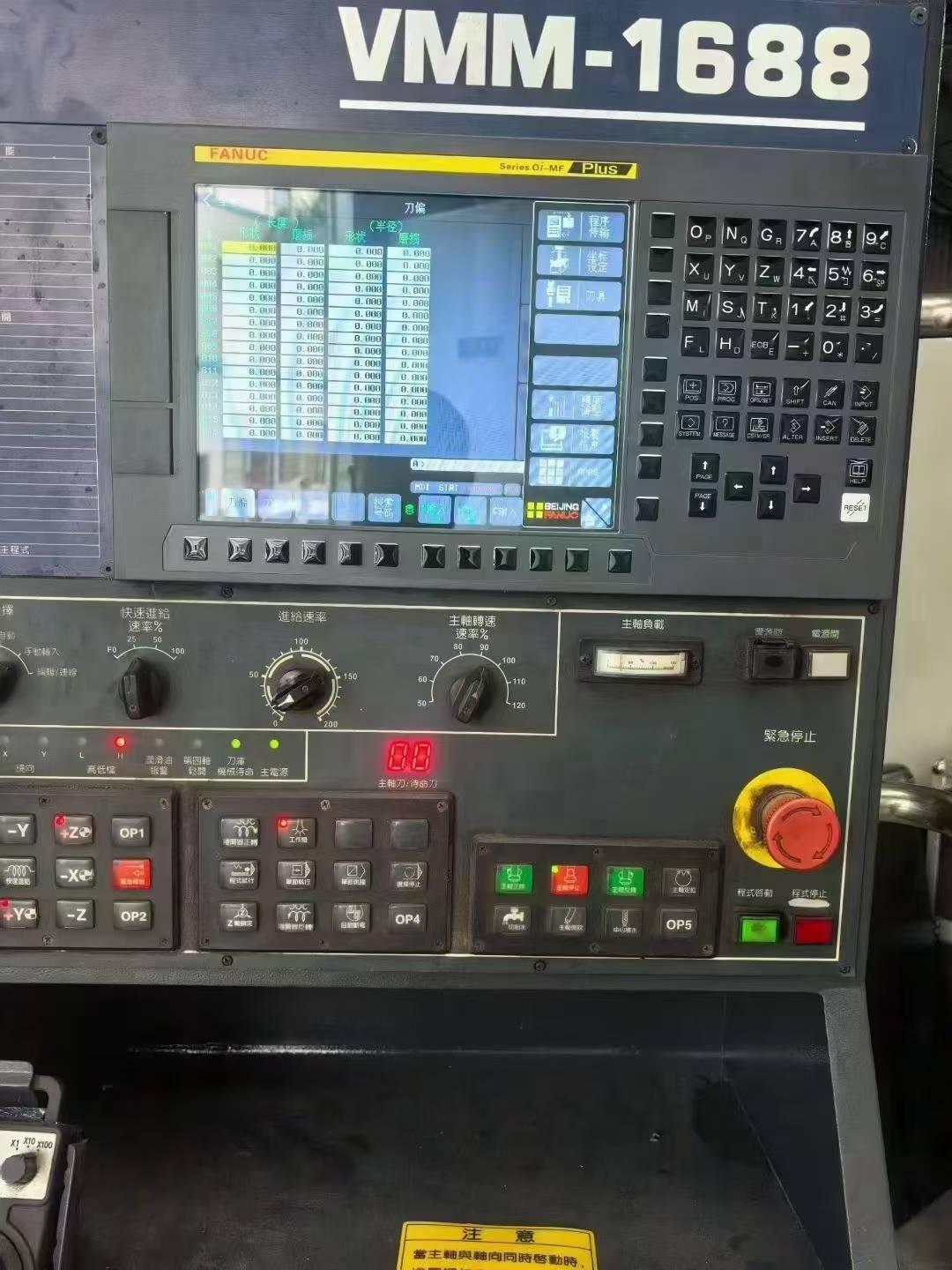

CNC System: FANUC MF plus
Worktable size: 1800*950mm
three-axis travel: 1600*880*700mm
The Fast moving rate of the X*Y*Z axis: 20*20*15m/min
Distance from spindle nose to Worktable surface: 200-900mm
Overall Footage: 3450*5317*3112mm

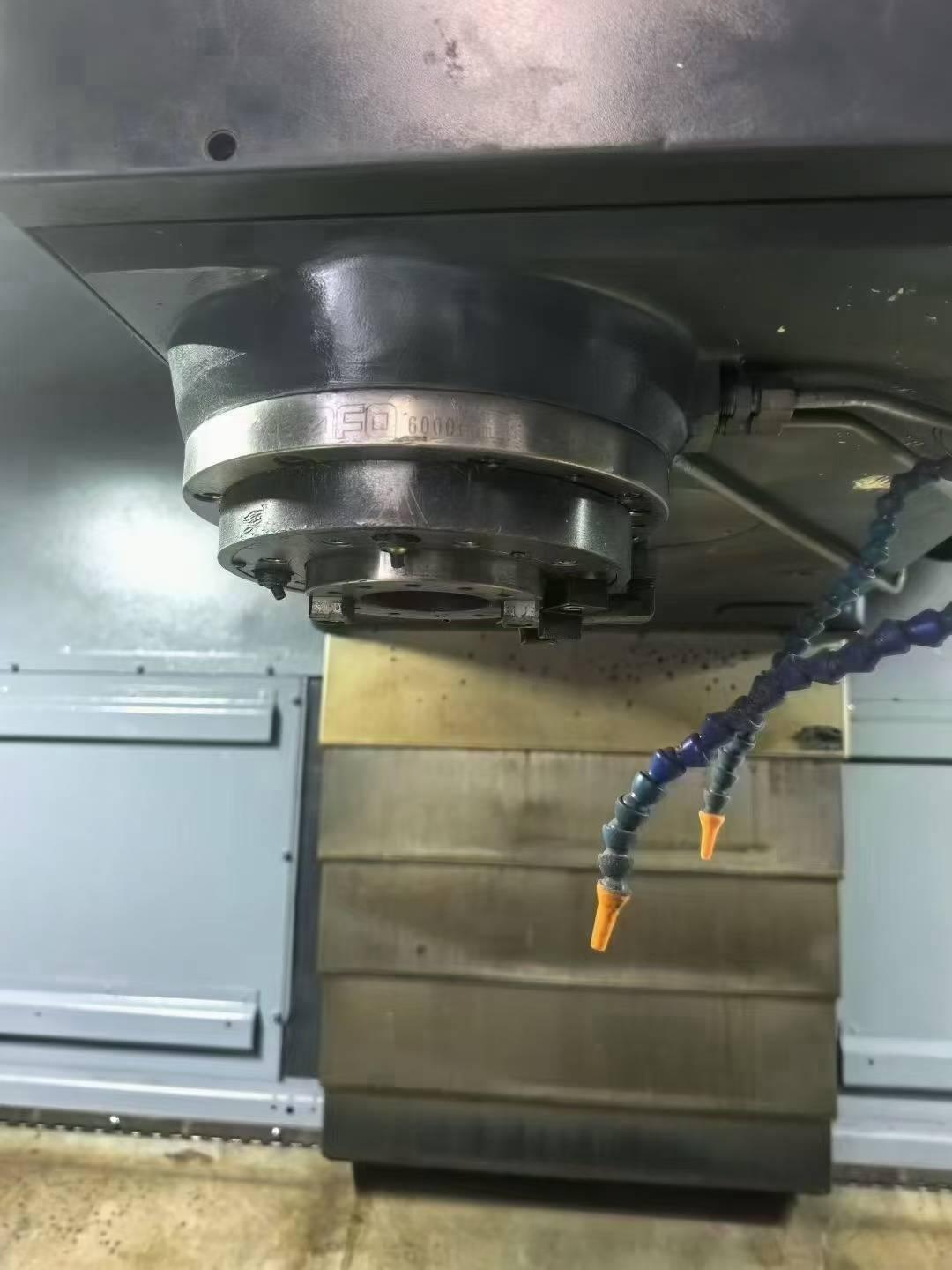

Spindle speed: 6000rpm
spindle taper: BT50

PDF Download Click to Contact Seller
