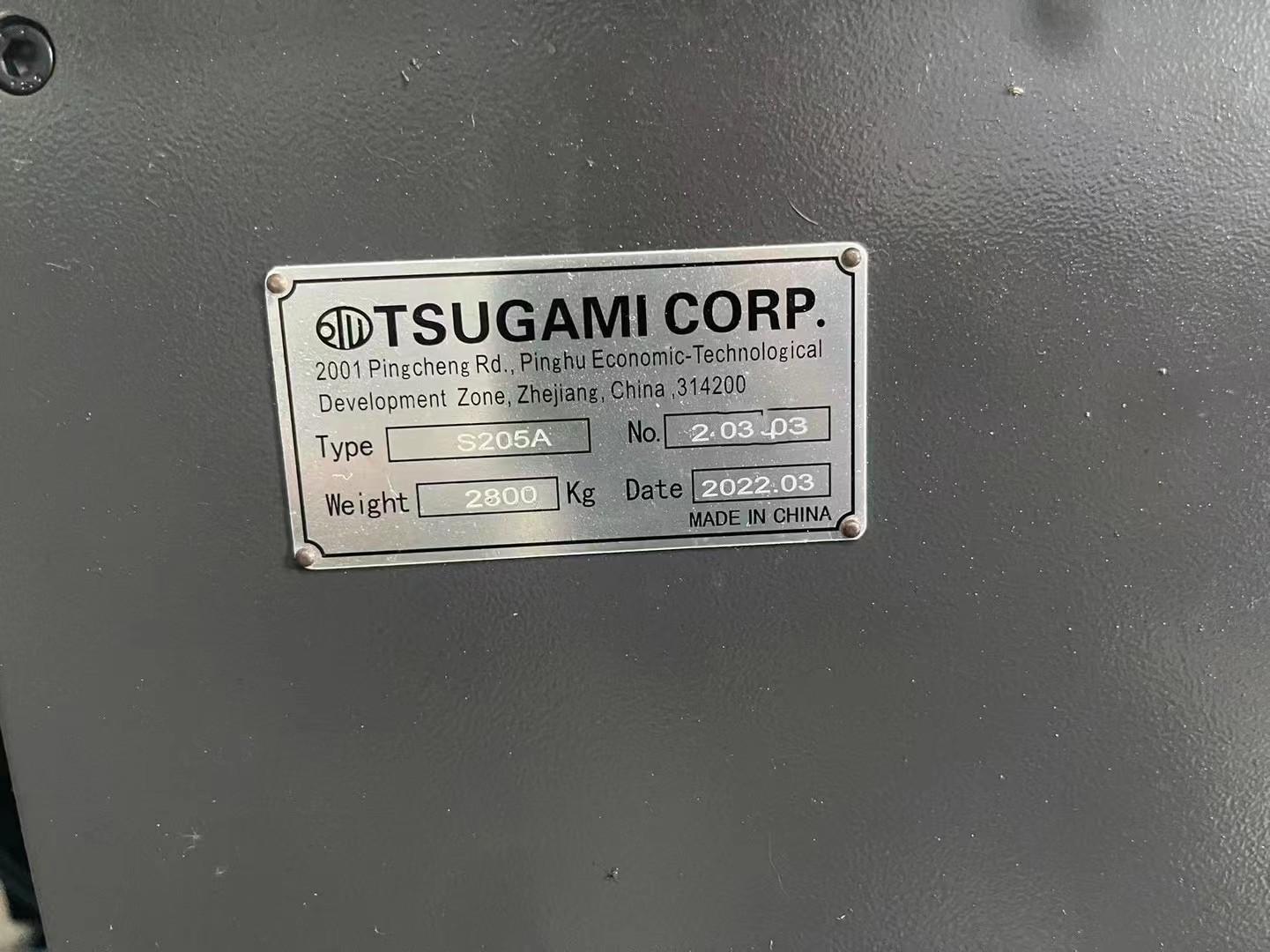

Tsugami S205A Lathe

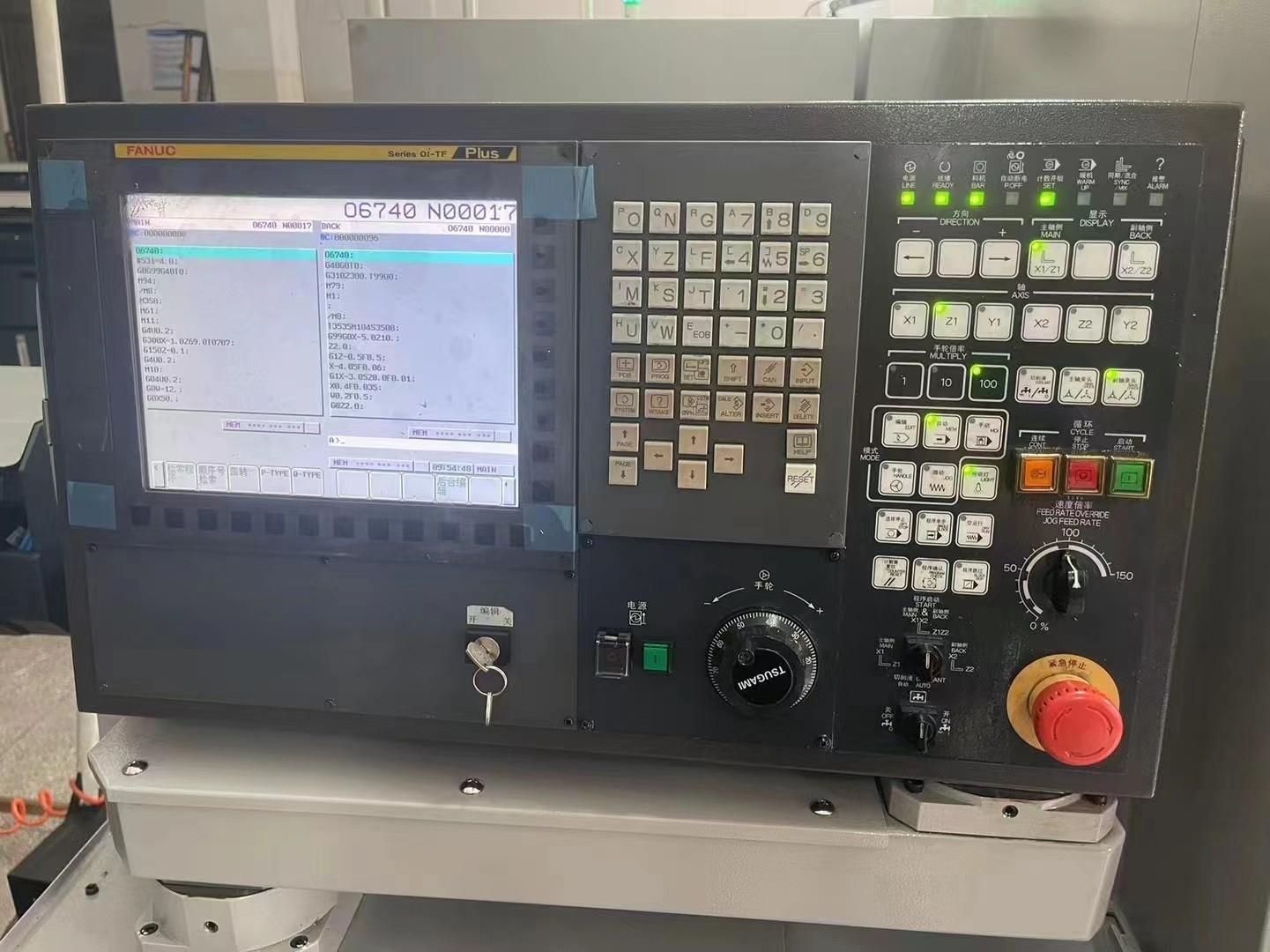

System Fanuc 0i-TF Plus

Maximum spindle speed 10000rpm

Maximum back-spindle speed 12000rpm

Maximum machining diameter  20mm

Maximum machining length   250mm

Main motor power   2.2 kw

Maximum turning diameter over bed   20mm

Spindle through hole diameter 20mm

Overall footage (length × width × height)  2110*1200*1885mm

Machine tool weight 3200kg;

Rotate guide sleeve 135

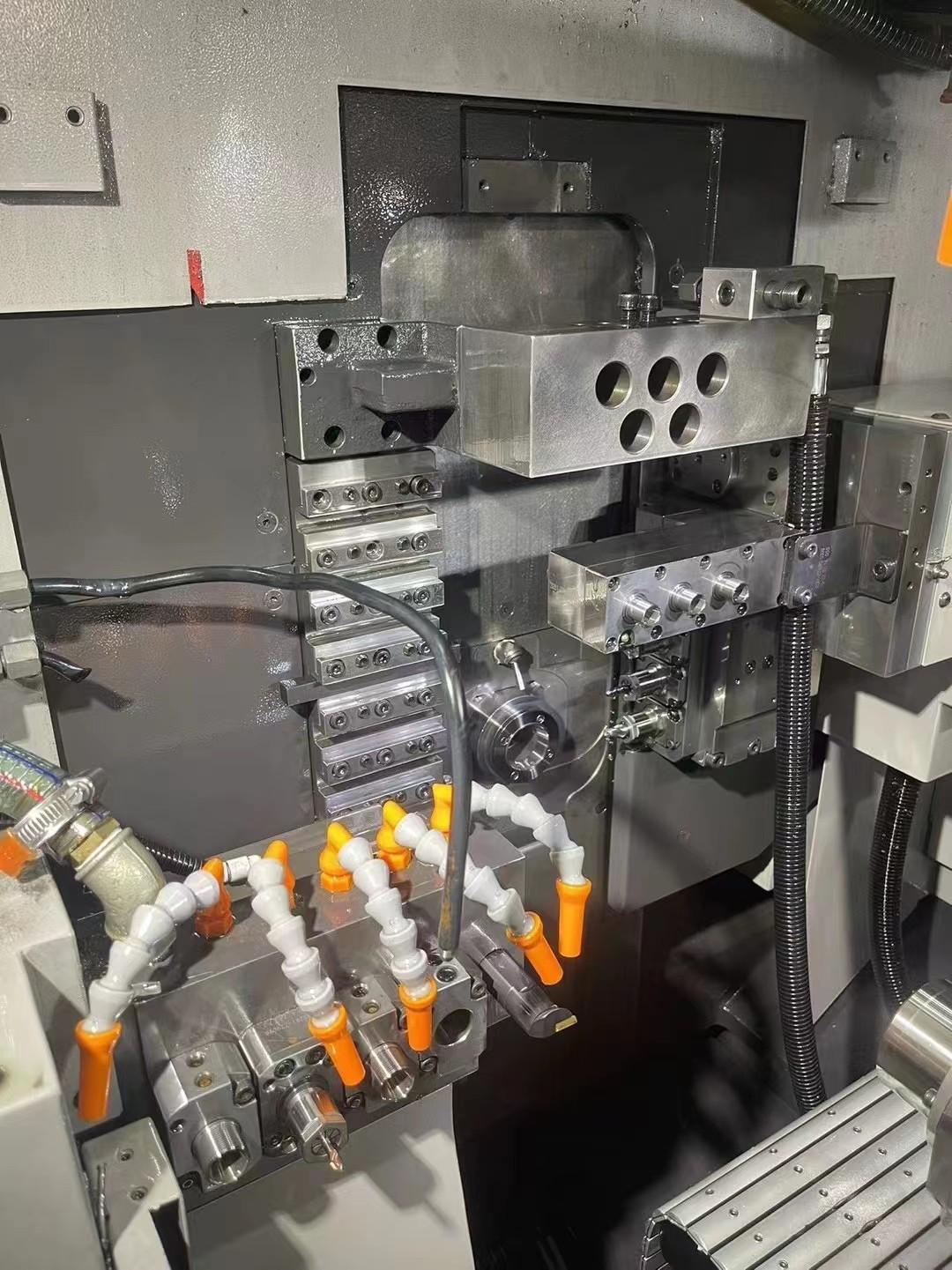

4 axes side milling power head

Two-way surface power head

High pressure pump

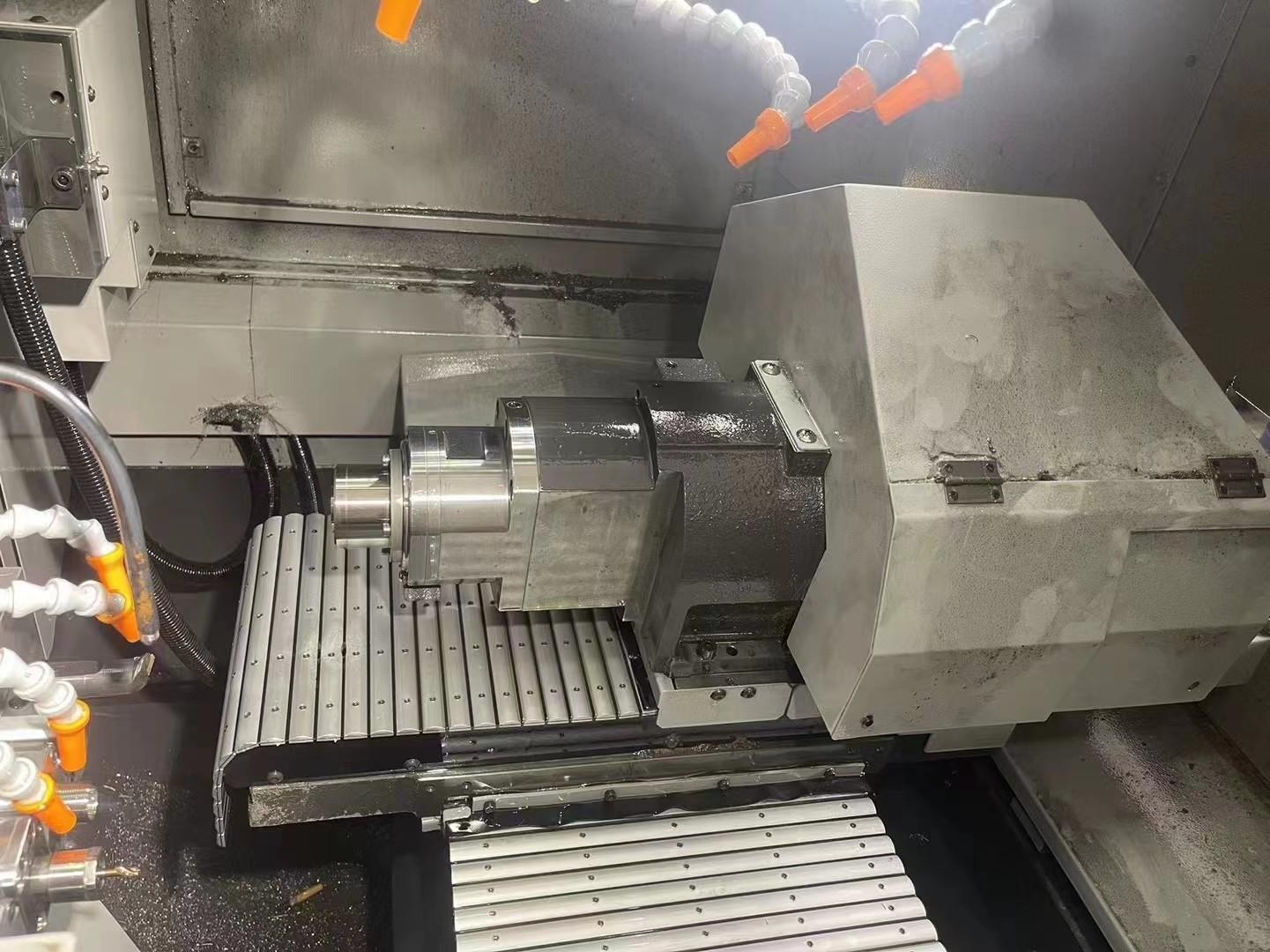

2 power heads on the back

Fixed back drilling head

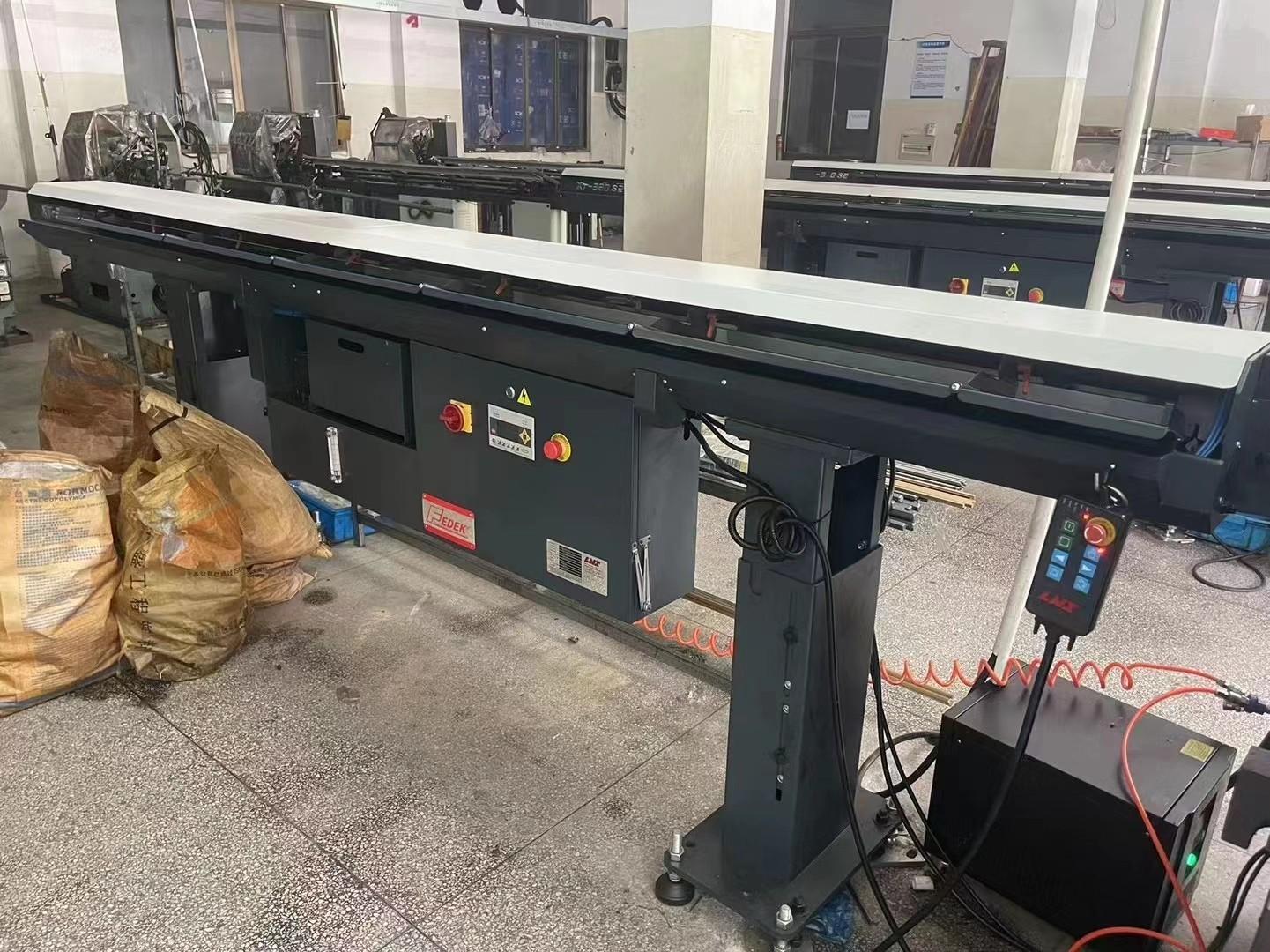

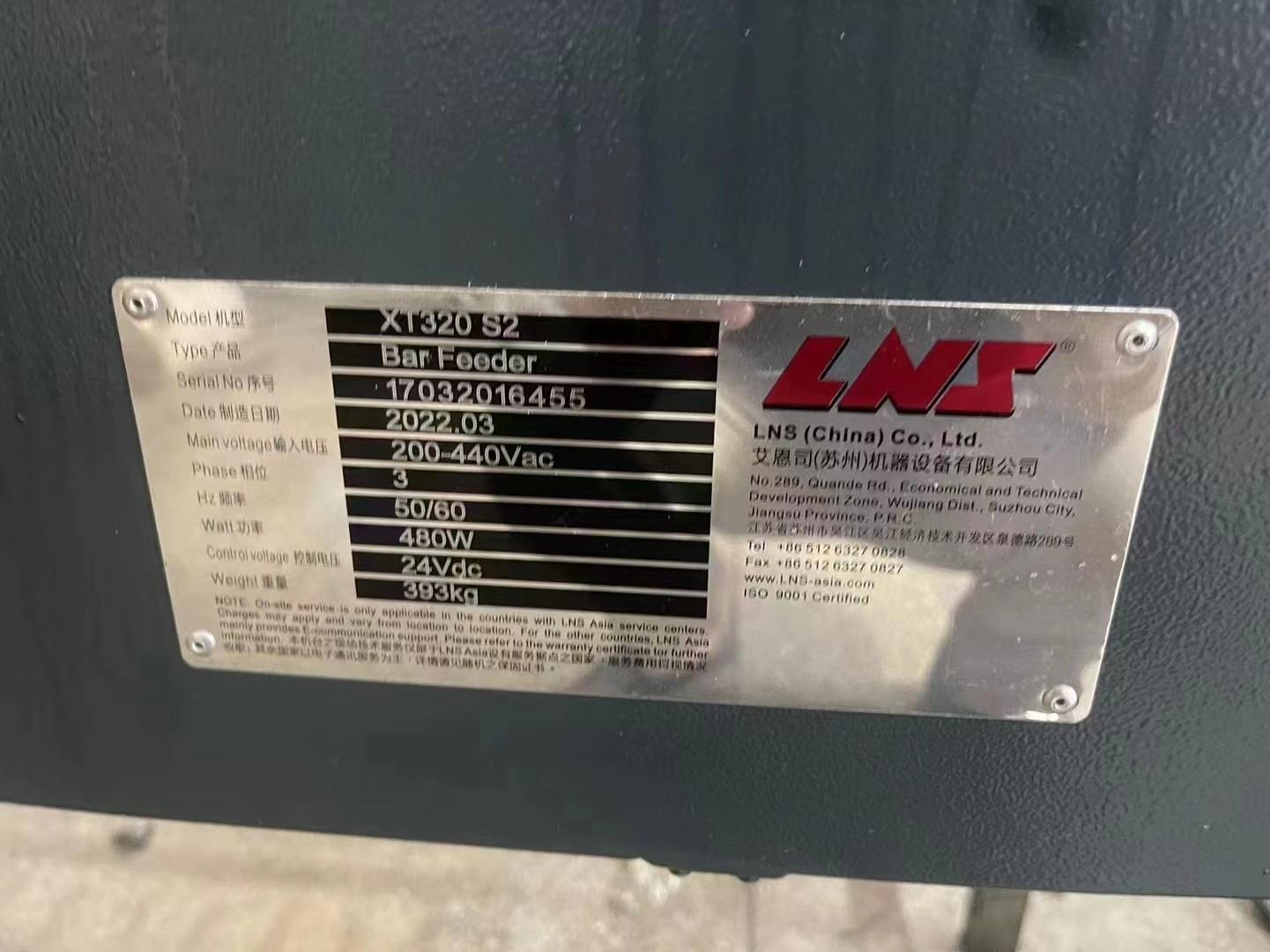

Bar feeder
