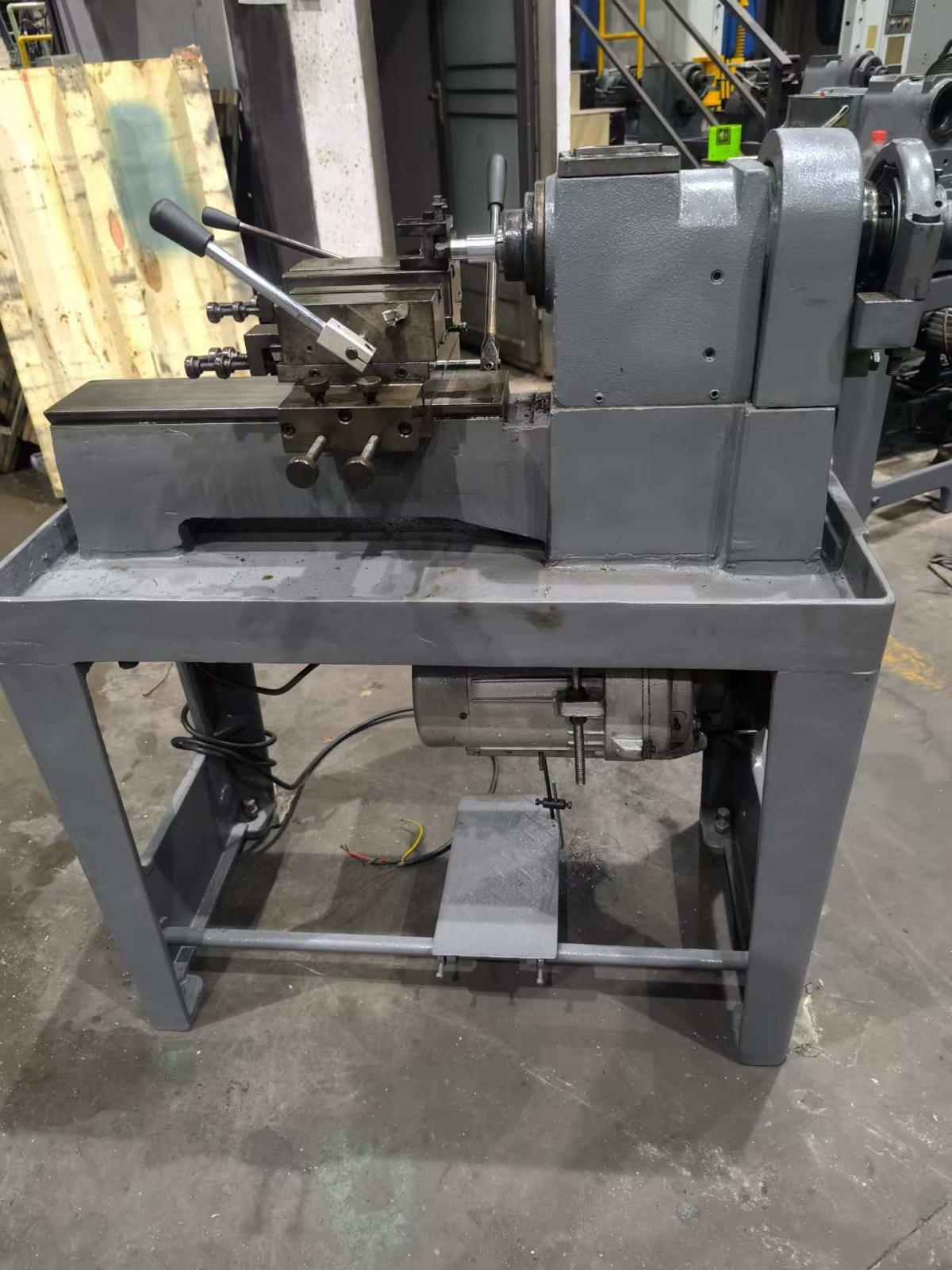

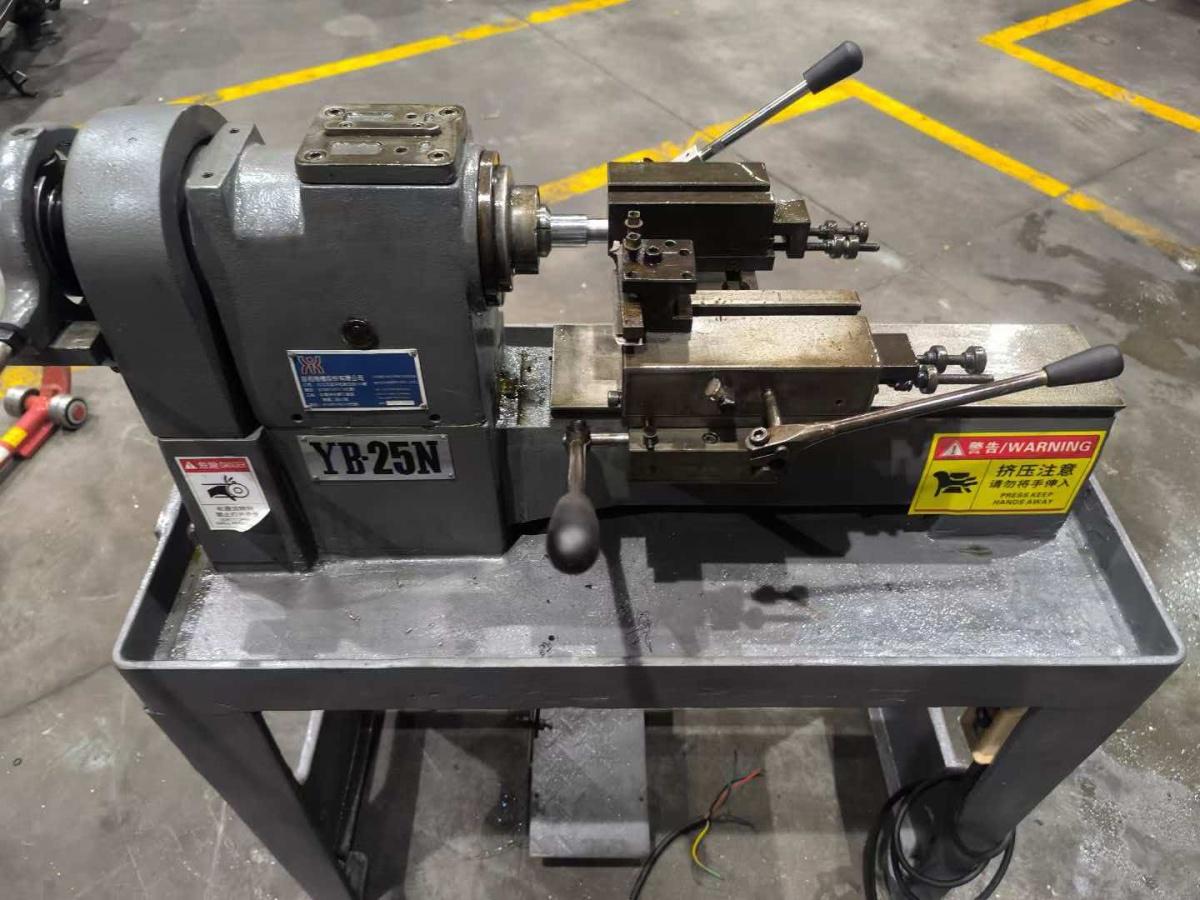

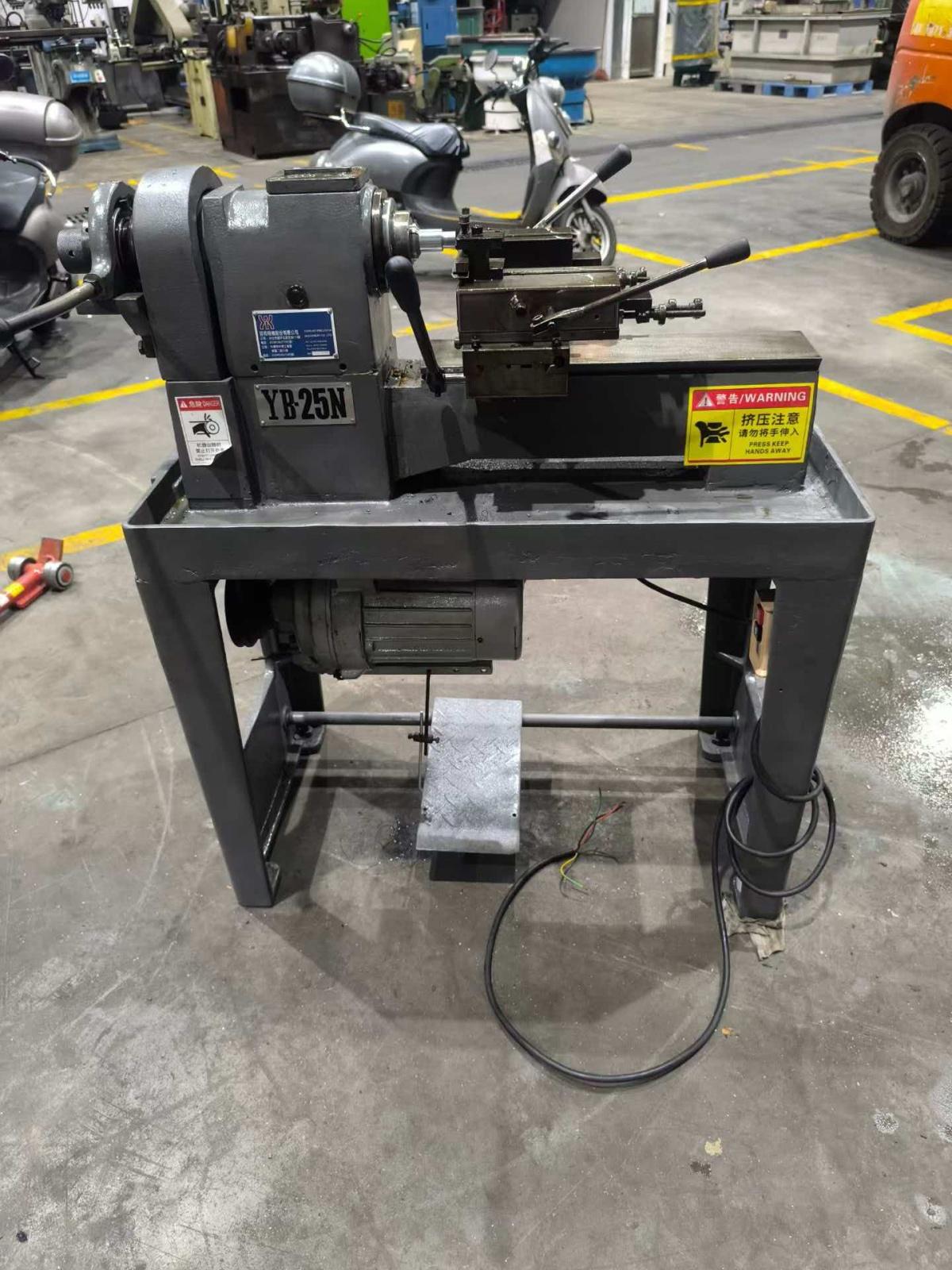

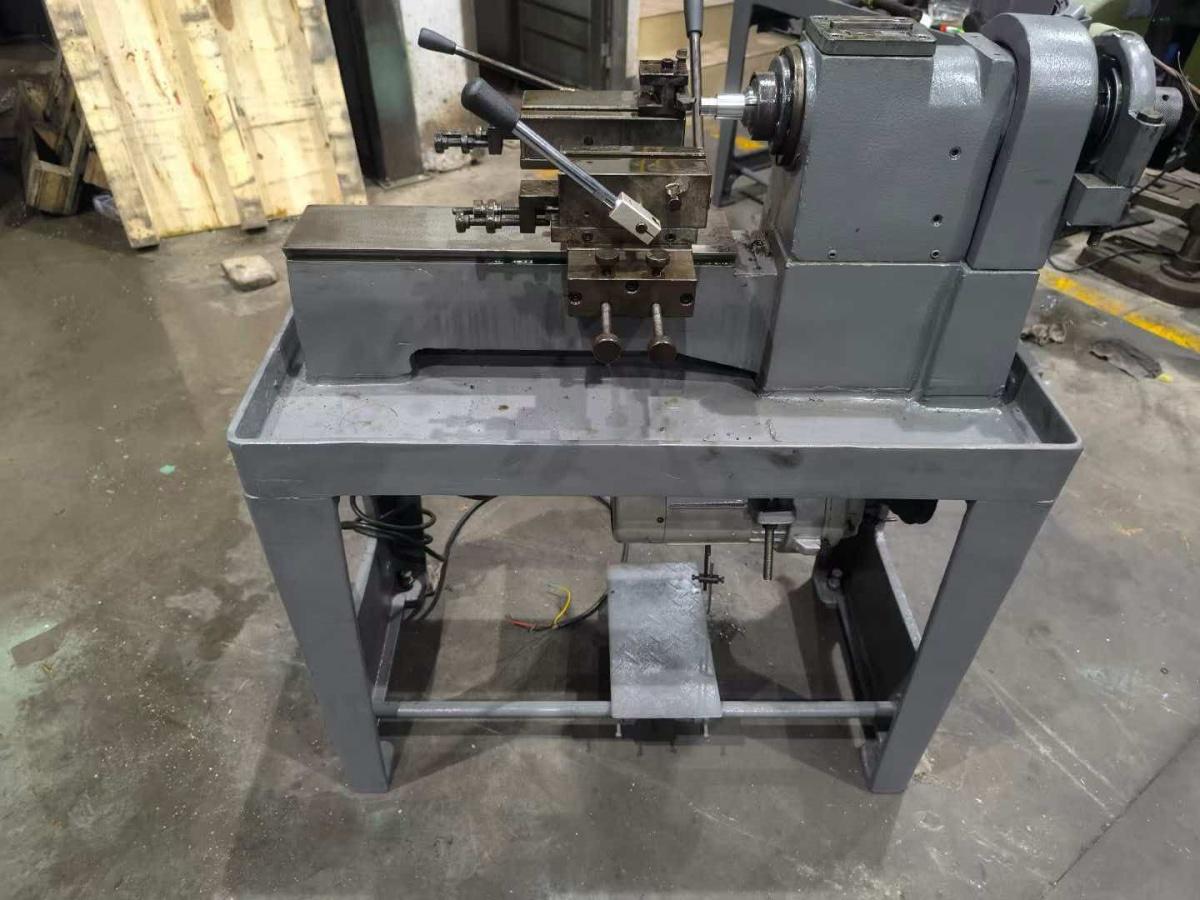

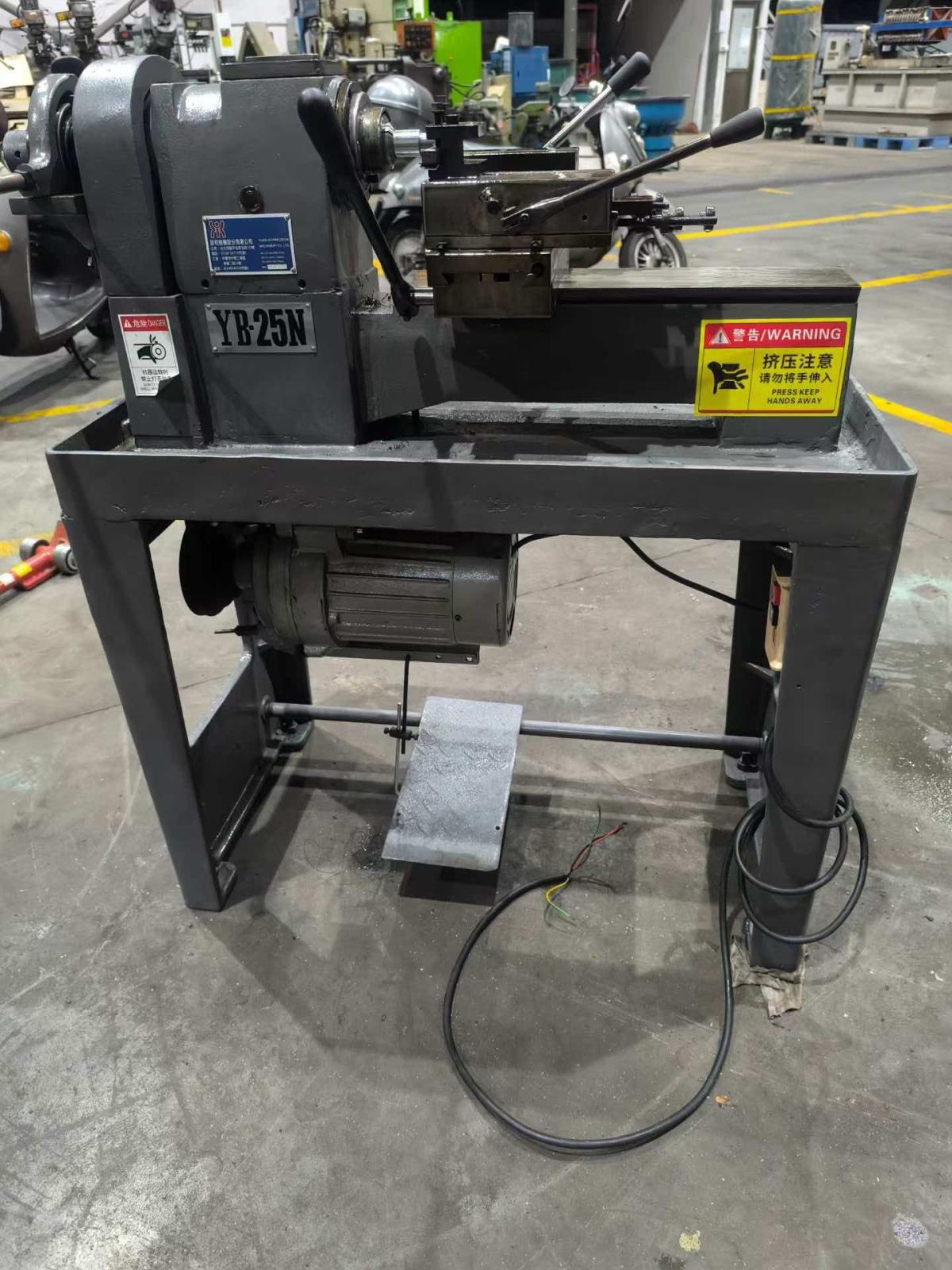

Yungho YB-25N Lathe

Main motor power: 1000 W (1kW / 1HP)
The maximum speed of spindle is approximately 2400 to 2880 RPM (depending on the different strap gears).
spindle taper: Mohs No. 2 (MT2)
spindle chuck capacity: Maximum clamping of φ 25mm bar stock
machining range and travel
Maximum Machining length: 110mm
tool holder travel
Longitudinal travel (large drag plate) : approximately 240 mm
Lateral travel (for small drag plates) : approximately 80 to 100 mm
Shape and weight
Overall dimensions: 1190 × 520 × 950 mm (length × width × height)
Overall weight: 160 kg
