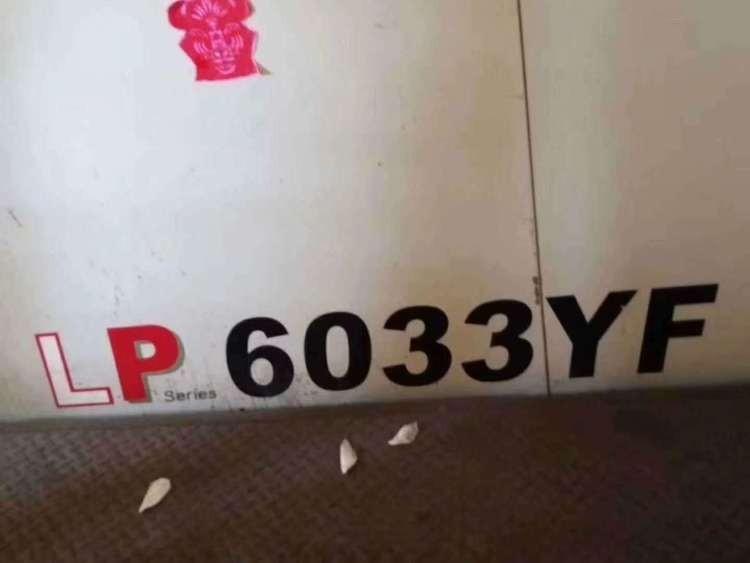

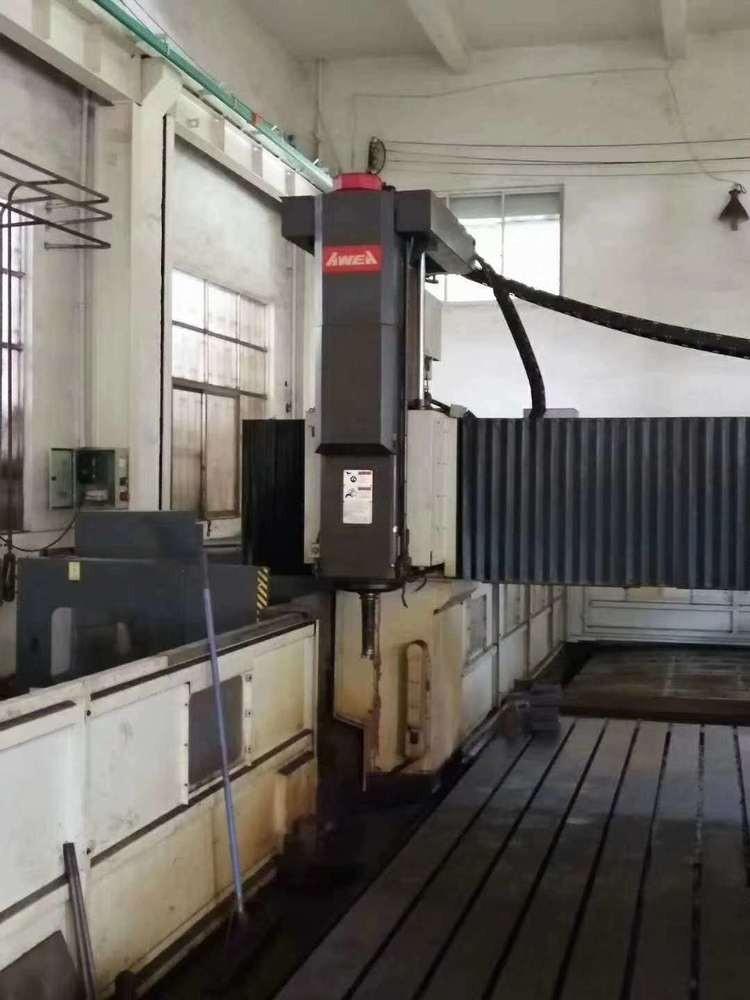

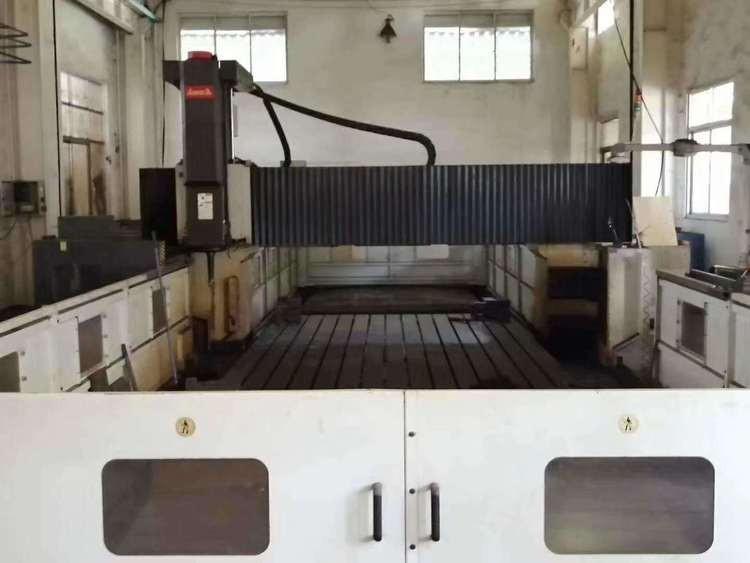

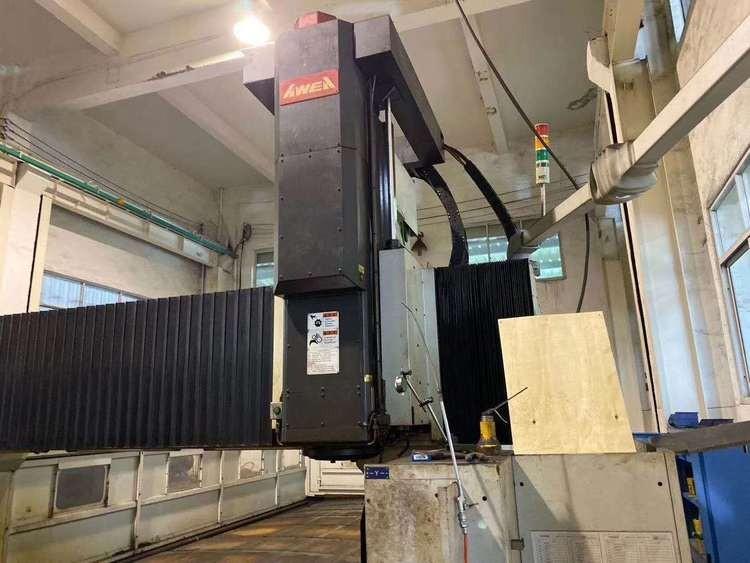

AWEA LP6033YF Gantry machining centre

System: FANUC 18i-MB

Three axes travel :6000*3300*760mm

Spindle nose to worktable distance :240-960mm

Worktable size :6020*2400mm

Spacing between two columns: 3500mm (through width)

Columns passable height: 200-960mm

Weight :20000kg

Fast feed rate:15000/10000/15000mm/min

Cutting feed rate:10000mm/min

Spindle motor :22/26kw

Spindle speed :6000rpm, BT50

XY axes roller linear guideway

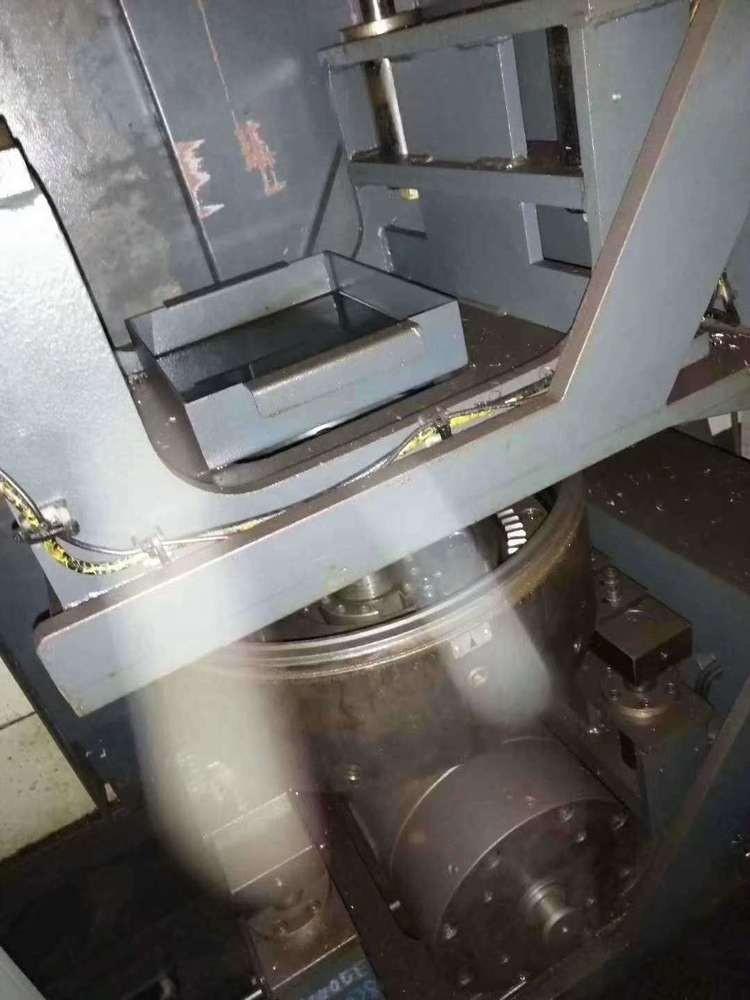

With fully automatic 90 degrees side milling head

Footages :10580*6440*4000mm

(Automatic head changing and tool changing) 56 tools magazine, 20 bar spindle center flushing

Two linear guideways and one rigid guideway

Z-axis rigid guideway

With one right angle milling head.
