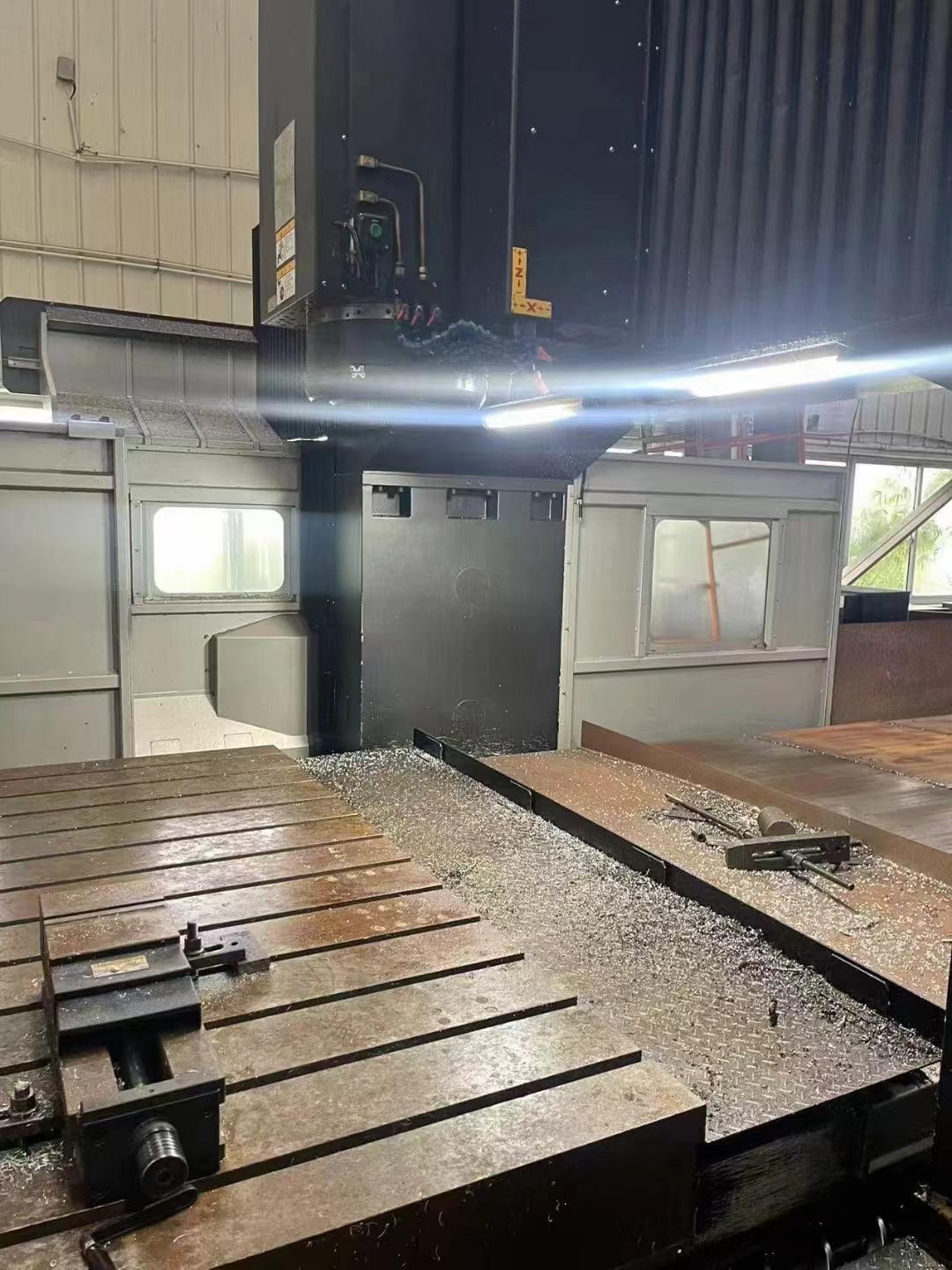

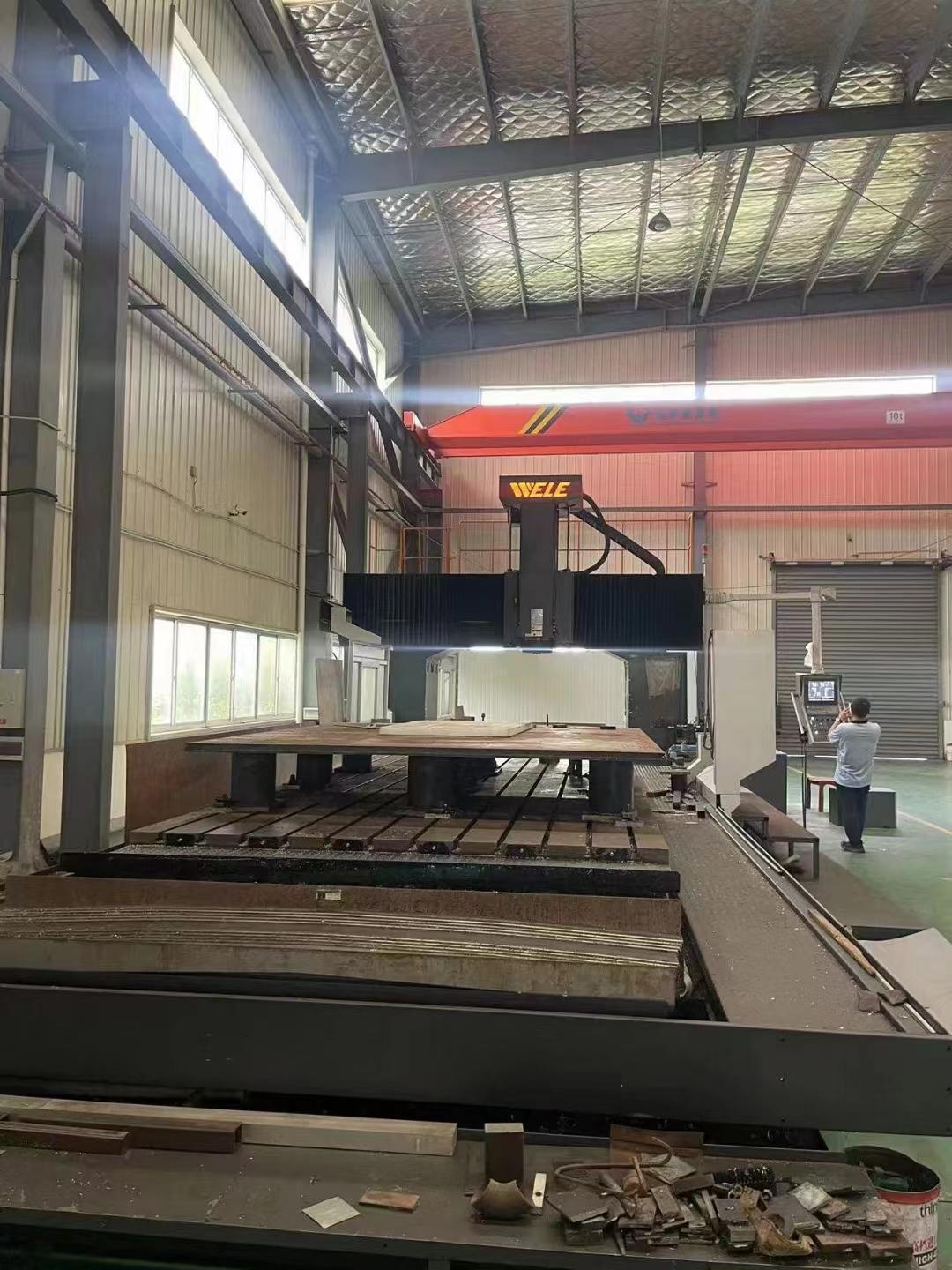

WELE LB-832 Gantry machining centre

X axis travel: 8060mm

Y-axis travel: 3200mm

Z-axis travel: 800mm

spindle nose to WorkWorktable: 330-1130mm

Distance between two columns: 2700mm

WorkWorktable size: 8000*2500mm

Worktable T-slot (width * spacing * number of slots) : 28*200*12mm

Spindle speed: 12000rpm

X*Y*Z axis fast feed: 5000/15000mm/min

Maximum Tool diameter: 127/215mm

Maximum Tool length: 400mm

Tool holder: BBT50

Positioning precision: ±0.015mm
