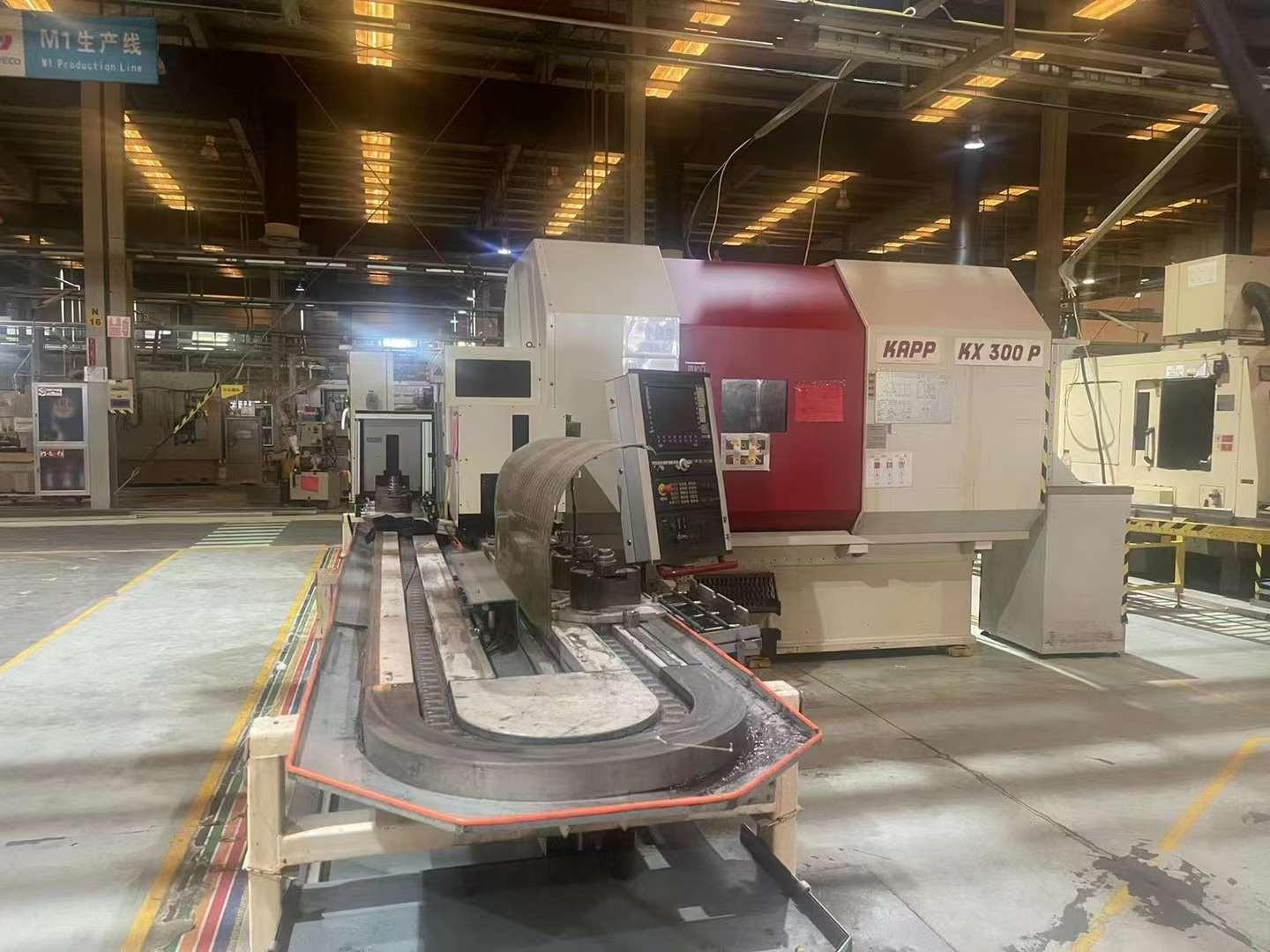

KAPP KX300P Gear grinding machine

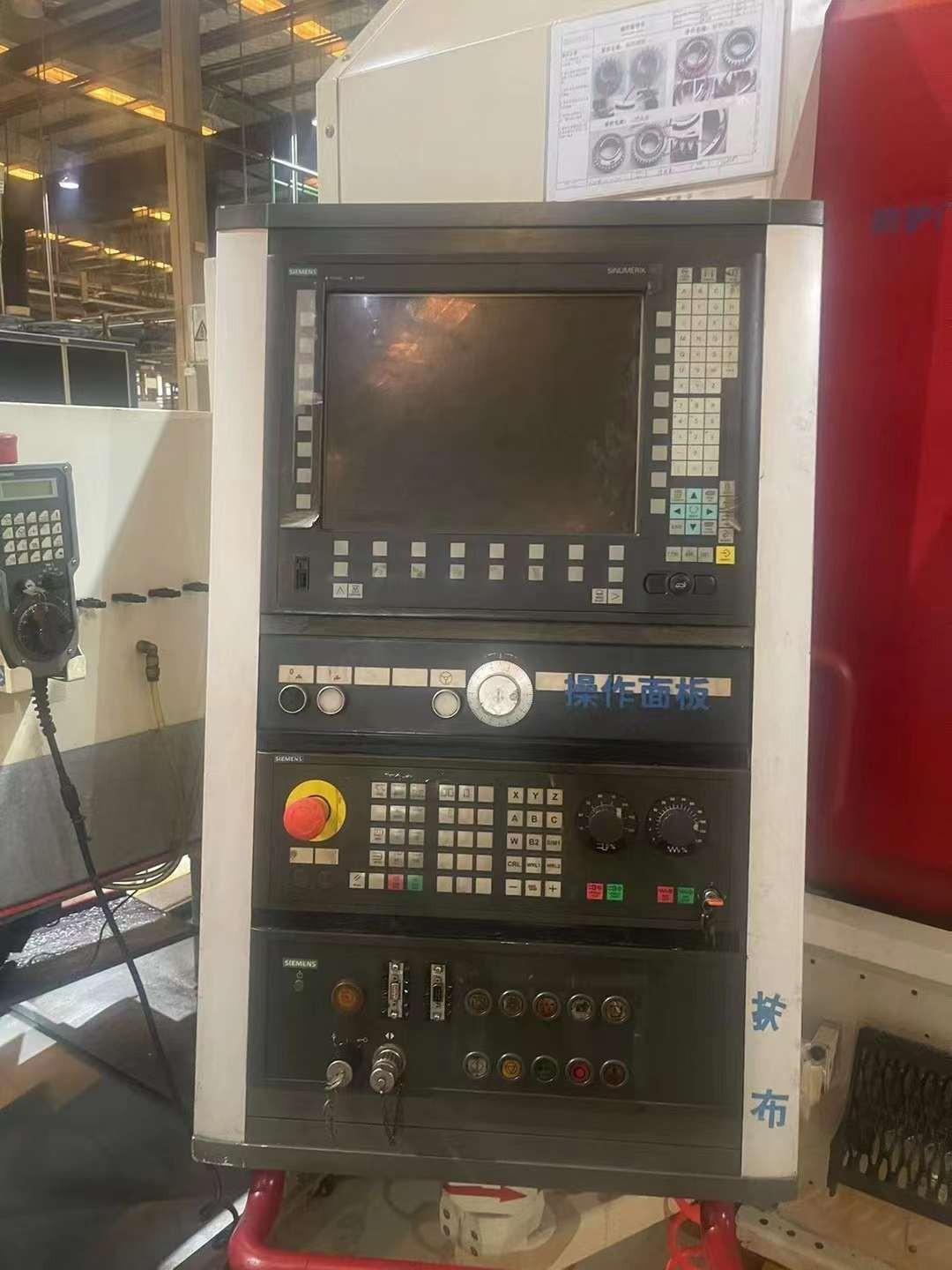

CNC system: Siemens 840D

Gear diameter: 300 mm

Gear width: 320 mm

Module: 8

Small module: 0.5

Helix angle +/-45 degrees

Clamping length: 600 mm

Number of teeth: 999

Number of small teeth: 1

Workpiece weight: 100 kg

Spindle motor: 20 kw

Turning speed: 9000 RPM

Workpiece spindle stepless speed: 2000 RPM

Diameter of grinding wheel: 320mm

Width of grinding wheel: 200mm

Total power : 86.4 kW

Machine weight: 10 tons

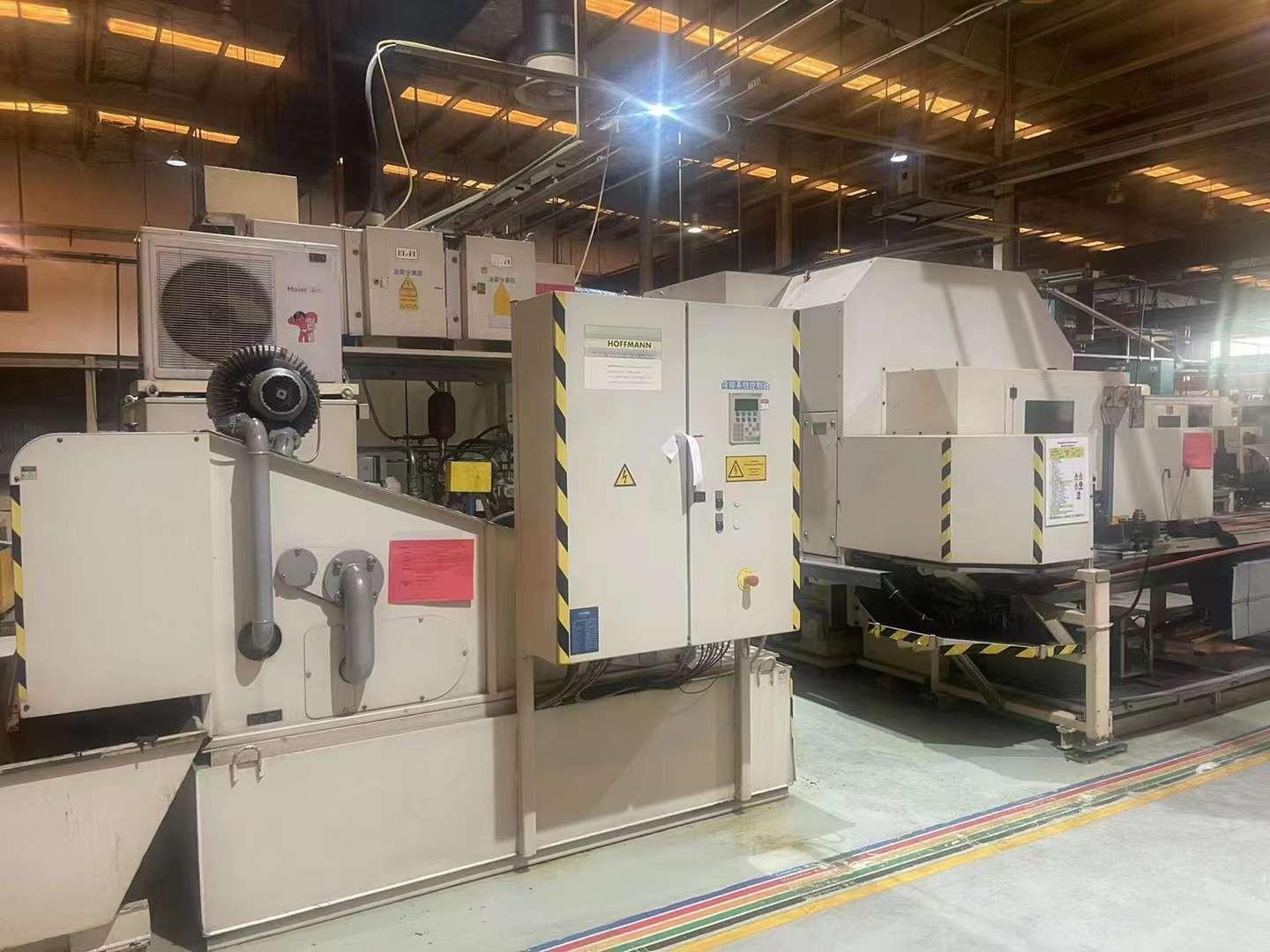

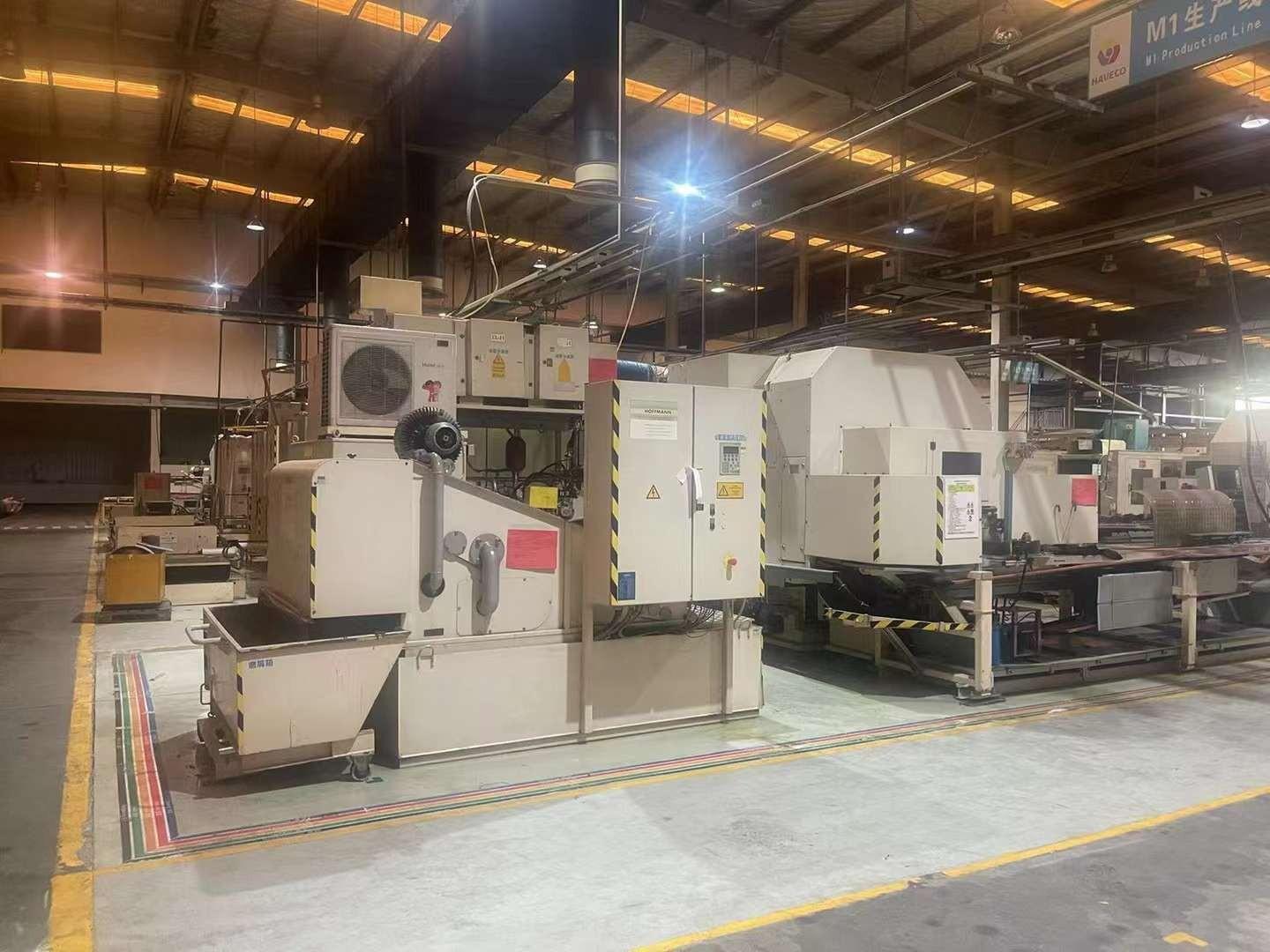

Gear grinding and milling with loading system, Hoffman cooling system
