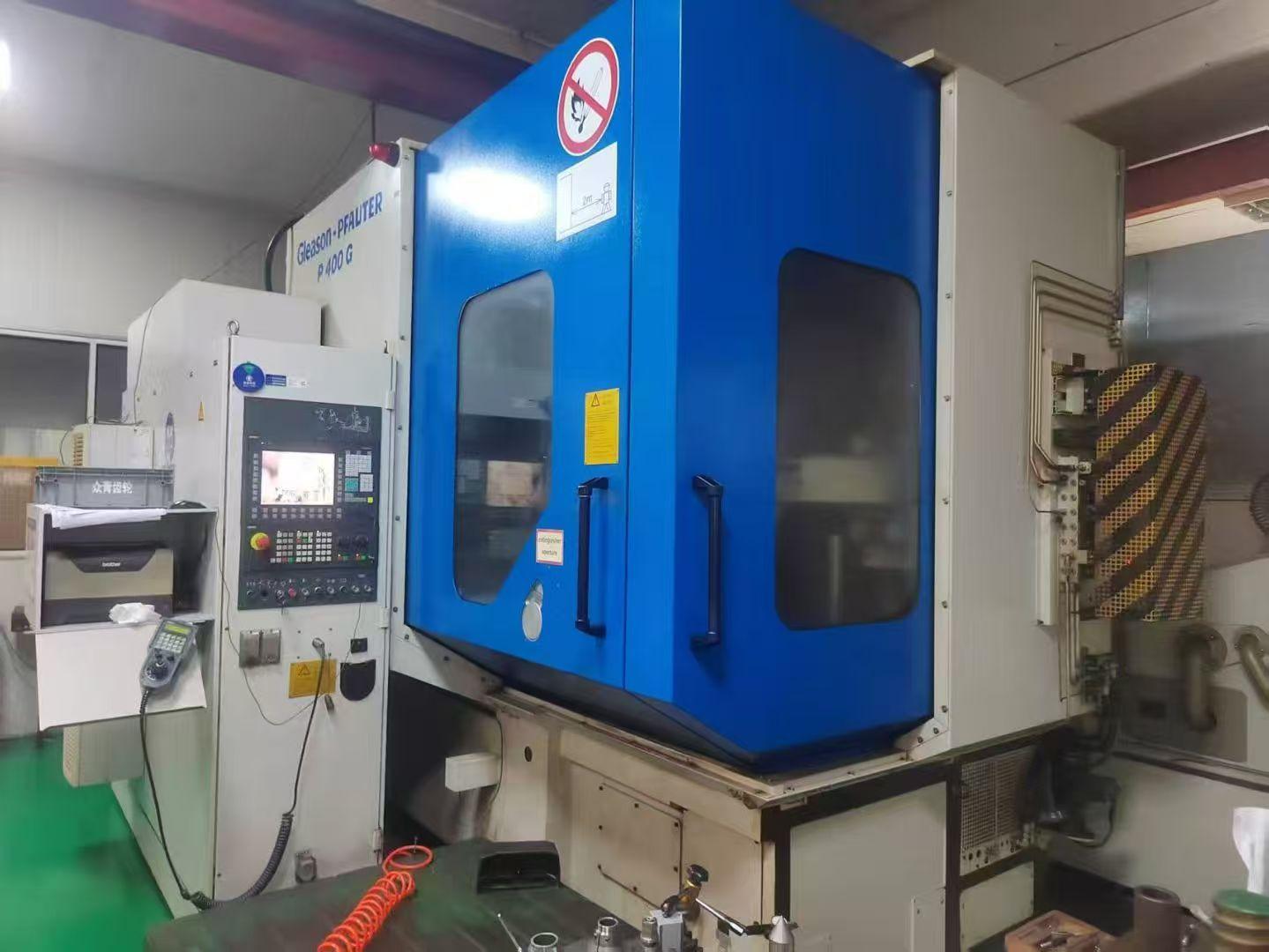

Gleason Pfauter P400G Gear grinding machine

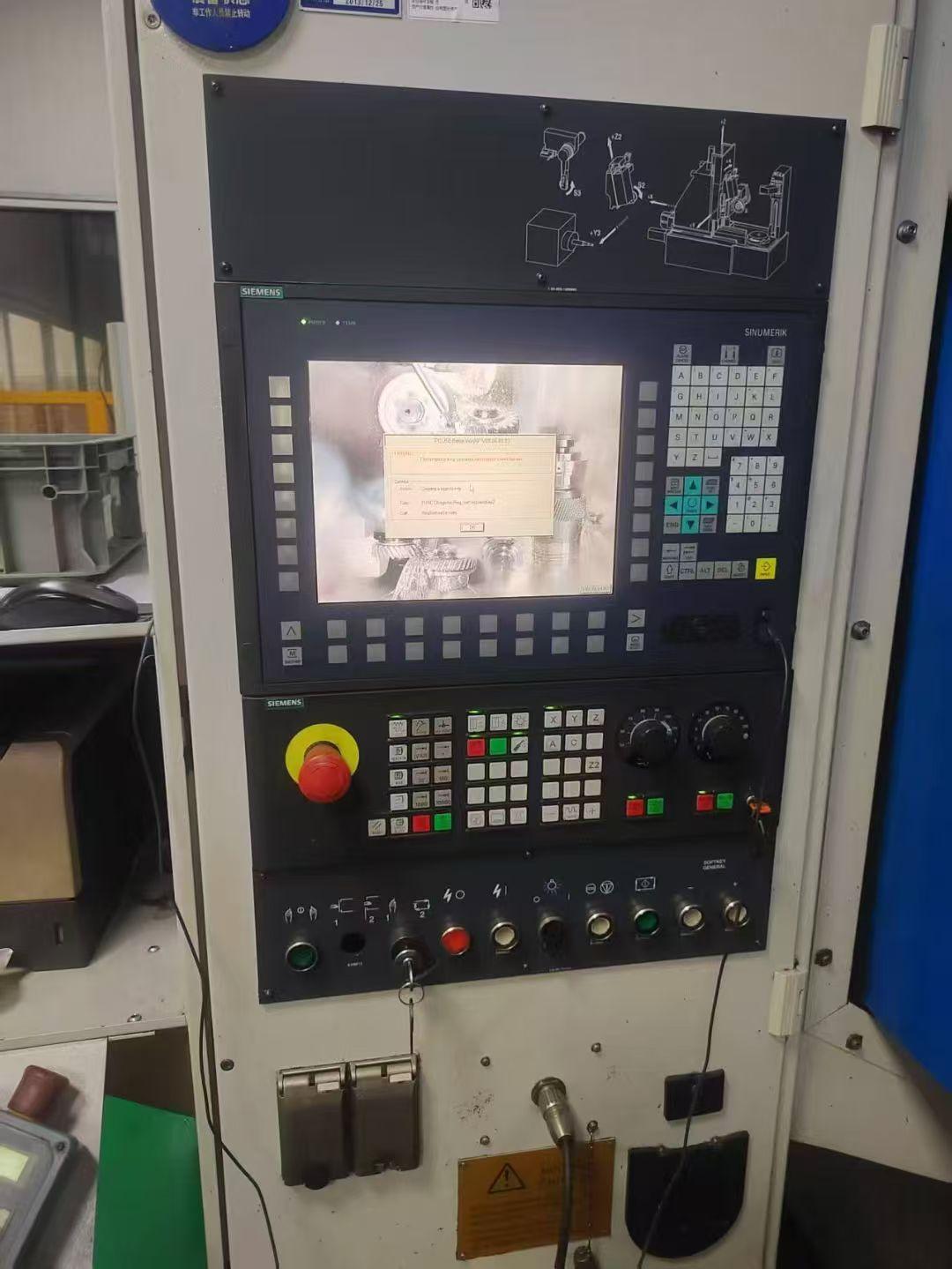

CNC CNC System: Siemens

Maximum workpiece diameter: 400mm

Maximum grinding wheel diameter: 350mm

Maximum grinding wheel width: 50/70mm

three-axis travel: 440*200*400mm

Maximum workWorktable load: 10Kn

WorkWorktable diameter: 380mm

Maximum travel of the axial slide seat - standard: 400mm

Maximum travel of the axial slide seat - option: 600mm

grinding wheel Spindle diameter: 80mm

Rotation Angle range: ±45°

grinding wheel speed range: 600-6000 RPM

machine tool weight (including tailstock and column) : approximately 19,000 kg

Overall Footage: approximately 4255*5485*3050mm
