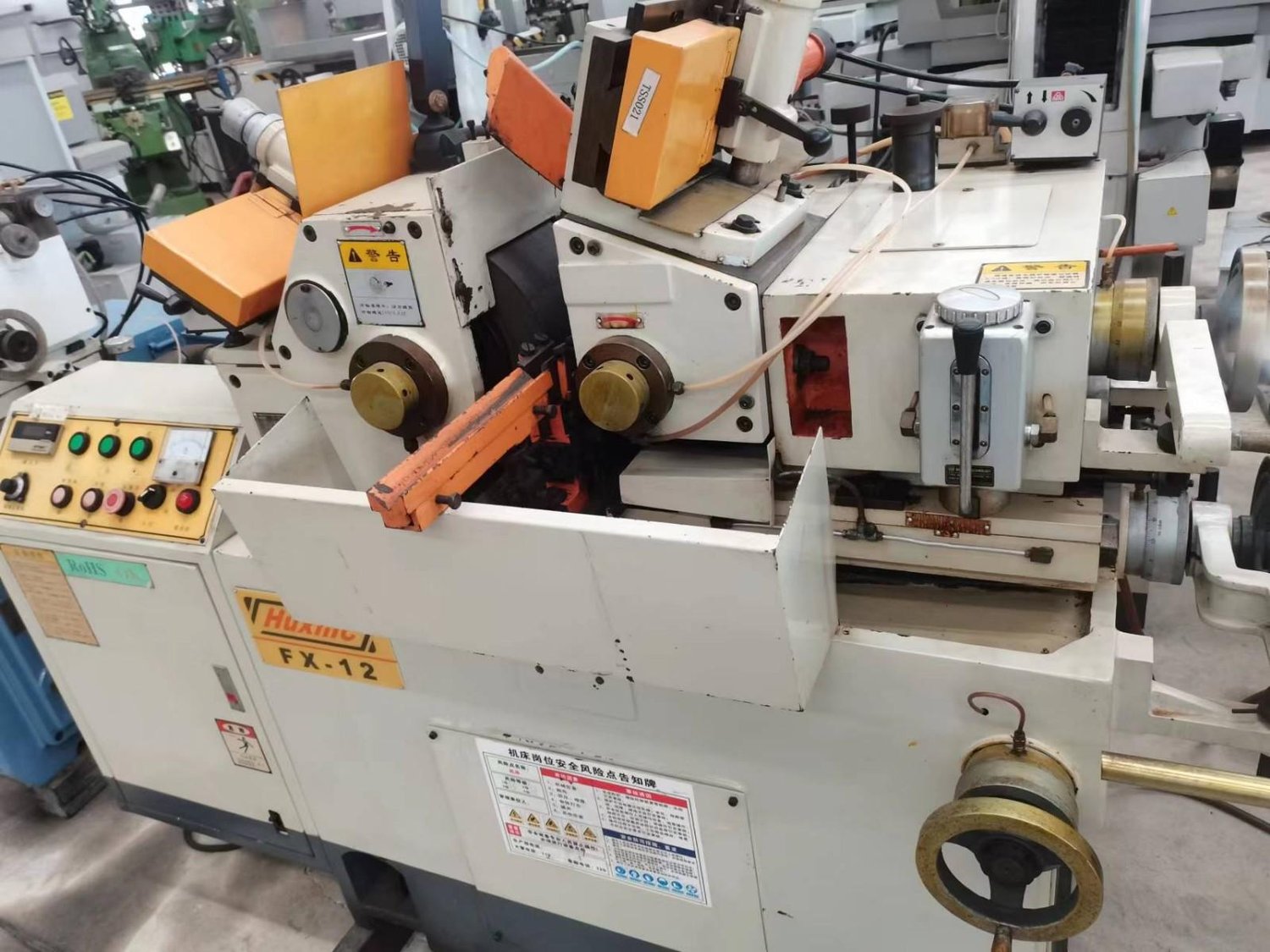

HuXinC FX-12 Centreless grinding machine

Diameter of spindle through hole φ 20mm

Maximum machining diameter φ 100mm

Maximum machining length 100mm

Maximum grinding size 40mm

Grinding wheel speed 1950 rpm

X axis movement 200mm

Z-axis movement 180mm

X and Z axis rapid feed rate 15m/min

Spindle motor power 2.2/3.7KW

Feeding spindle motor power X/Z axis: 0.75KW

Maximum speed of spindle 6000rpm

Overall footage of machine (length * Width) 1467 * 990mm

Machine weight is approximately 550kg
