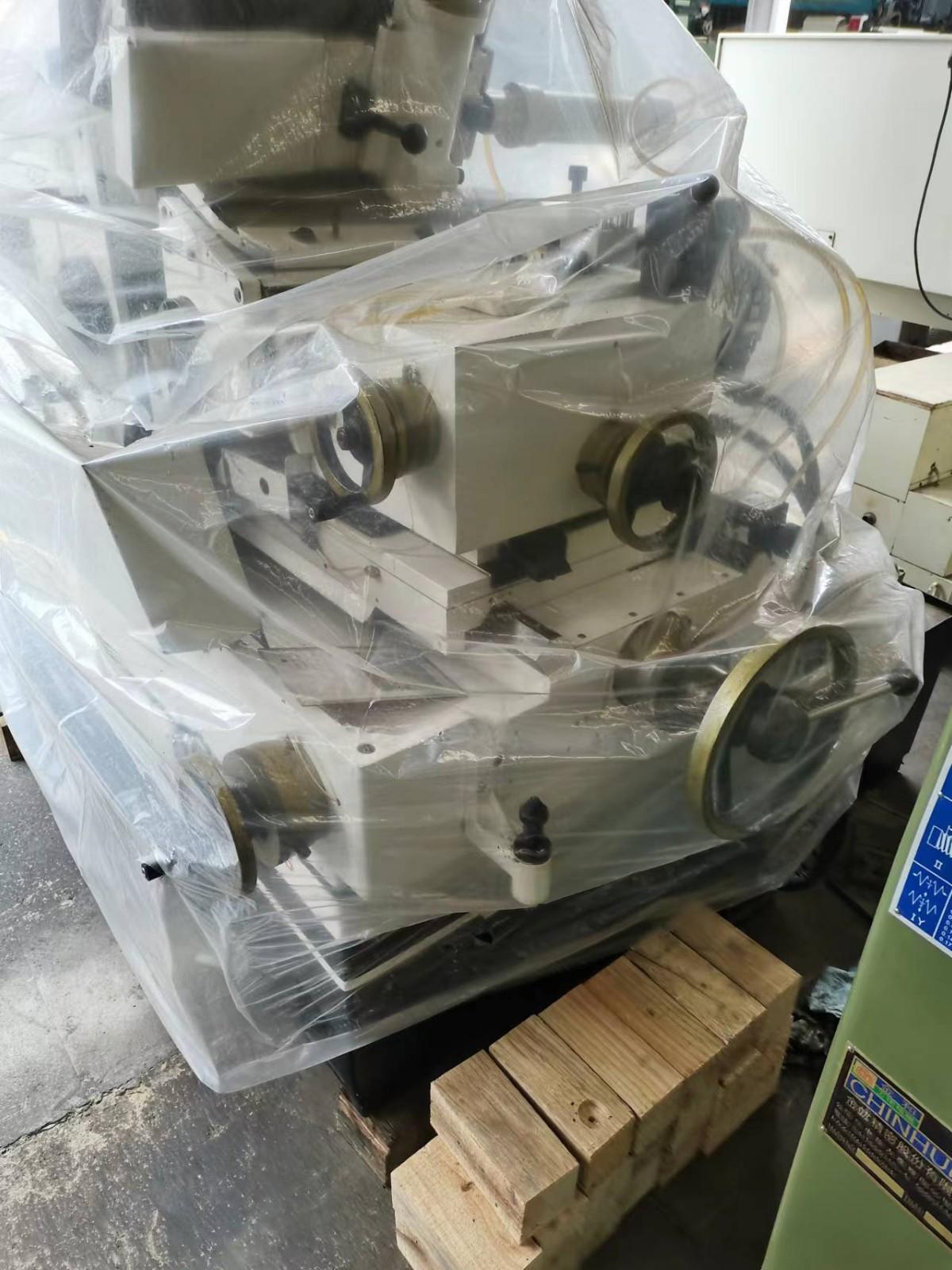

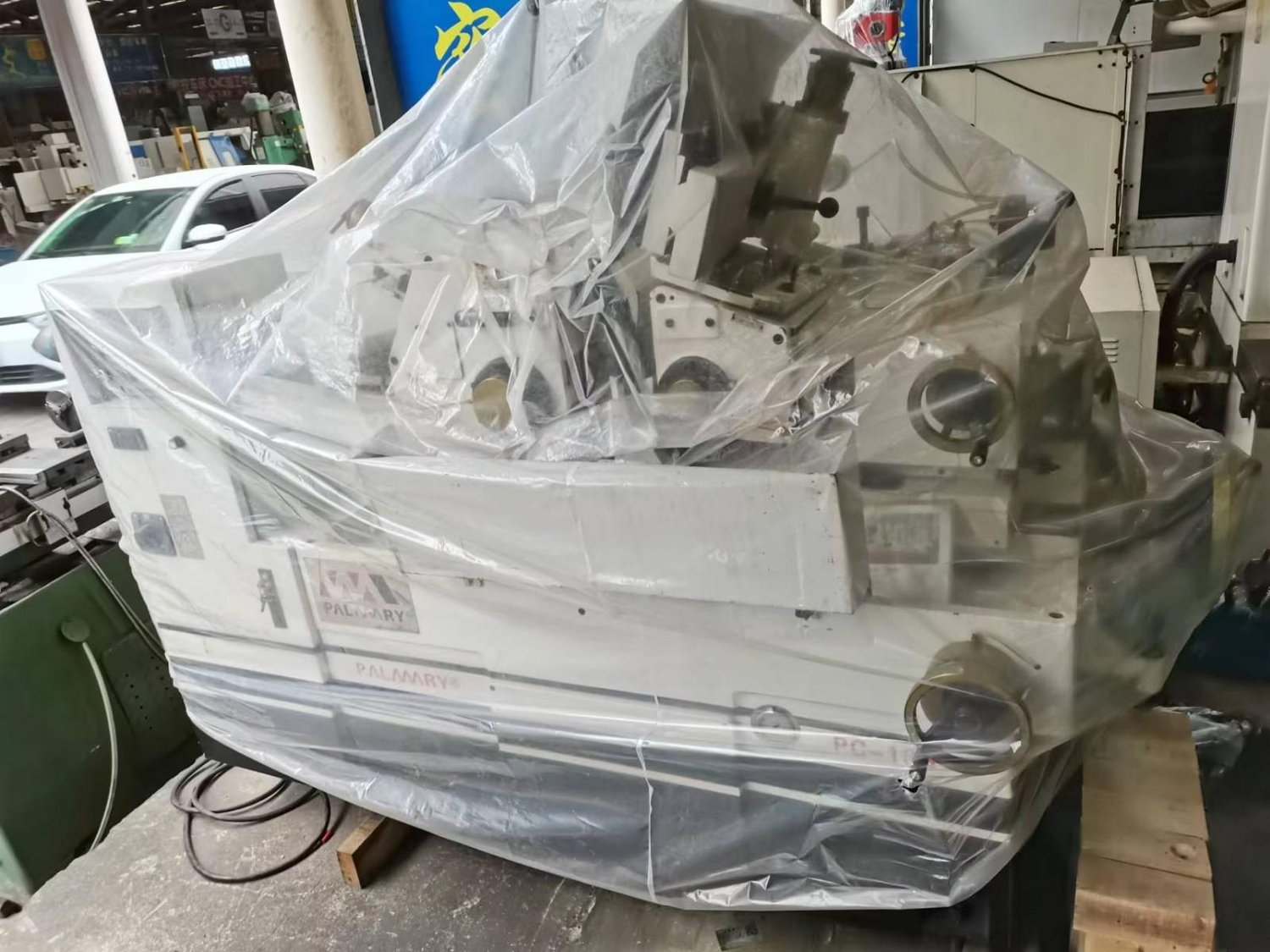

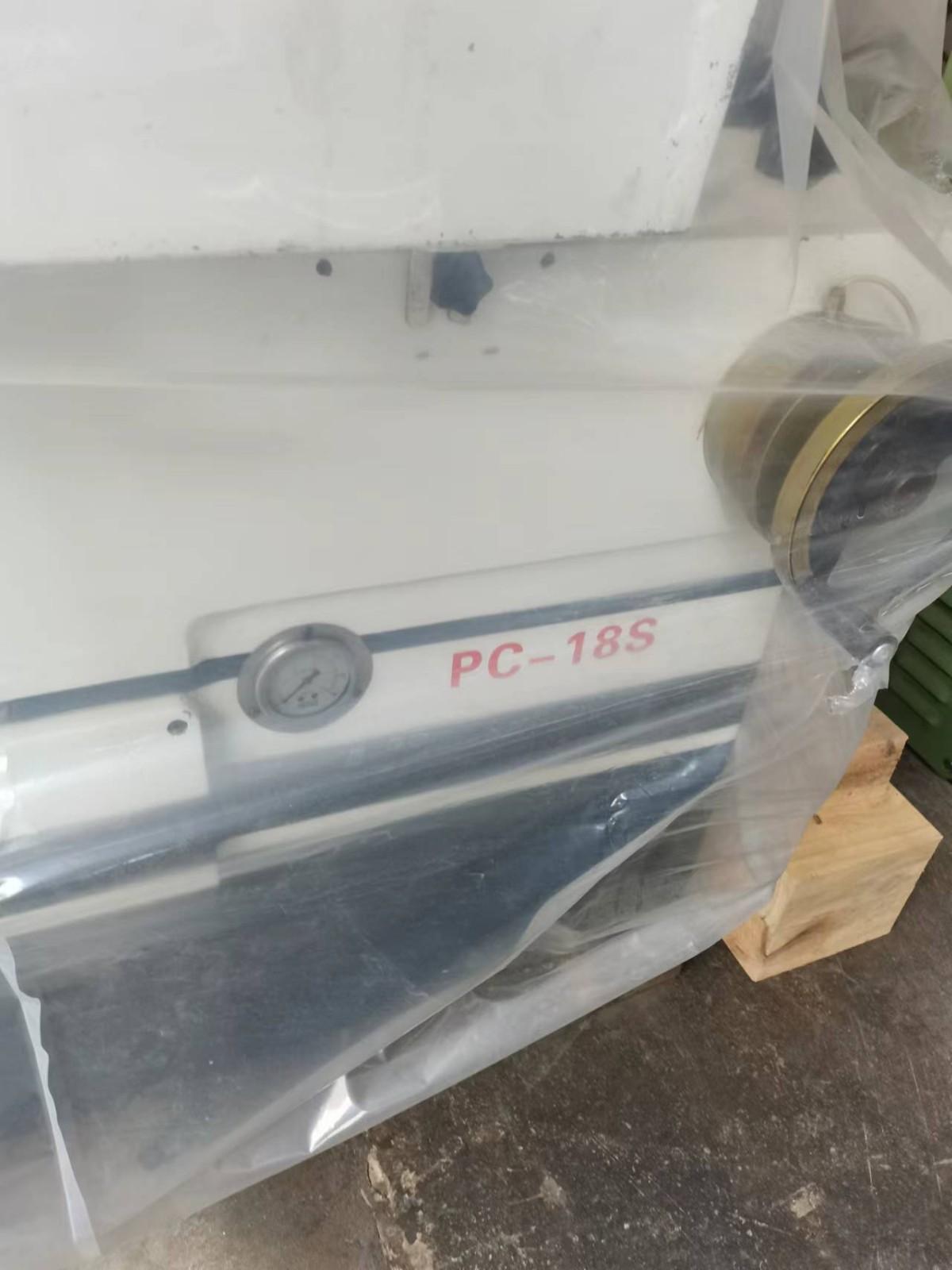

PALMARY PC-18S Centreless grinding machine

Standard worktable workpiece diameter Φ 1- Φ 80mm

Special worktable workpiece diameter Φ 40- Φ 150mm

Grinding wheel size (external diameter x width x internal diameter) Φ 455x205x Φ 228.6

Grinding wheel speed 1260rpm

Grinding wheel drive motor 15HPx4P

Adjusting grinding wheel size (external diameter x width x internal diameter) Φ255x205xΦ111.2mm

Adjusting grinding wheel speed 10-300rpm (stepless)

Adjusting grinding wheel drive motor 2.0kw servo motor

Adjusting grinding wheel tilt angle ± 5.

Adjusting grinding wheel rotation angle ± 5.

Machine footage 2200x1840x1530mm

Machine net weight 2900kg

Machine weight 3200kg
