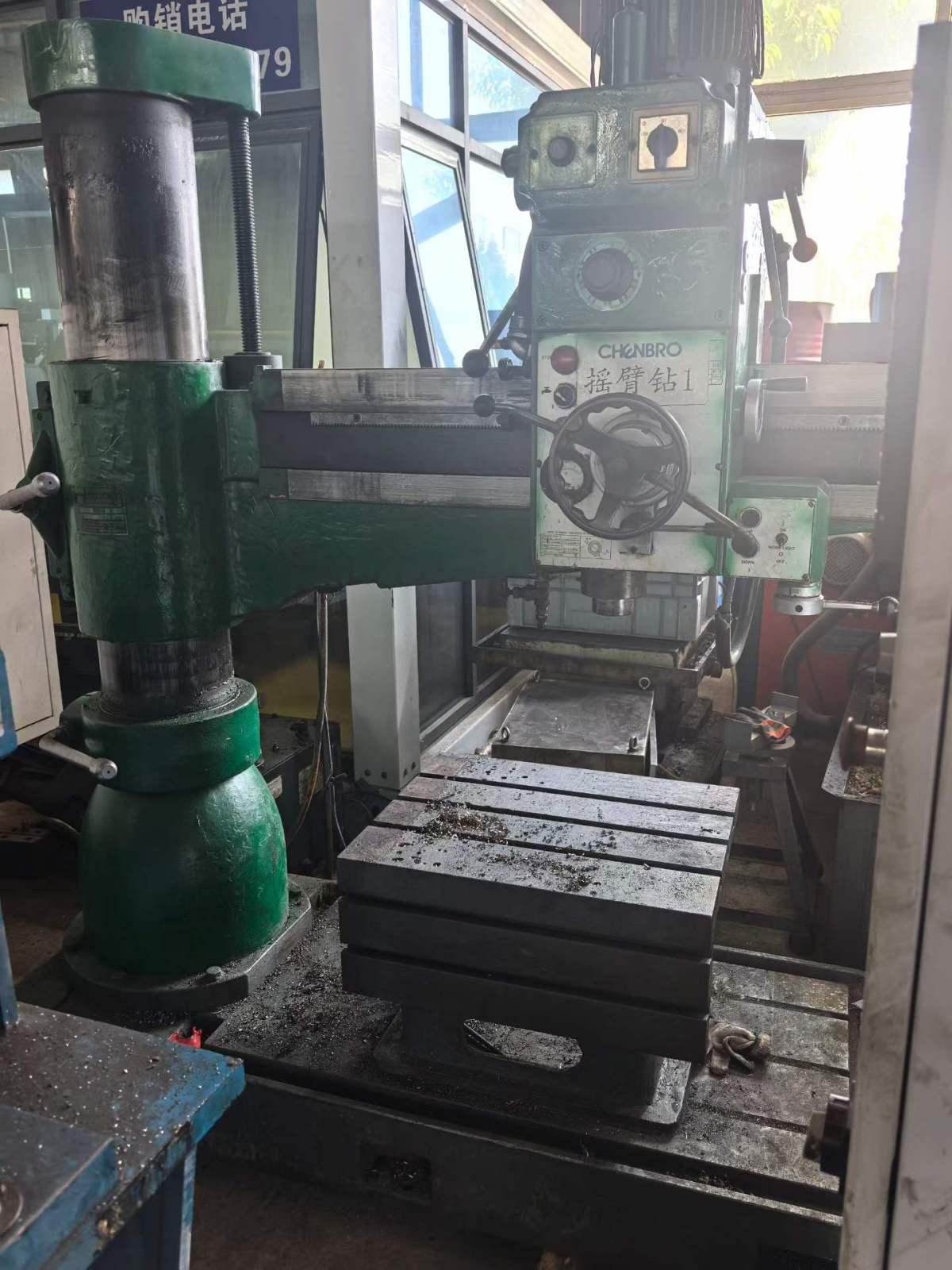

ZOJE Z3050*16/1 Radial drill

Maximum diameter of drilling hole 50 mm

Distance from spindle nose to worktable 320-1220 mm

Distance between spindle center and column 350-1600 mm

Spindle travel 300 mm

Spindle taper (Morse) 5

Spindle speed range 25-2000 r.p.m

Number of spindle speed steps 16

Swing angle of rocking arm 360 deg

Main motor power 4 kw

Lifting motor power 1.5 kw

Machine weight 3500 kg

Machine overall footage 2500*1060*2800 mm
