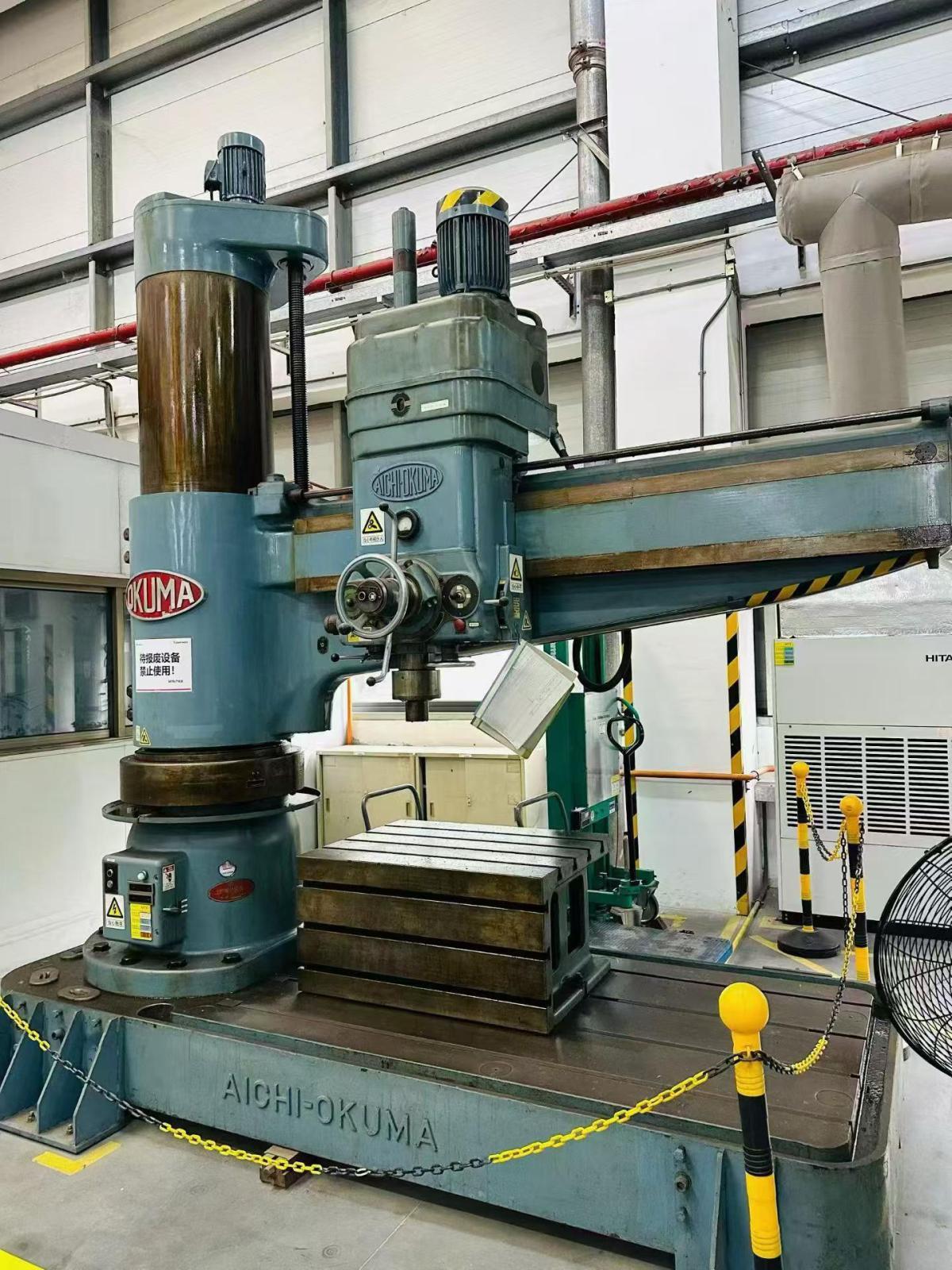

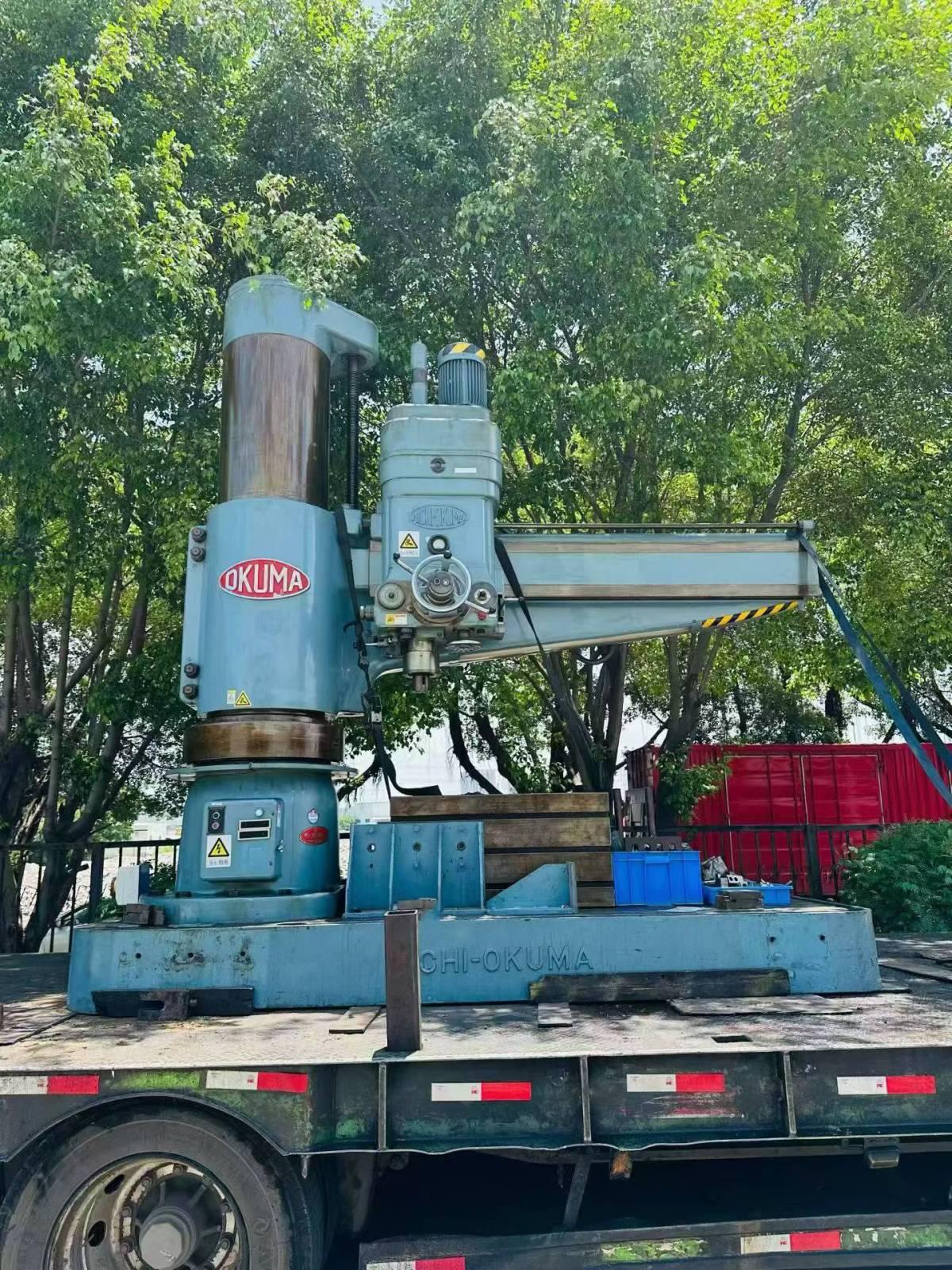

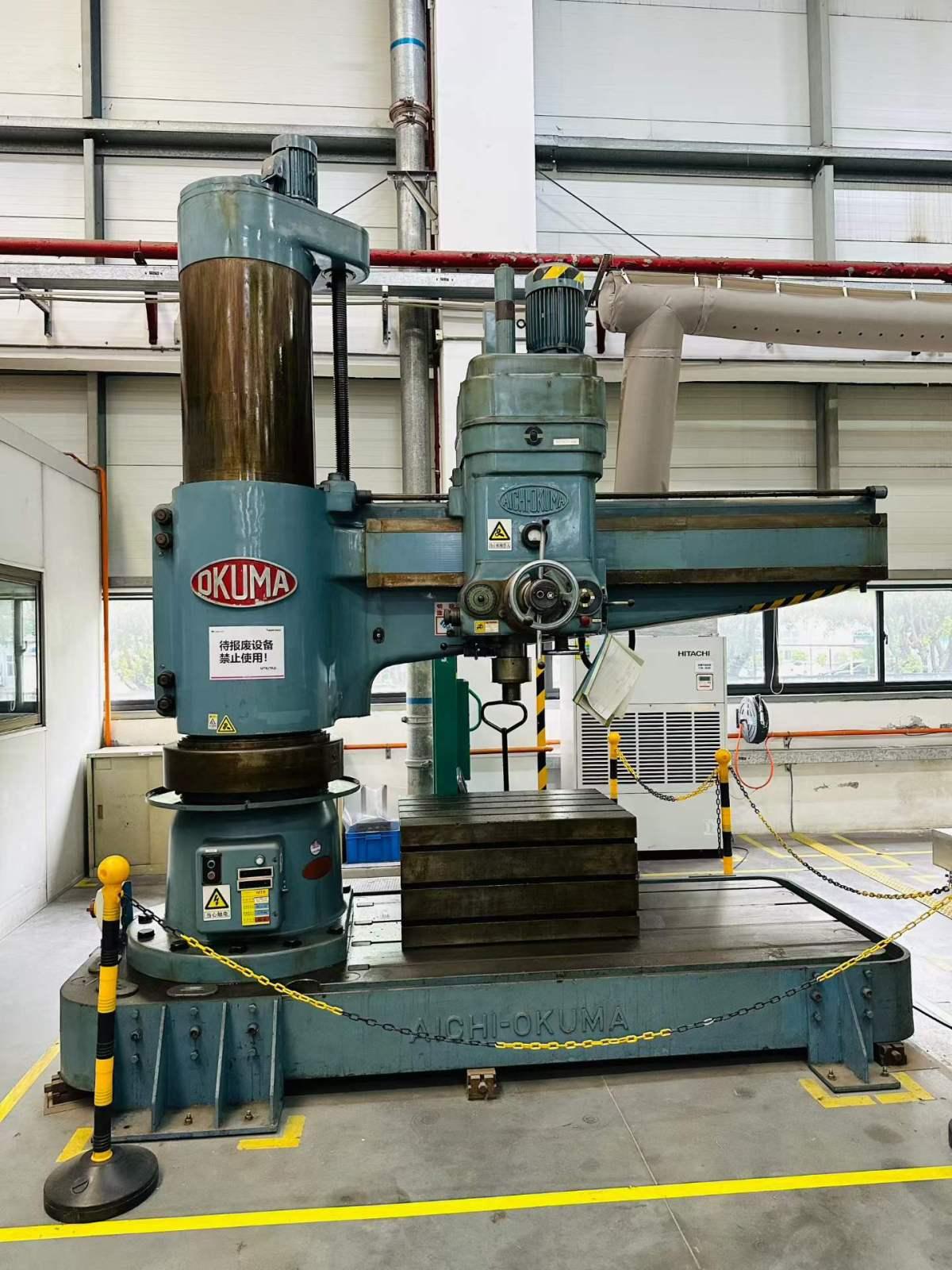

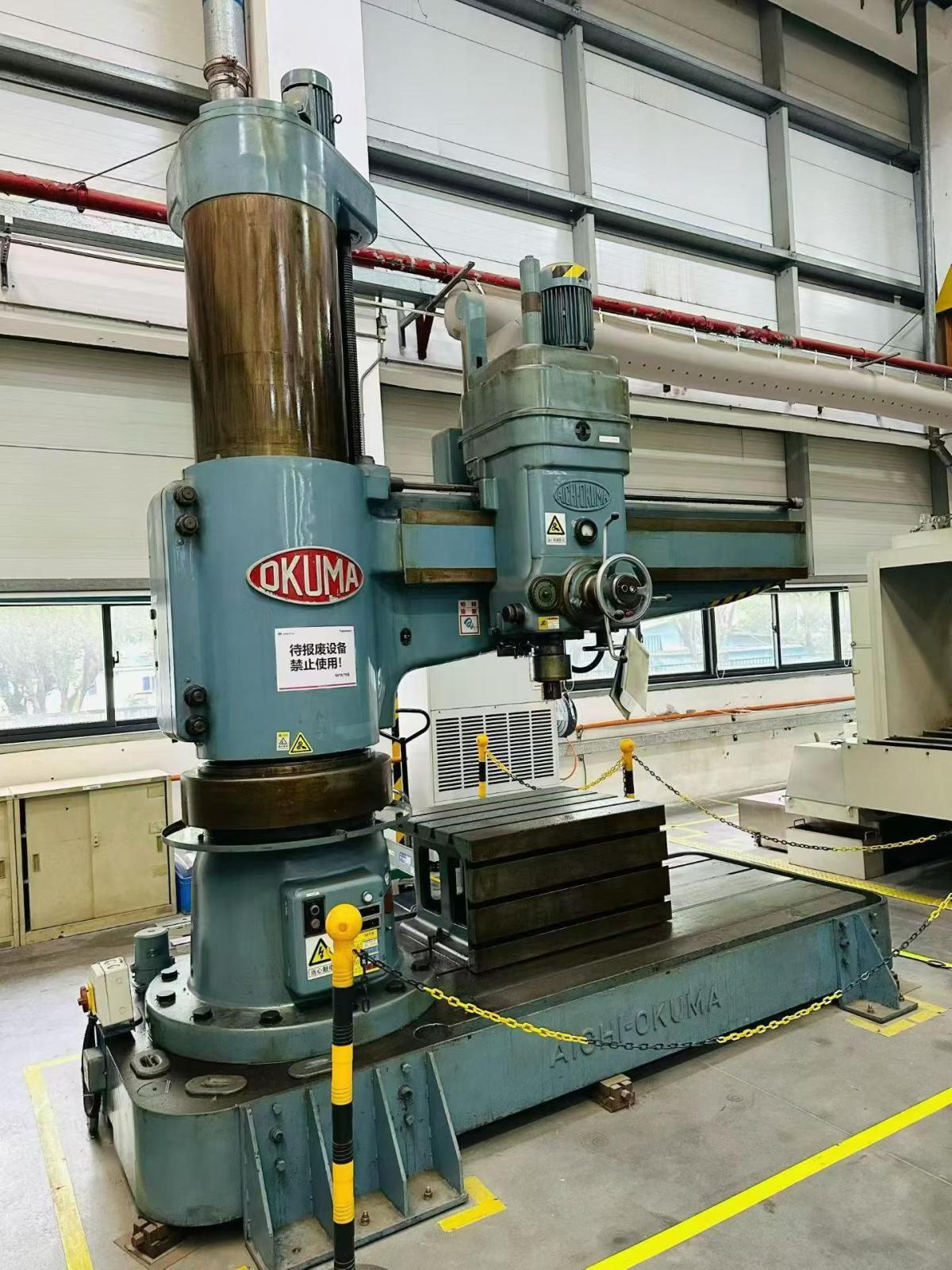

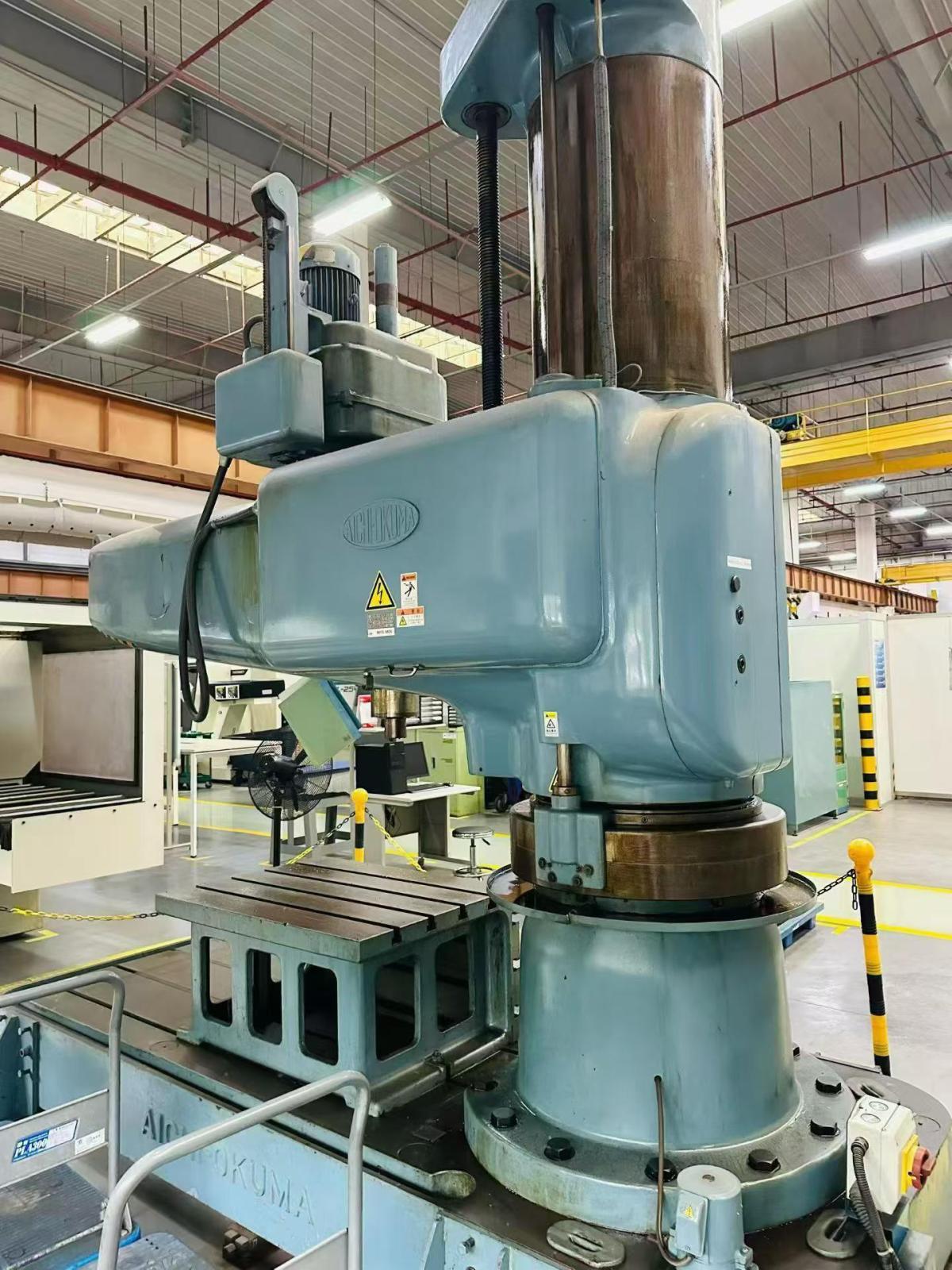

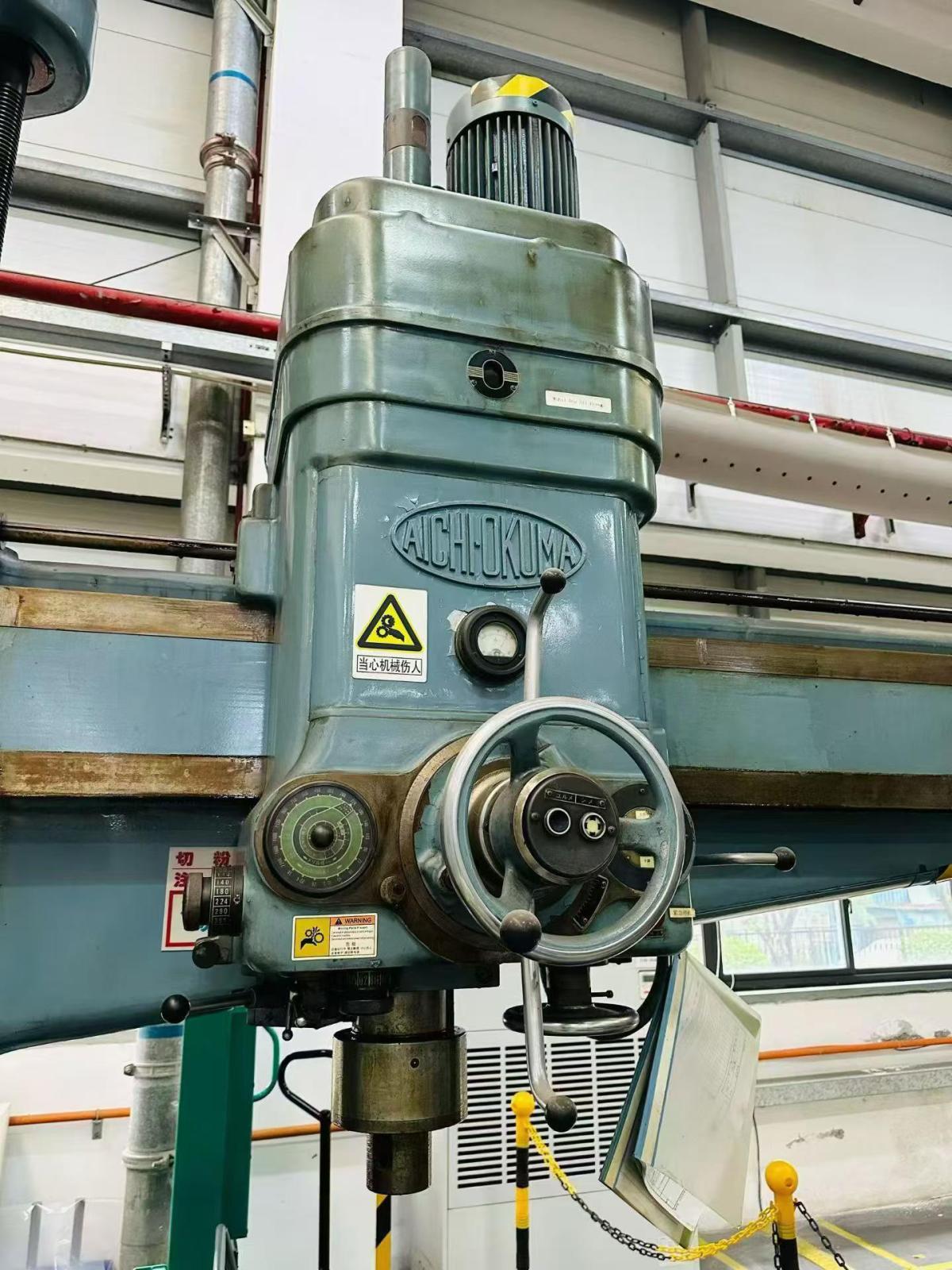

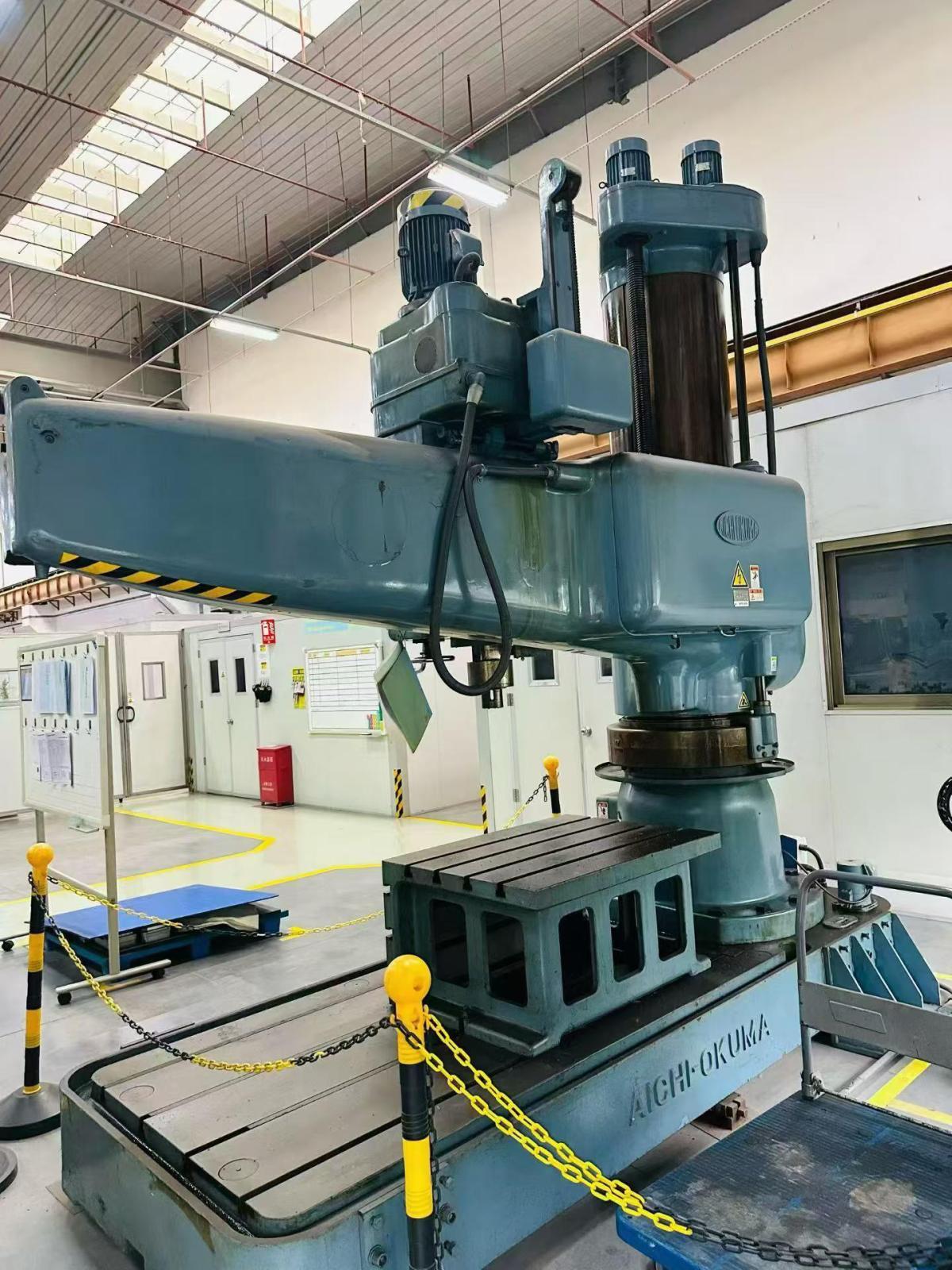

OKUMA DRA-J2500 Radial drill

From the center of spindle to the side of the column: 450 to 2500mm
From the center of spindle to the center of the column: 2900mm
The travel of the horizontal movement of the headstock along the rocker arm is 2160mm
Distance from spindle nose to Worktable surface of the base: 610-1890mm
Vertical lifting travel of the rocker arm: 880mm
Rocker arm rotation range: 360°
external diameter of the column: Φ550mm
spindle motor: 5.5kW
Rocker arm lifting motor: 2.2kW
spindle taper: MT5
spindle Quill shaft Travel: 400mm
