HYUNDAI KIA SKT200 CNC turning lathe

Rotation diameter over bed :550mm

Workpiece diameter :350mm

Workpiece length :300mm

Bar diameter :65mm

Spindle speed :4000rpm

Spindle through hole diameter :78mm

Spindle torque :17.1kgf-m

Tool magazine : 12EA

X, Z axis fast feed rate :36/36 m/min

X, Z axis travels :210/330mm

Spindle motor :15/11KW

Power capacity :20KVA

Machine dimensions :2070x1650x1820mm

Bed tilt angle :45°

Machine weight :3500kg

Ex-factory date :2013

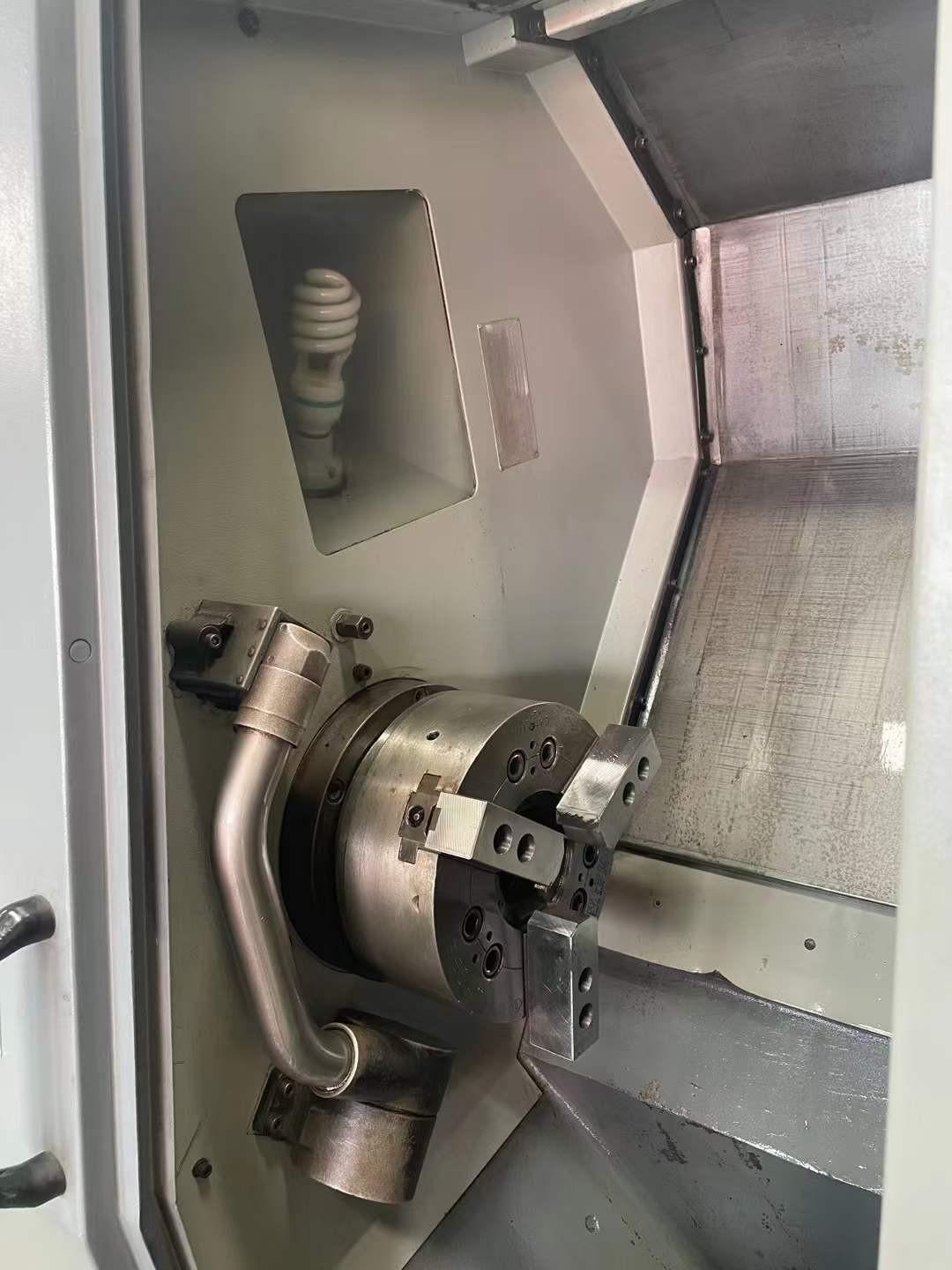

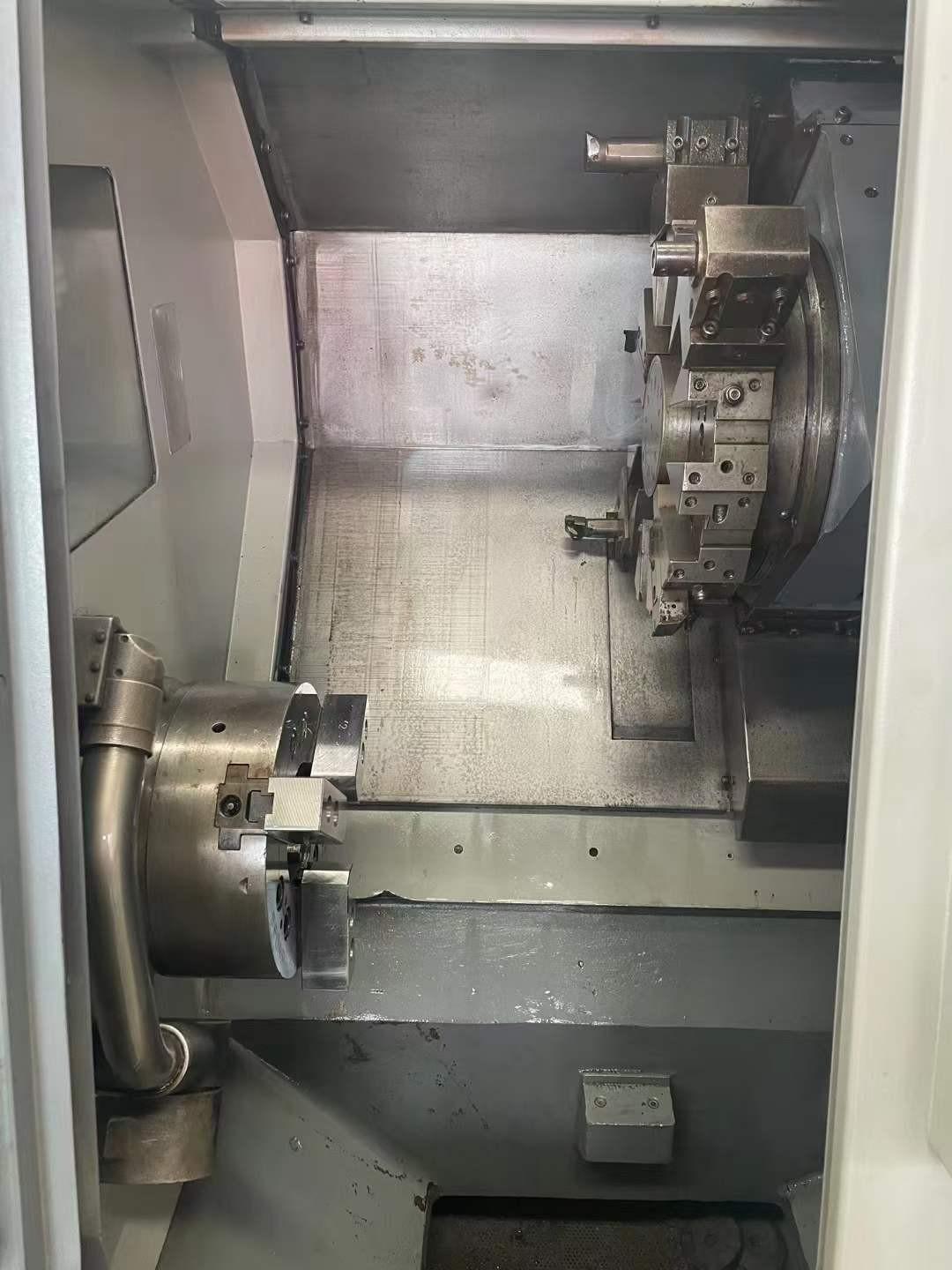

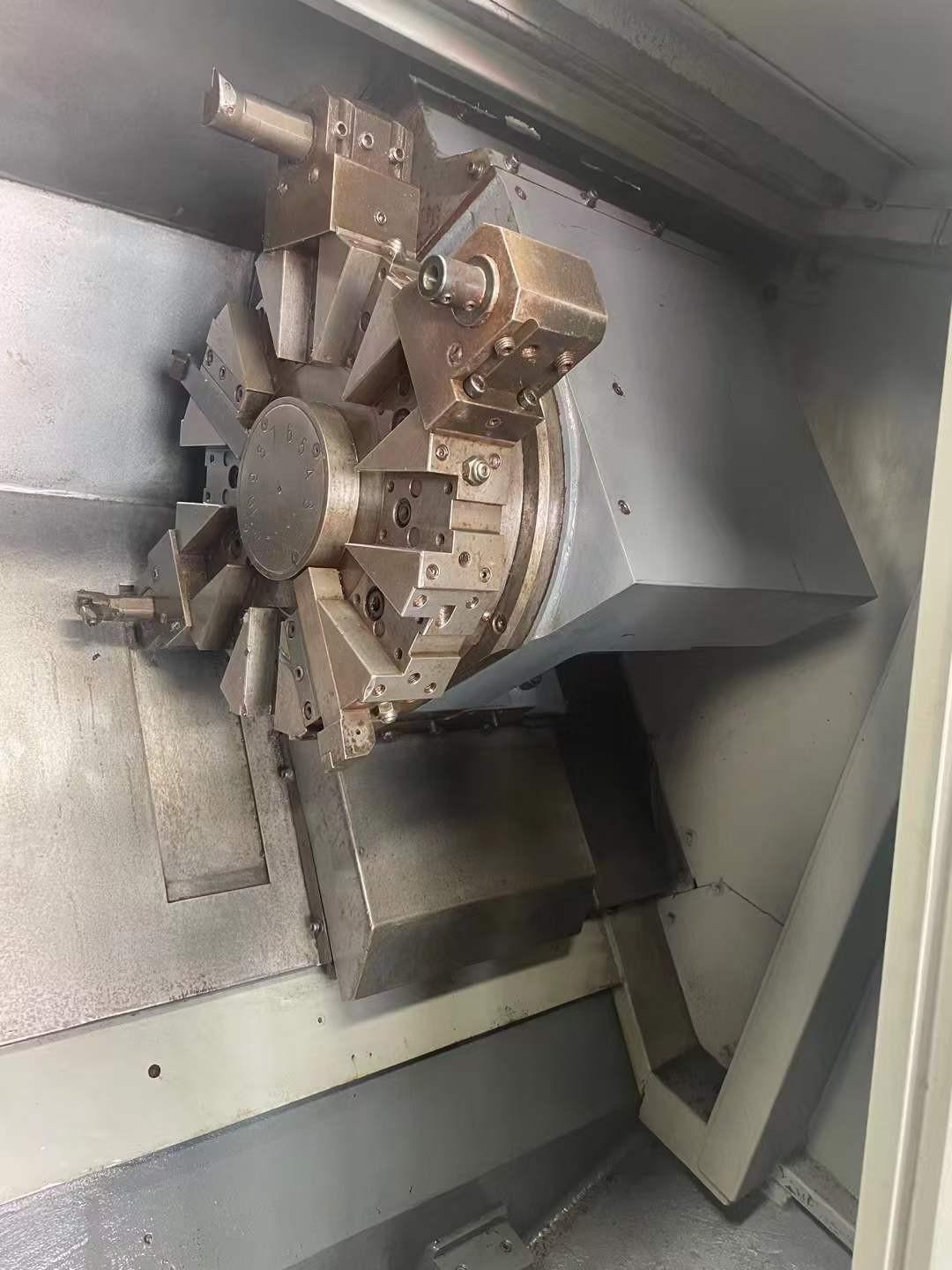

Ten inches chuck, 12-position servo turret

Linear guideway machine, without tailstock

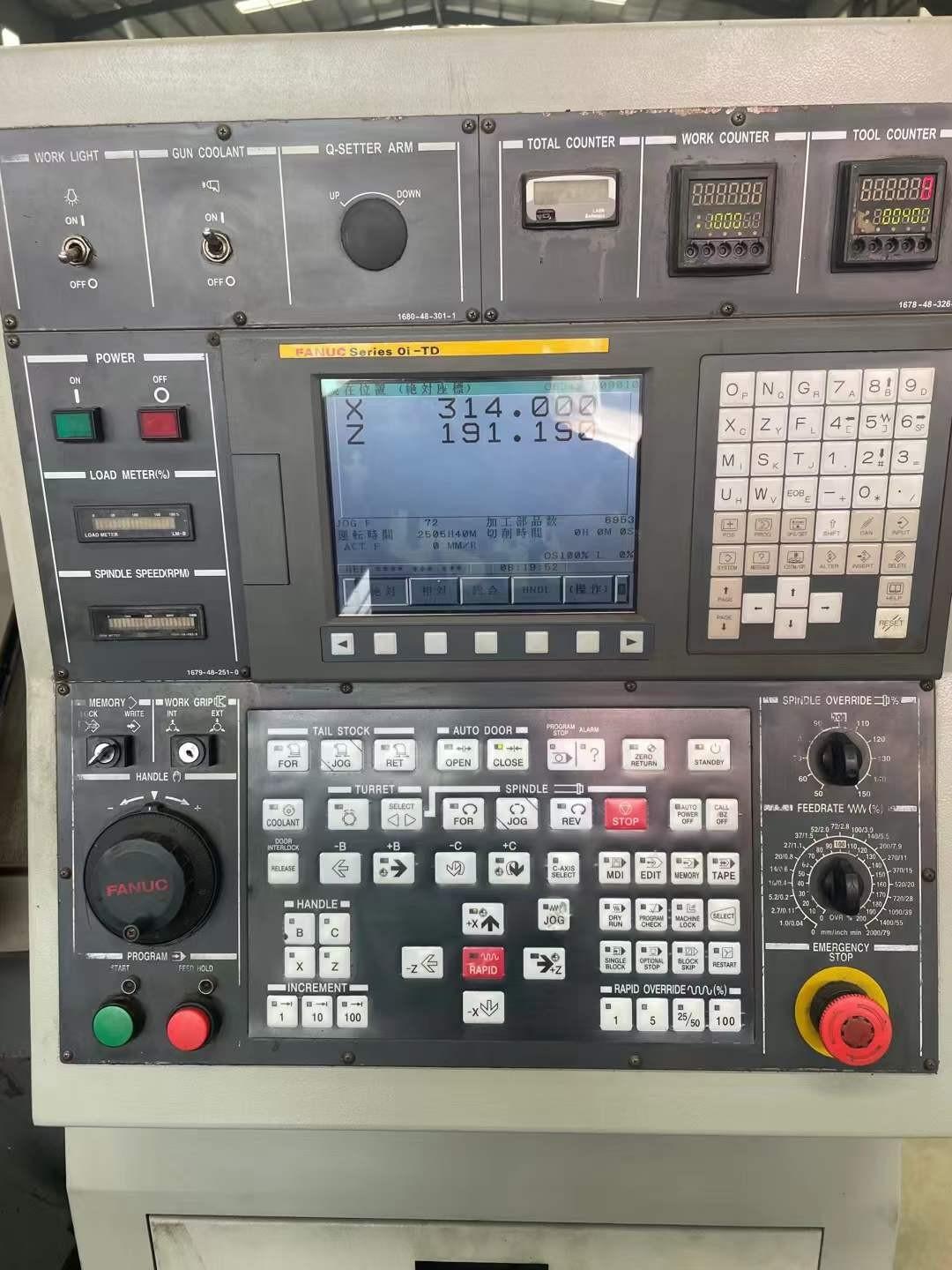

Fanuc TD system
