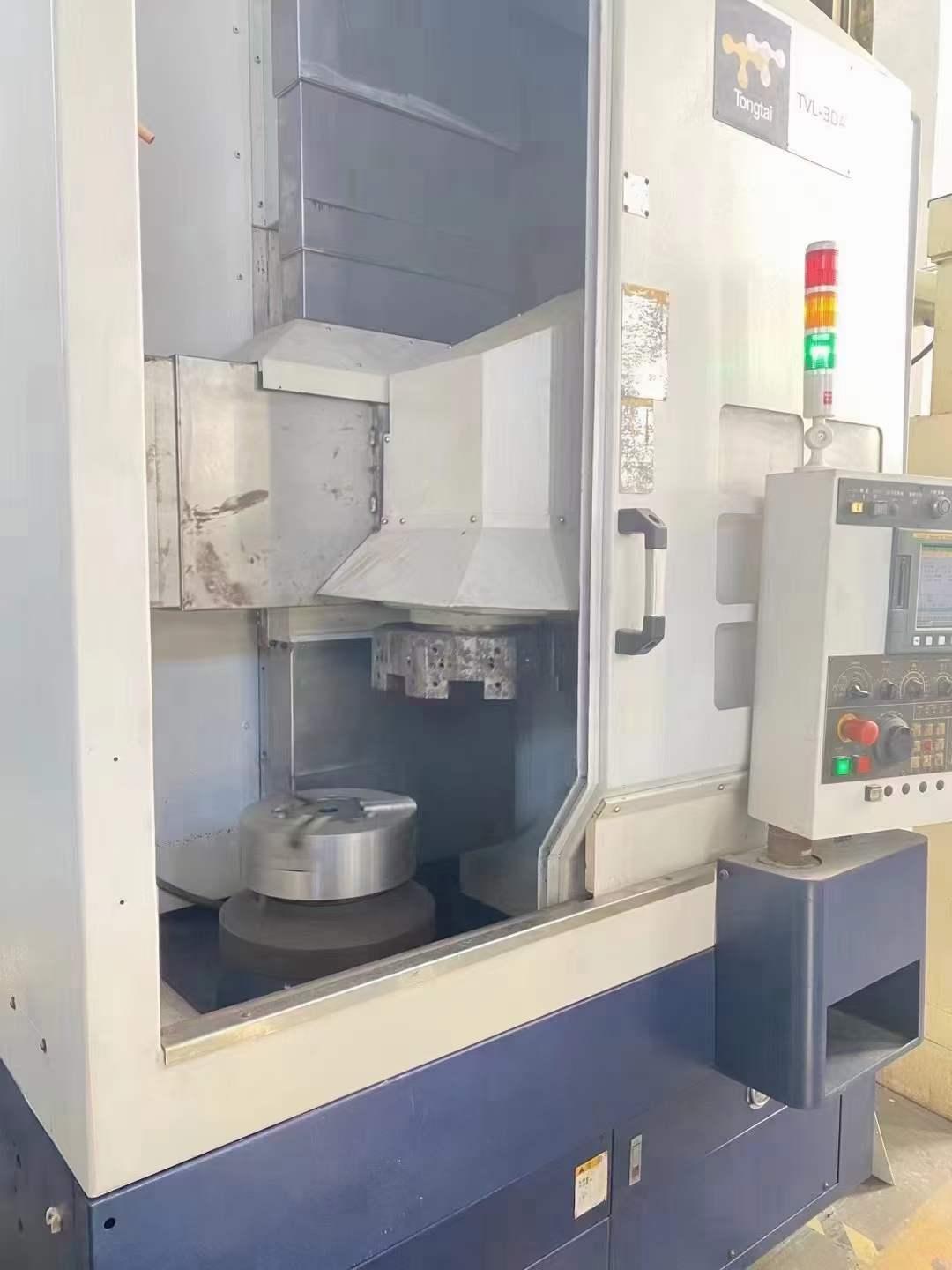

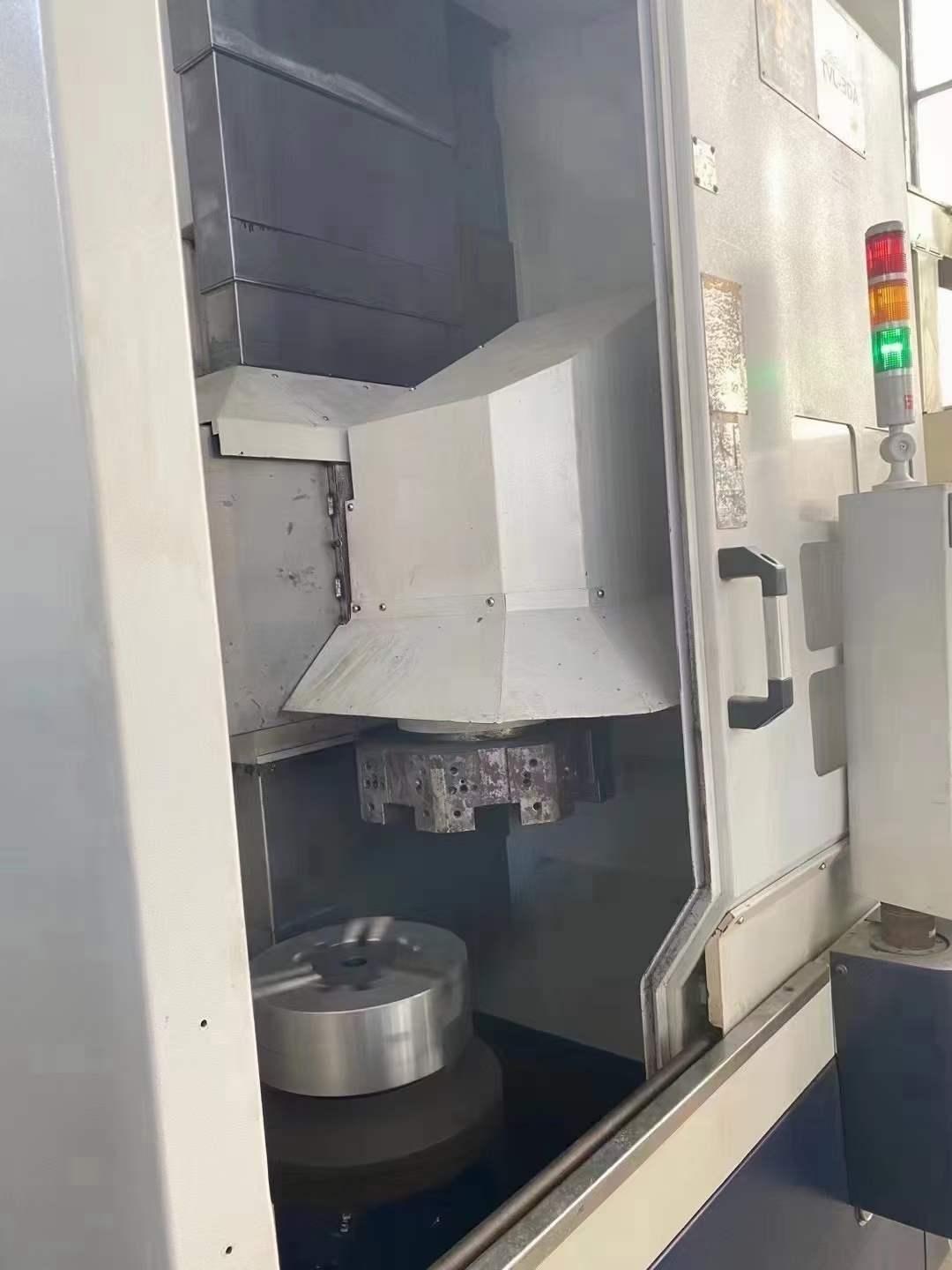

Tongtai TVL one 3DA CNC turning lathe
[Product Information]:
- Inventory number：92031
- Brand：Tongtai
- Model：TVL one 3DA
- Origin：Taiwan of China
- Location：China
- Year：
- Create Time：2024-05-31
Specifications:
Turret position: 10

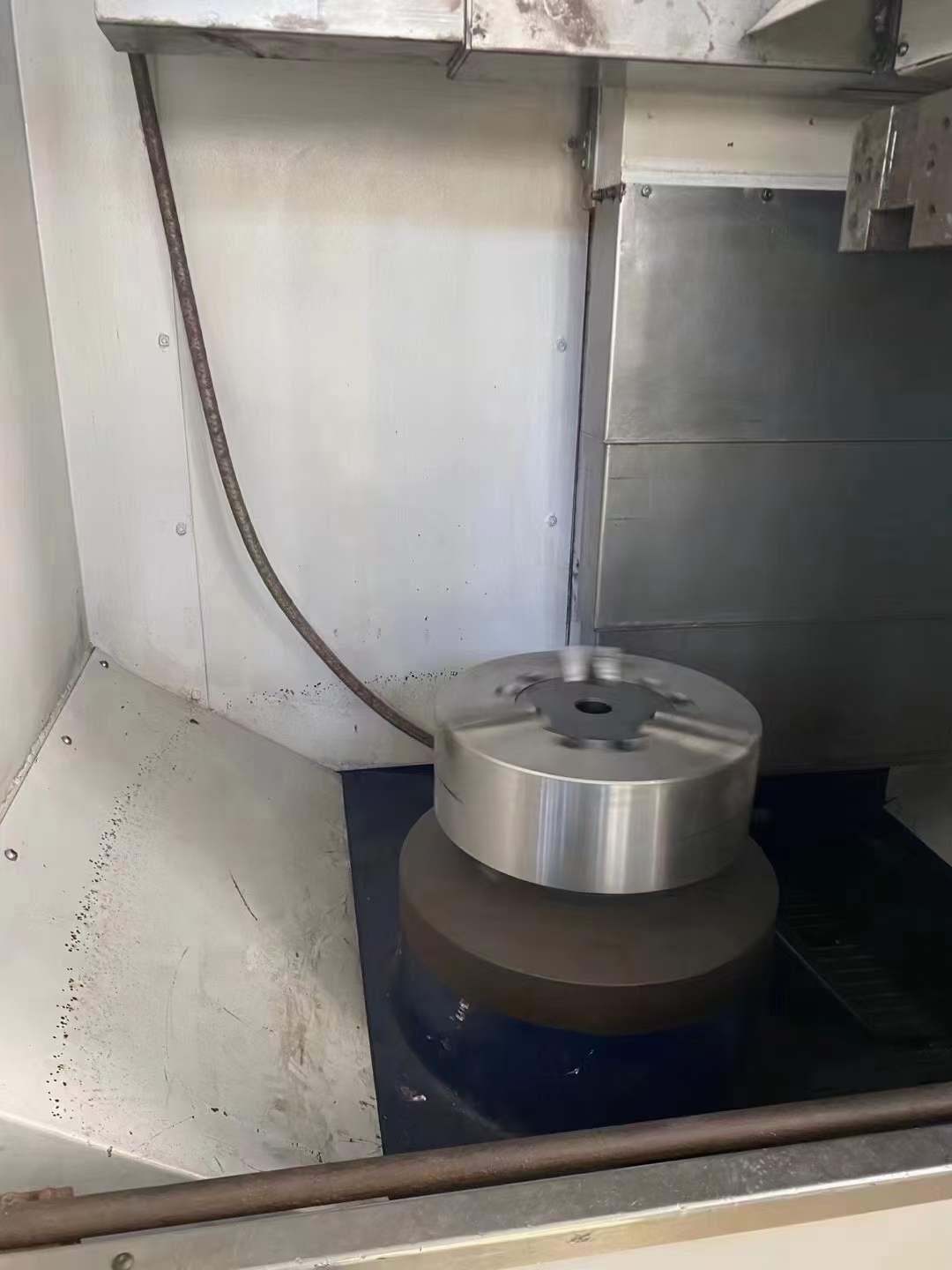

hydraulic pressure chuck : 12 inches
spindle: A2-8
Motor power: 22kw
Maximum rotating diameter: 560 mm
Maximum cutting diameter: 560 mm
Maximum cutting height: 450 mm
spindle bearing diameter: 120mm
Spindle speed: 25-2500rpm

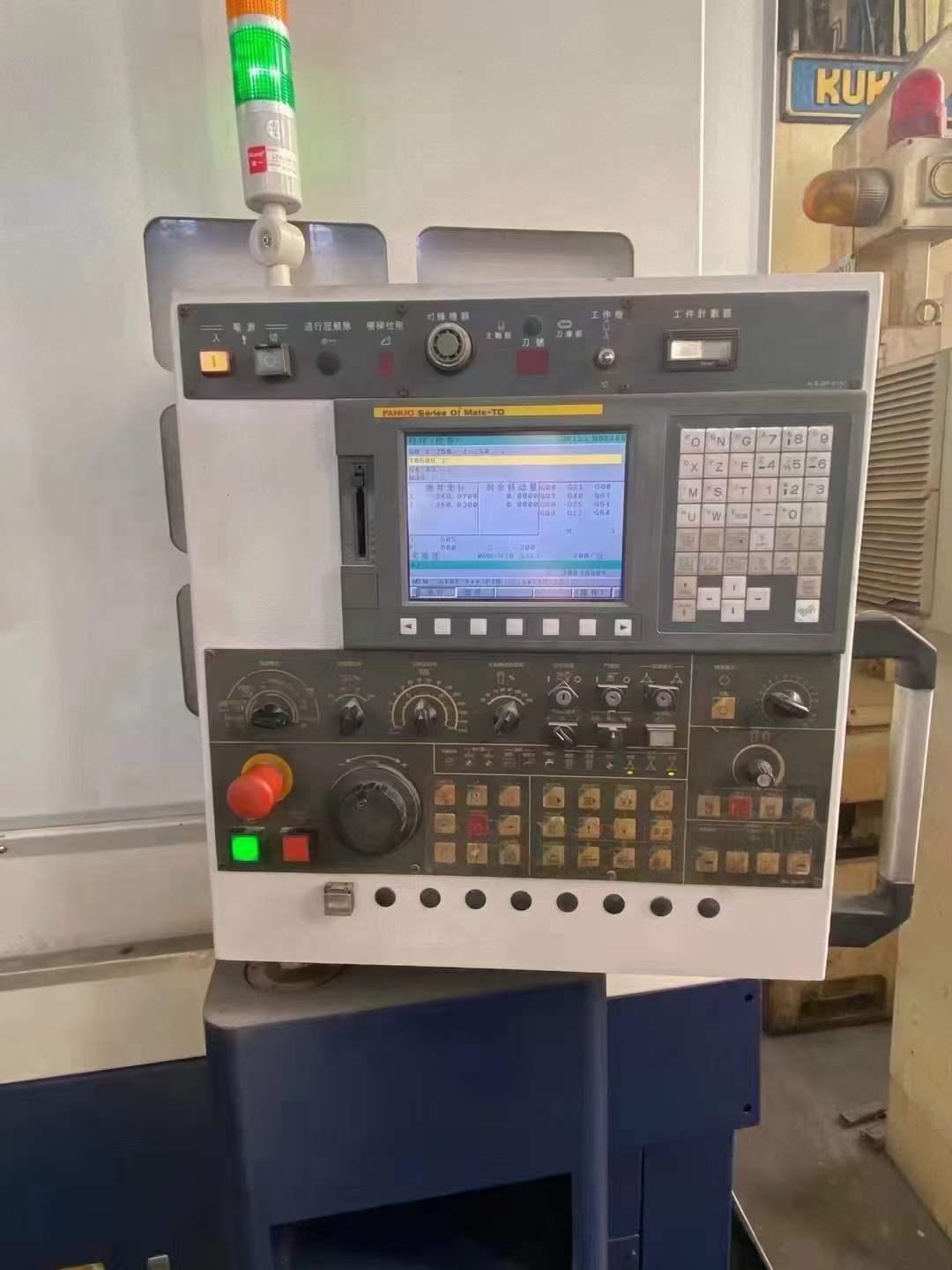

CNC System: Fanuc TD
Two axes rigid guideway
Automatic Chip conveyor with rear
