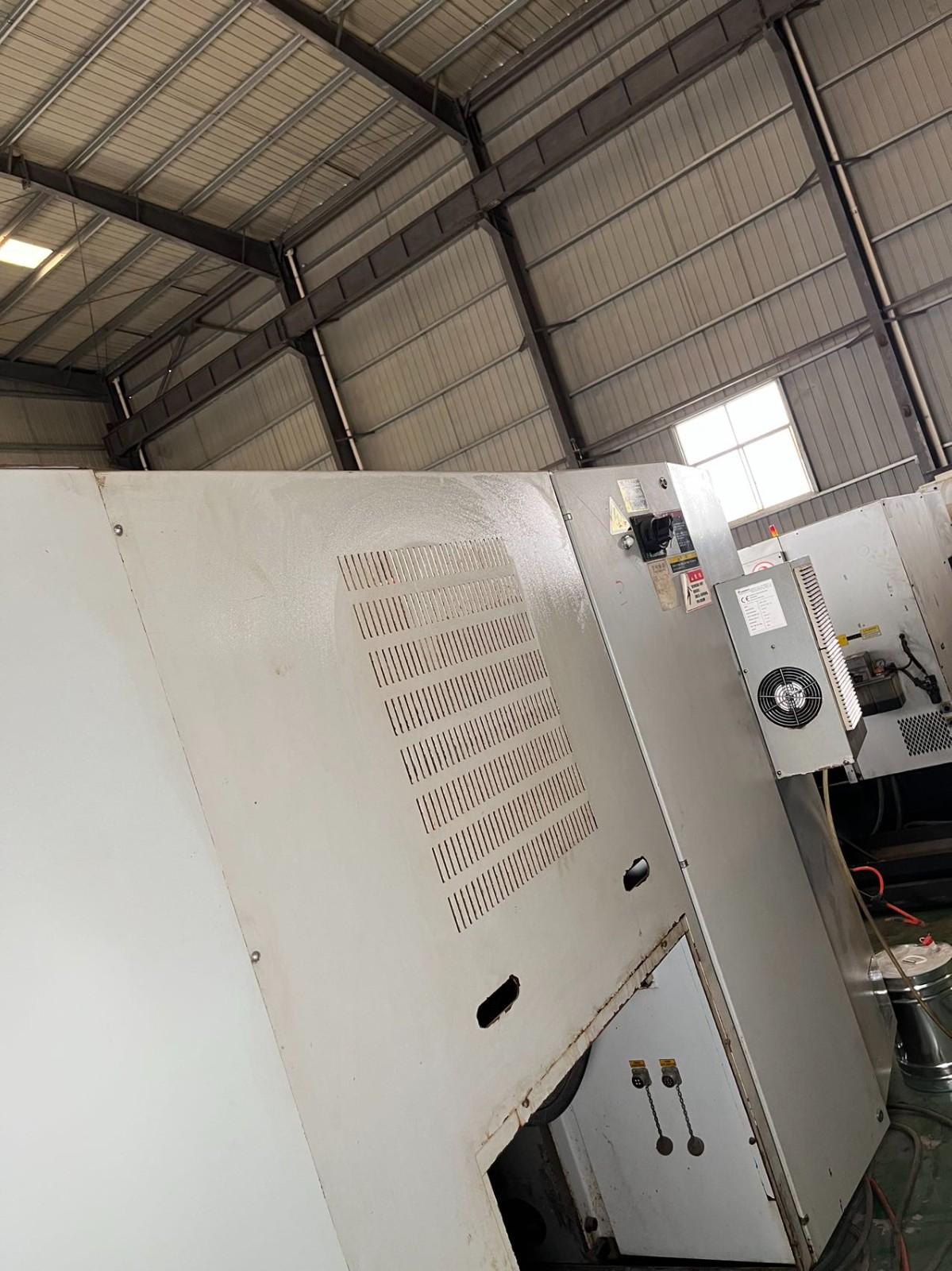

HYUNDAI KIA SKT 15LM Turn Mill Machining Centre

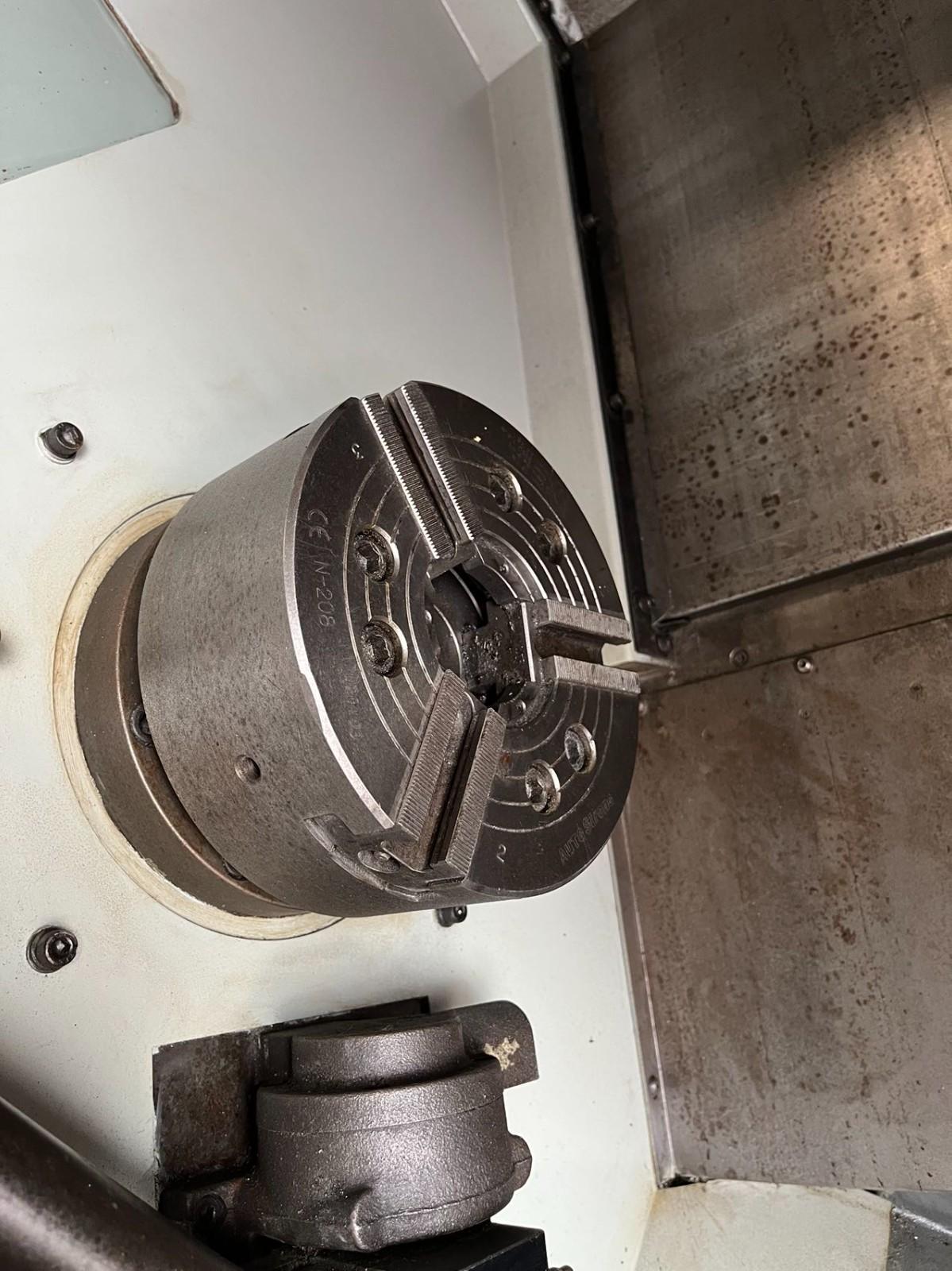

8 inches hydraulic chuck with cutter aligner,

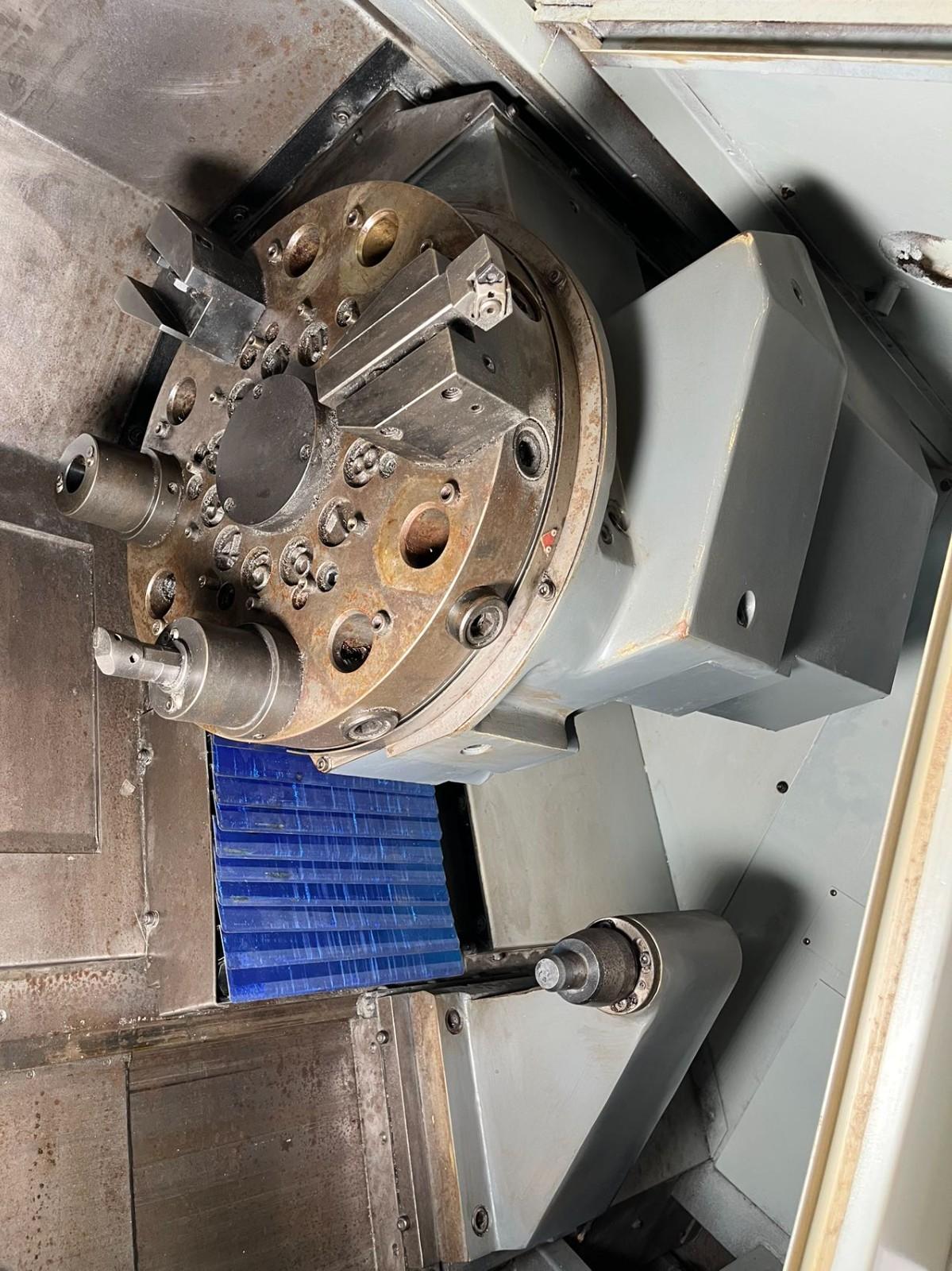

12-position servo turret hydraulic turret,

With two power heads, one at right angles and one at 90 grees,

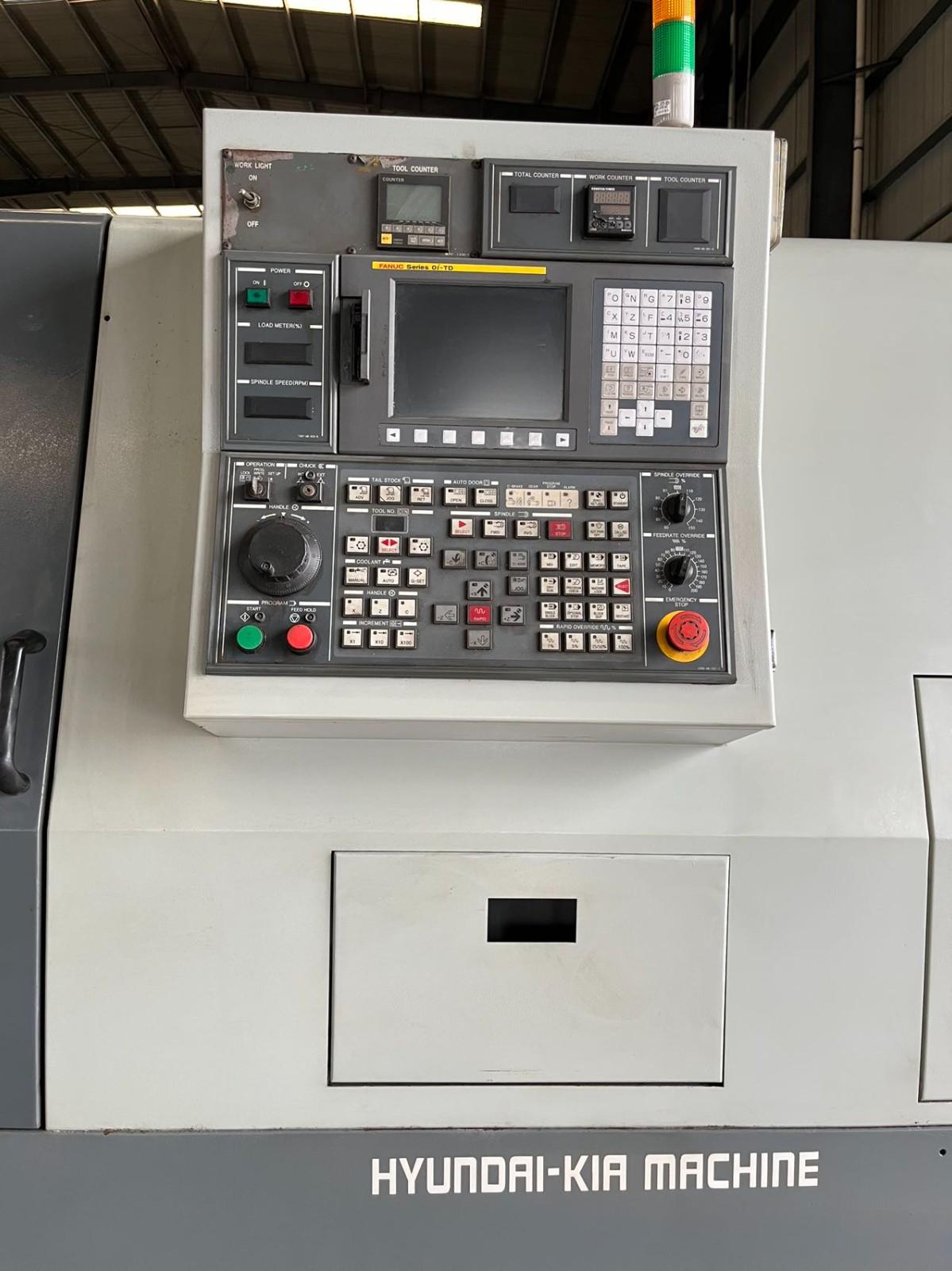

Fanuc advanced TD system,

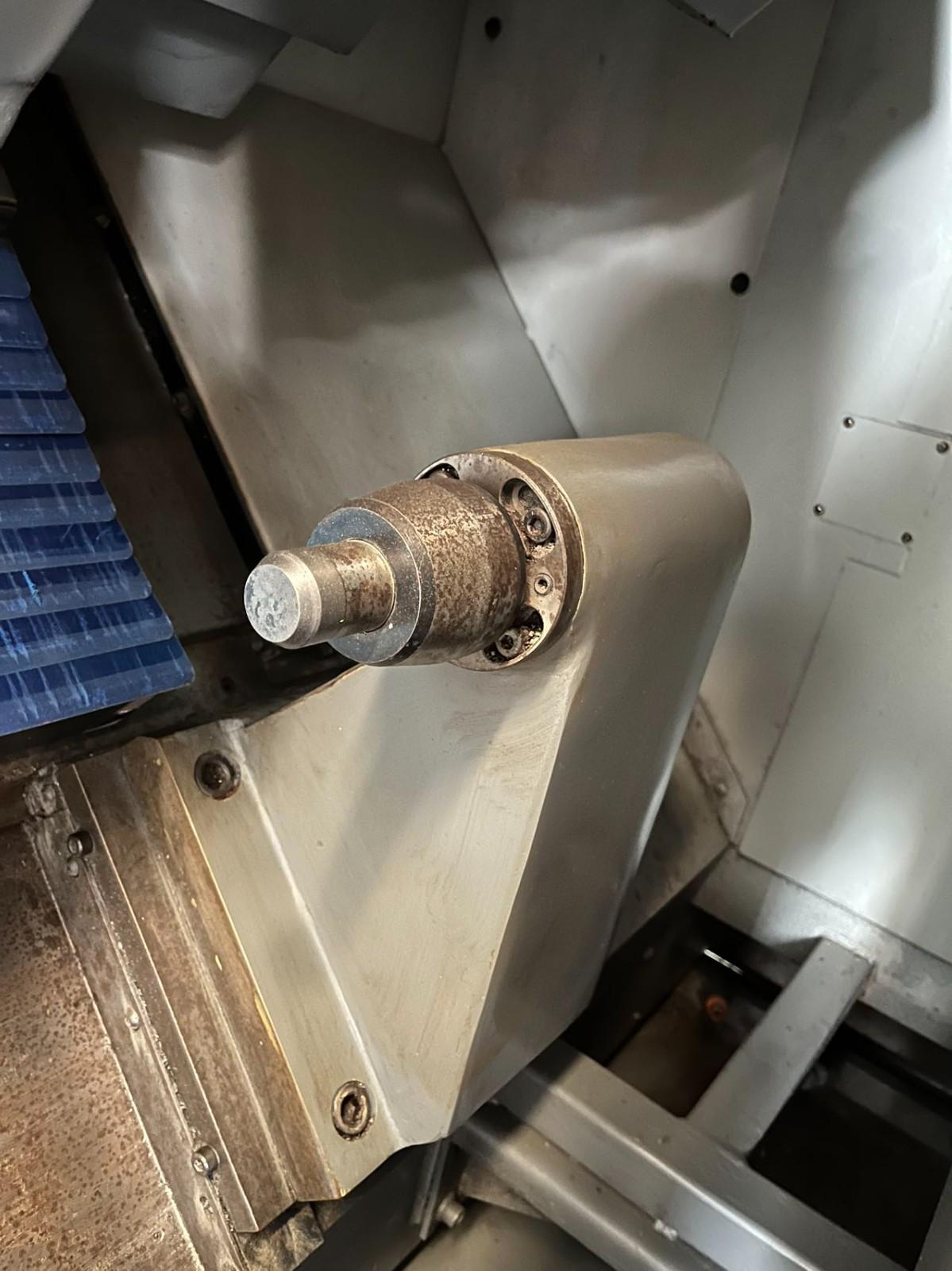

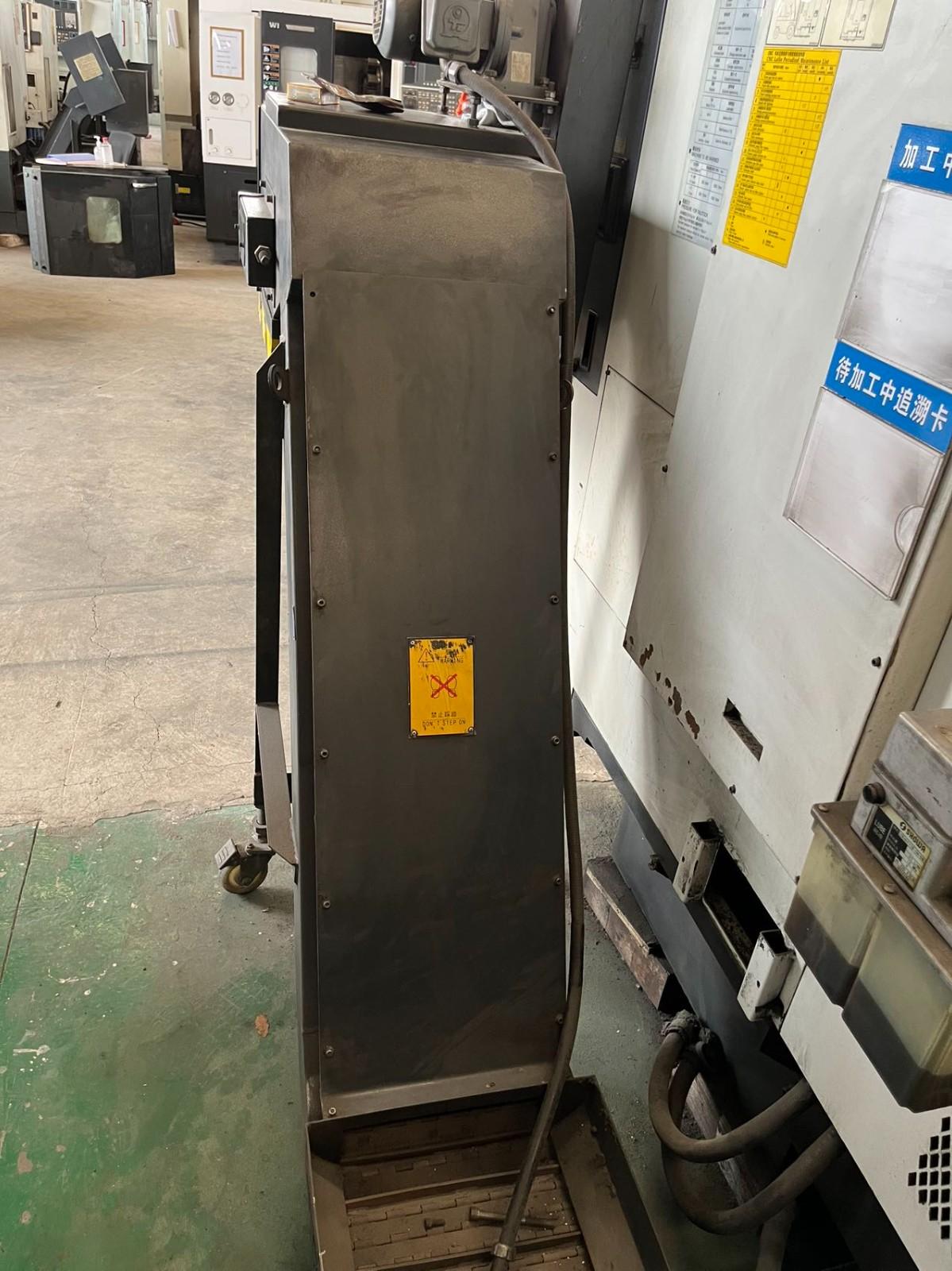

With automatic tailstock, chip conveyor with oil-water separator,

machining accuracy within 0.01mm, ex-factory date of 2015

Rotary diameter :550mm

Machining diameter :350mm

Machining length :530mm

Internal diameter of spindle bearing :80mm

Spindle through hole diameter :52mm

Fast motion rate:36/36m/min

Travel of X axis :210mm

Z-axis travel :550mm

Weight :4300kg

Overall dimensions :2900*1650*1870mm
