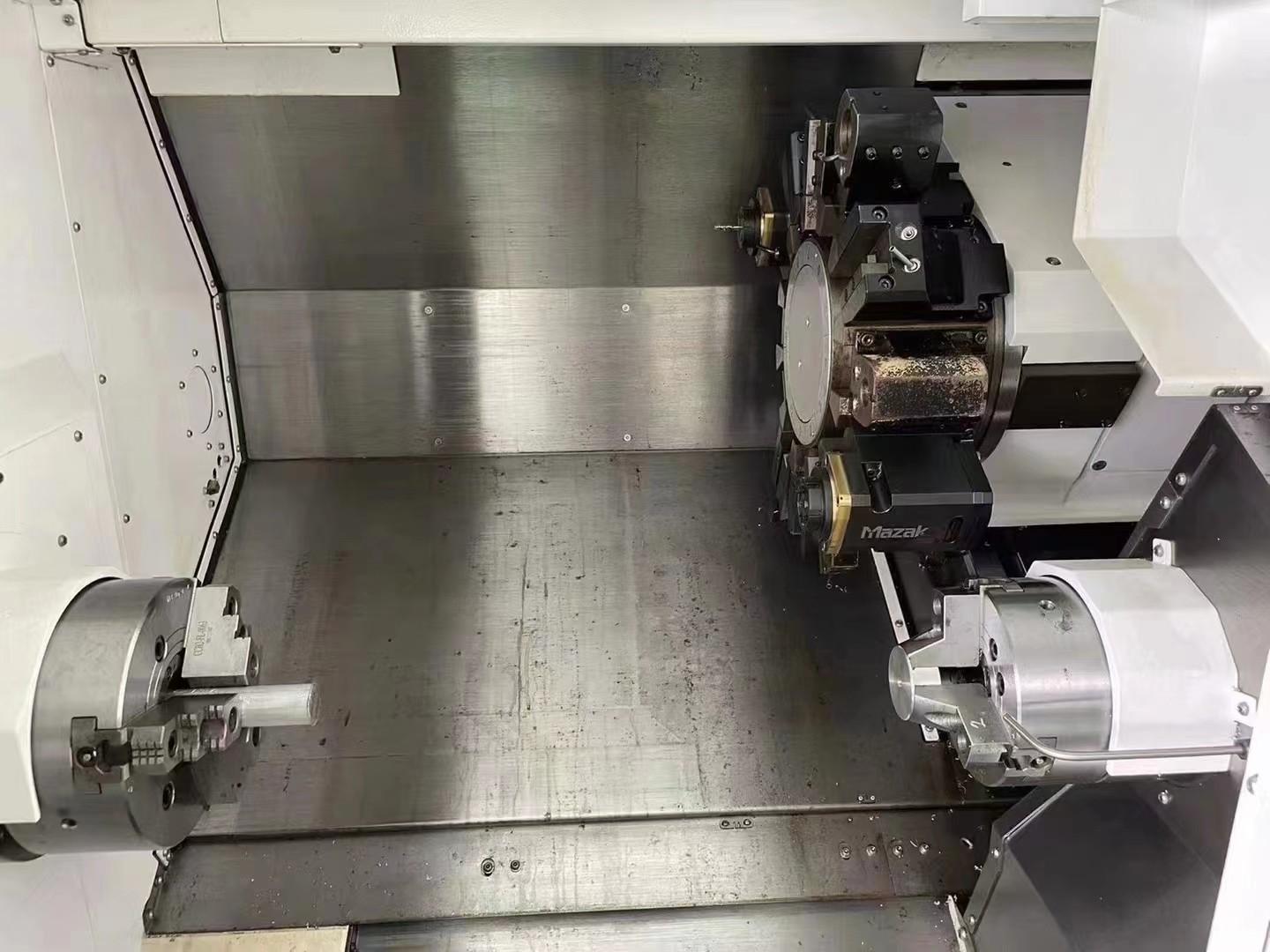

MAZAK QT-COMPACT 200MSY L Turn Mill Machining Centre
[Product Information]:
- Inventory number：10176
- Brand：MAZAK

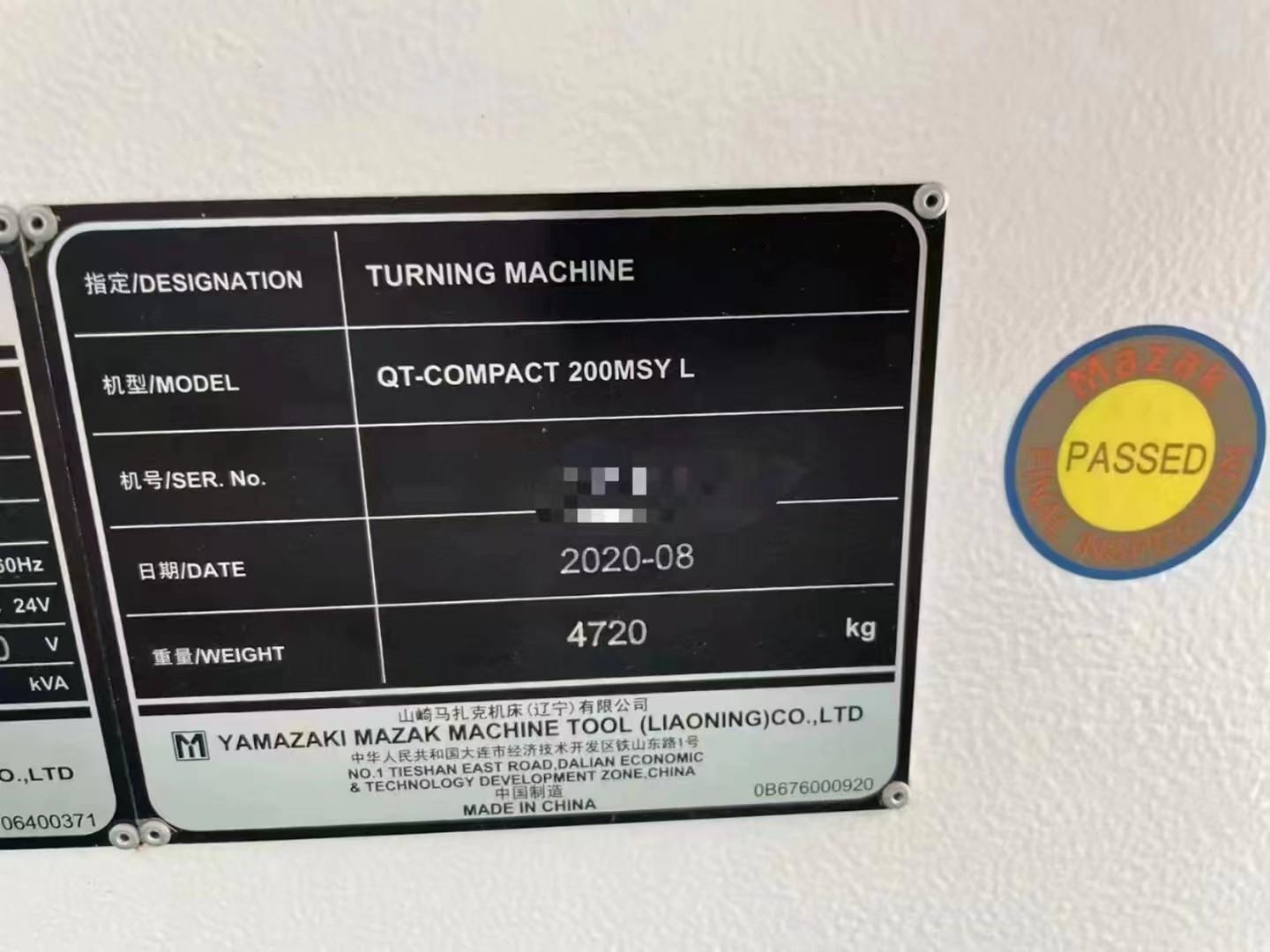

- Model：QT-COMPACT 200MSY L
- Origin：Japan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
Ex-factory date 2020
Distance between center - 500U mm
Maximum turning diameter 695 mm
Maximum machining diameter 380 mm
Maximum bar machining capacity (affected by chuck) 65 mm
Maximum main spindle speed 5000 rpm
Chuck size 8 inches
Maximum sub-spindle speed 6000 rpm
Chuck size 6 inches
Upper turret number of tools 12
Maximum speed 5000 rpm
Feed spindle
Travel (X-axis) 234 mm
Travel (Y-axis) 100 mm
Travel (Z-axis) 625 mm
Travel (W-axis) 585 mm
Weight 4720kg
