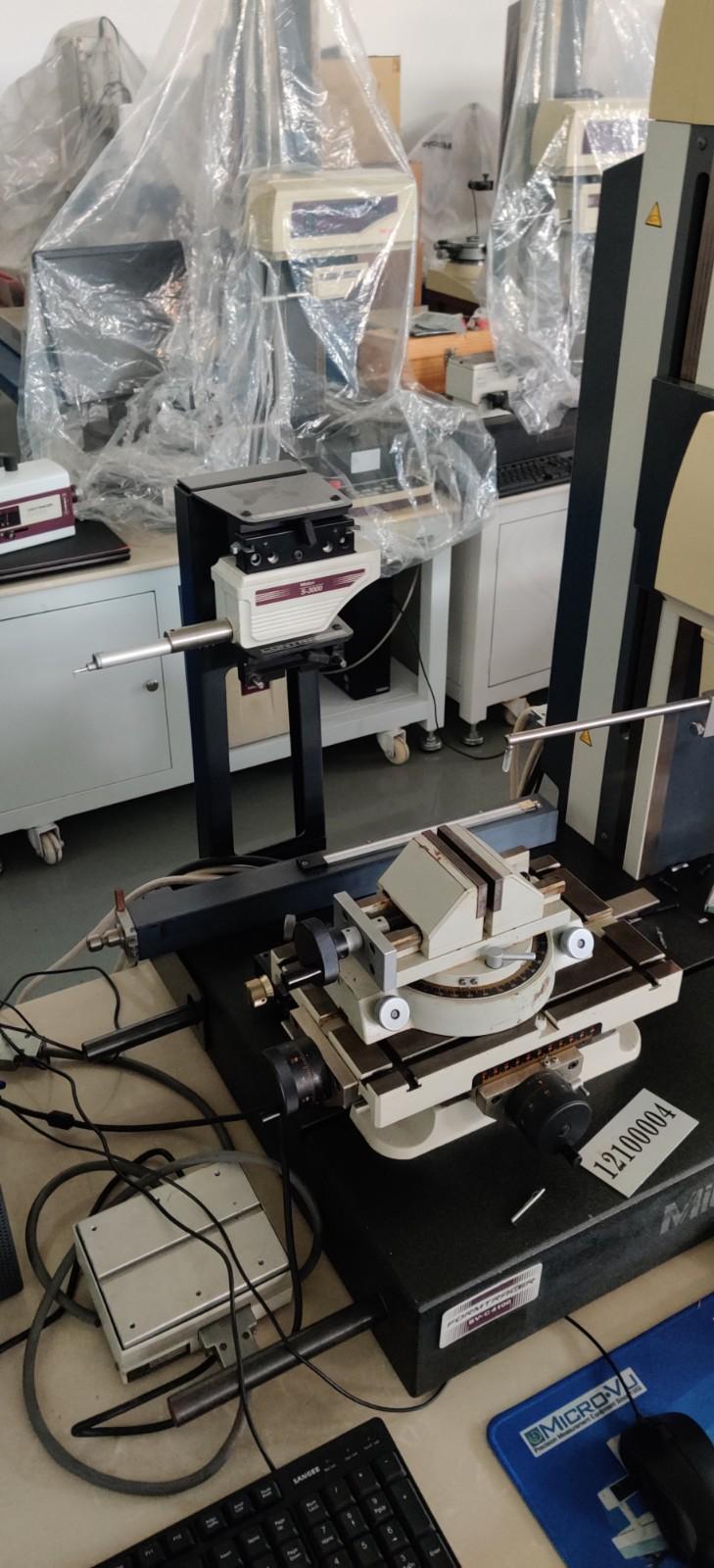

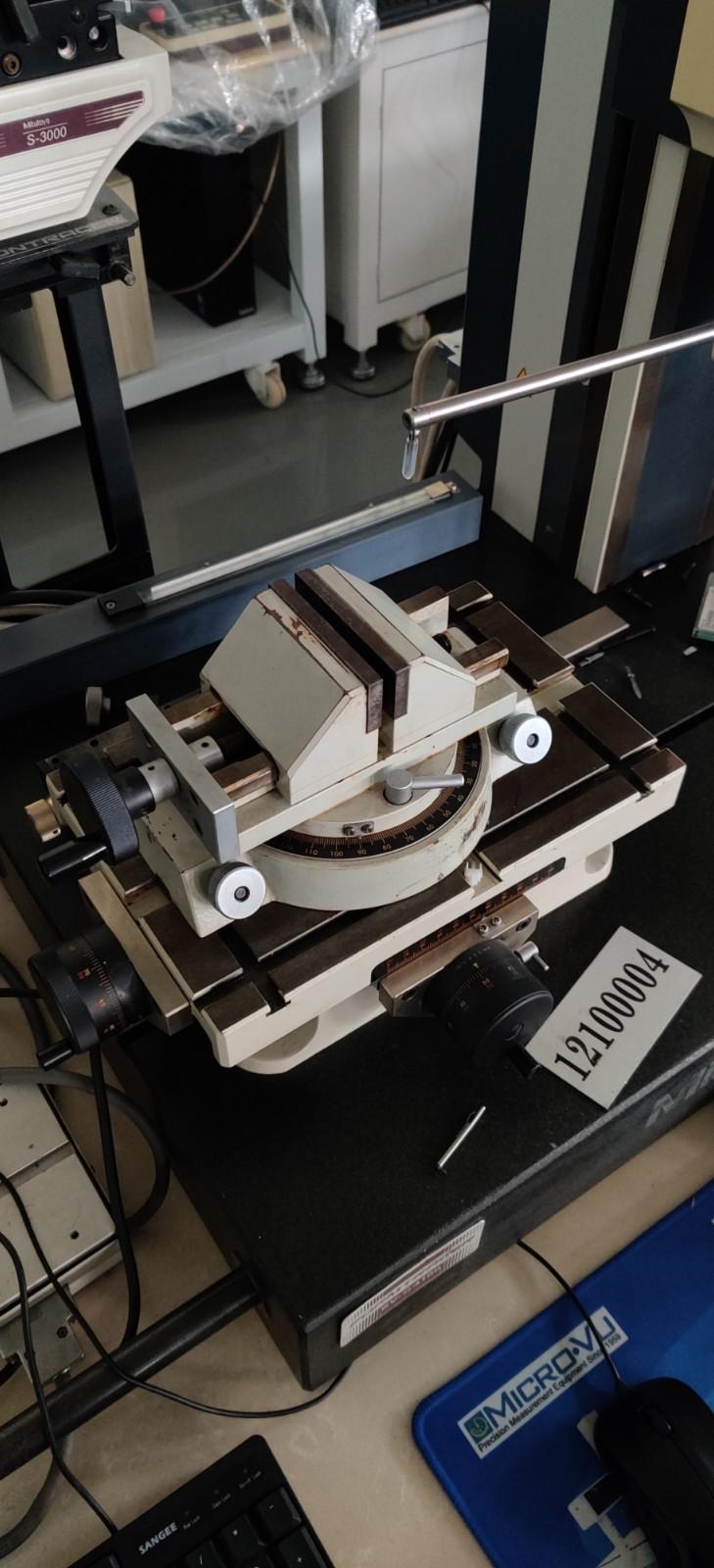

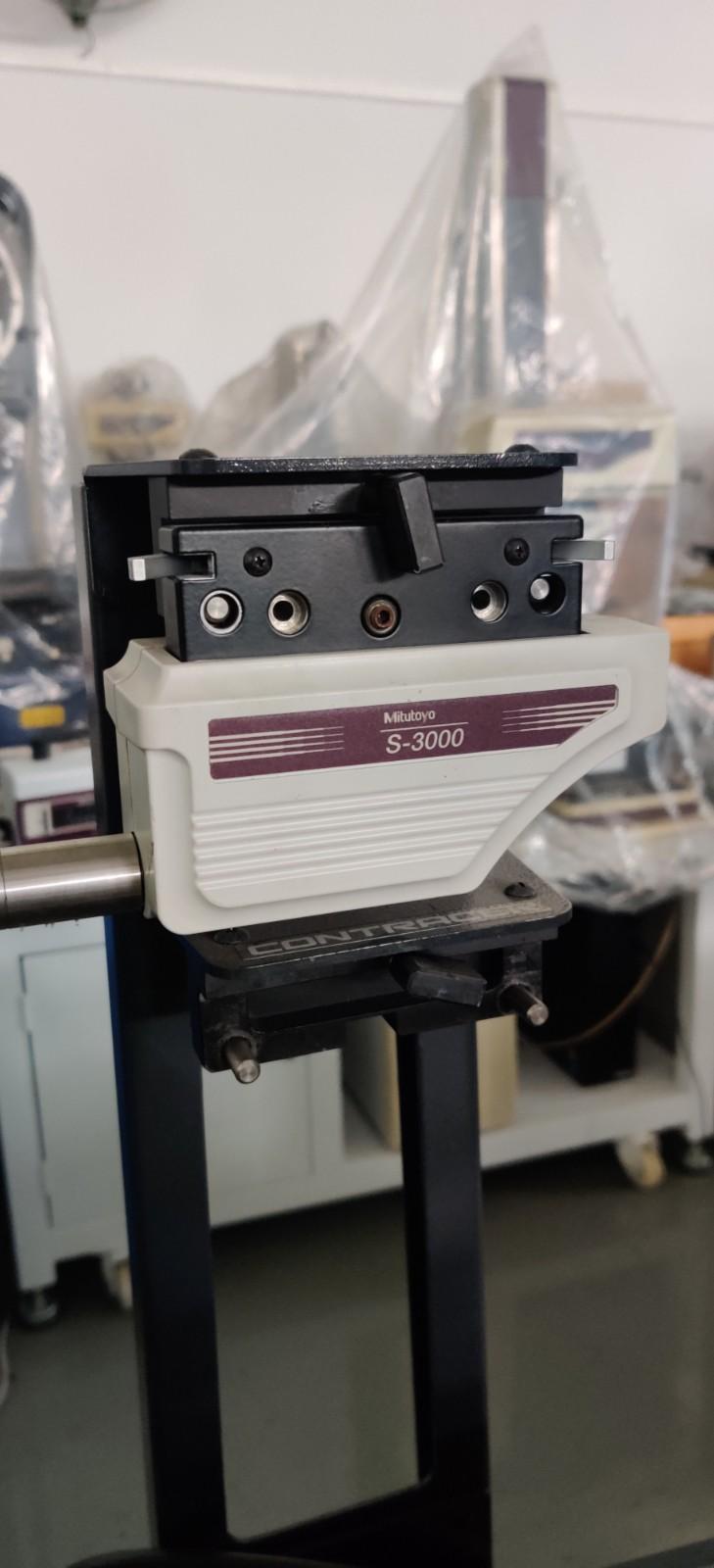

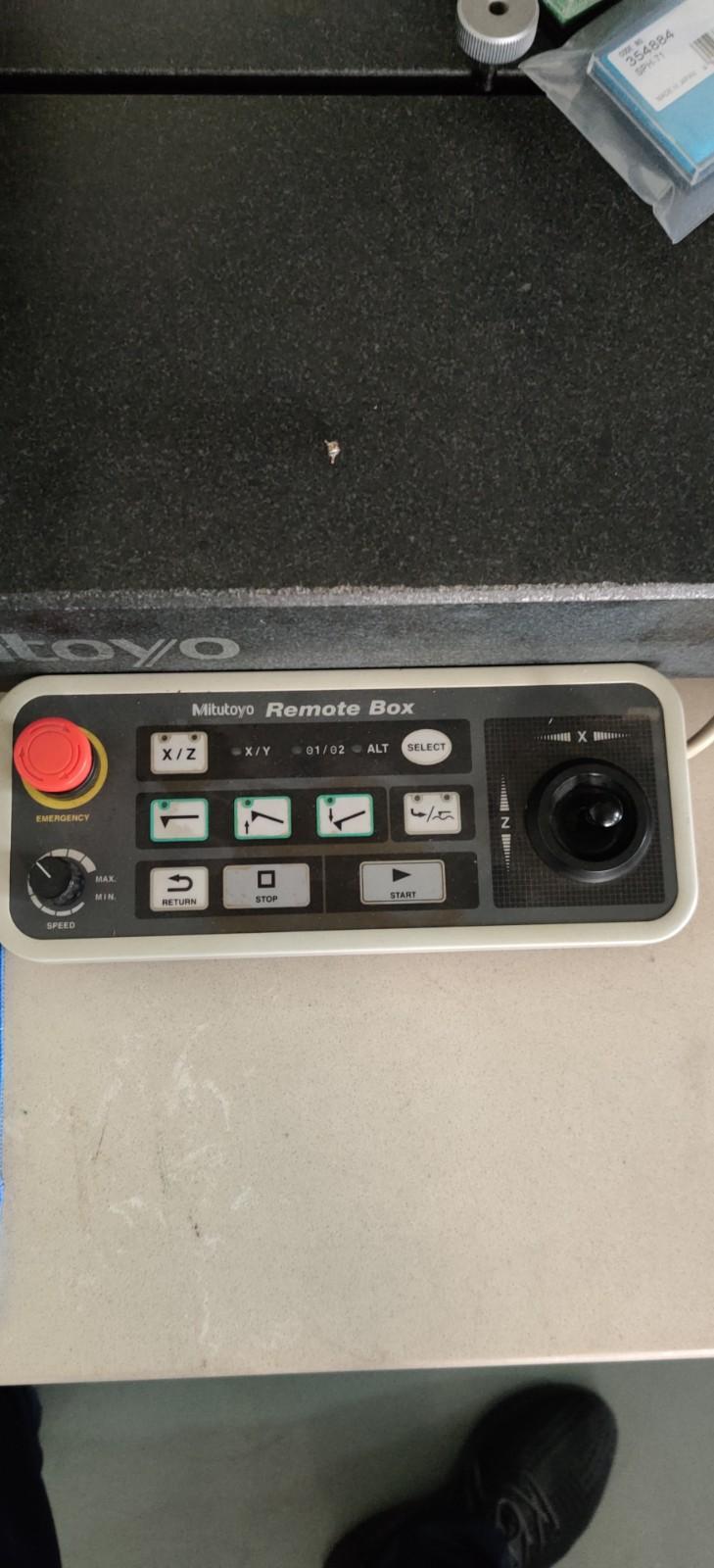

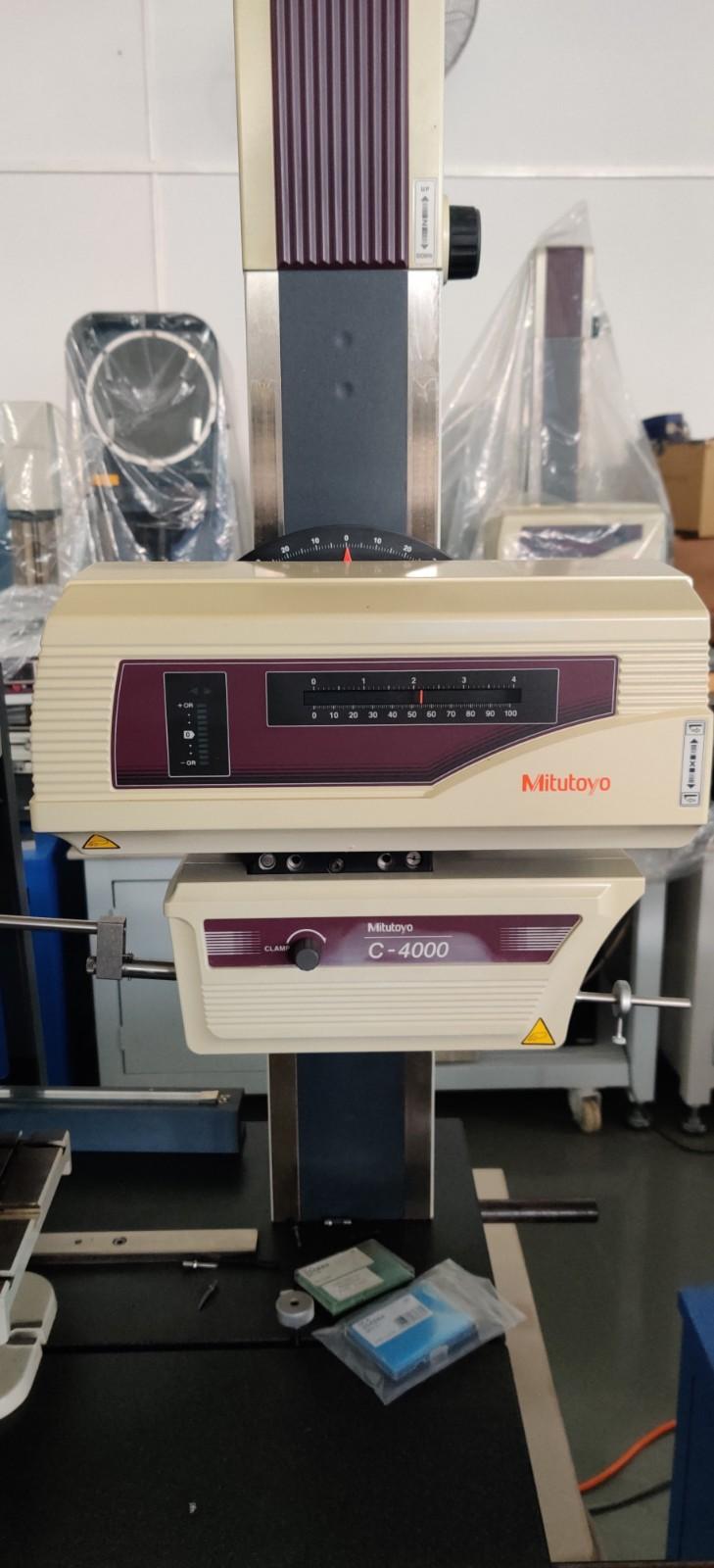

Mitutoyo C-4000 Measuring equipment

Brand and model : Mitutoyo C-4000

X axis:

Measuring range: 100mm or 200mm

Resolution: 0.05 μm

Drive speed: 80mm/s

Measuring speed: 0.02-5mm/s

Z2 axis:

Vertical movement: 300mm or 500mm

Resolution: 1 μm

Drive speed: 0-20mm/s

Z1 axis:

Measuring range: ± 25mm

Resolution: 0.05 μm(SV-C4100)

Drive speed: 0-20mm/s

X1 axis:

Measuring range: 100mm

Resolution: 0.05 μm

Drive speed: 80mm/s
