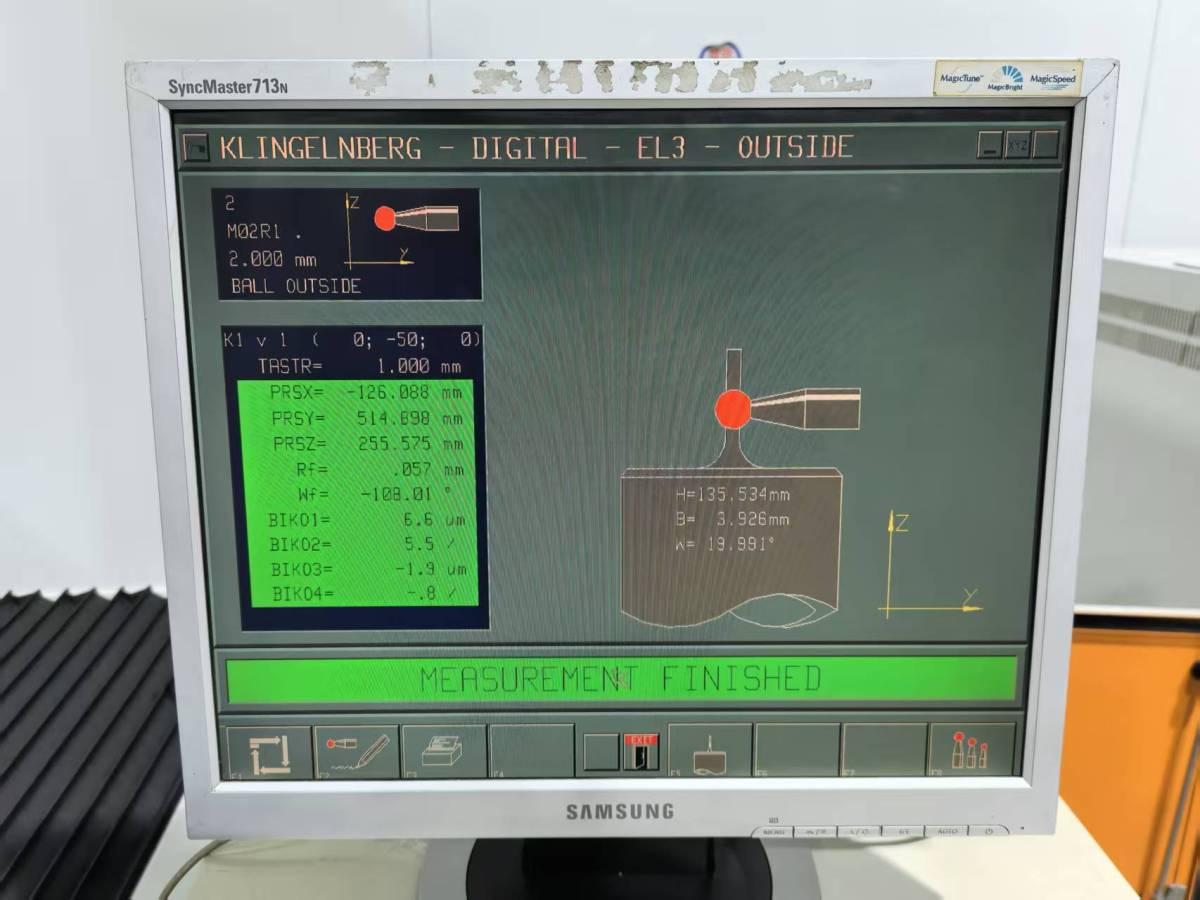

KLINGELNBERG PNC-65 Measuring equipment

Maximum workpiece diameter: Ø650 mm
Module range: 0.3 – 35 mm
X-axis horizontal measuring range: ±200 mm
Z-axis vertical measuring range: 800 mm
Distance between centers: 50 – 1000 mm
Maximum workpiece weight: Approx. 500 kg
Maximum allowable moment of inertia: 100 kg·m²

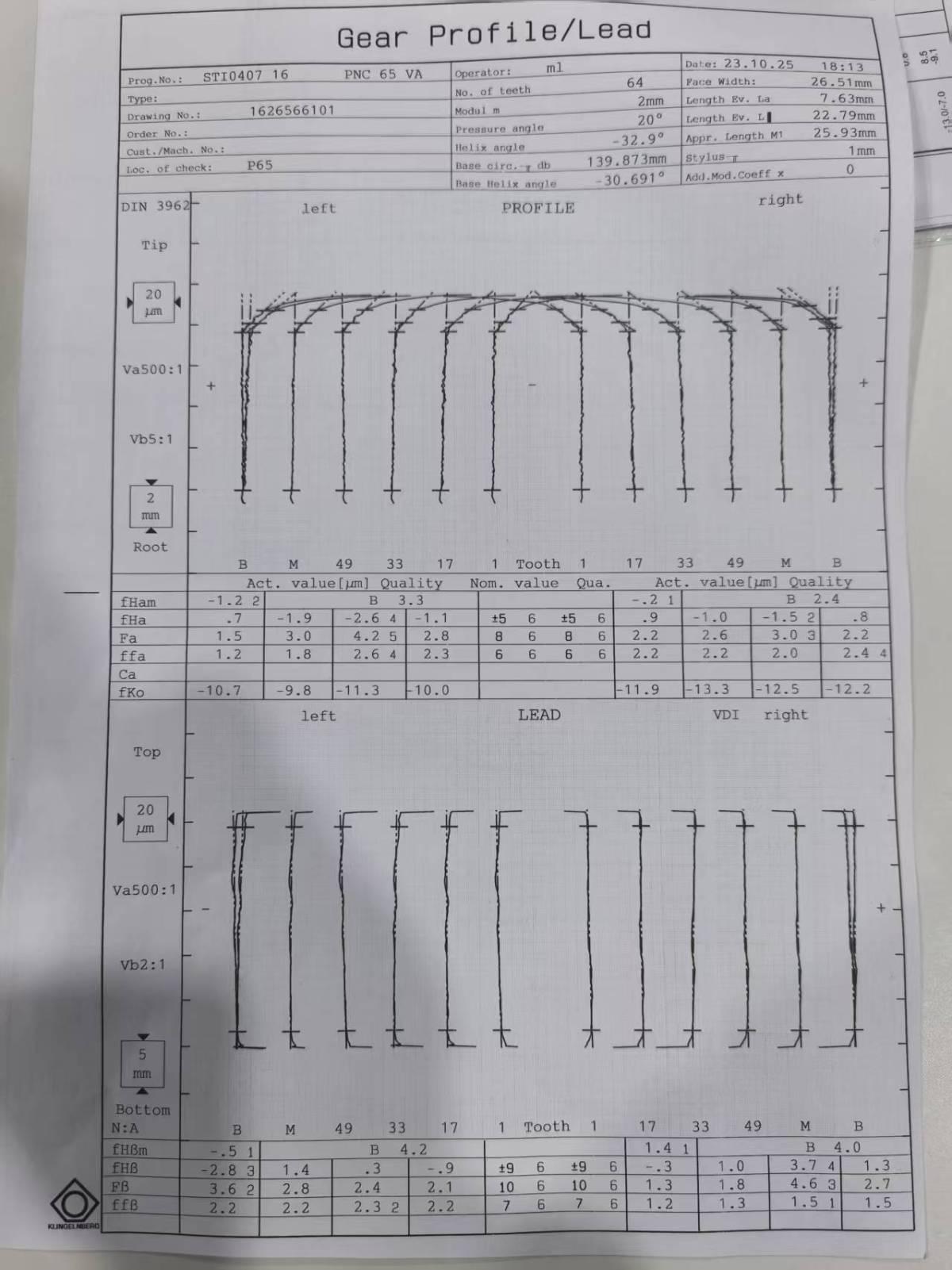

Gear measurement accuracy: VDI/VDE 2612 Class A
