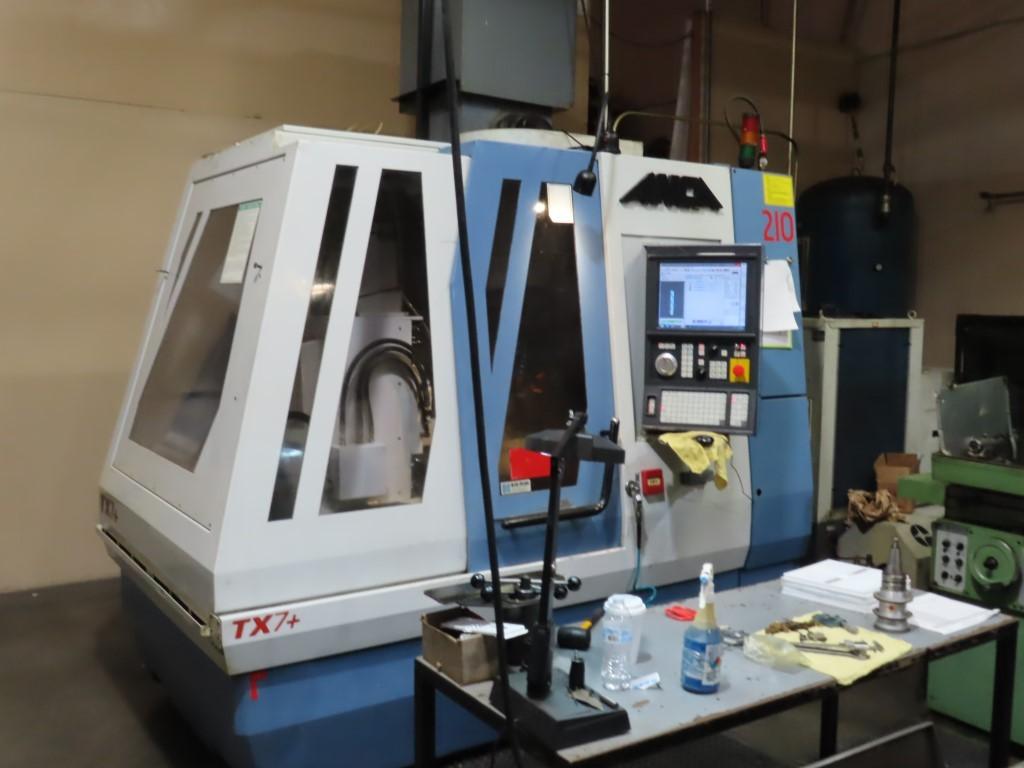

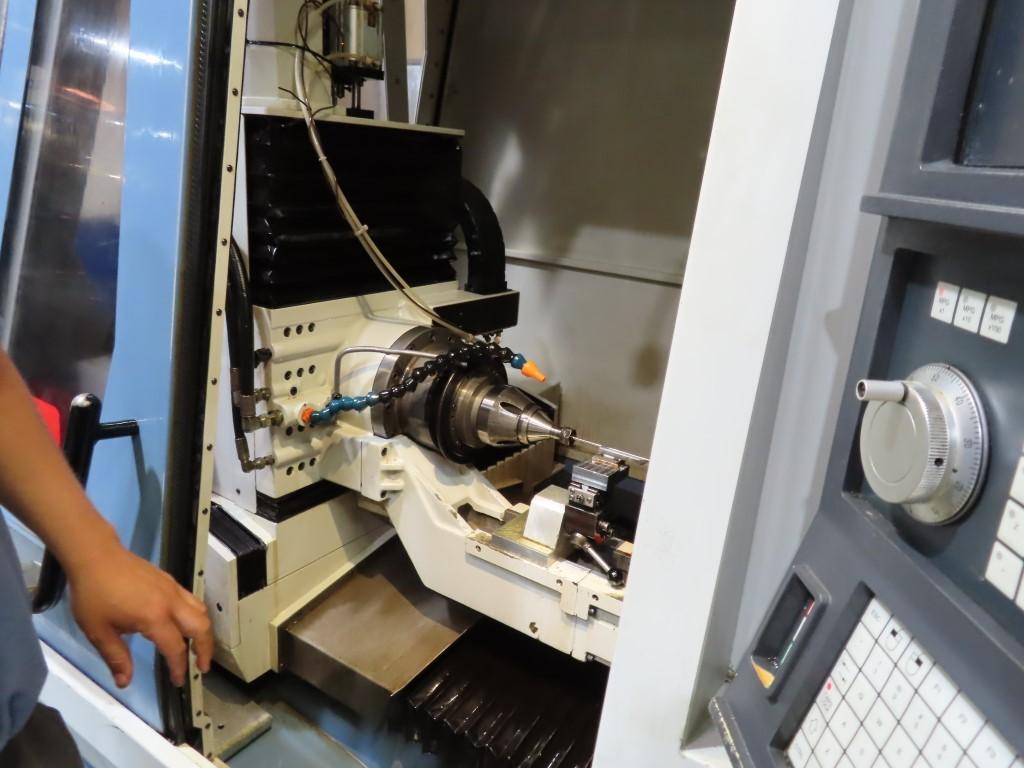

ANCA TX-7 Tool grinder

Travels:

X-axis: 21.9 inches

Y-axis: 16.4 inches

Z-axis: 10.1 inches

Rotation axis: 264 degrees/360 degrees

Slot: 1.15 inches solid weld bead with a minimum diameter of 0.040 inches

Positioning feedback resolution: 0.0000039 inches

Maximum tool diameter: 8 inches

Spindle power: 37 Kw (49 HP)

Spindle speed: 10000 rpm

Spindle type: Anca bi-directional

Spindle drive: integrated direct drive

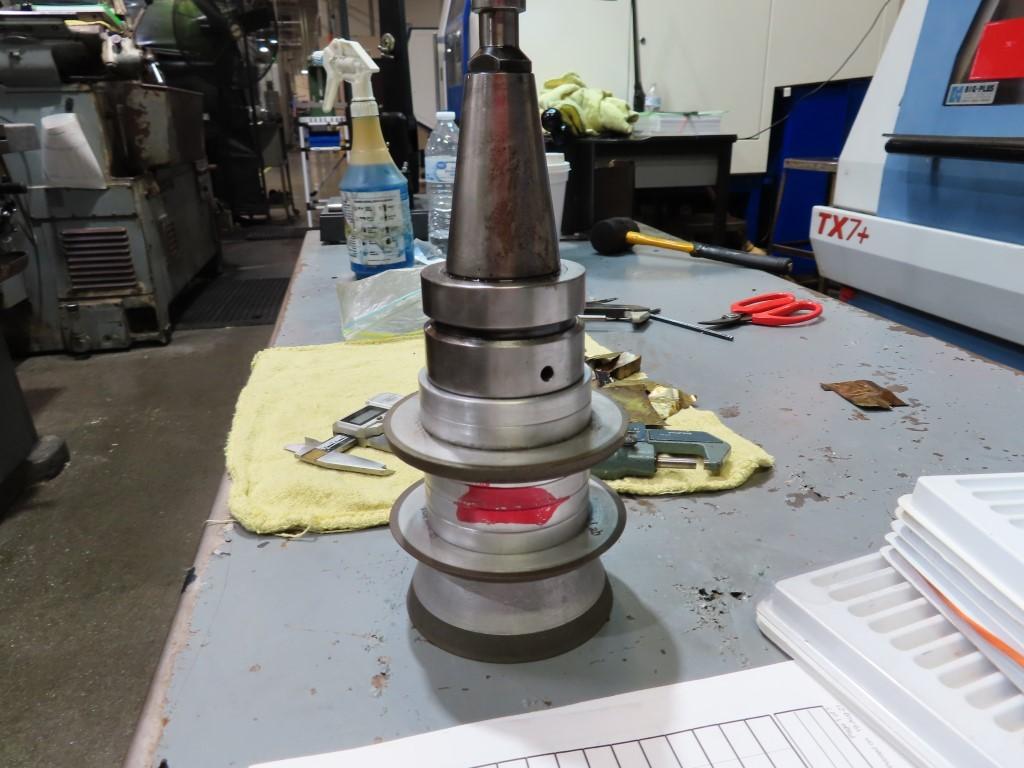

Spindle taper: HSK 40F

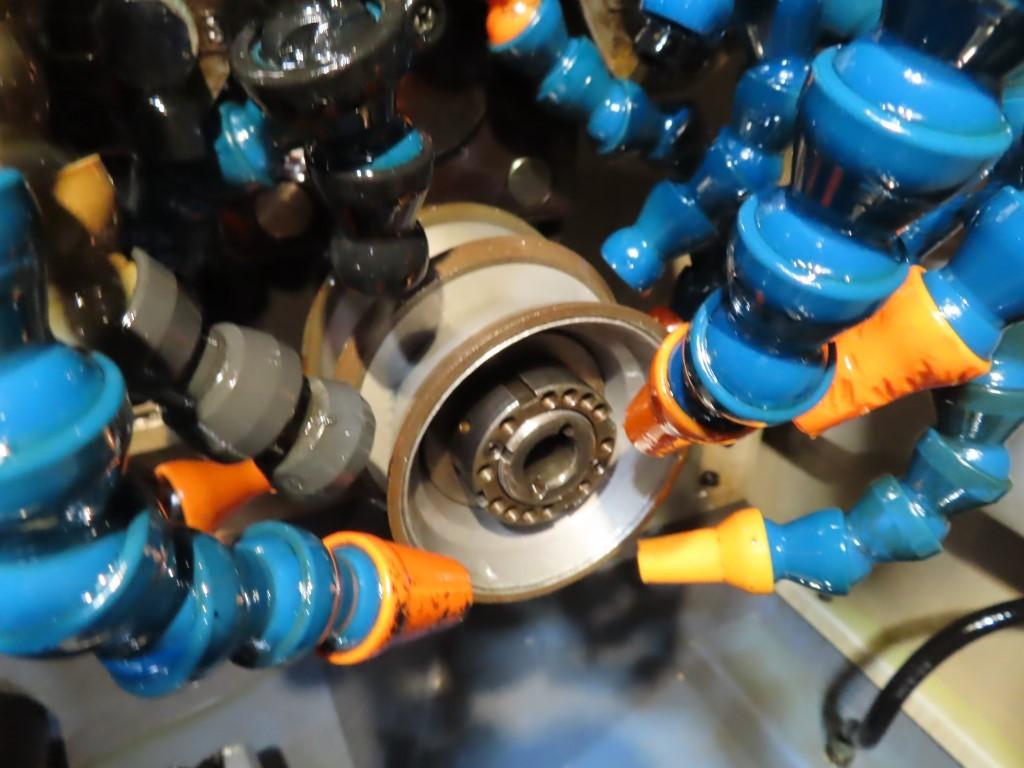

Maximum grinding wheel diameter: 7.87 inches

Grinding wheel set: 2

Power capacity: 25 Kva

Floor space: 61 "x 100" x 89 "

Weight: about 18100 pounds

Accessories:

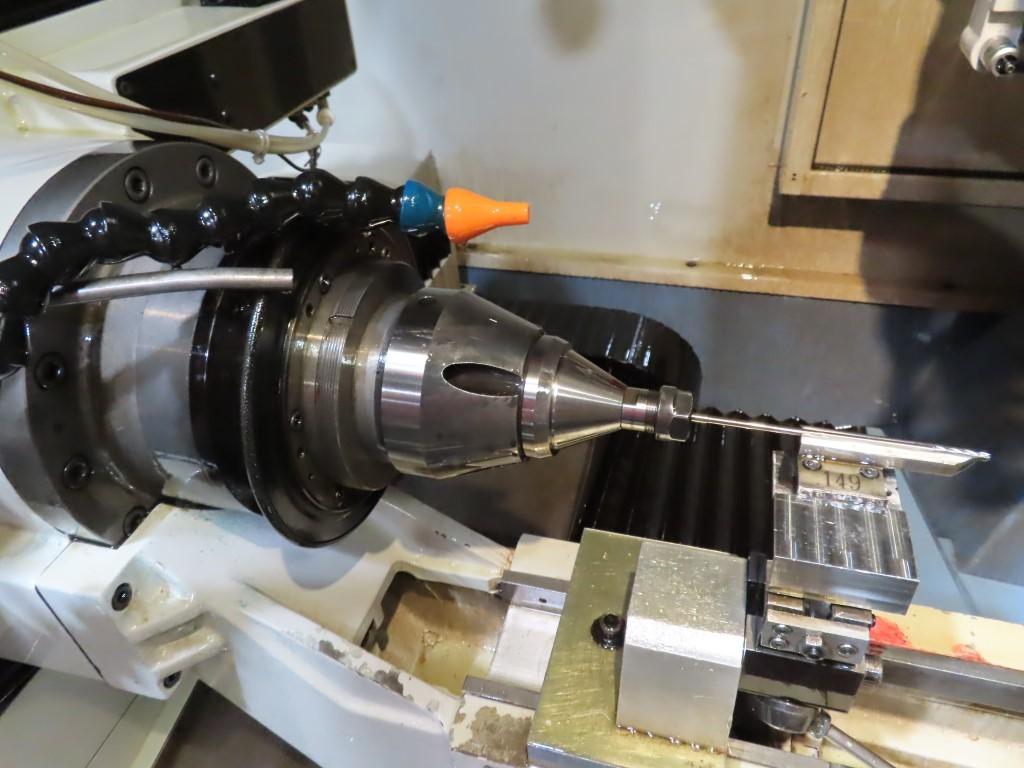

Collet chuck

Collet

Remarks:

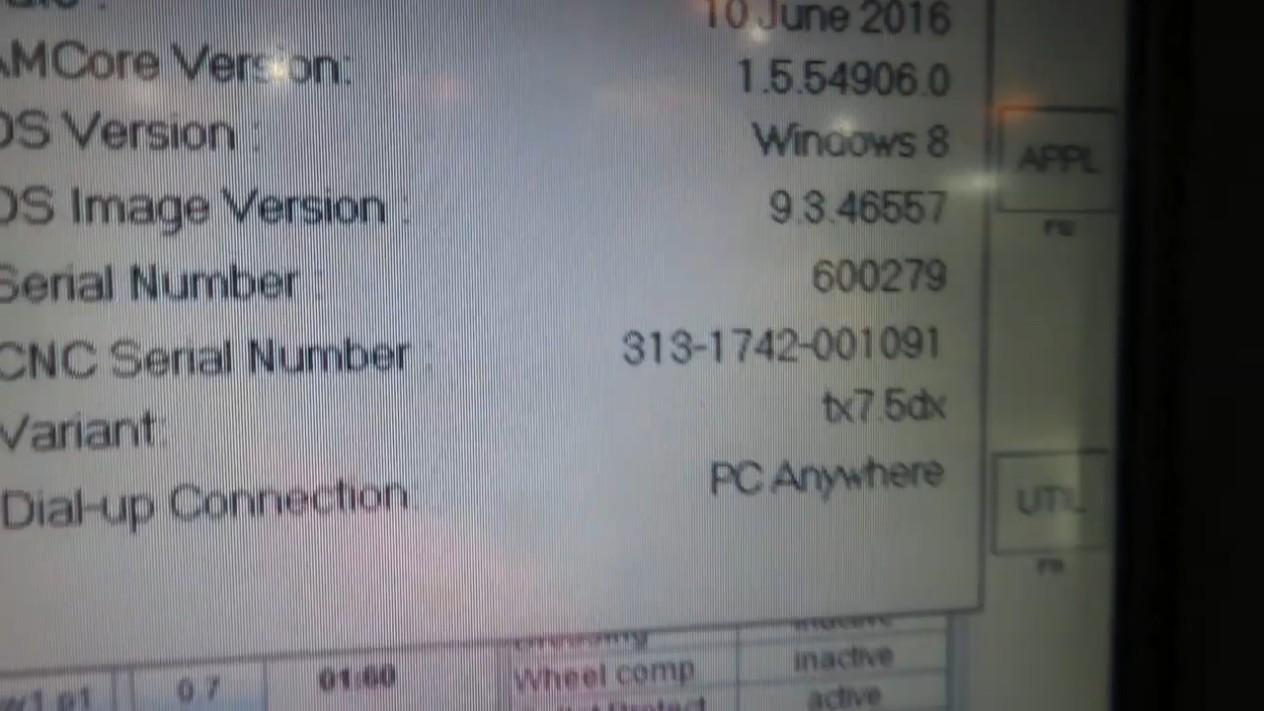

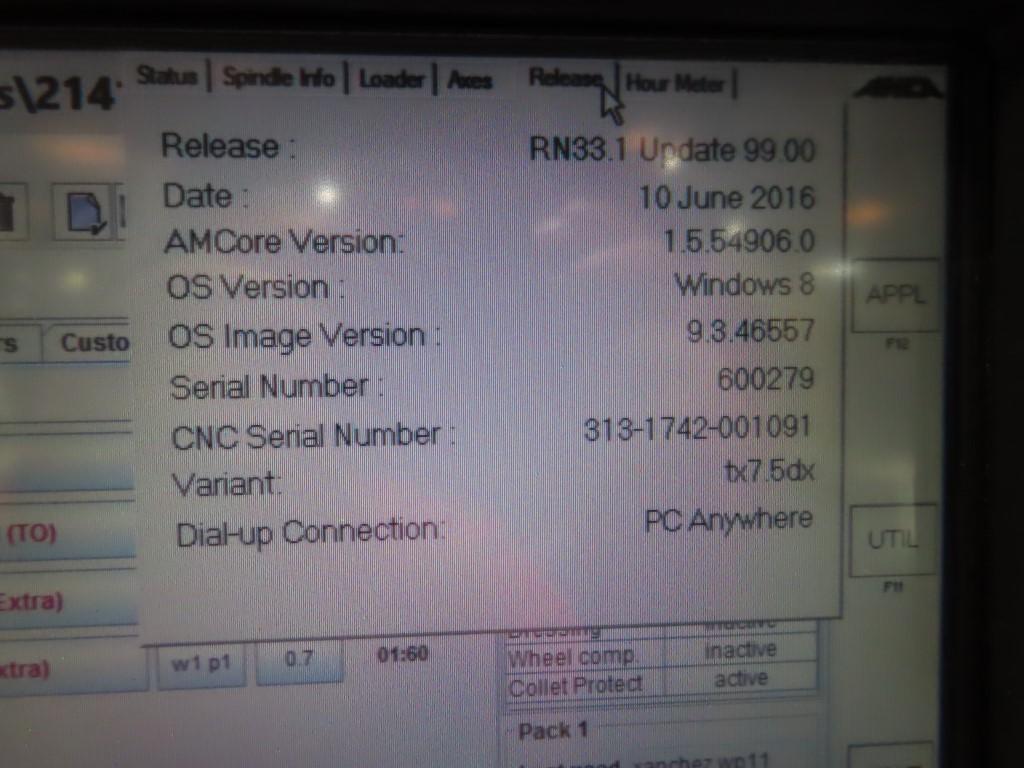

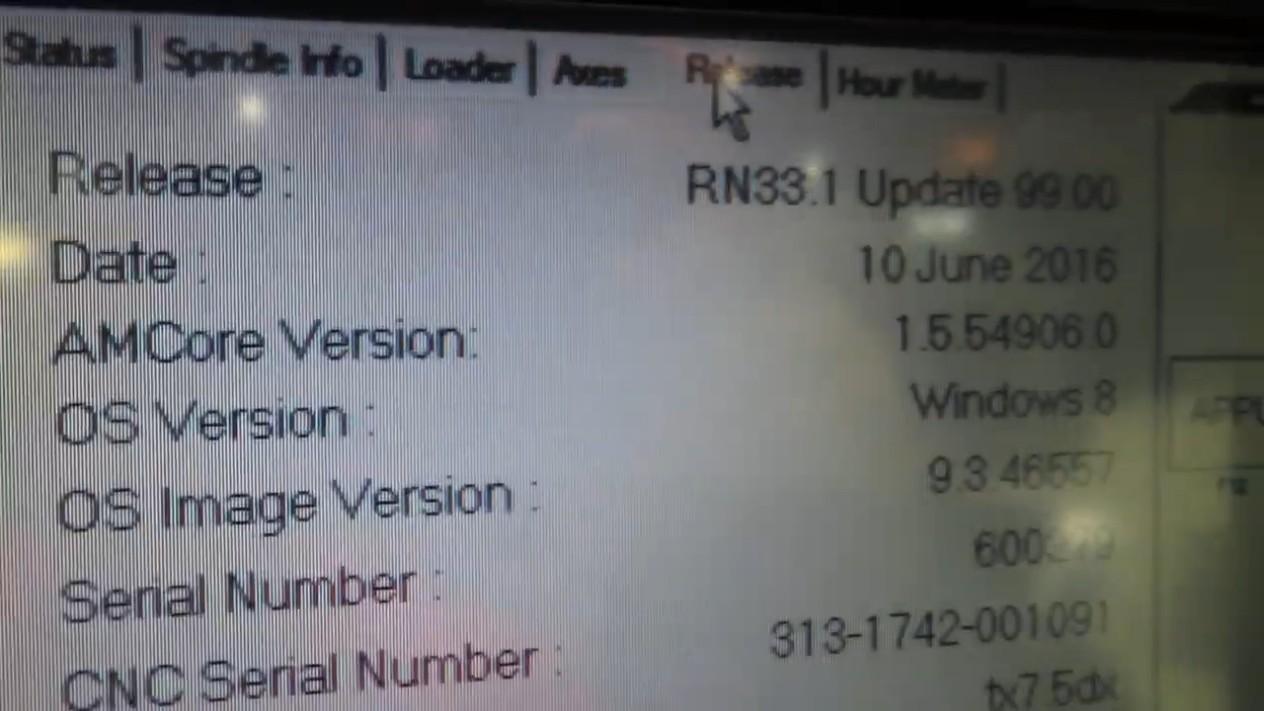

New software was installed in 2016. Without coolant, separator and mist collector.
