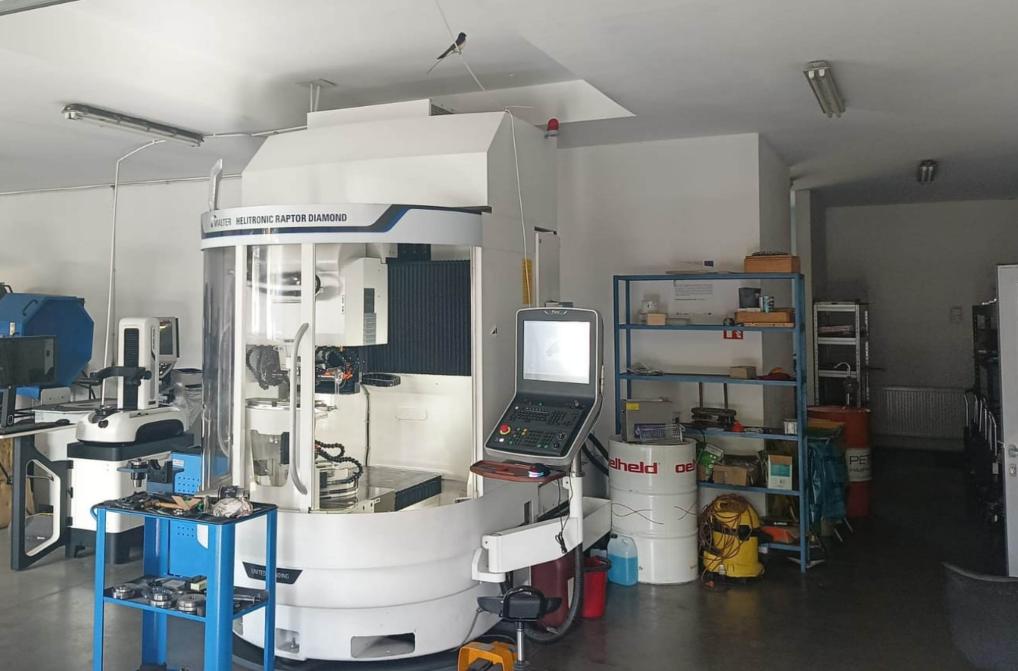

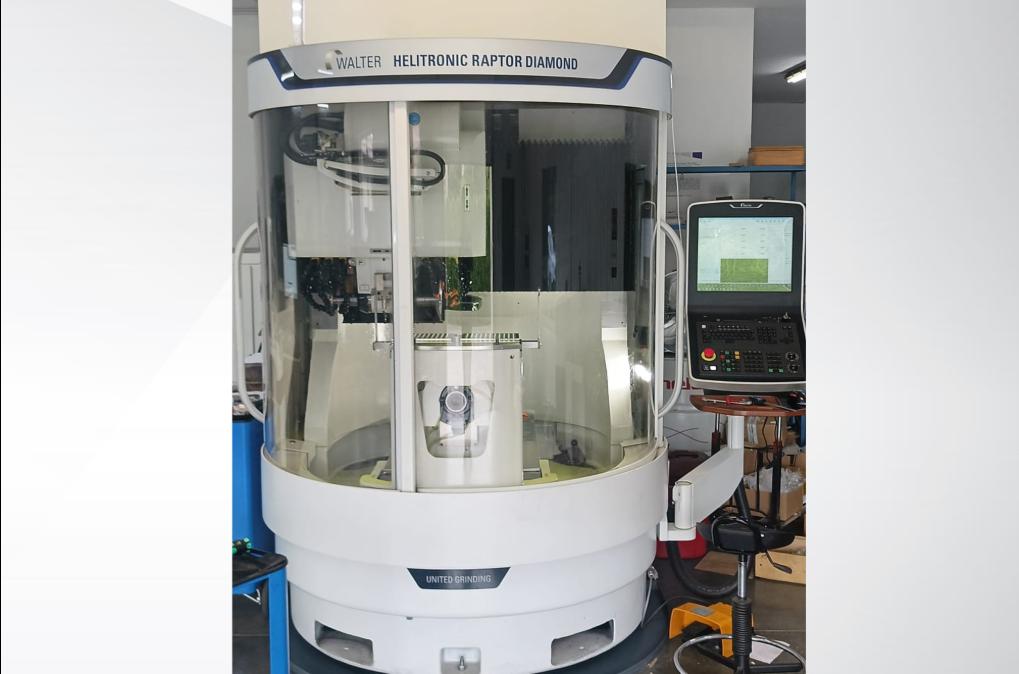

Walter HELITRONIC RAPTOR DIAMOND Tool grinder

Three-axis travel: 460 × 320 × 660 mm
Spindle power: 11.5 kW
Spindle speed: 10,500 rpm
Linear axis rapid traverse: 15 m/min
Machining tool diameter: Ø3–290 mm
Maximum tool diameter: Ø400 mm (optional)
Maximum tool length: 270 mm
Maximum tool length: 350 mm (optional)
Maximum tool weight: 50 kg
Maximum grinding wheel diameter: Ø200 mm
Spindle interface: HSK
Spindle drive: Double-ended belt drive
Machining method: Grinding + EDM (Electrical Discharge Machining), completed in a single clamping
Applicable tools: Cemented carbide, HSS, PCD, CBN
Grinding wheel/electrode capacity: Up to 3 electrodes + 3 grinding wheels, or up to 6 grinding wheels
CNC system: WALTER / UNITED GRINDING CNC

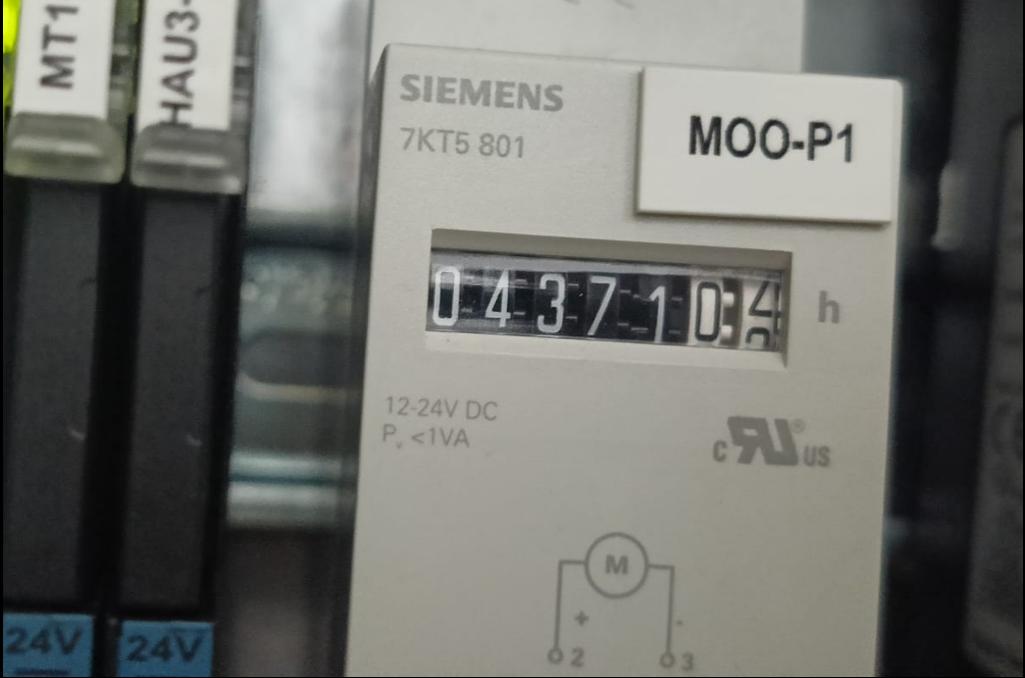

Working hours: Approximately 4,371 hours
Configuration:

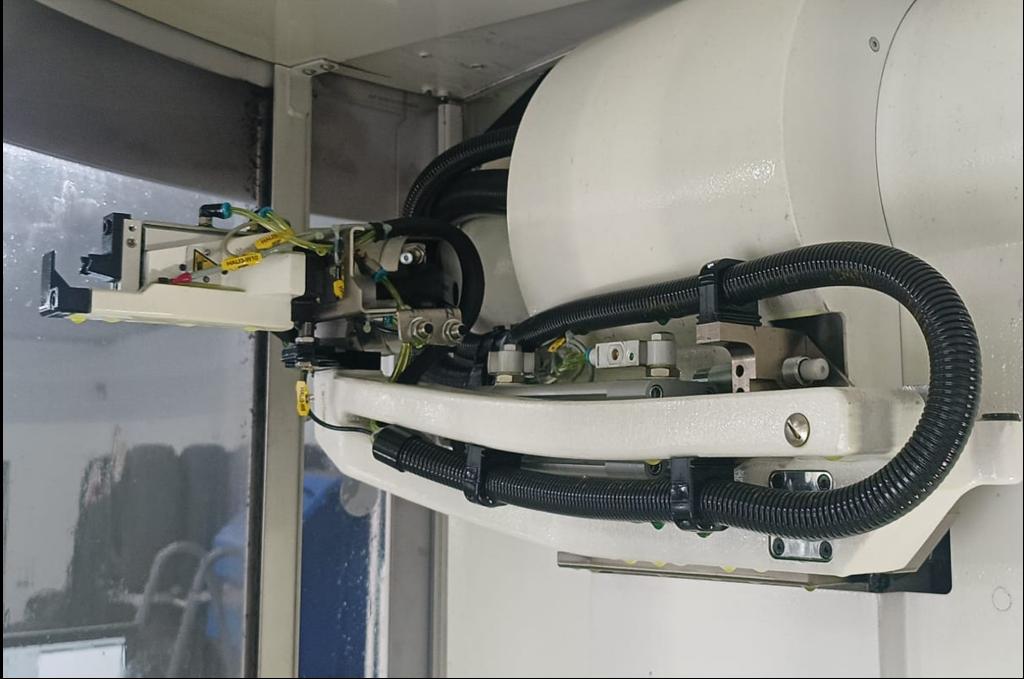

Automatic loading and unloading system / robotic arm
Machining coolant system
Coolant / dielectric fluid filtration and circulation system
Tool chucks
Flanges and adapters
Grinding wheels and electrode accessories
