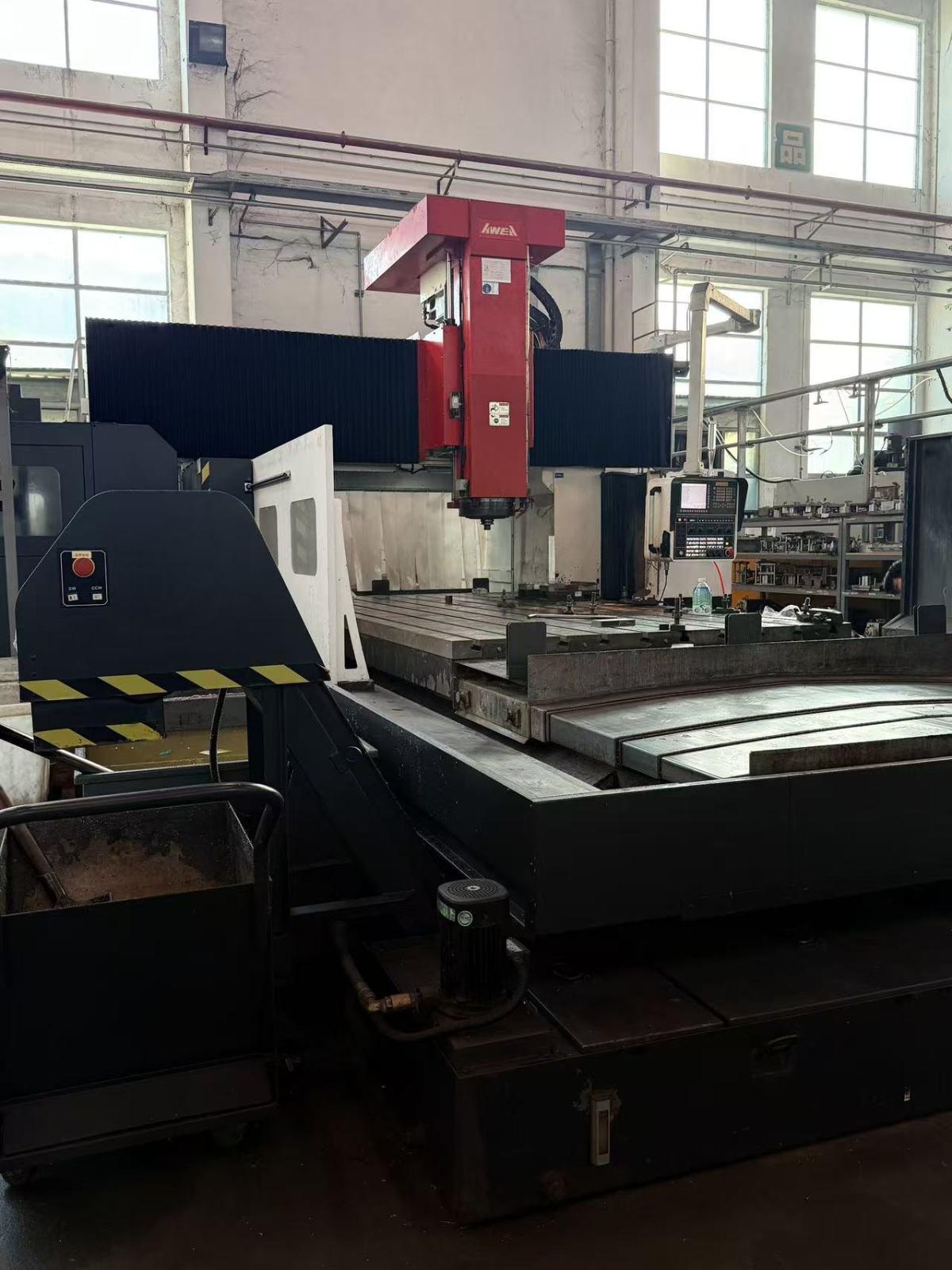

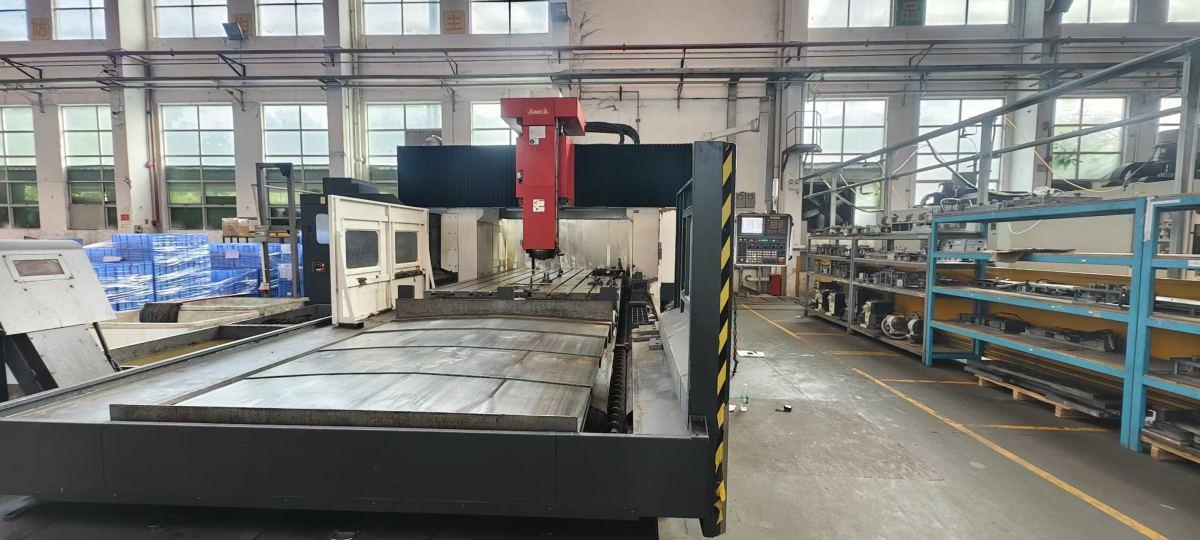

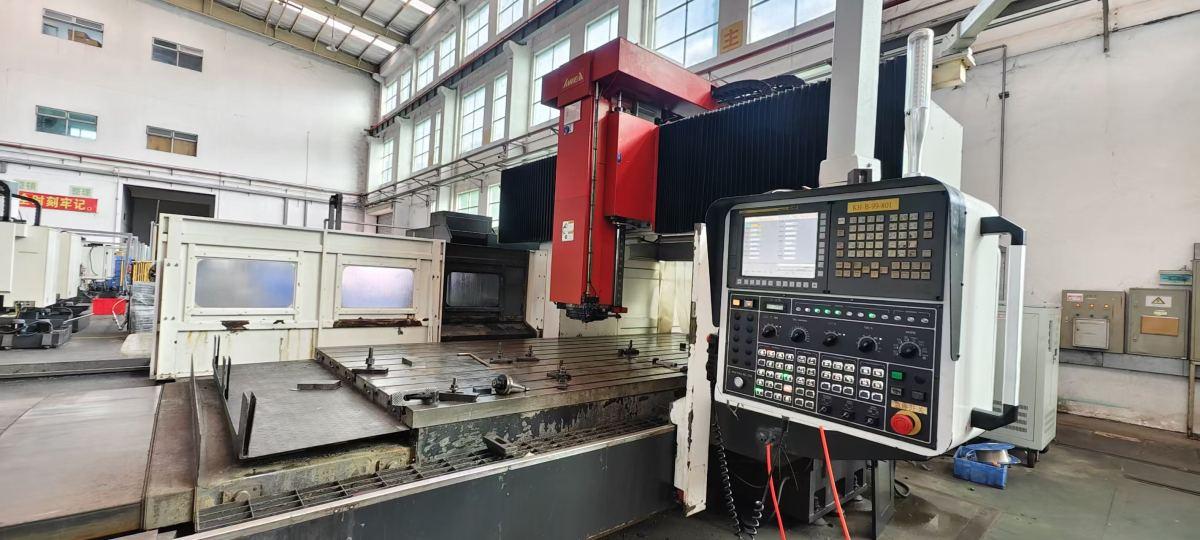

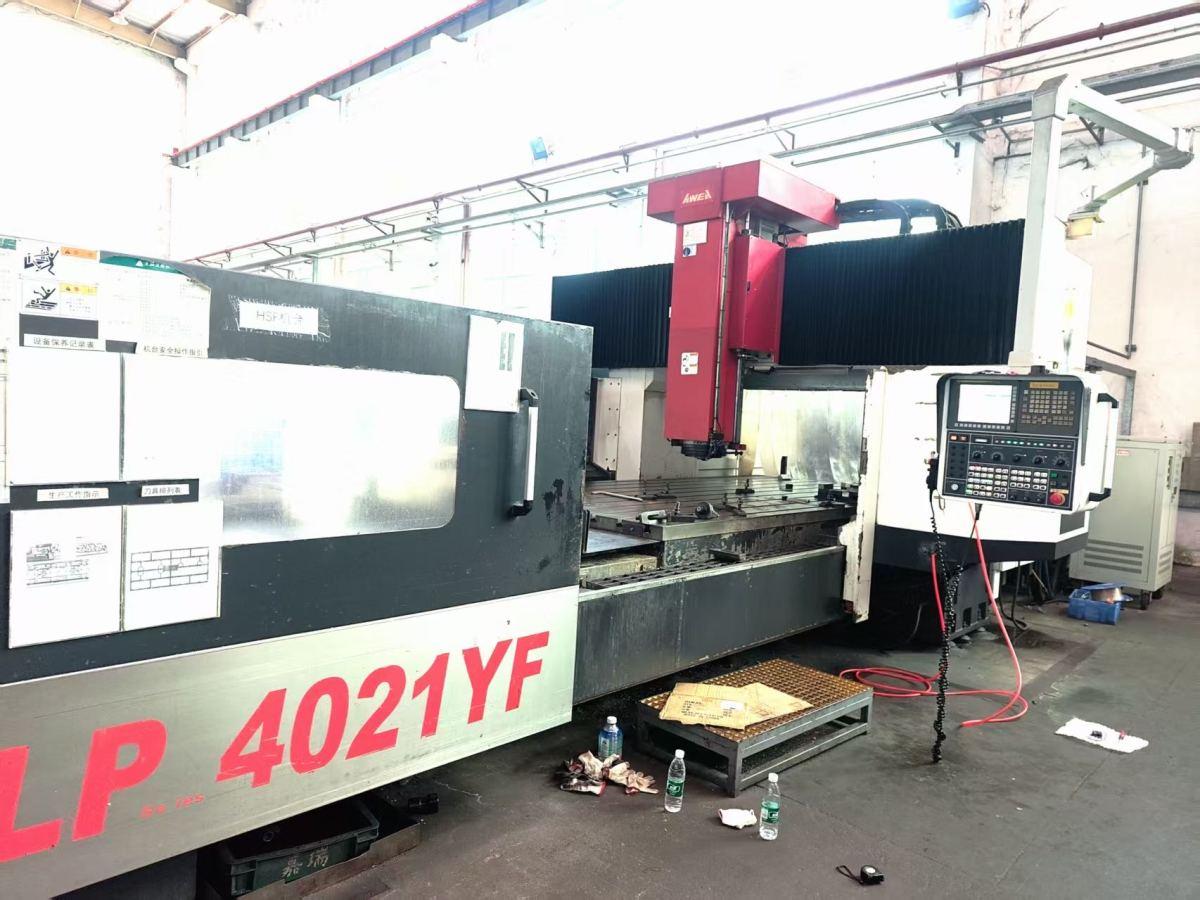

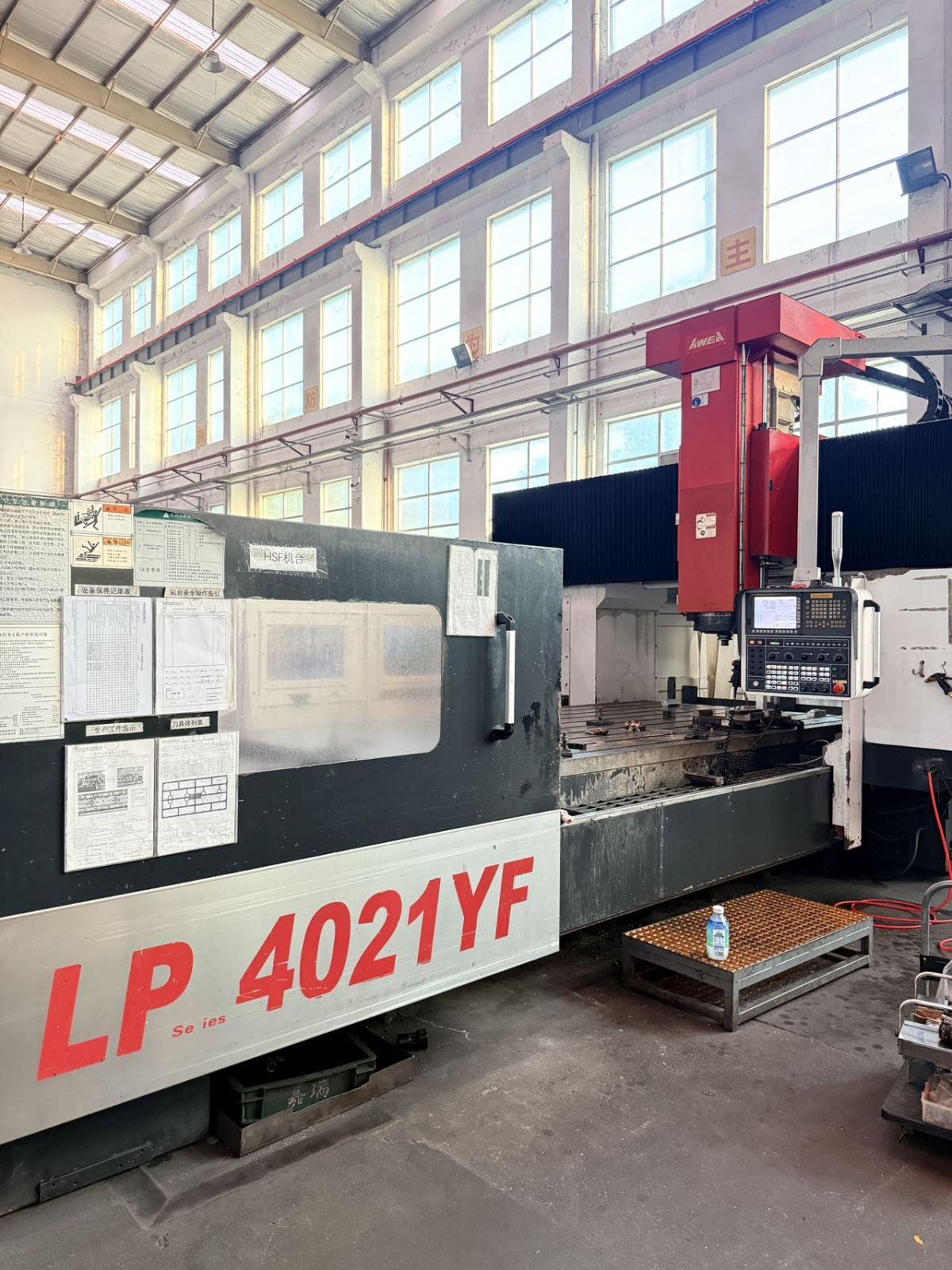

AWEA LP-4021YF Gantry machining centre

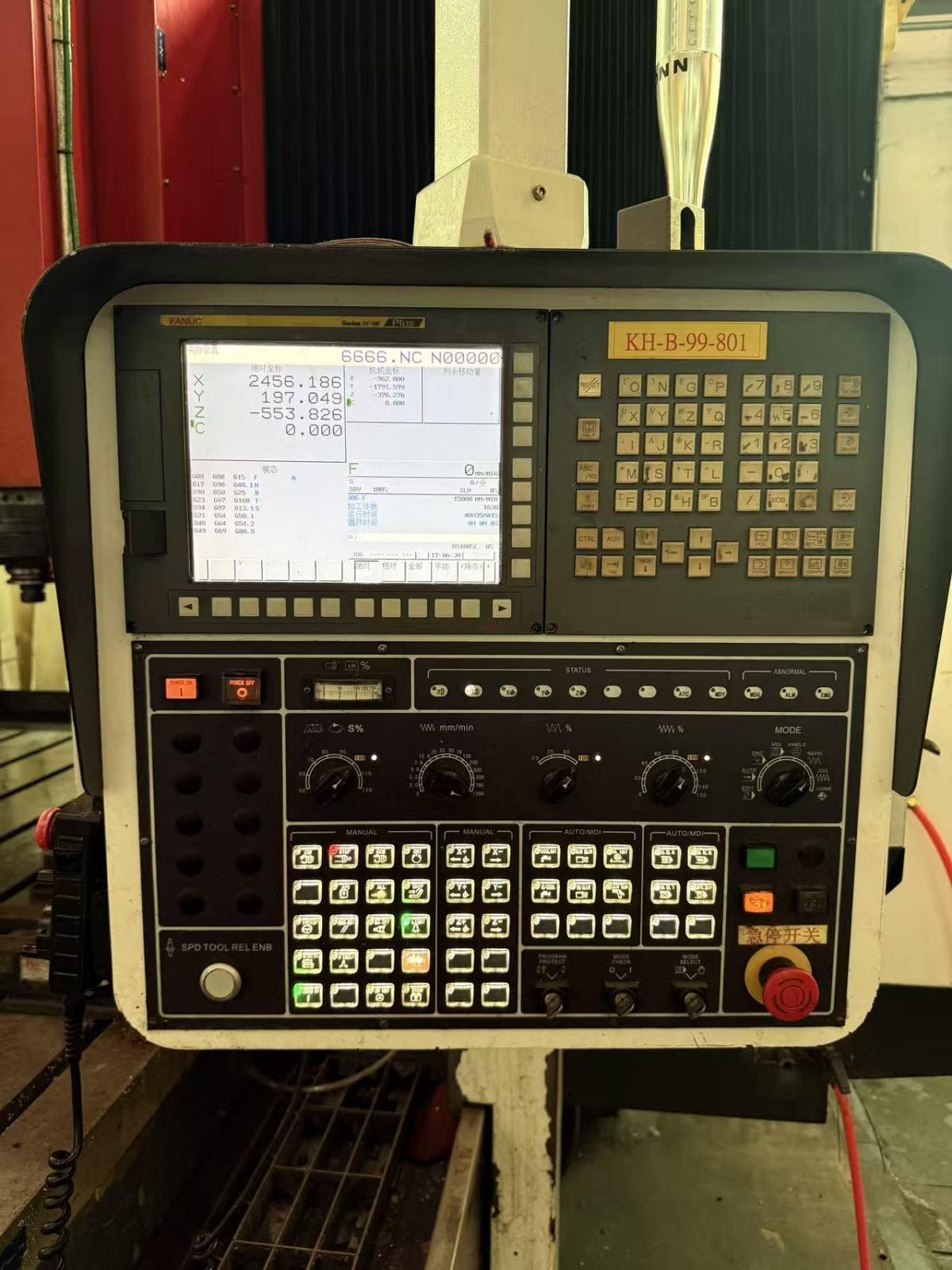

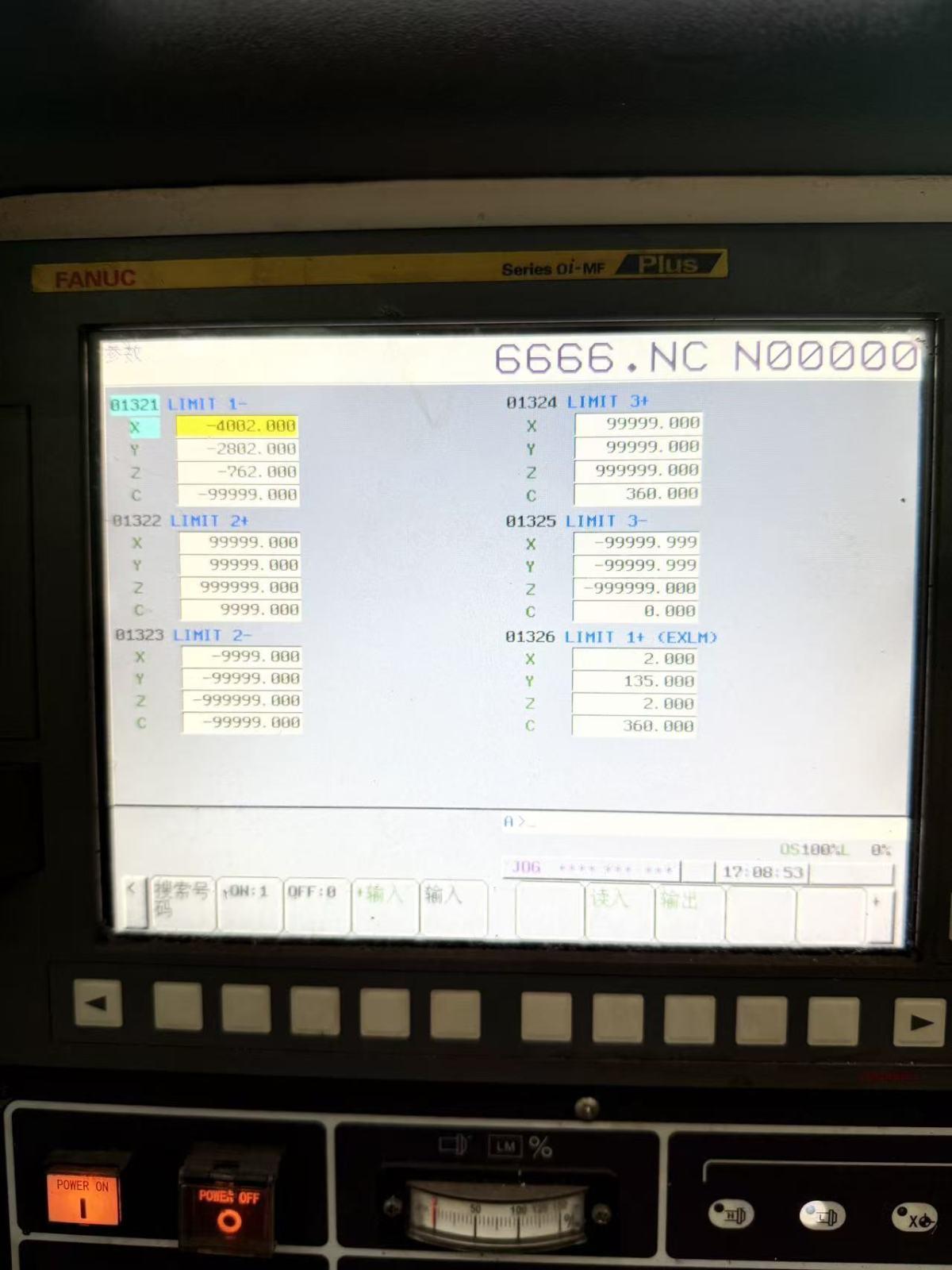

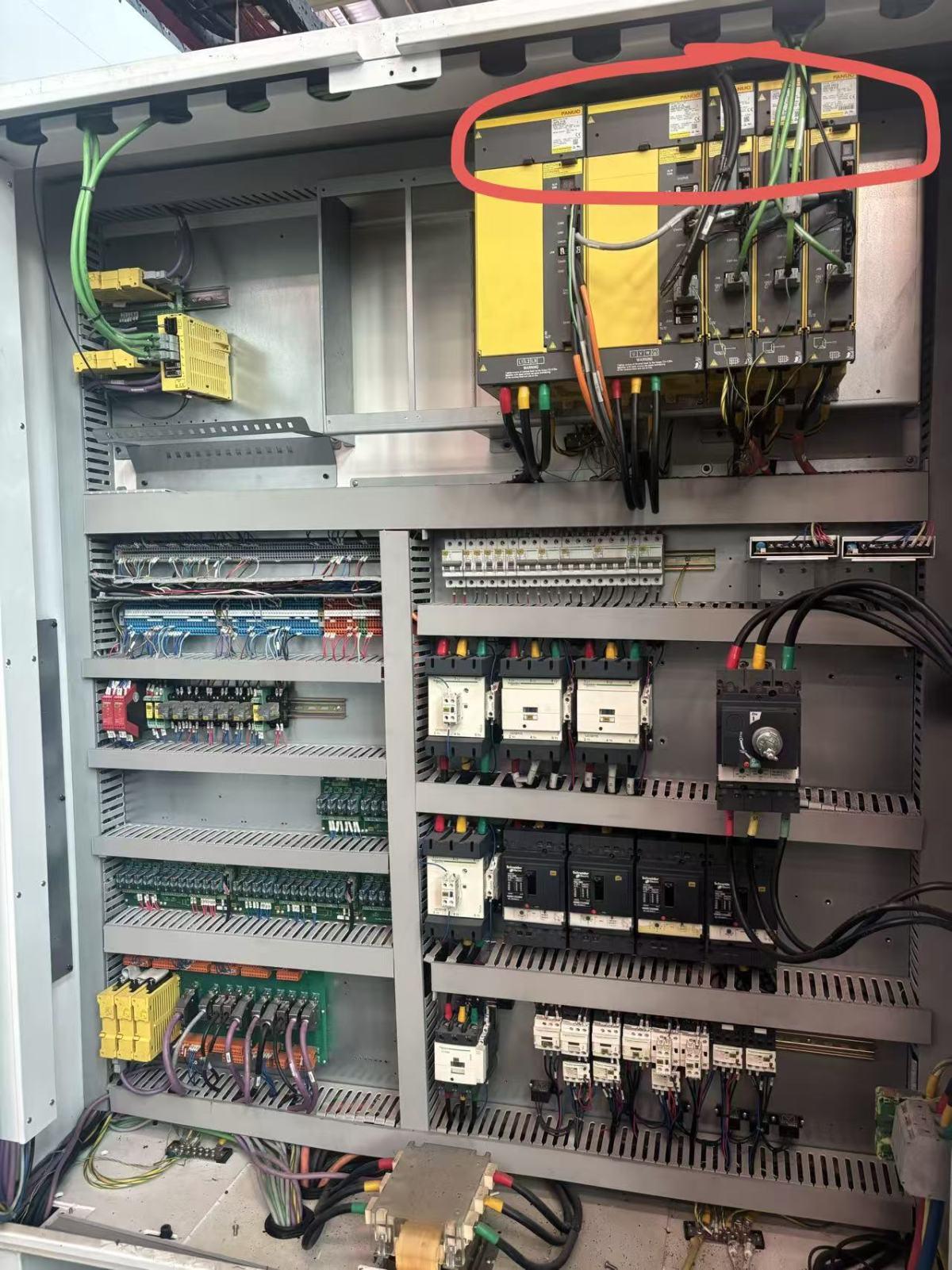

CNC System: FANUC Plus
Three-Axis Travel (X/Y/Z): 4000 × 2800 × 760 mm

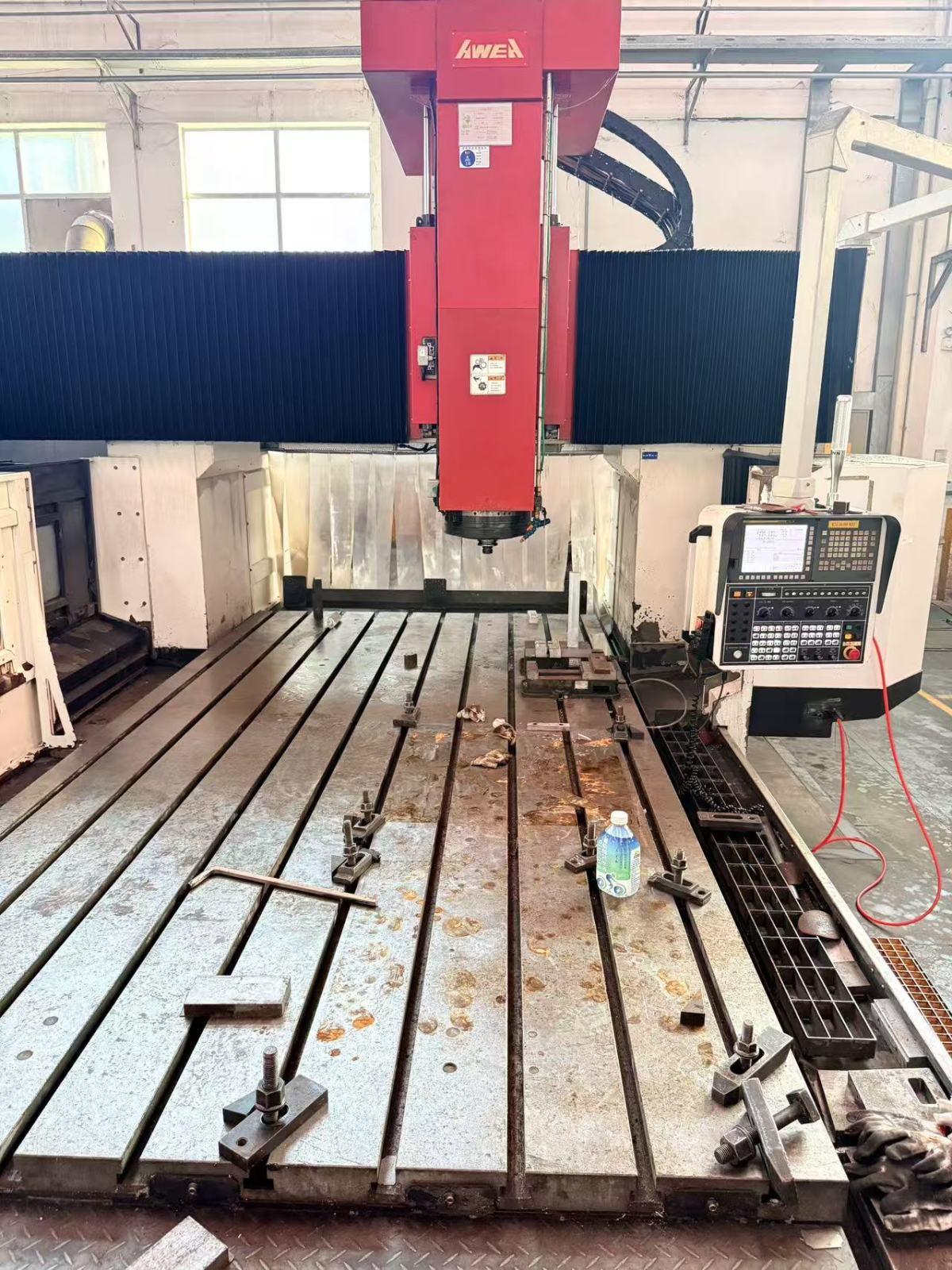

Worktable Size: 4100 × 2100 mm
Column Inside Width: 2300 mm
Column Inside Height: 950 mm
Overall Width Including Columns: 3200 mm
Spindle Type: BT50
Spindle Speed: 12,000 rpm

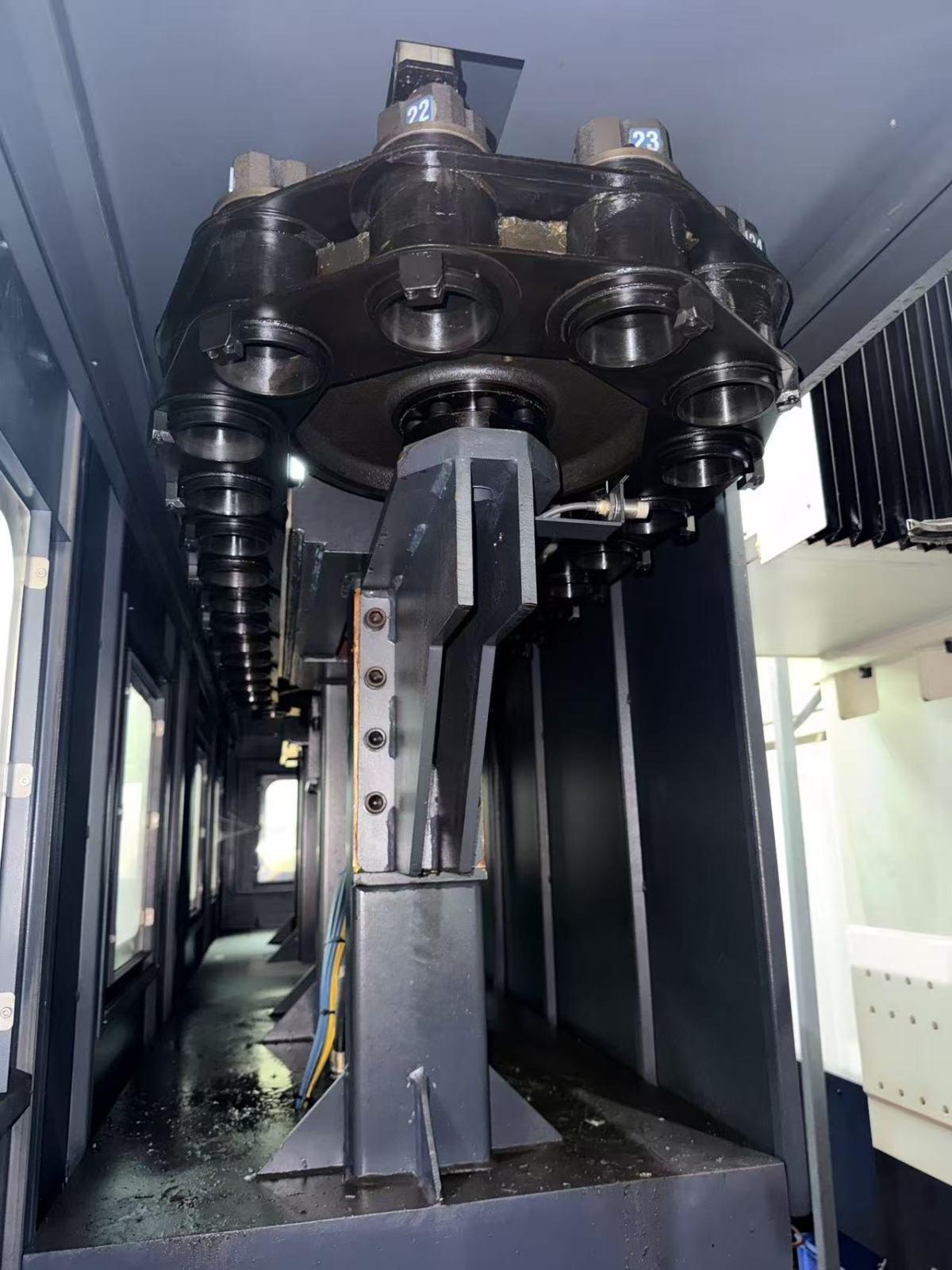

Tool Magazine Capacity: 32 tools
Guideway Structure: Roller-type linear guides on all three axes
Position Feedback: Linear glass scales on all three axes
Chip Removal System: Helical chip conveyors
Side Milling Head: One fully automatic side milling head with 5° indexing
Side Milling Head Height: 760 mm
