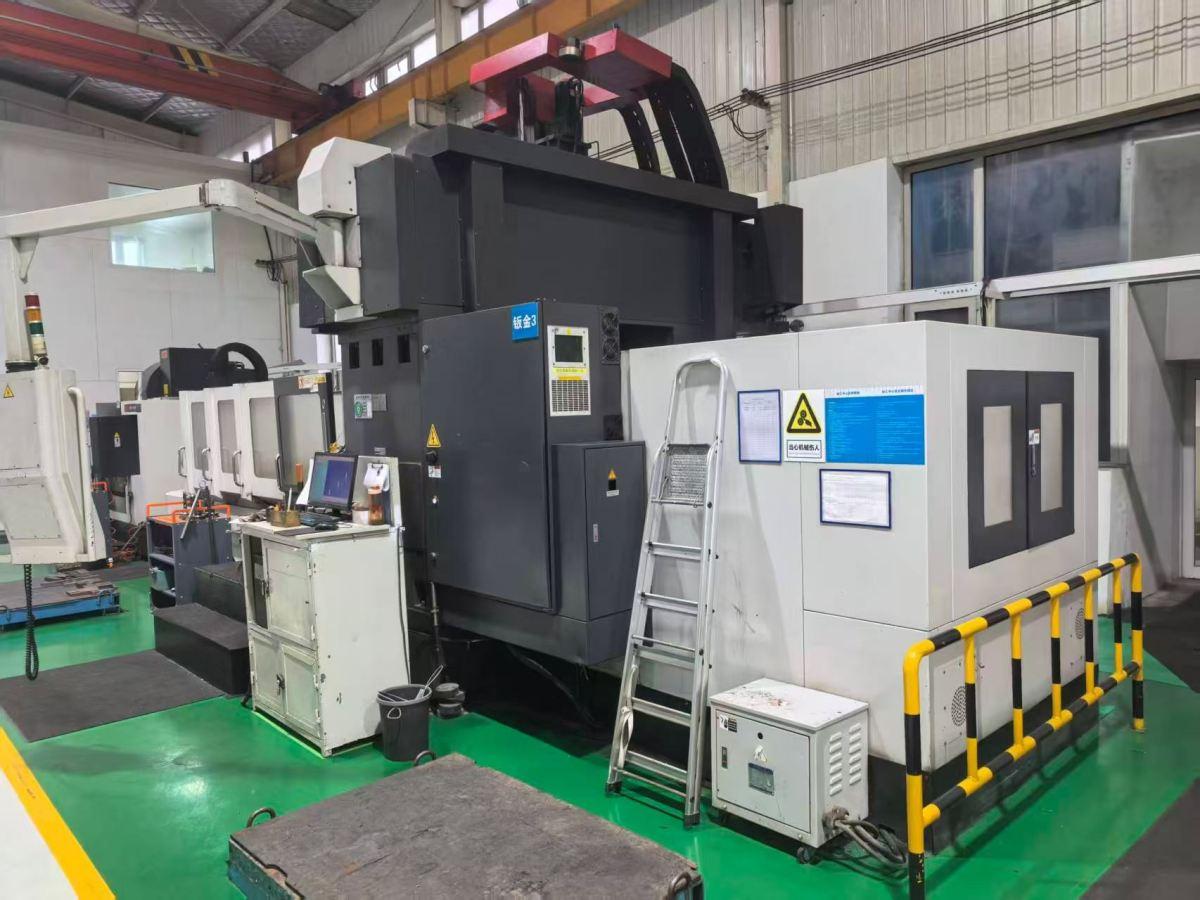

KAFO B-3116 Gantry machining centre
[Product Information]:
- Inventory number：812931
- Brand：KAFO
- Model：B-3116
- Origin：Taiwan, China
- Location：China
- Year：2019
- Create Time：2026-08-17
Specifications:

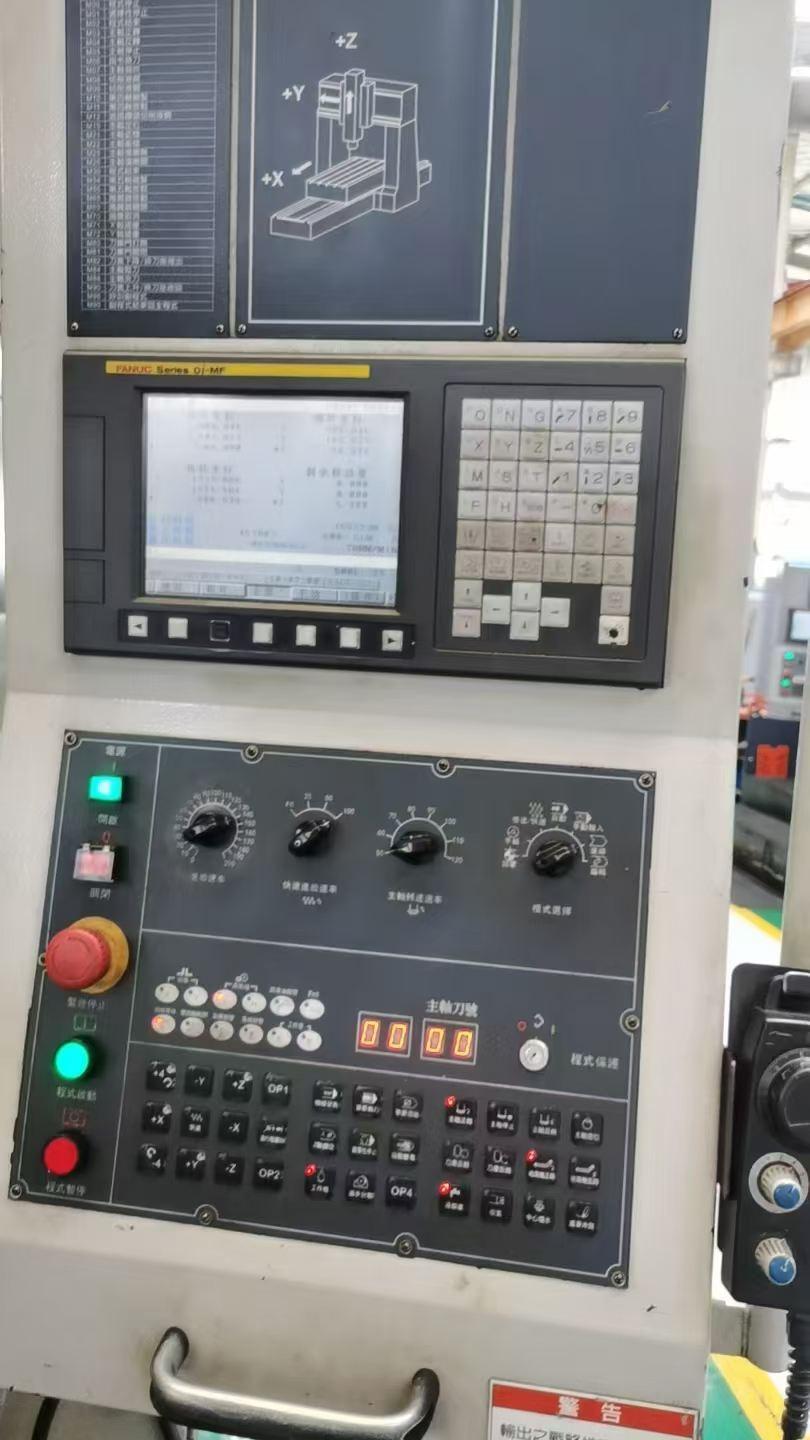

CNC System: FANUC MF
Three-Axis Travel (X/Y/Z): 3100 × 1600 × 900 mm

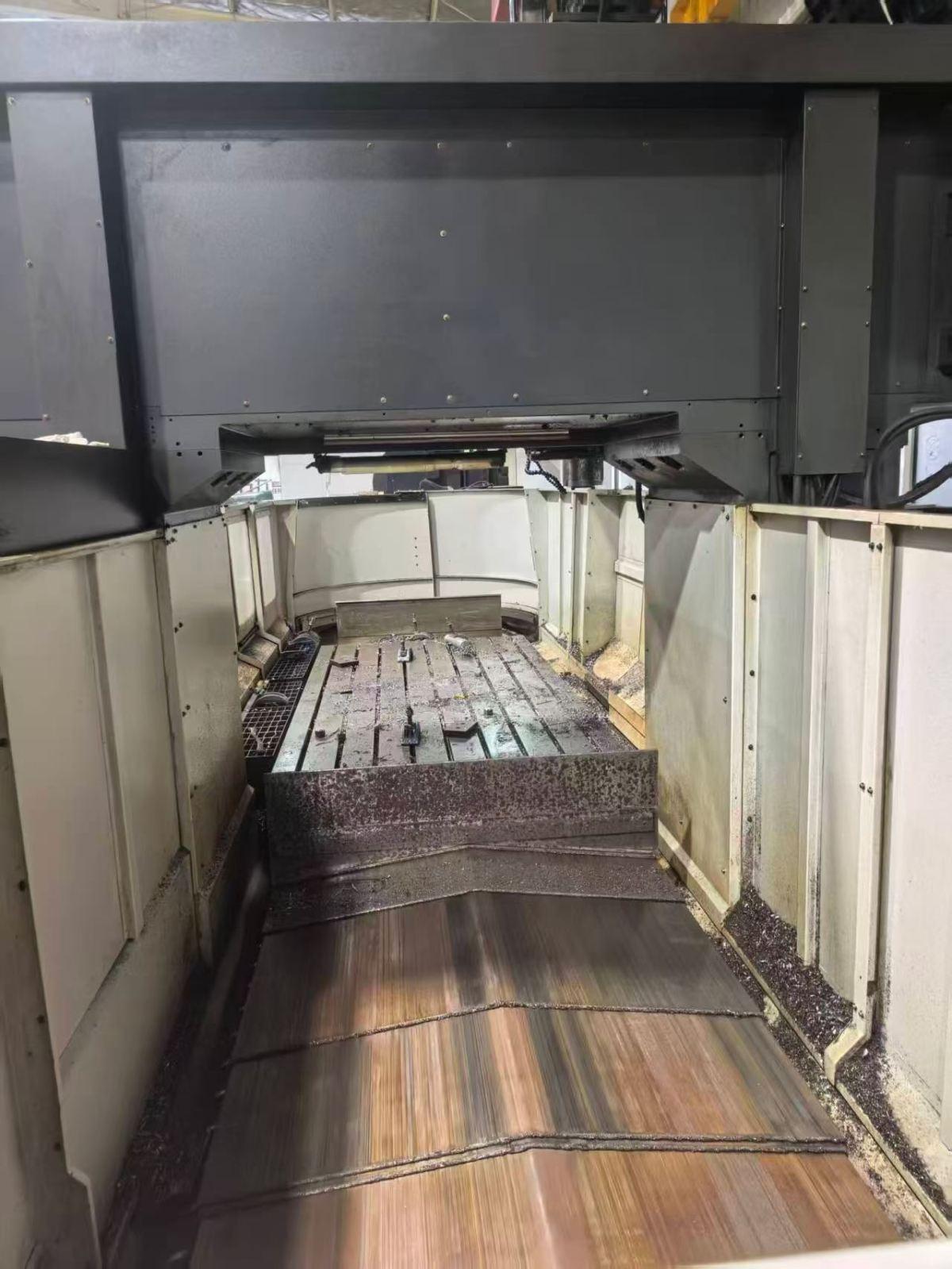

Worktable Size: 3000 × 1500 mm
Gantry Width: 1700 mm
Gantry Height: 1500 mm
Spindle Taper: BT50
Spindle Type: Gear-Driven Spindle
Spindle Motor Power: 22/26 kW
Spindle Speed: 6000 rpm
Spindle-to-Worktable Distance: 200–1100 mm
Maximum Worktable Load: 11,000 kg
Machine Weight: 32.5 tons
Side Milling Head: Not Included
Through-Spindle Coolant (TSC): Not Included
