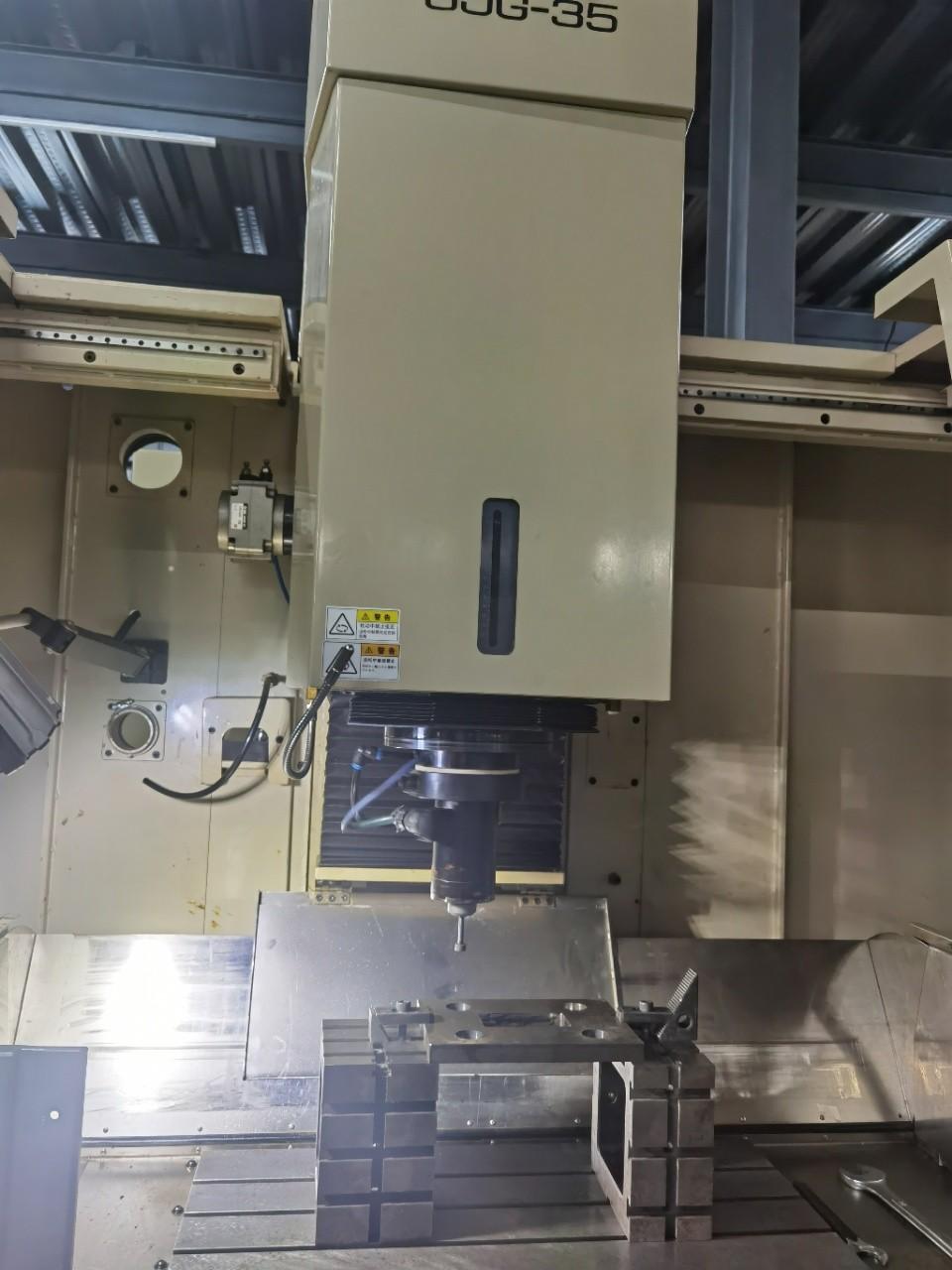

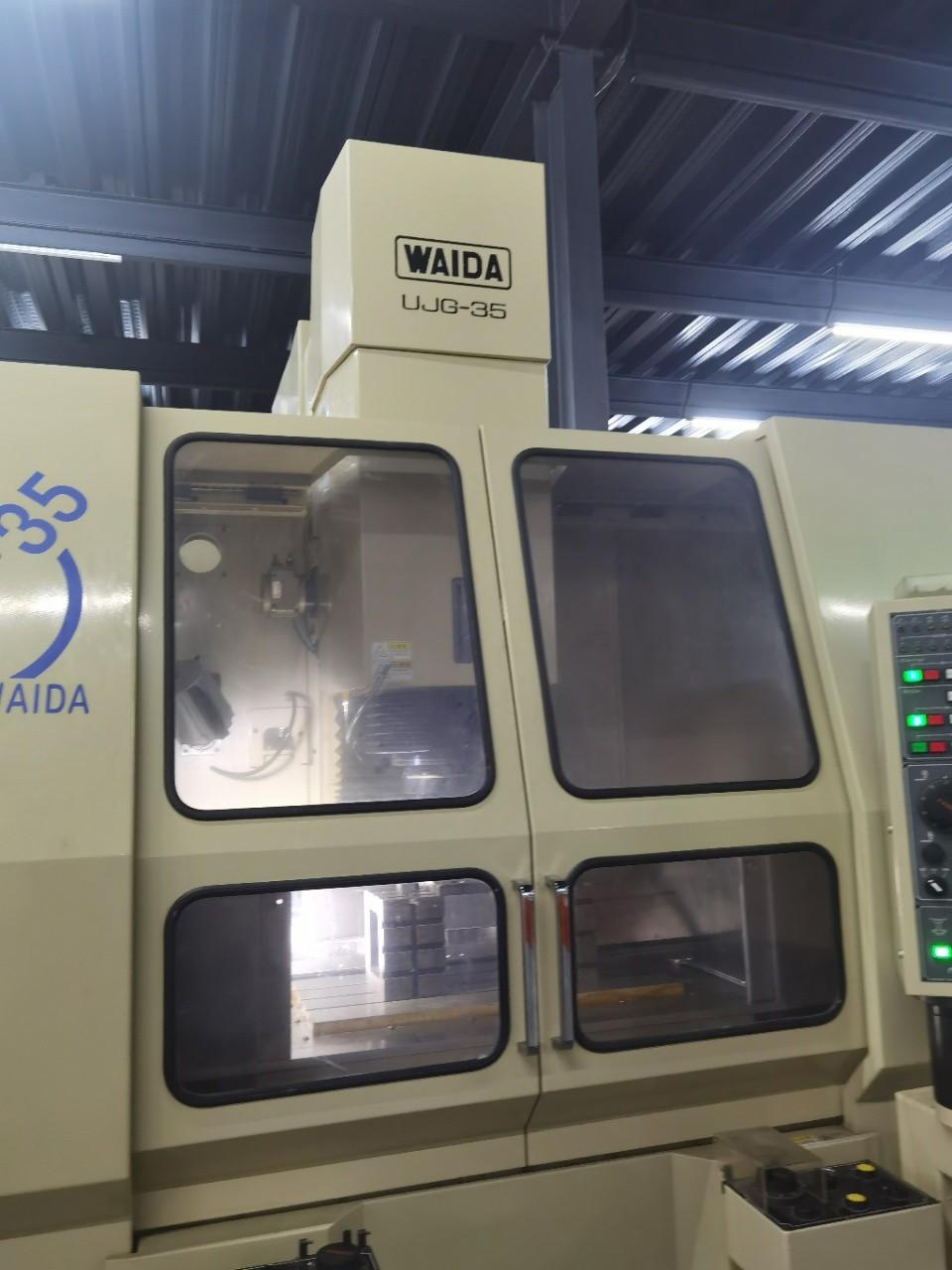

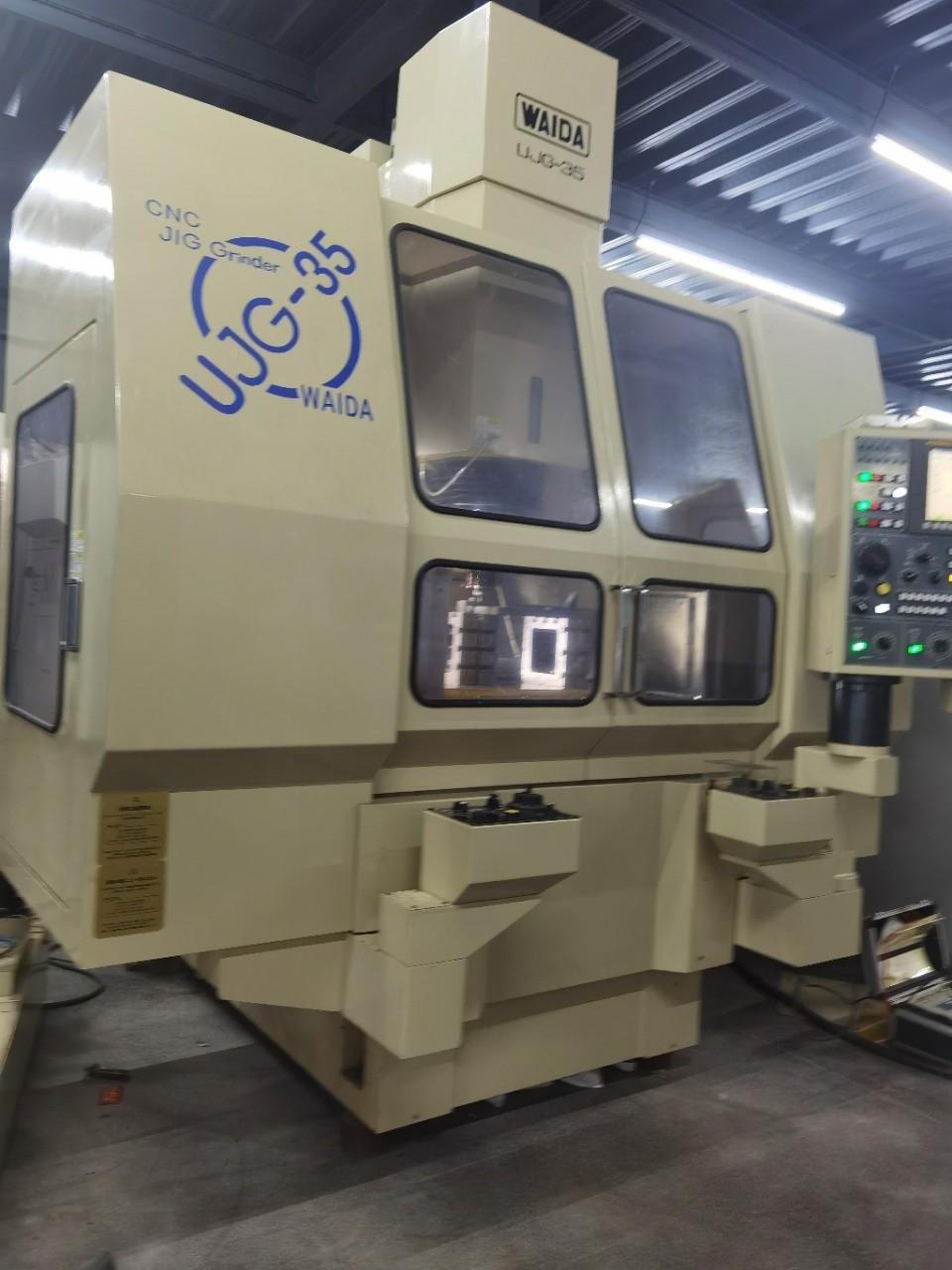

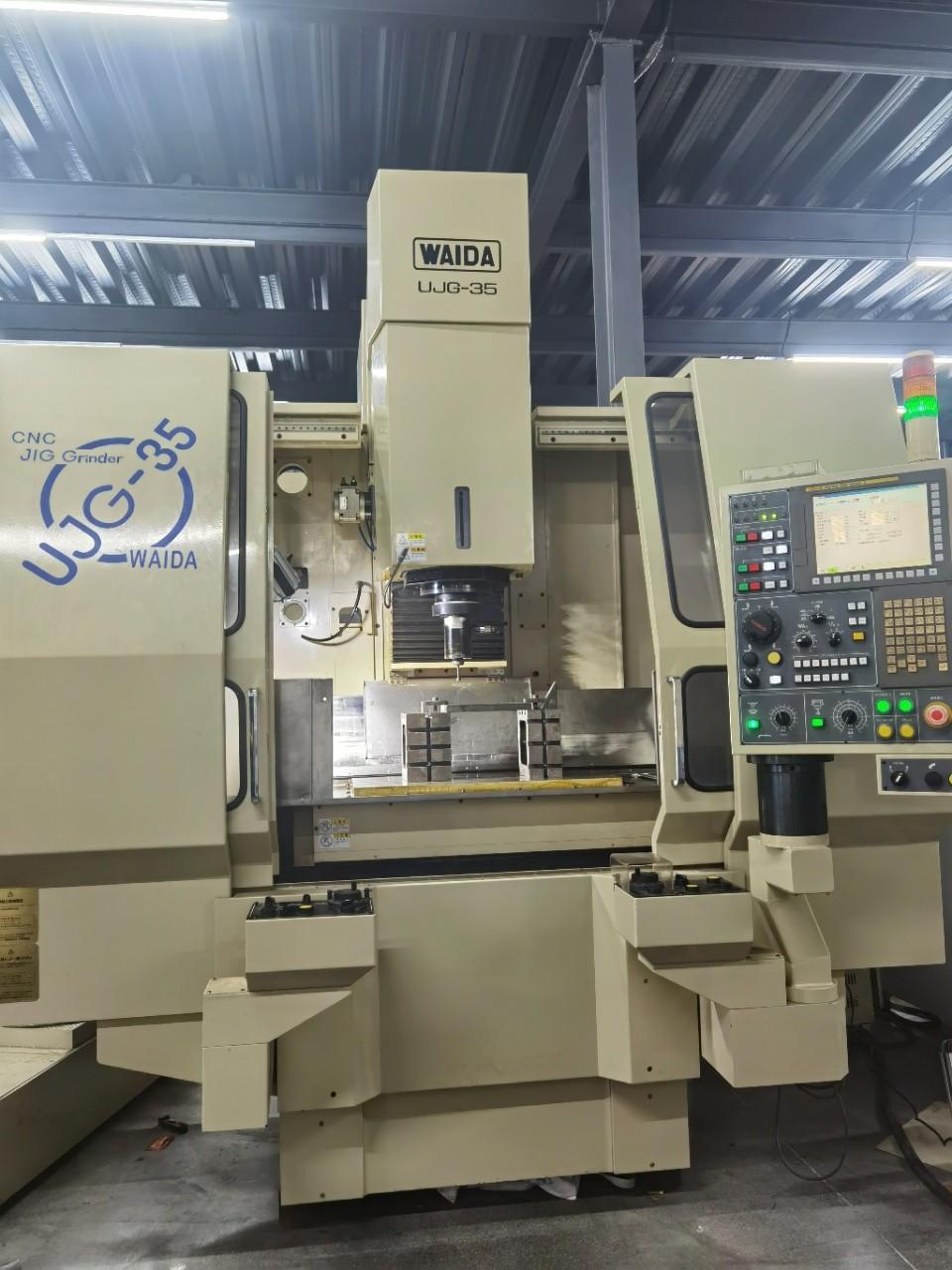

WAIDA UJG-35 Jig grinding machine

Brand: WAIDA jig grinder

Origin: Japan

Model: UJG-35

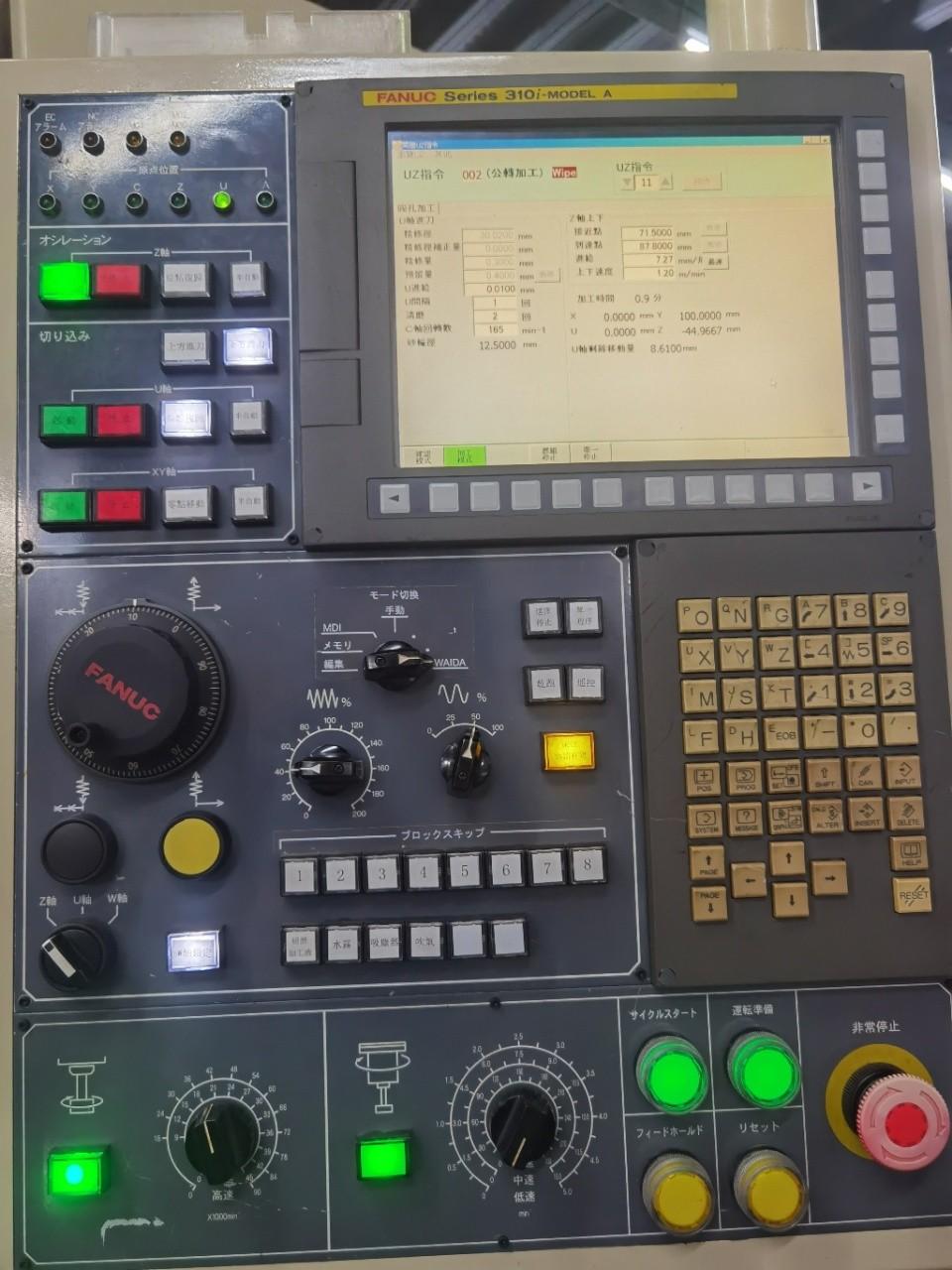

System: FANUC31I

Travel X * Y: 600 * 300mm

Z-axis travel: 120mm

Worktable: 700 * 320mm

Grinding moving speed~2000mm/min

Fast feed speed: 2000mm/min

Carrying load: 300 kg

Spindle head W axis: 300mm

Revolving speed of revolution: 0.25~300min-1

Grinding amount in the radius direction of grinding wheel: 10mm

Minimum movement in the radius direction of grinding wheel: 0.0001mm

Z-axis movement range: 0.05~100mm

Z-axis speed: 10~14000mm/min

High frequency motor of grinding head: for low speed

Rotation speed of grinding head: 9000~45,000min-1

Rotation speed of grinding head: 12000~80000min-1

Number of control axes: 6

Interface RS-232C memory card and USB disk

Data input: MDI

Machine size: 2200 * 2035 * 2700mm

Machine weight: 4500kg

Ex-factory date: 2010
