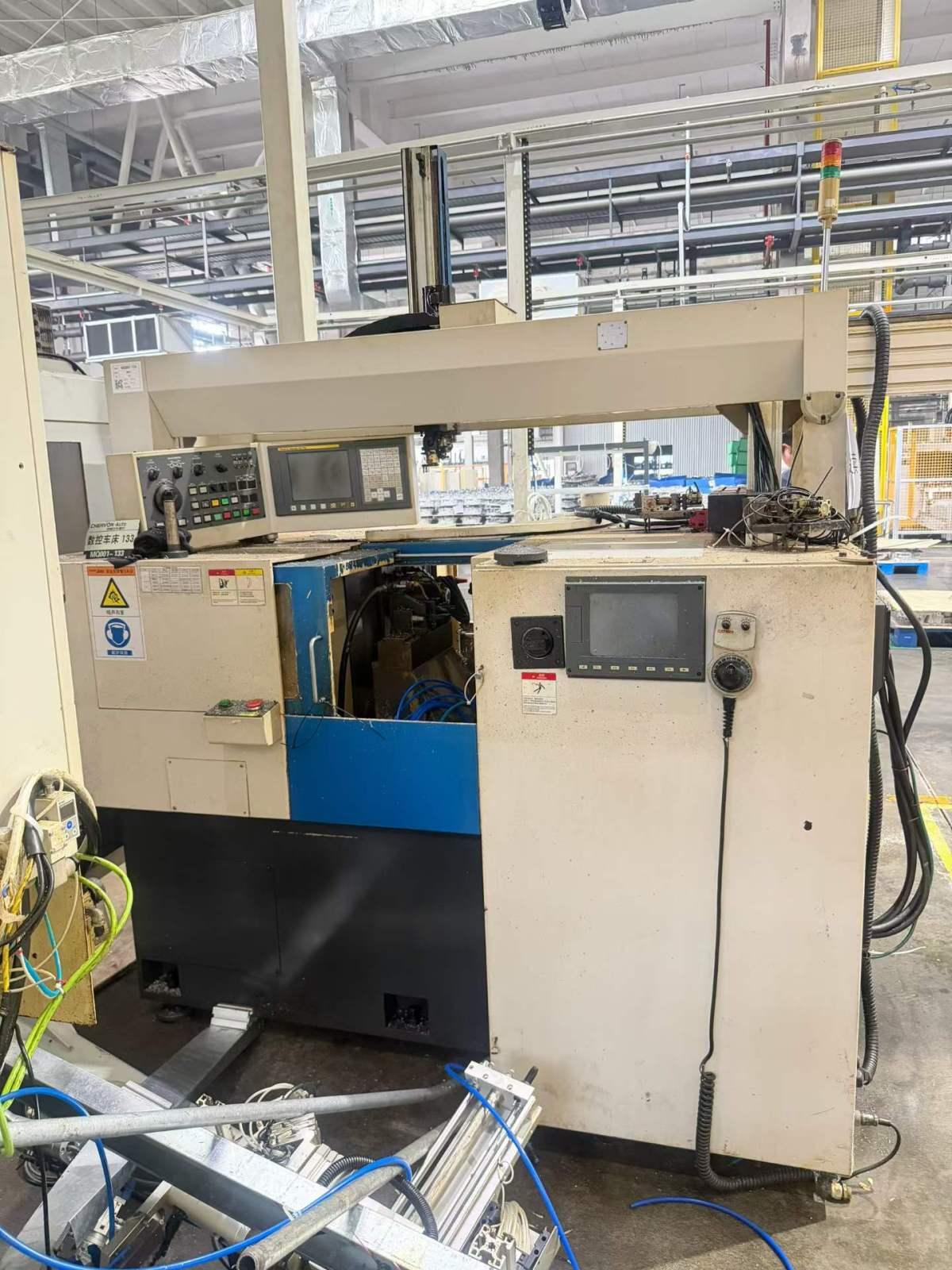

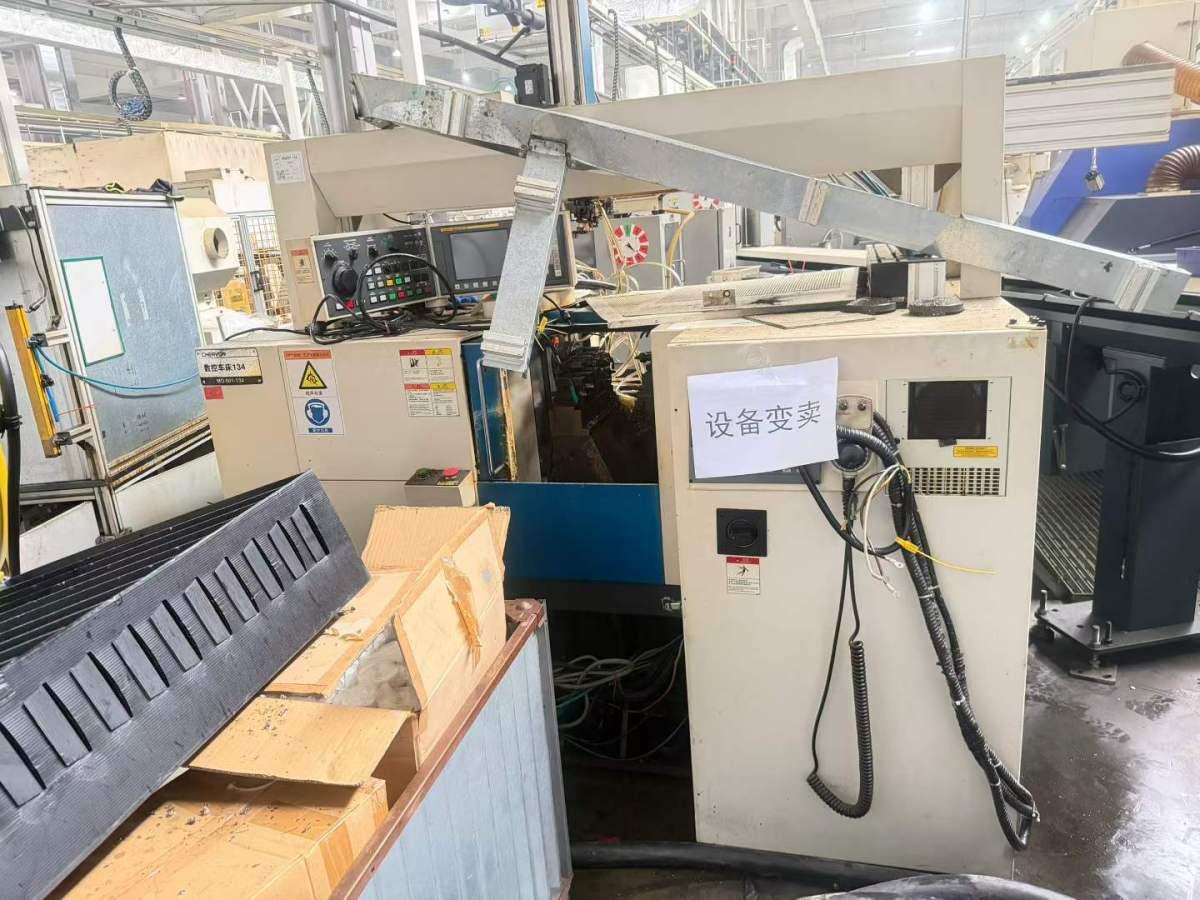

KITAMURA XKNC-DA25 CNC turning lathe

[Product Information]:

Inventory number：813450
Brand：KITAMURA
Model：XKNC-DA25
Origin："Japan
Location：China
Year：2014
Create Time：2026-10-22

Specifications:

Maximum Clamping Diameter: Ø100 mm
Spindle Type: AC Servo Motor-Driven Spindle
Spindle Bore Diameter: Ø25 mm
Maximum Spindle Speed: 8,000 rpm
Spindle Motor Power: 2.2 / 3.7 kW
Cooling System: Oil Heat Exchanger
Cs-Axis
Minimum Increment: 0.0001°
Maximum Rapid Traverse Rate: 36,000 deg/min
Maximum Feed Rate: 10,000 deg/min
X1/X2 Axes
Travel: 350 mm
Maximum Rapid Traverse Rate: 15 m/min
Motor Power: 1.2 kW
Z1/Z2 Axes
Travel: 120 mm
Maximum Rapid Traverse Rate: 15 m/min
Motor Power: 1.2 kW
