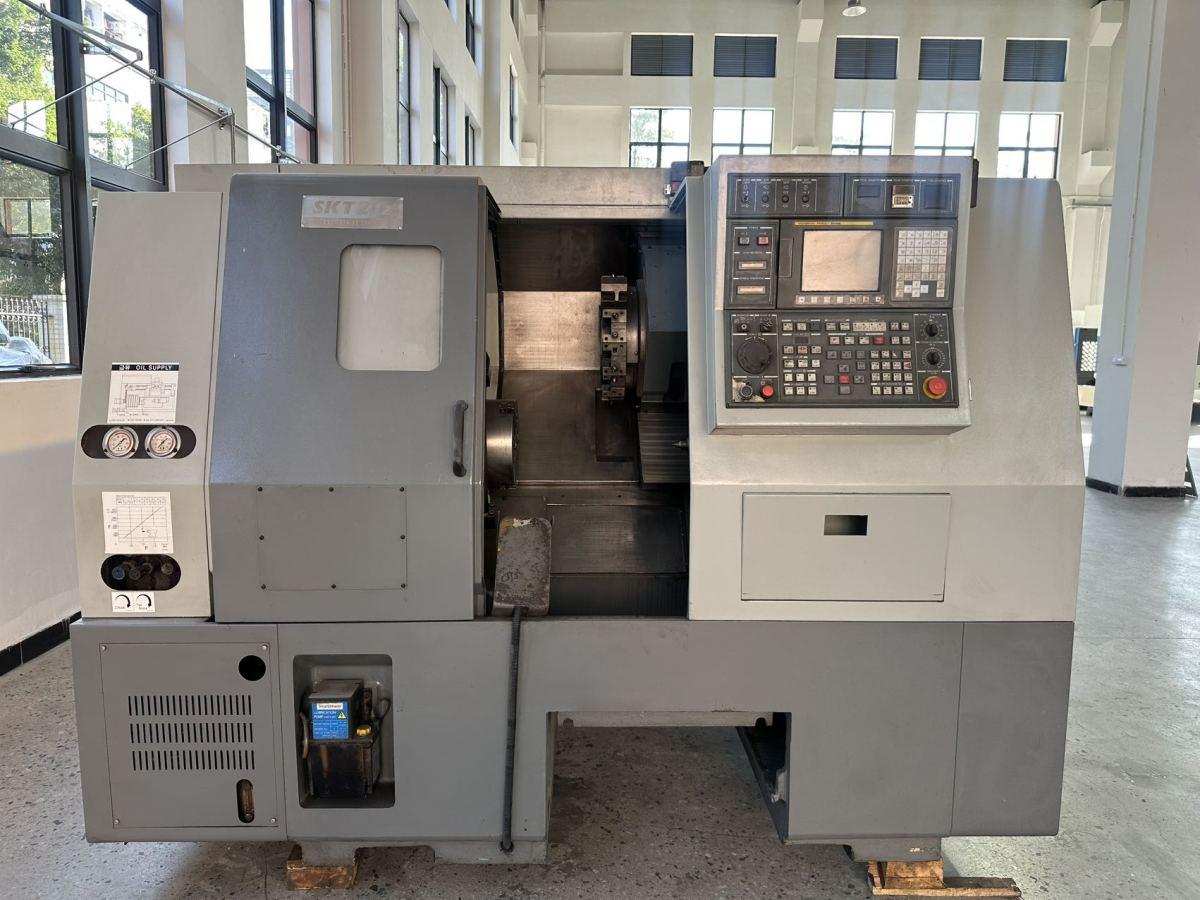

KIA SKT21Z CNC turning lathe

The maximum rotation diameter of the bed: 550mm
Maximum Machining length: 530mm

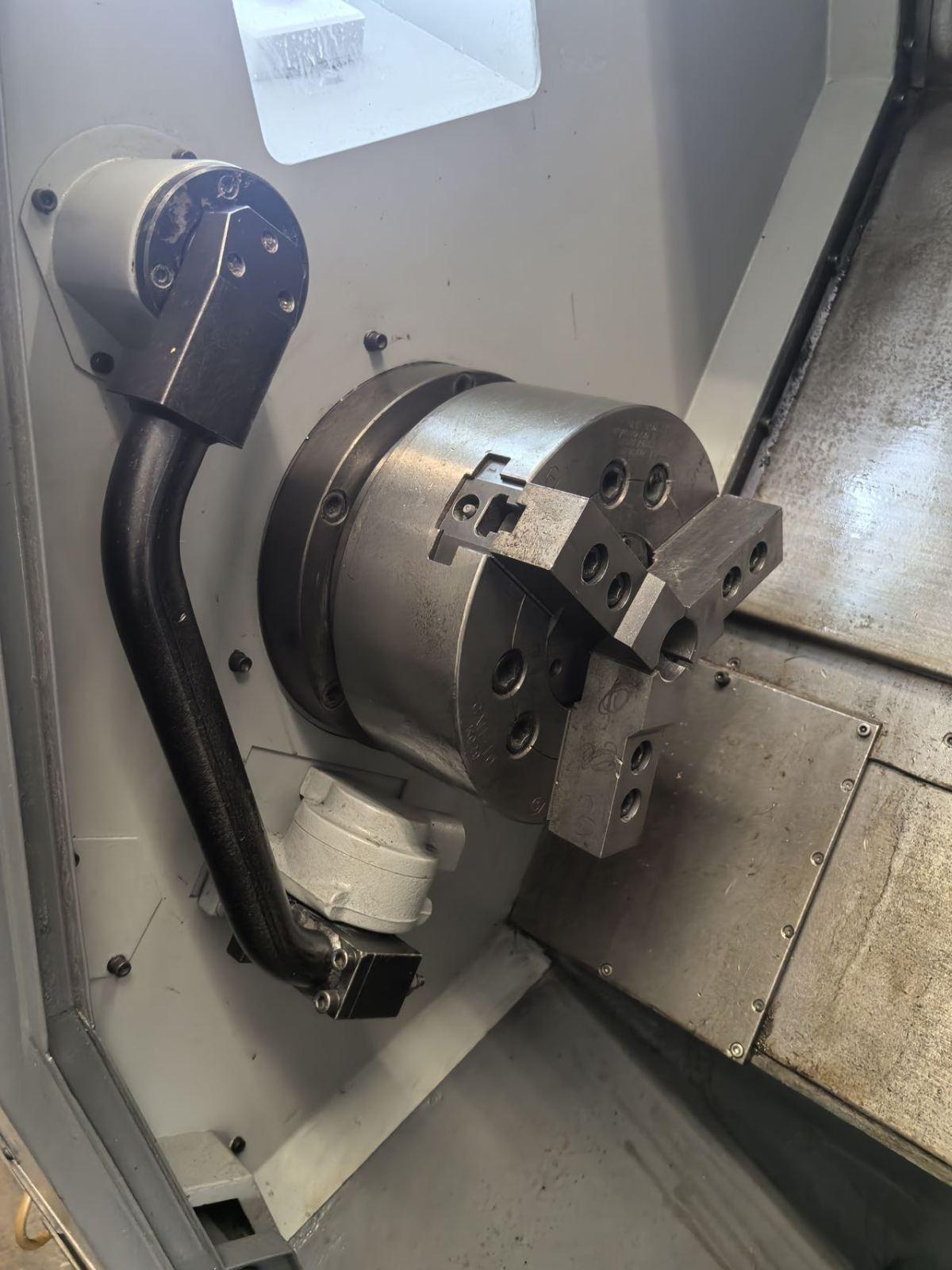

spindle through hole diameter: 80mm (standard 8-inch hollow chuck )
spindle power: 15/11kW (Spindle/Subspindle optional)
spindle maximum speed: 6,000rpm (Some versions support 4,000rpm heavy cutting mode)

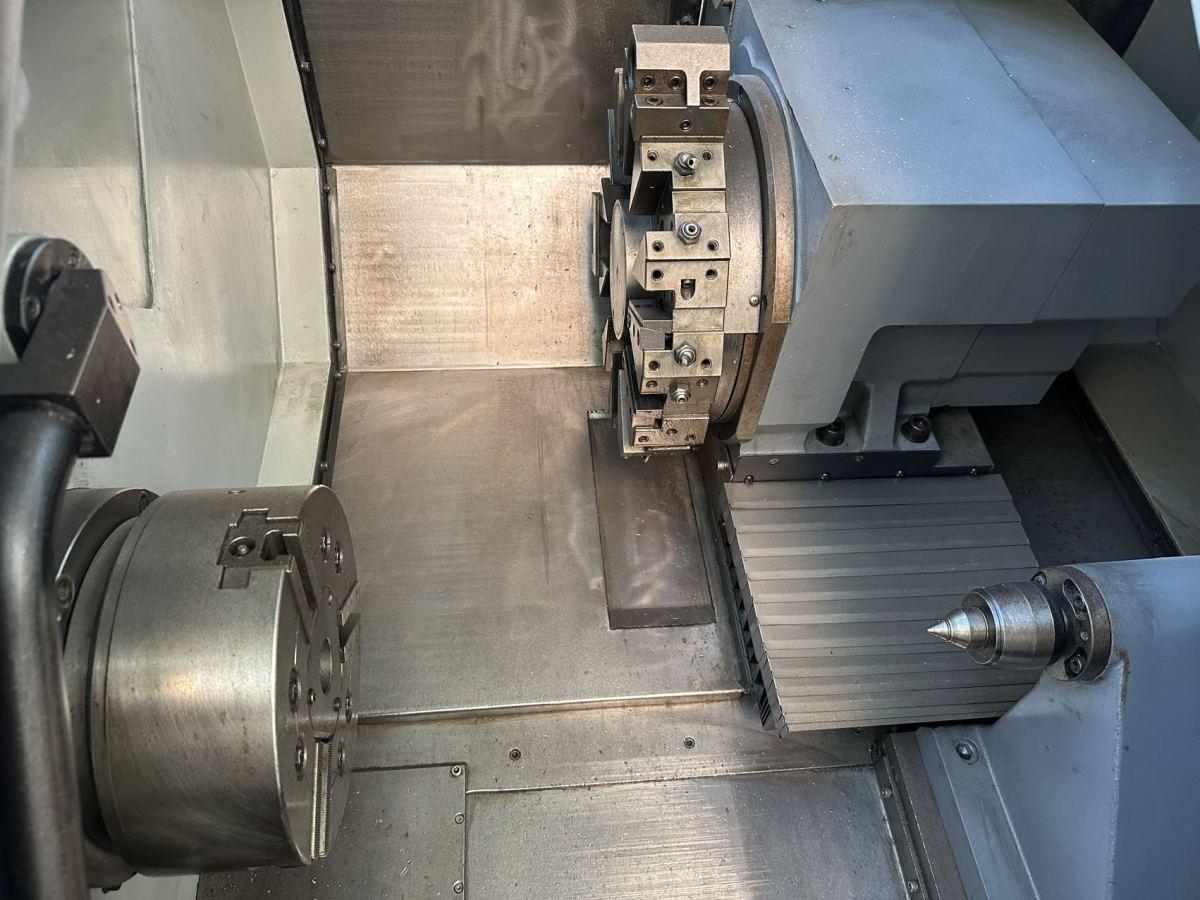

Tool turret Accessories: 12-position servo tool turret, supporting the selection of power Tool (Live Tooling), capable of achieving Turn-milling machining Center machining

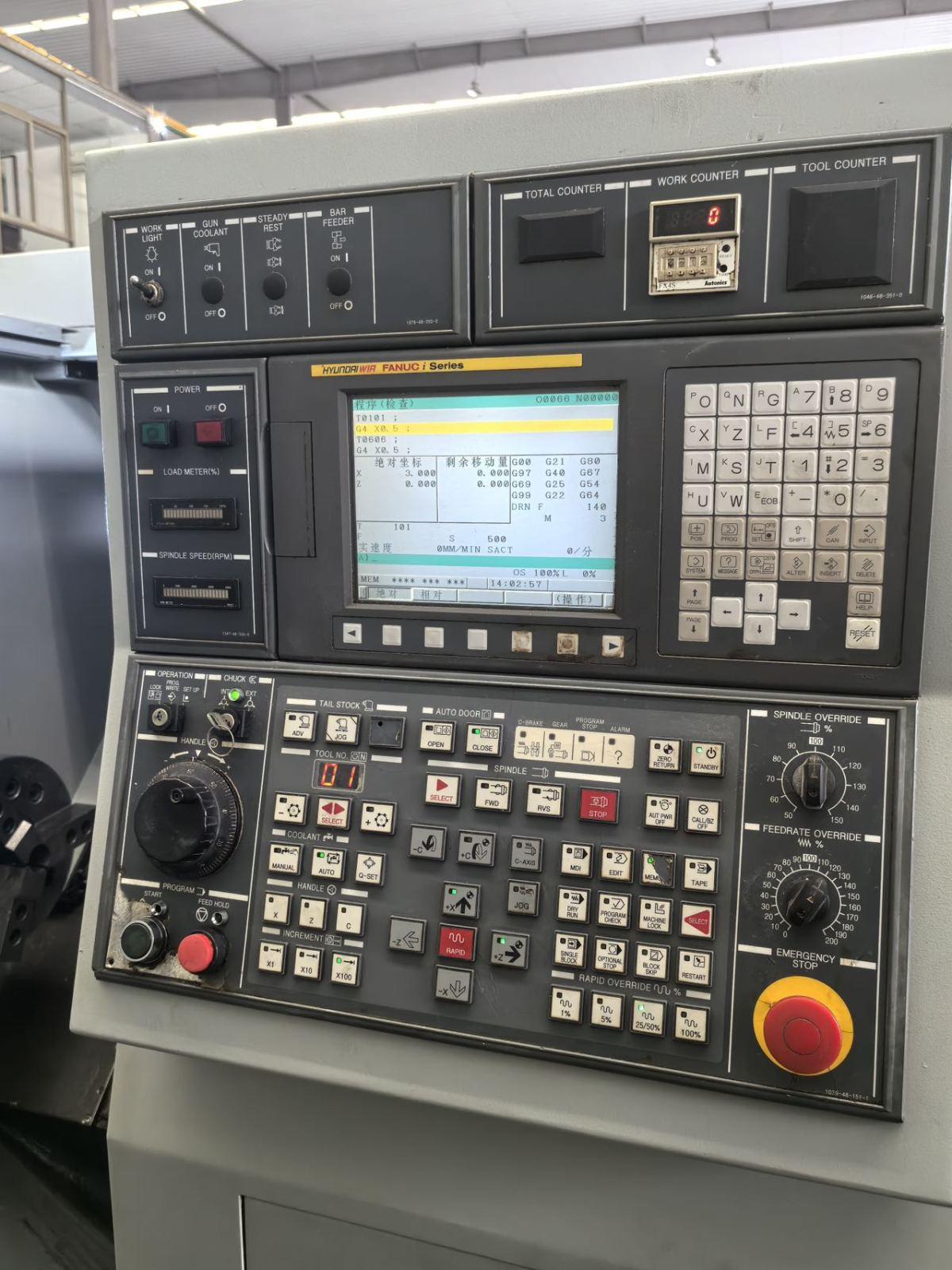

CNC System: Equipped with FANUC Oi-TD or Oi-MF Plus CNC System, it supports G-code programming, Tool compensation, automatic tool setting and remote monitoring functions
guideway structure: The X/Z axes adopt high-precision roller linear guides to ensure rigidity and repeaWorktable Positioning precision during high-speed movement
The overall weight of machine is approximately 3.5 to 4 tons. It features a compact structure and is suiWorktable for flexible layout in workshops
