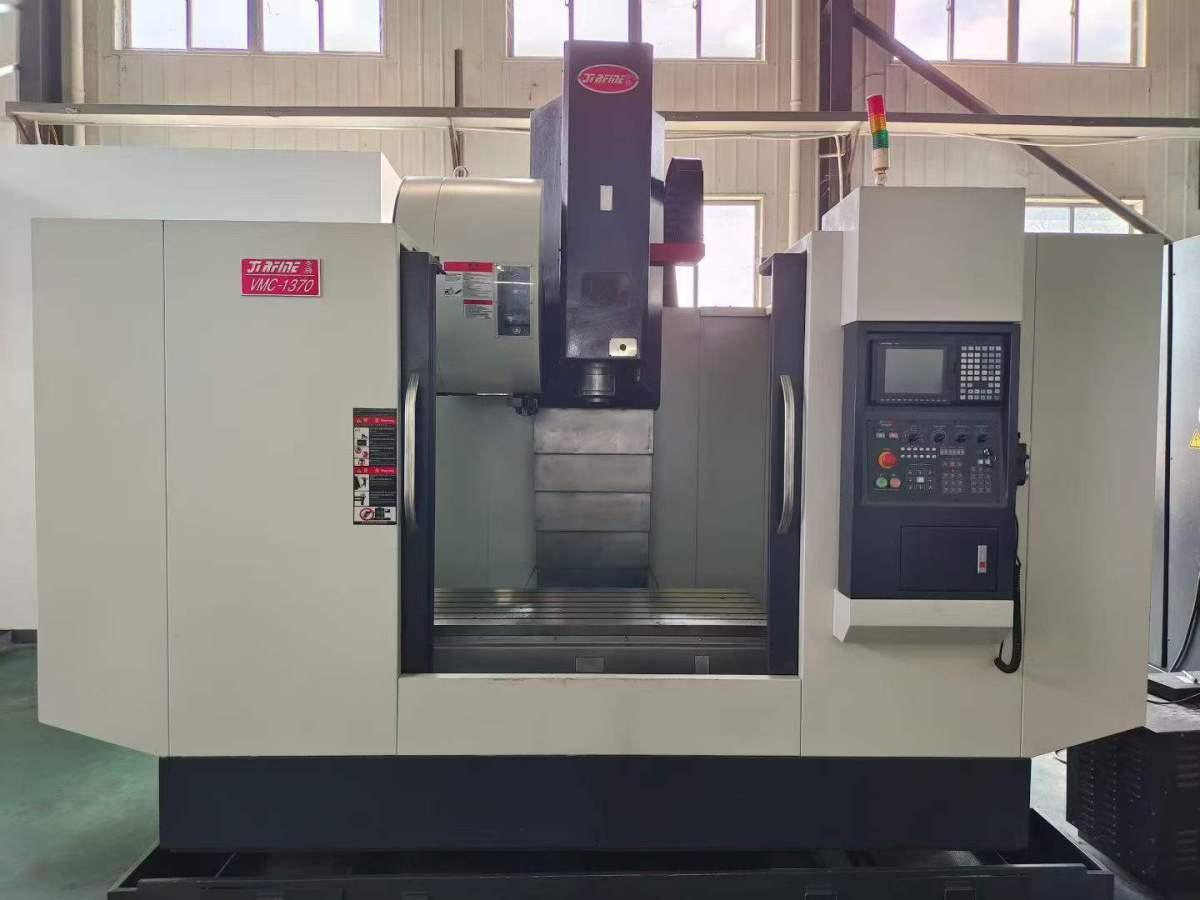

JIRFINE VMC-1370 Vertical Machining centre

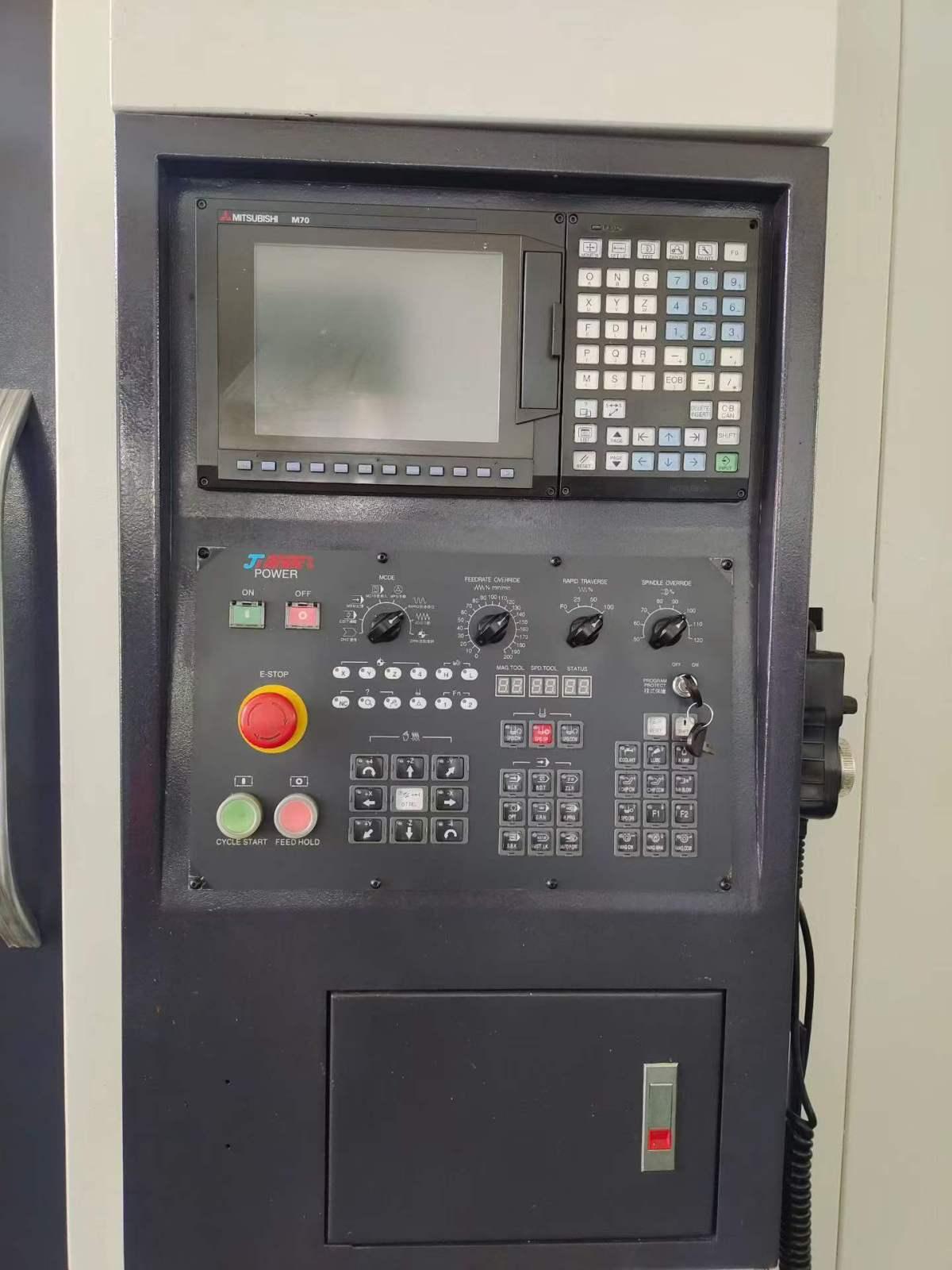

CNC System: Mitsubishi M70

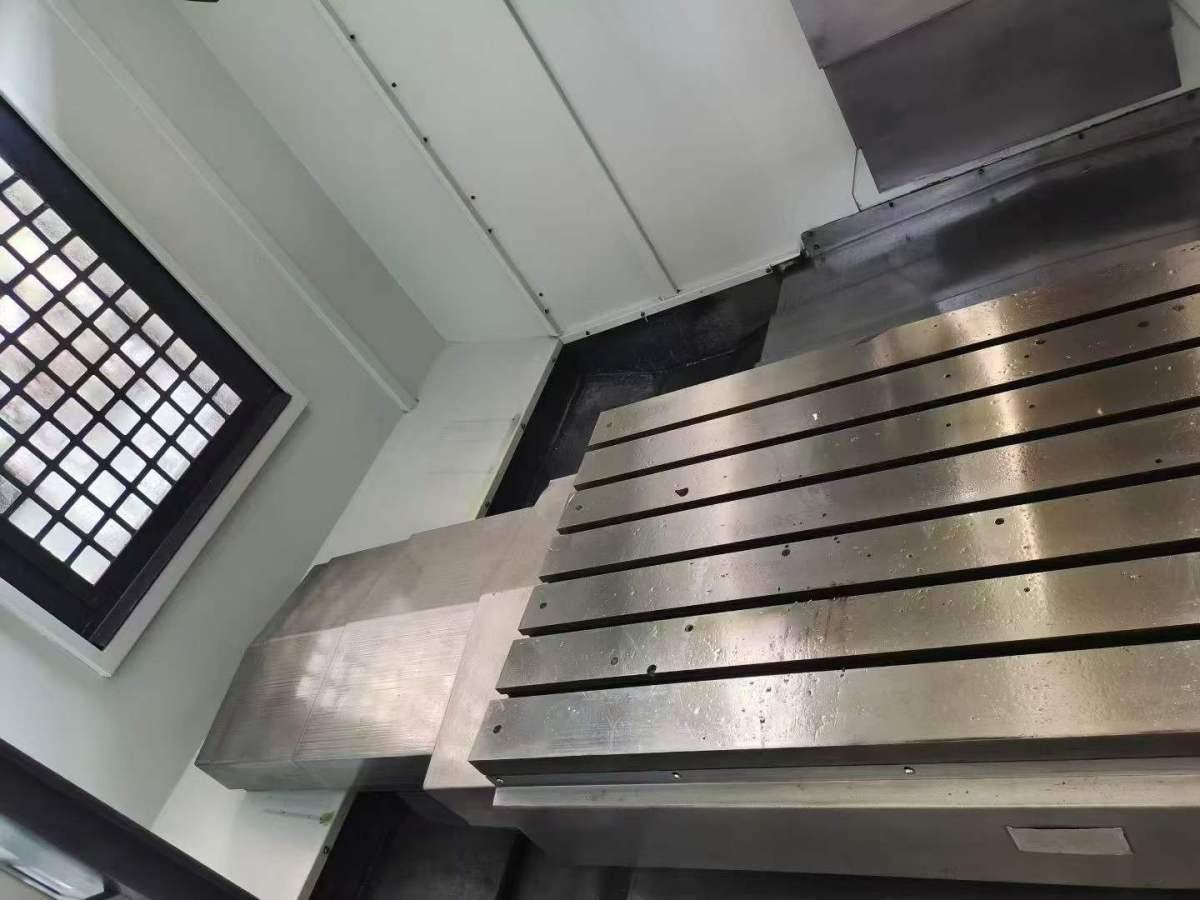

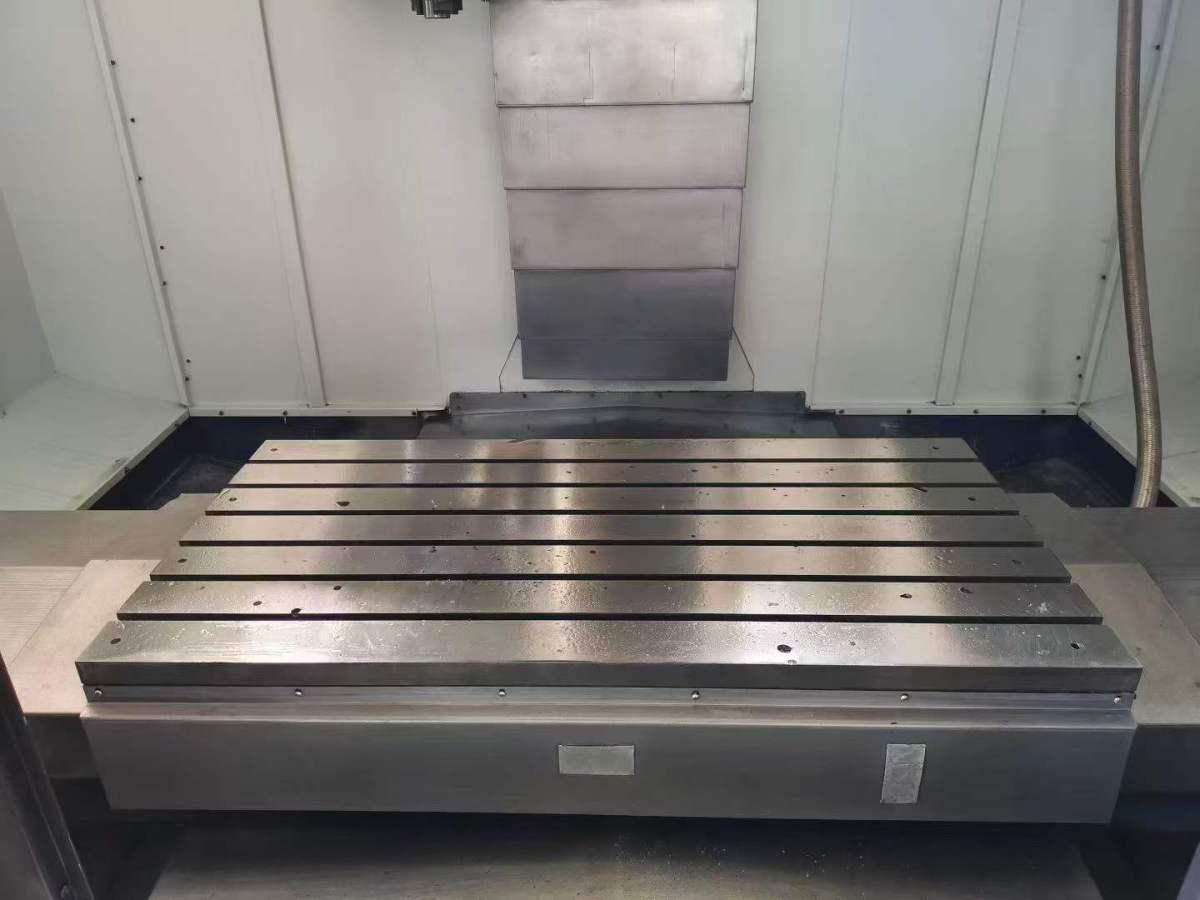

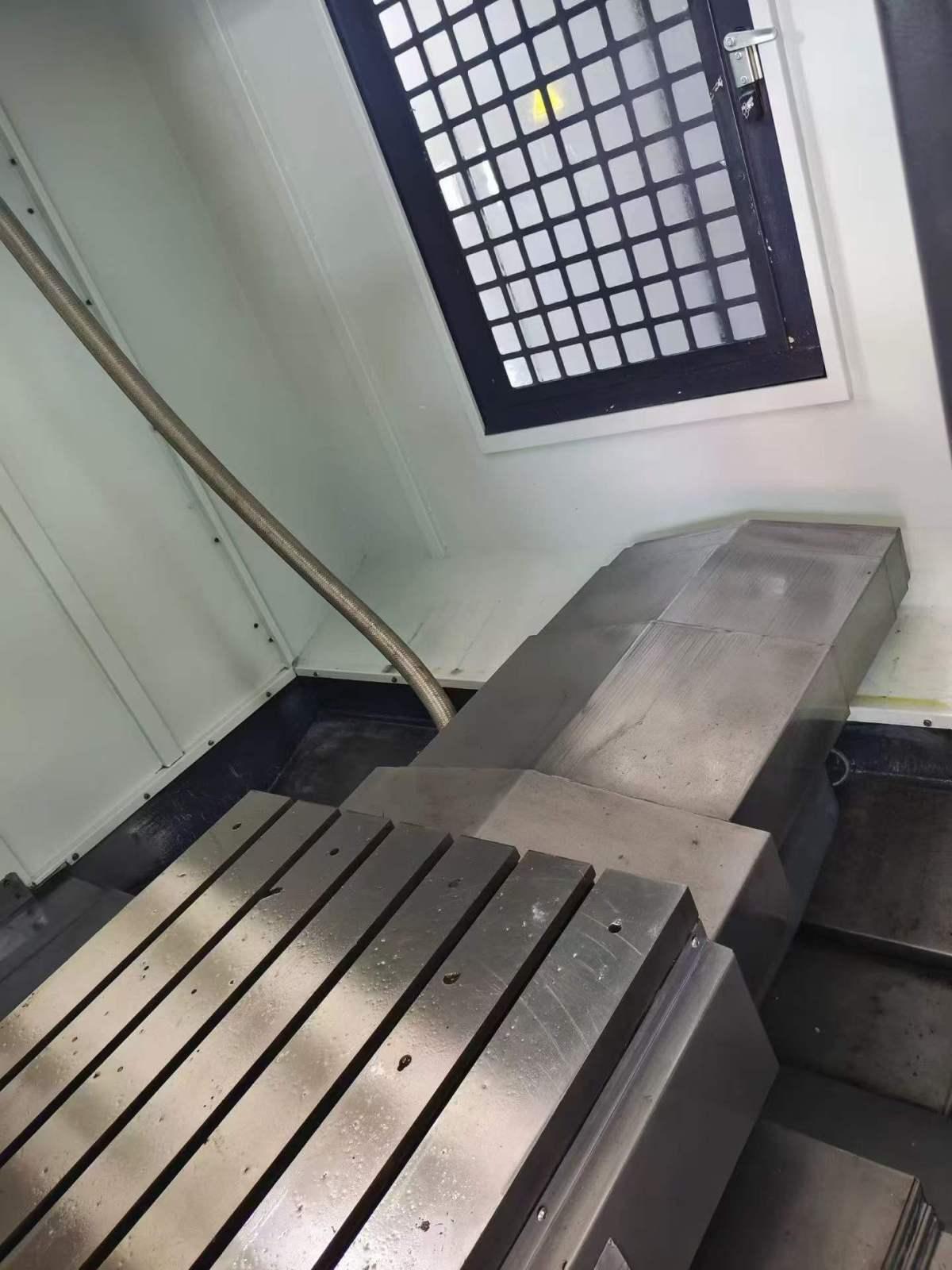

Worktable Size: 1400 × 700 mm
T-Slot Specifications: 18 × 5 × 100 mm
Three-Axis Travel (X/Y/Z): 1300 × 700 × 650 mm
Three-Axis Rapid Traverse Rate (X/Y/Z): 16 / 16 / 16 m/min
Three-Axis Feed Rate: 10,000 mm/min
Maximum Spindle Speed: 6000 rpm
Spindle Taper: BT50
Distance from Spindle Nose to Worktable: 230–880 mm
Distance from Spindle Center to Column: 760 mm

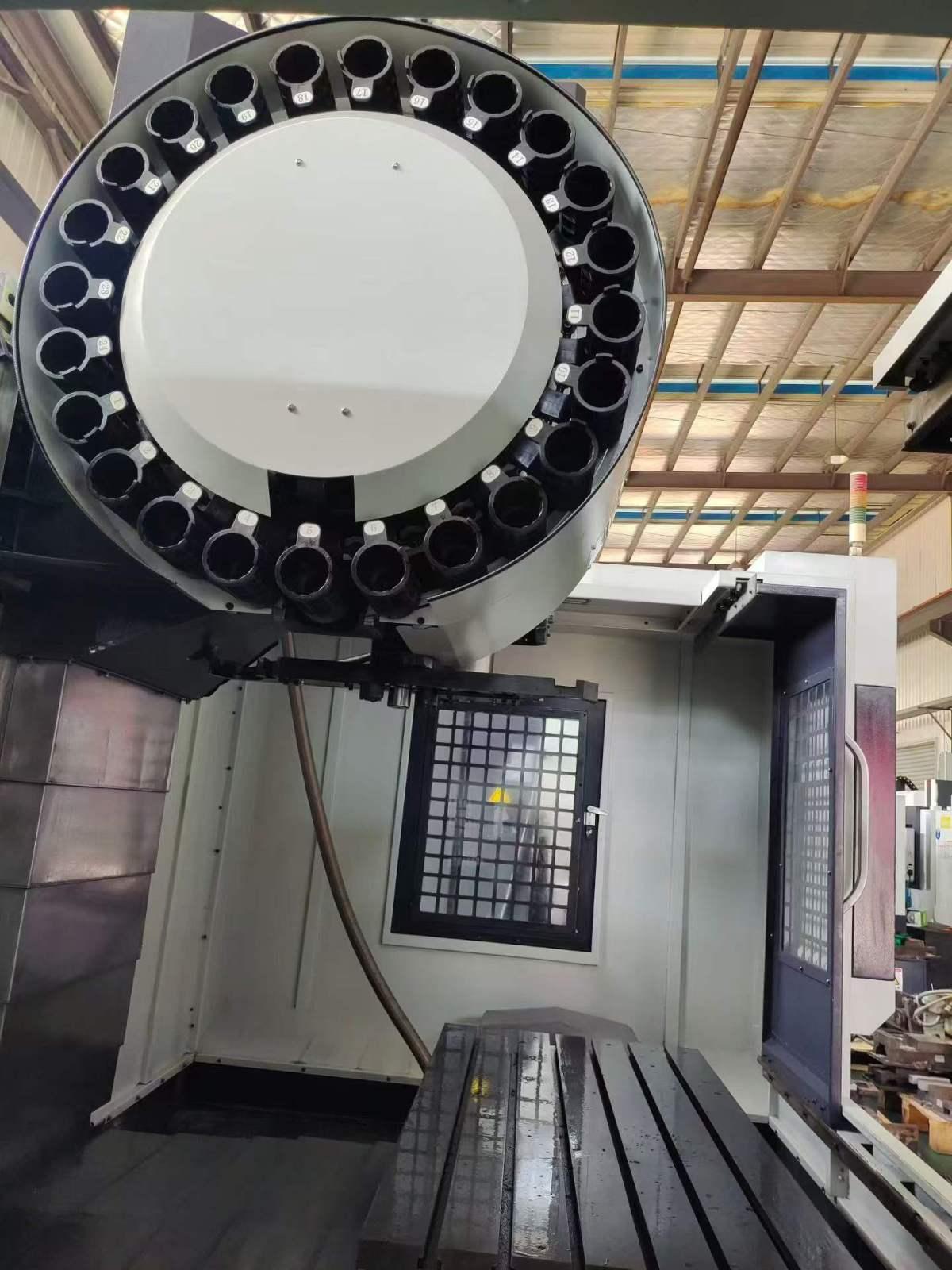

Tool Magazine Capacity: 24 tools
Guideway Type: Box Ways on All Three Axes
