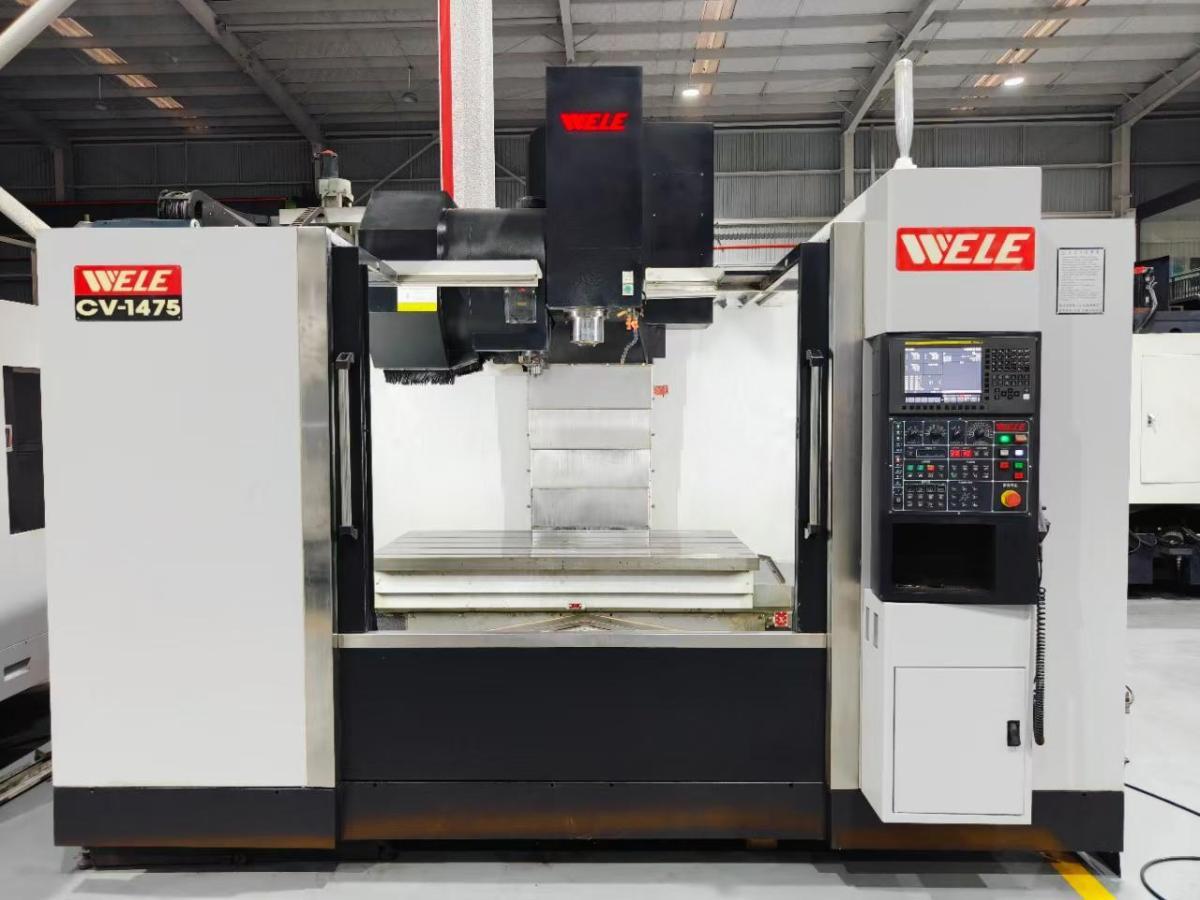

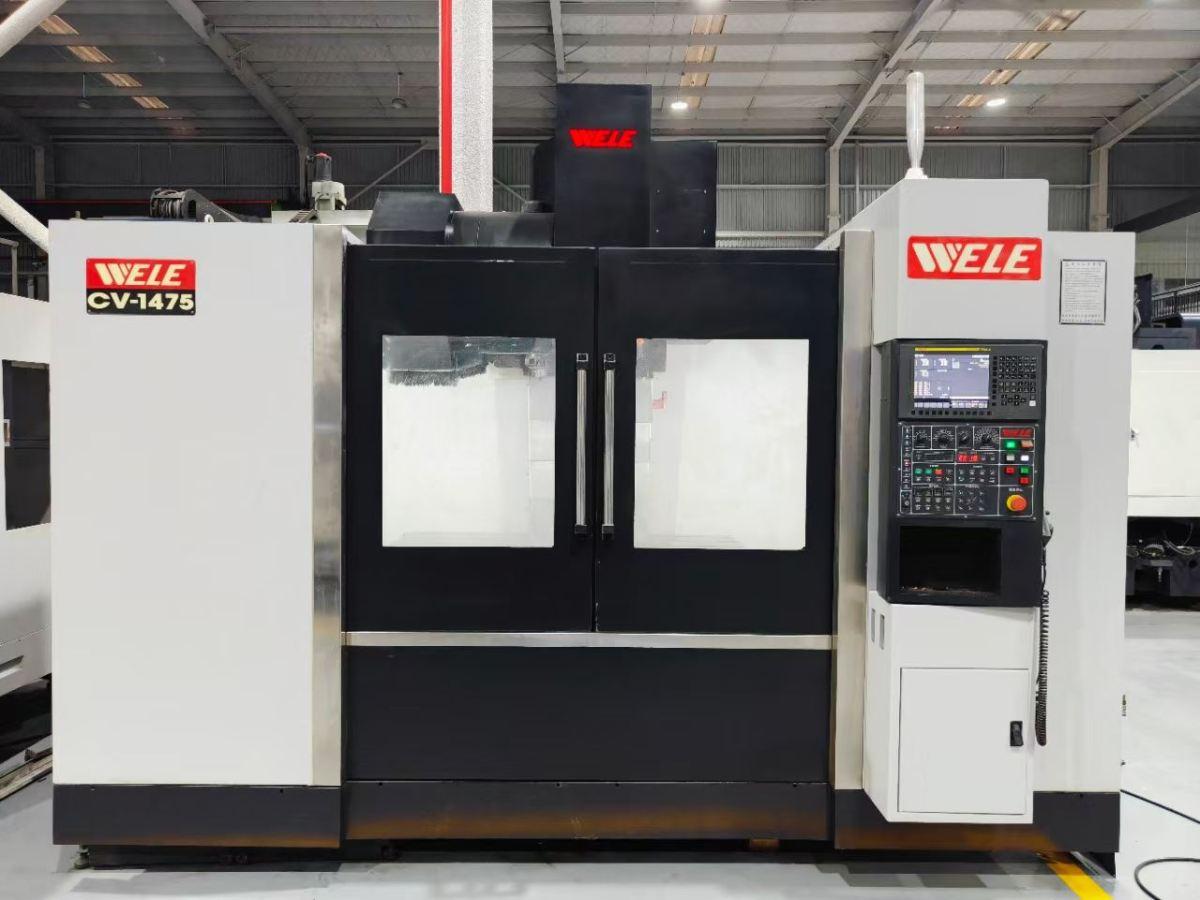

WELE CV-1475 Vertical Machining centre

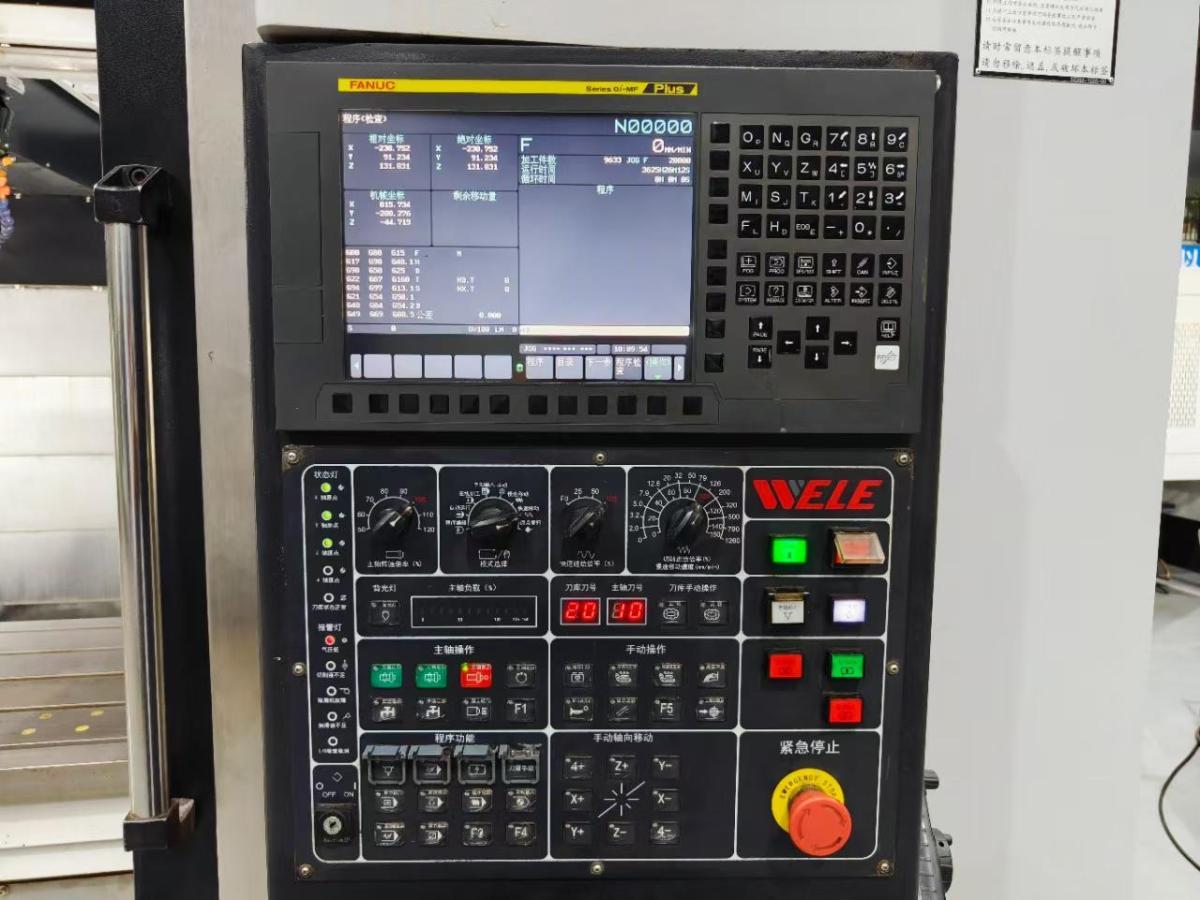

CNC System: FANUC Oi-MF Plus
Three-axis travel: 1450 × 750 × 750 mm

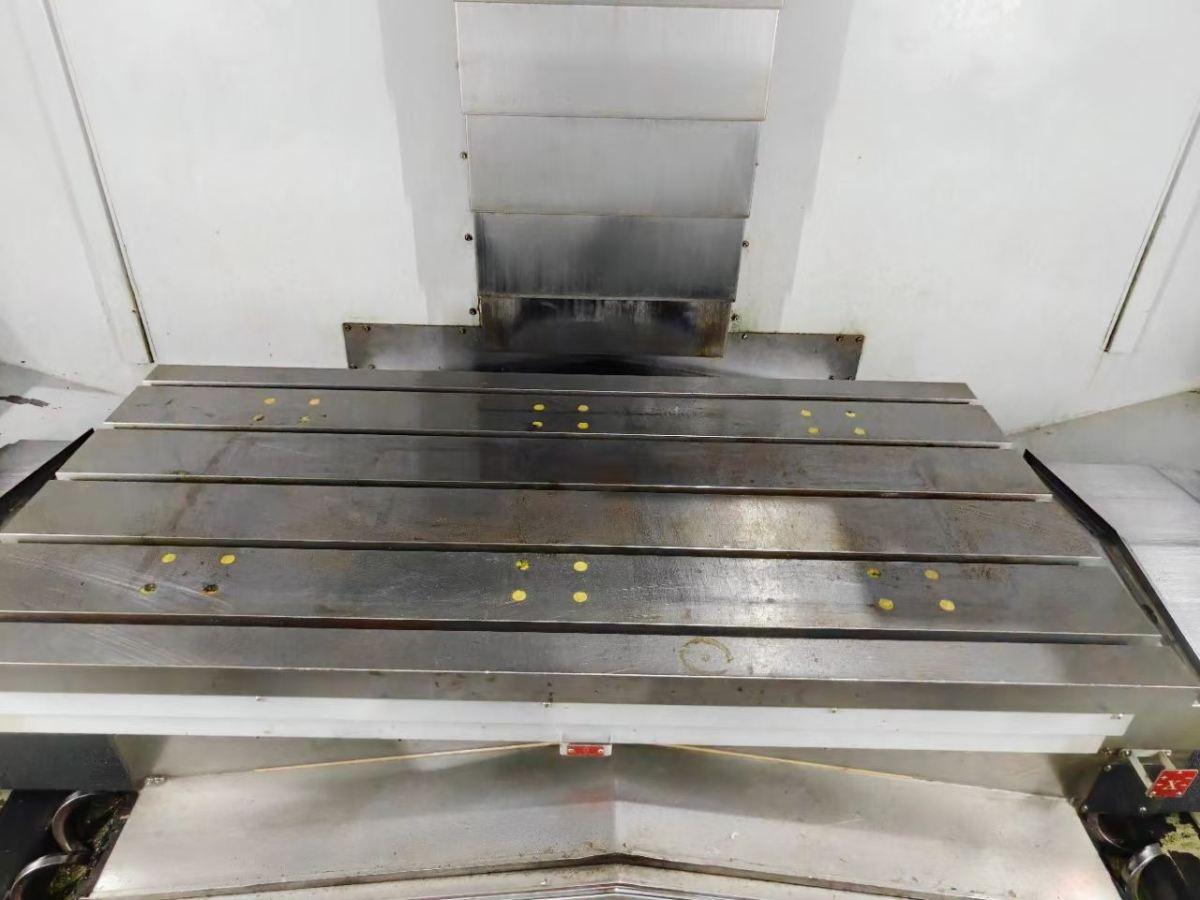

Worktable size: 1550 × 750 mm
Drive motor: FANUC α (Alpha) motor
Spindle speed: 10,000 rpm

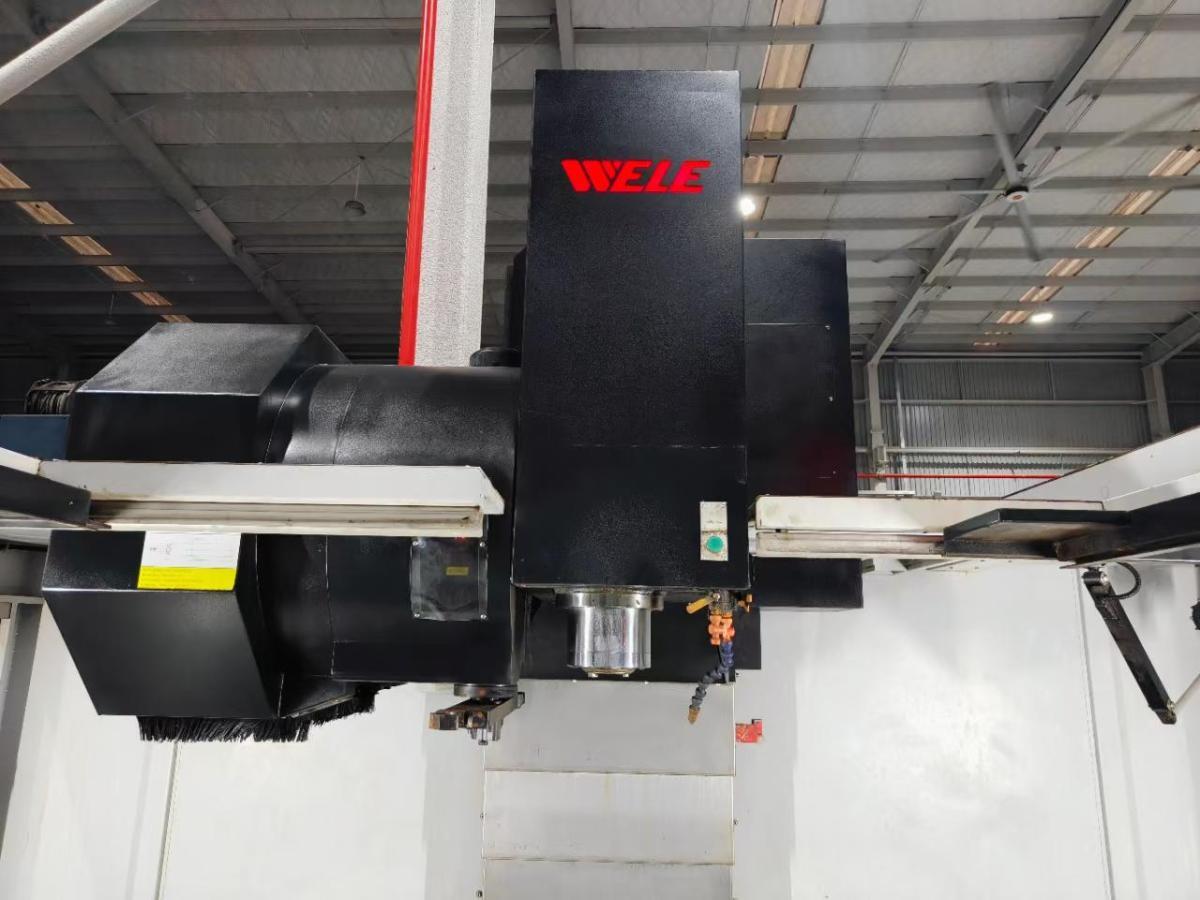

Spindle: BT40, direct drive
Tool magazine: 24-tool arm-type magazine with inverter, Taiwan Beiju
Guideways: Taiwan Hiwin roller linear guides on all three axes, 4 guideways on the Y-axis
Configuration

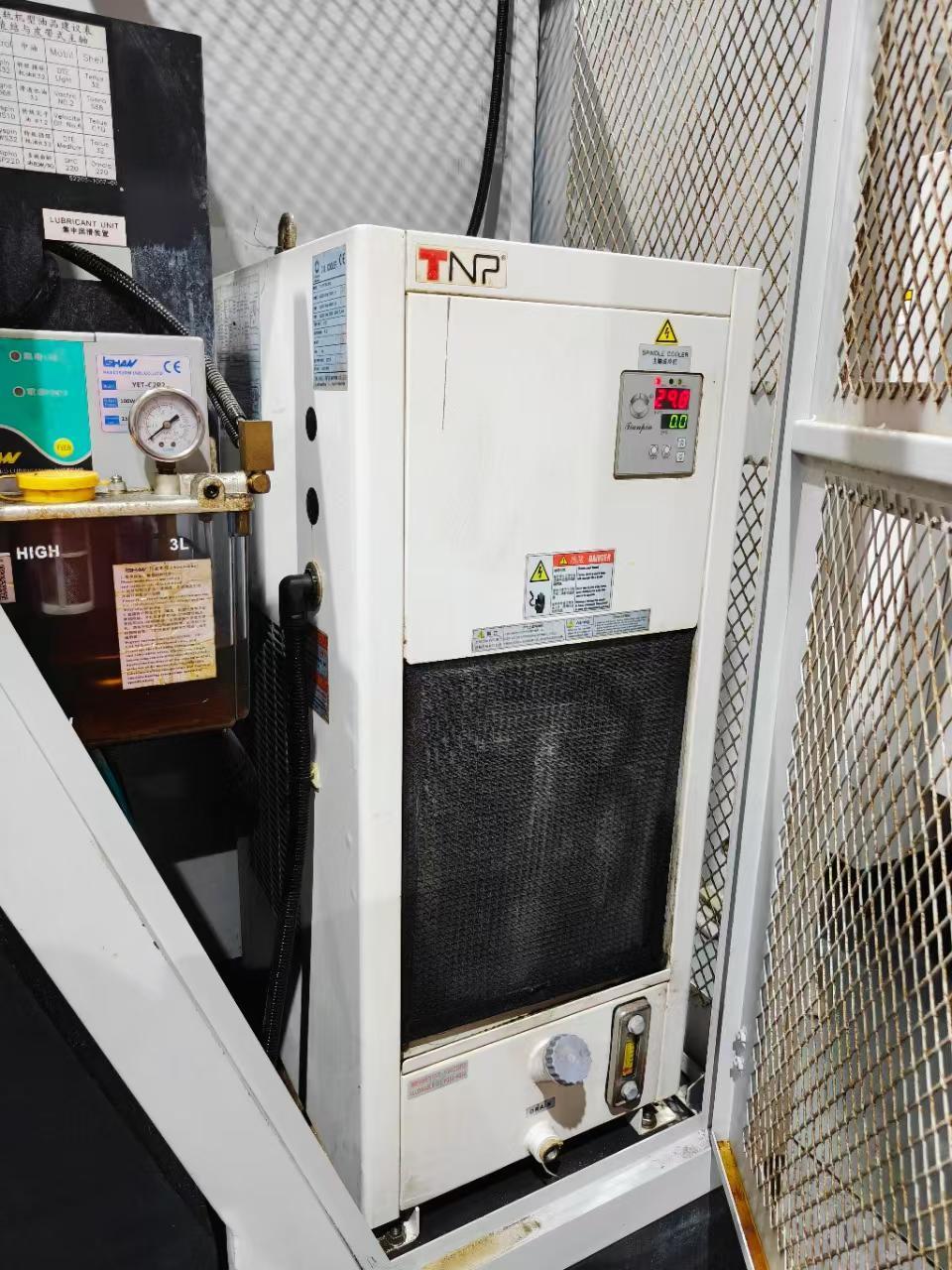

Spindle oil chiller
Three helical chip conveyors
