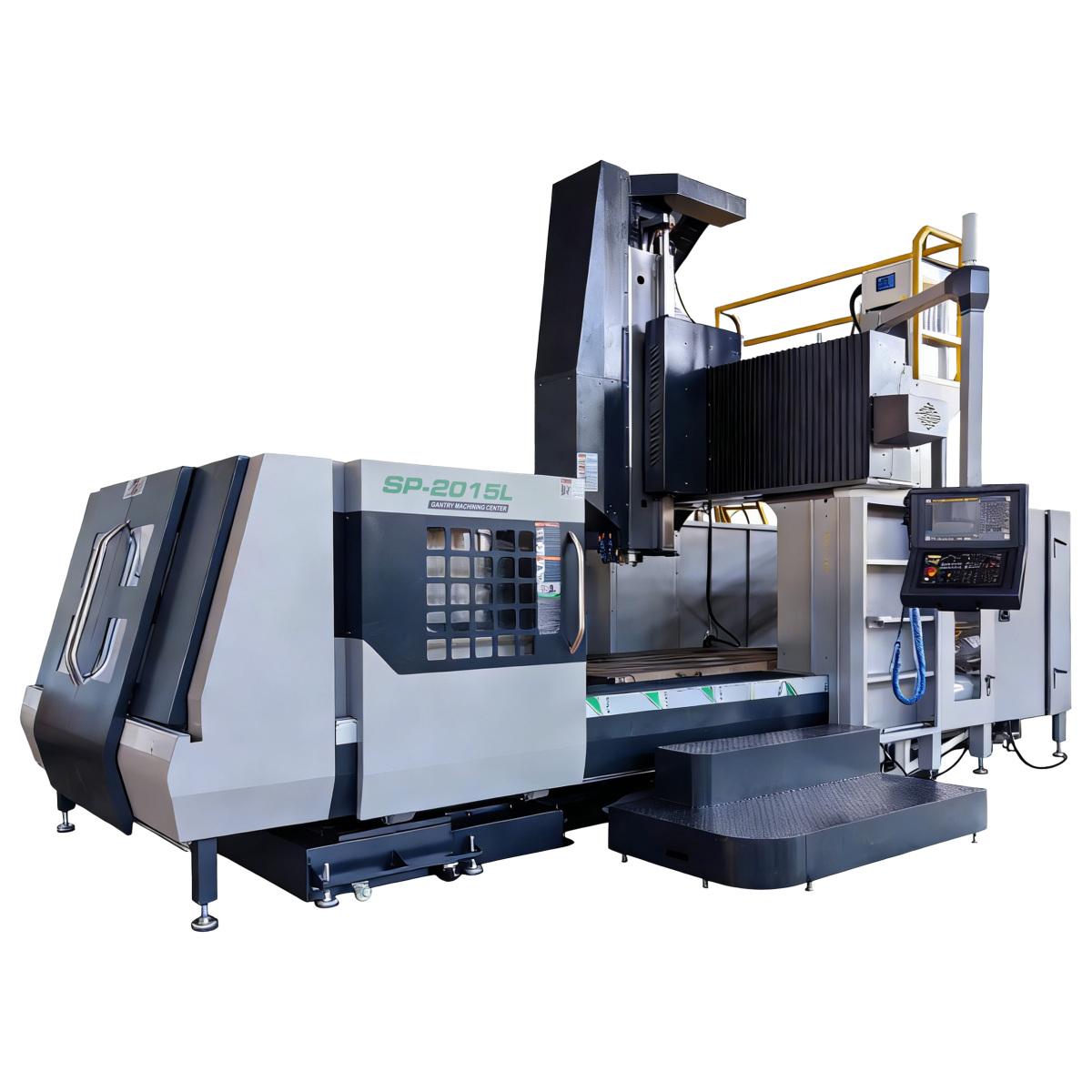

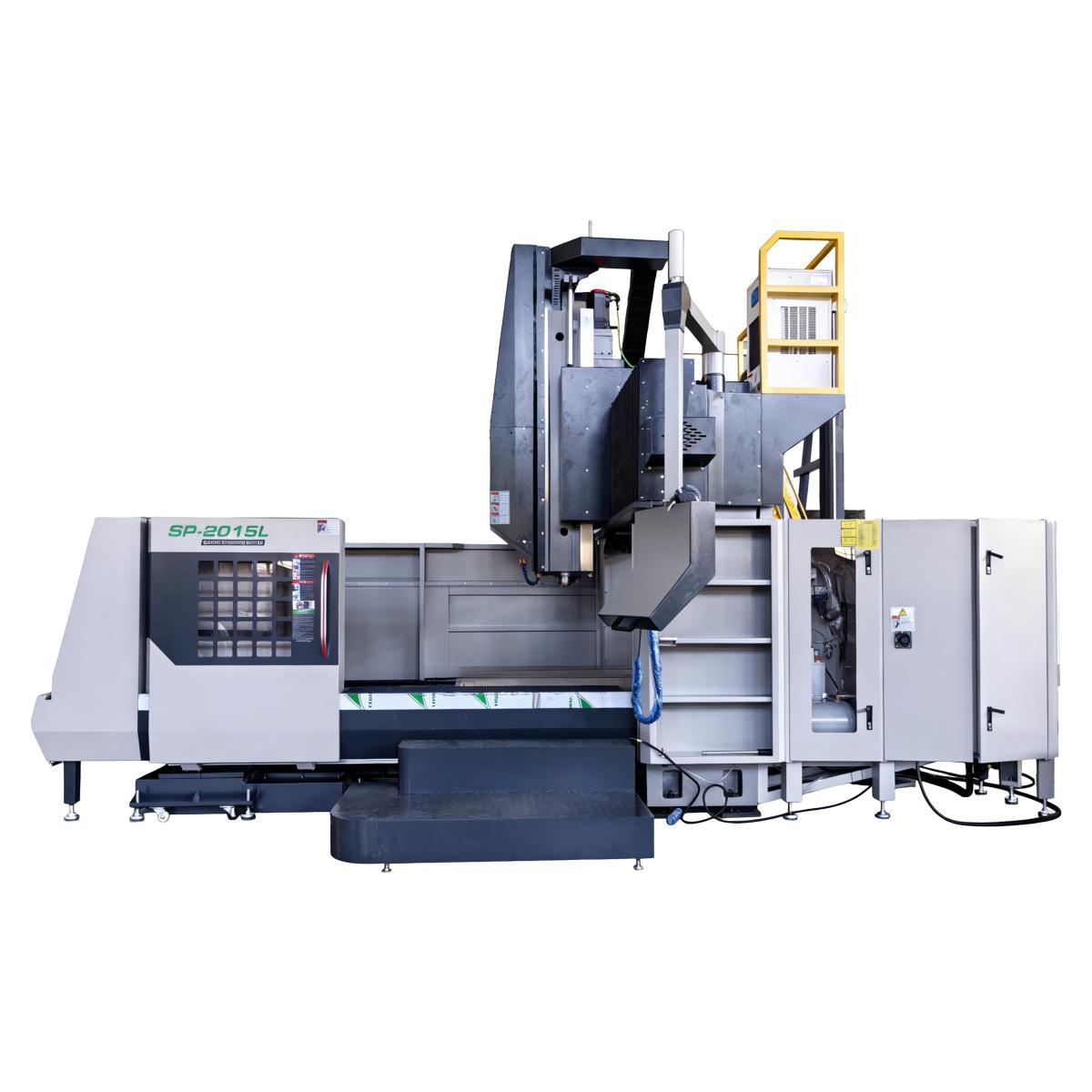

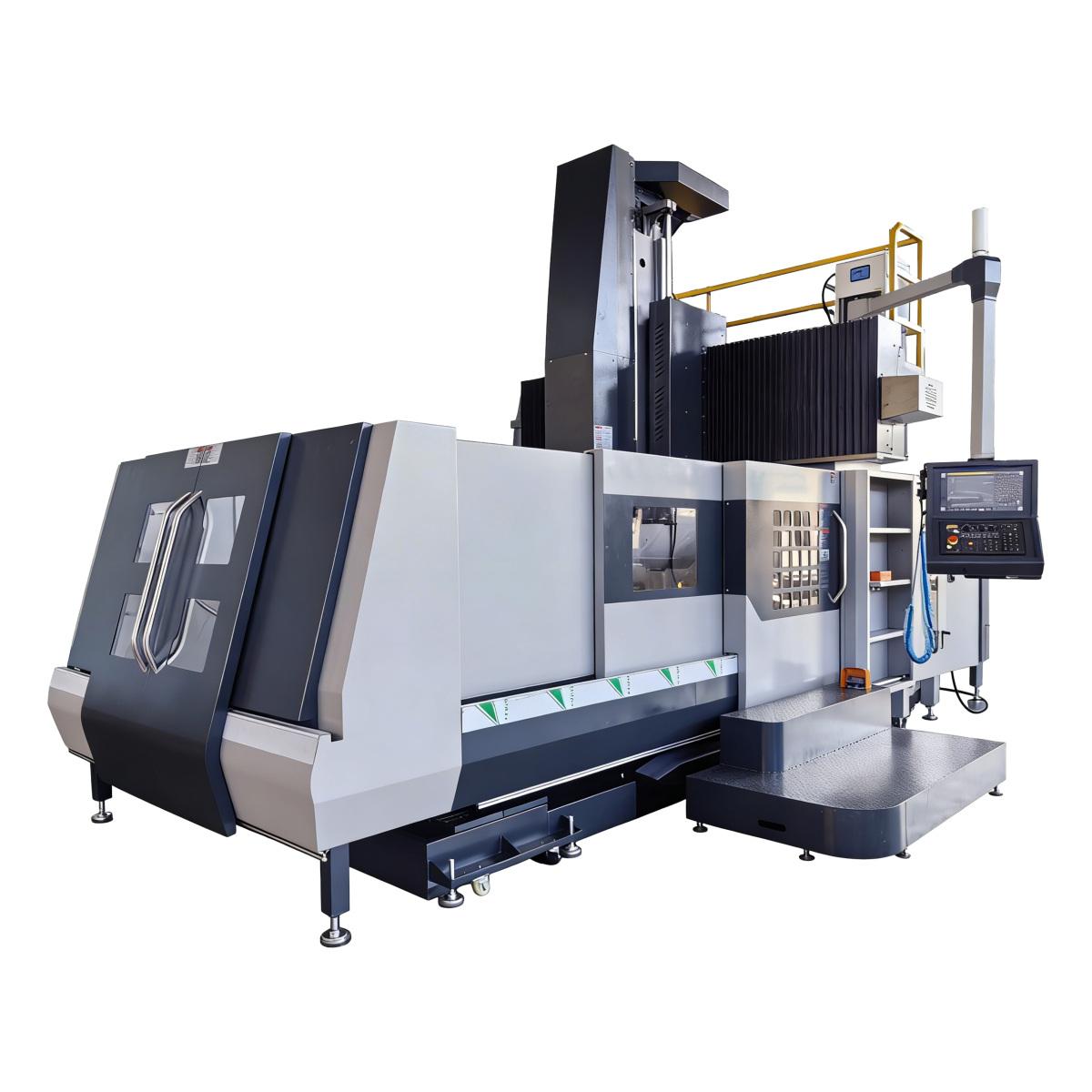

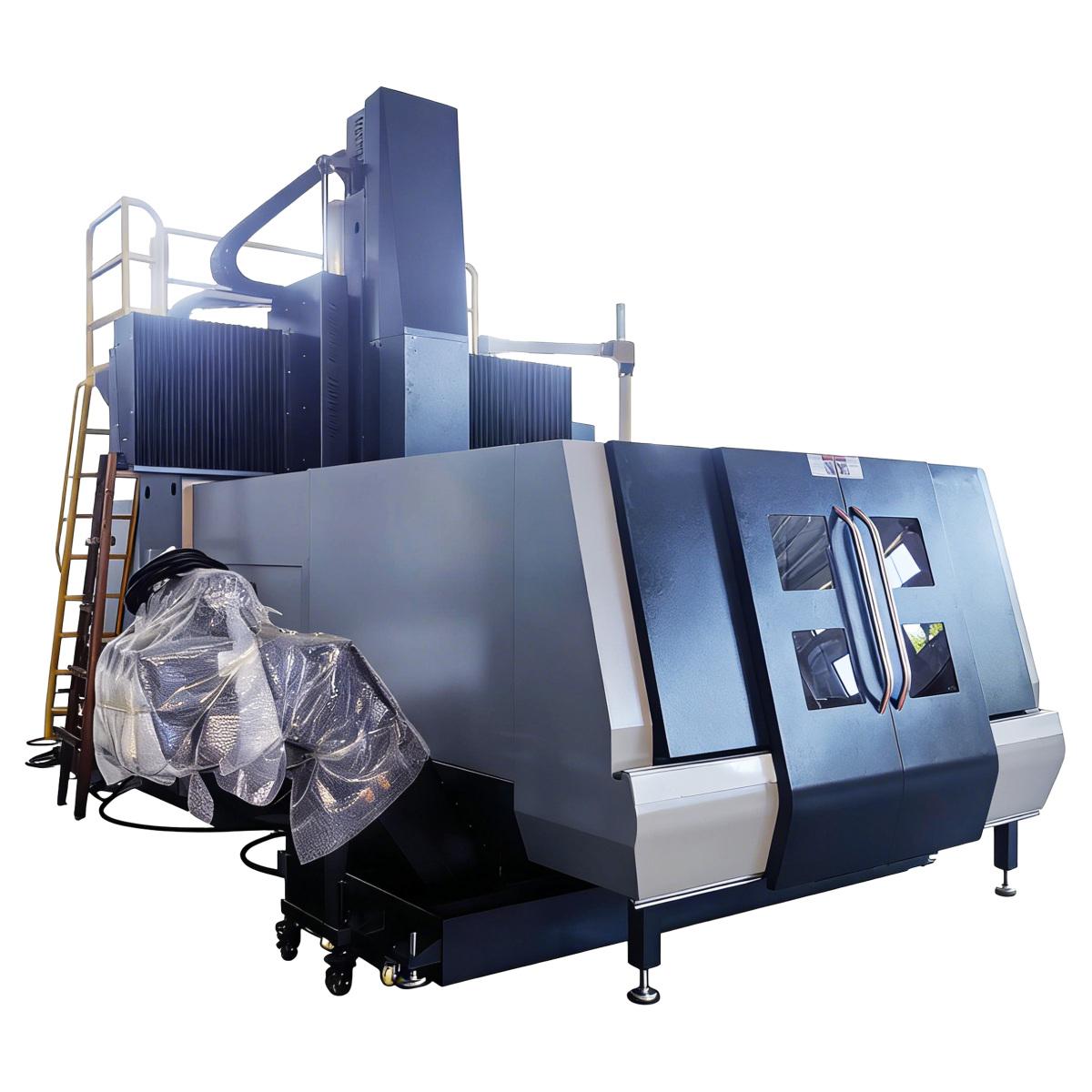

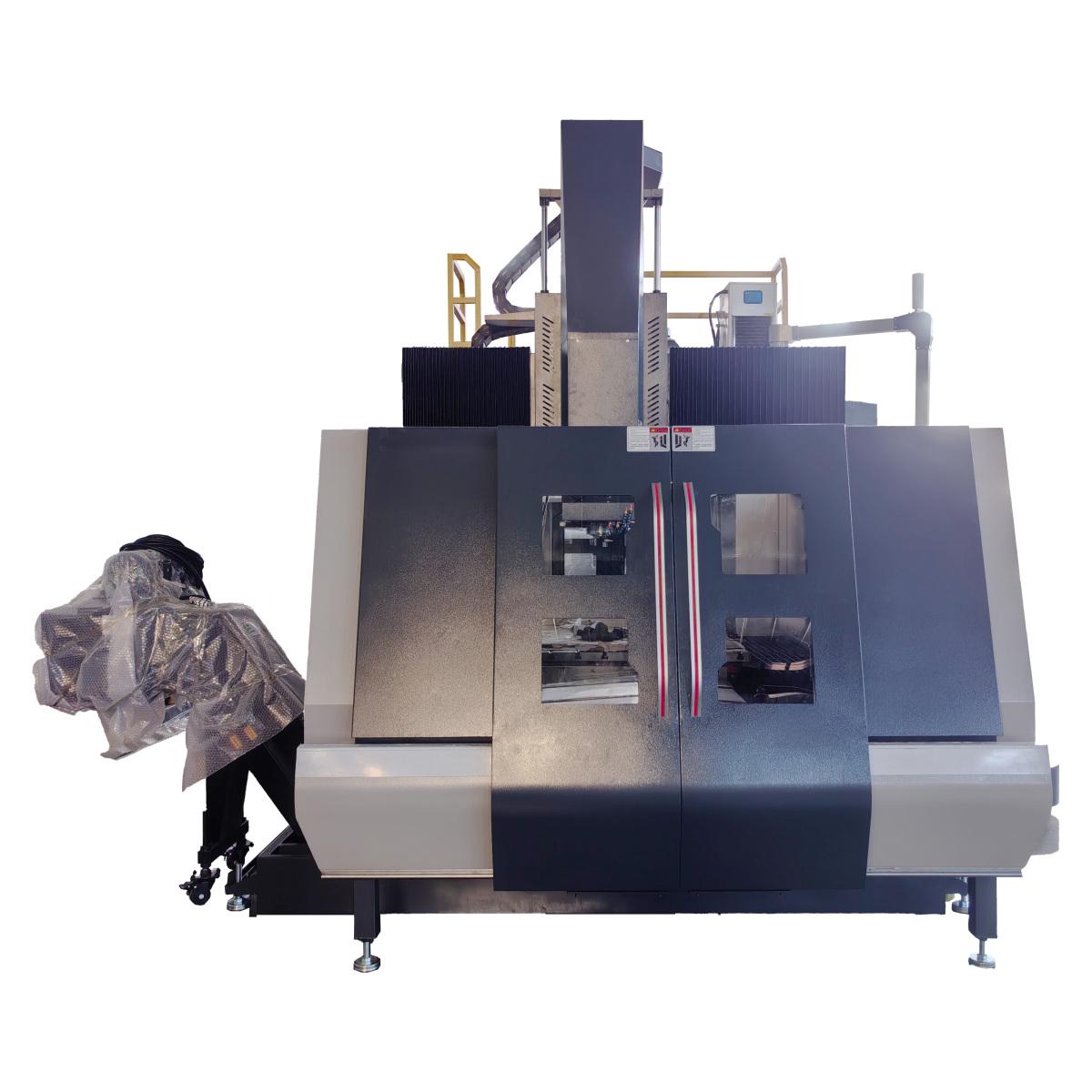

YongXi SP-2015L Gantry machining centre

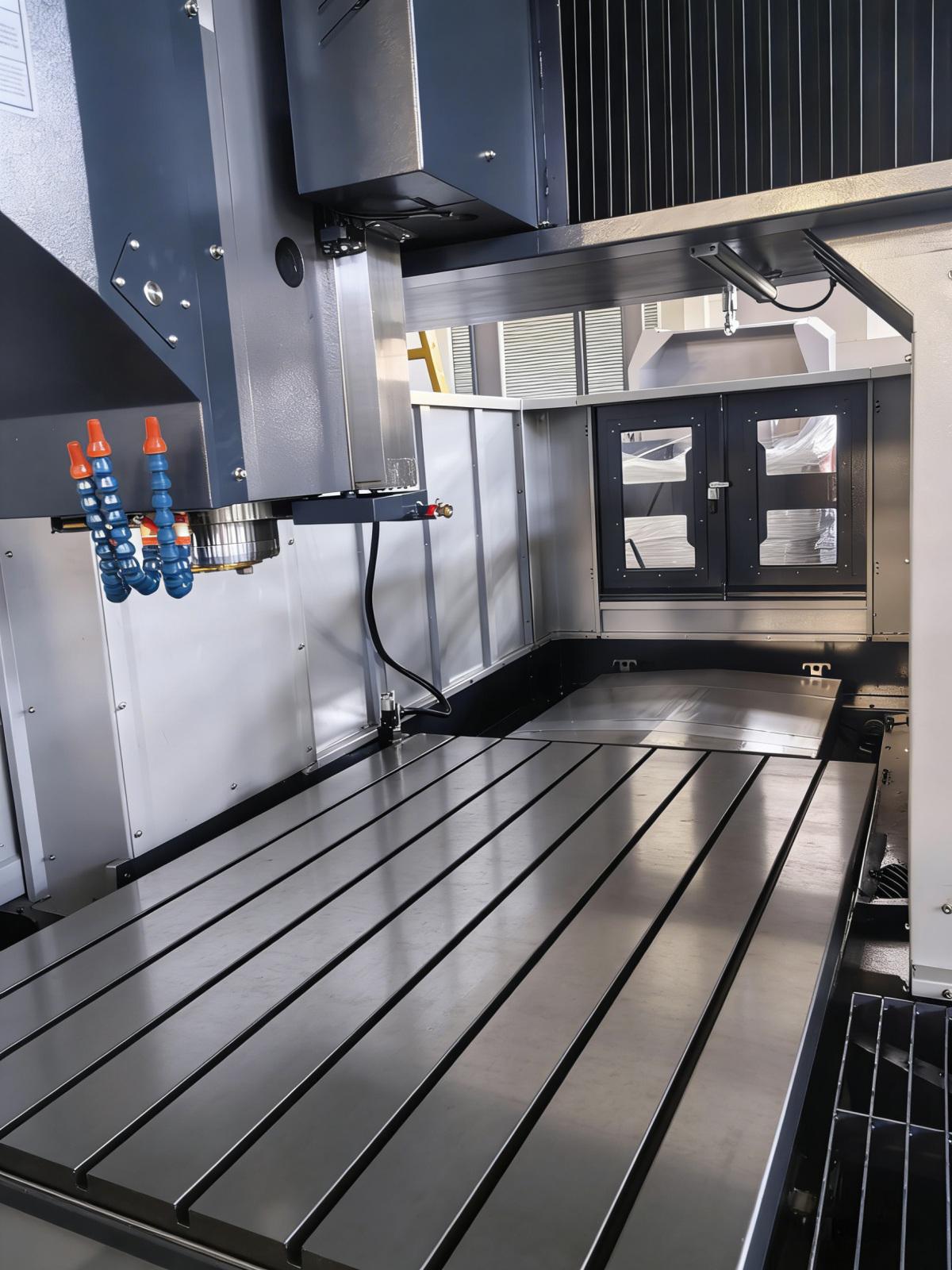

WorkWorkWorktable size: 1300 × 2200 mm

T-slot (size × width) : 9 × 22 × 150 mm

Maximum load of workWorktable: 5500 kg

X-axis travel: 2000-2200 mm

Y-axis travel: 1500 mm

Z-axis travel: 800 mm

Distance from spindle nose to workWorktable surface: 150-950 mm

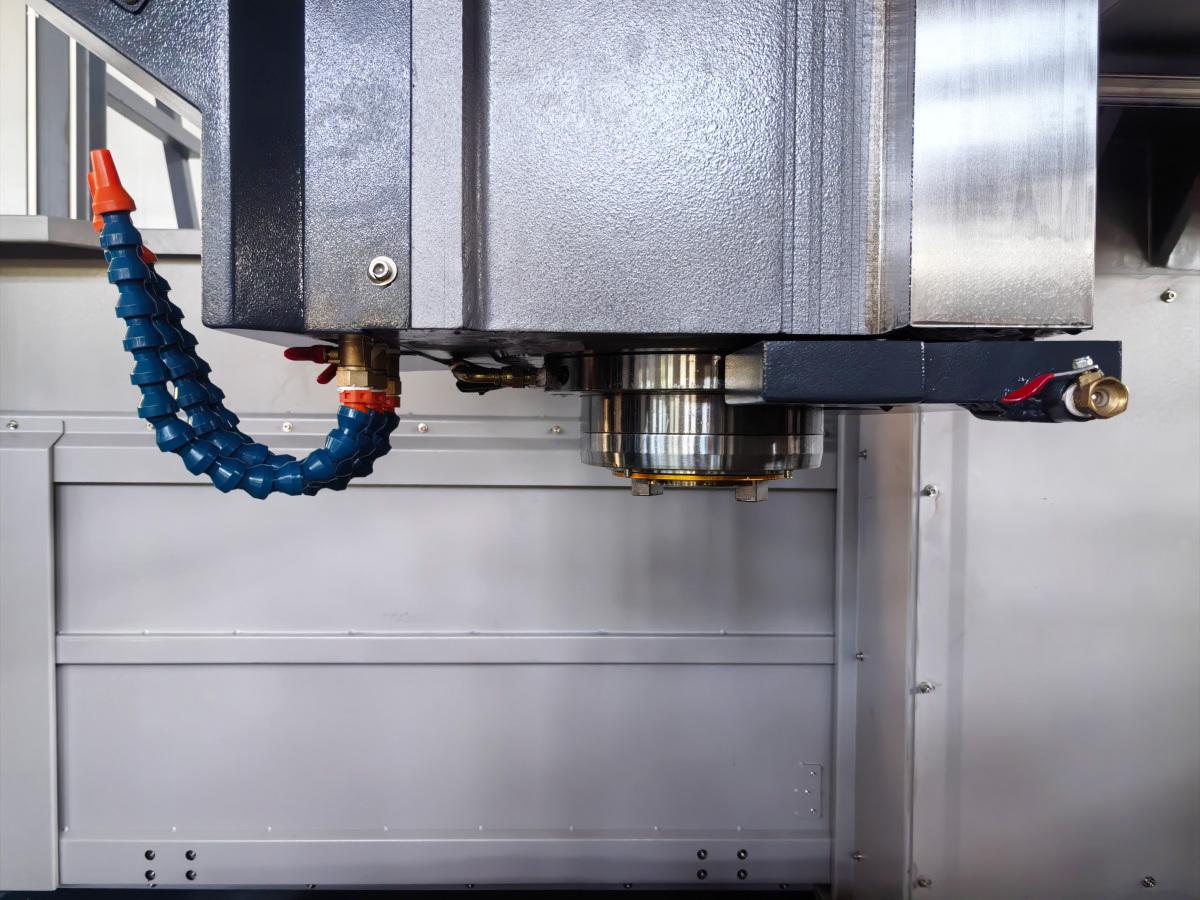

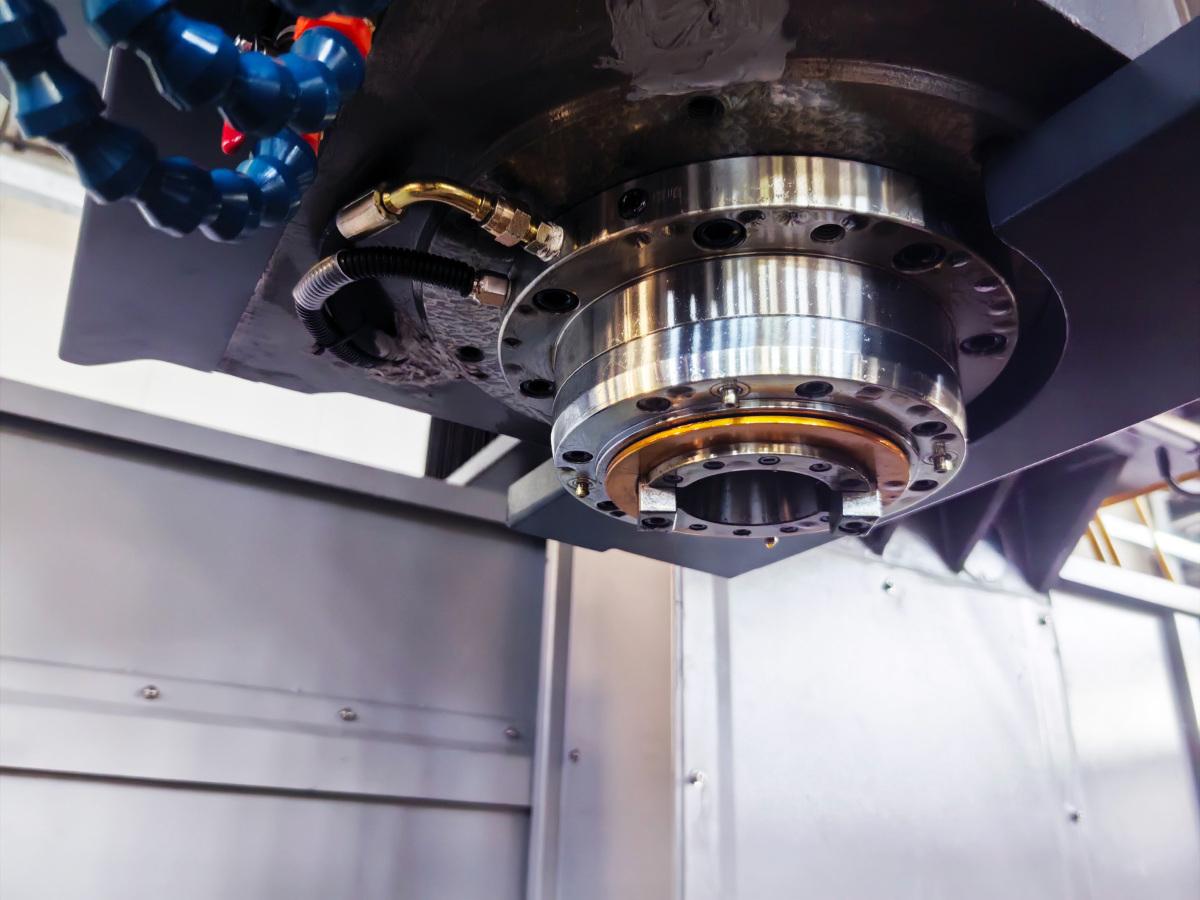

spindle taper: BT50

spindle drive structure: strap type (Belt

Maximum Spindle speed: 6000 rpm

Fast moving rate: X/Y/Z 12 m/min

Tool storage capacity: --

Tool diameter limit: Φ 190mm

Main motor power: 15-18.5 kW

X/ Y-axis guideway structure: Linear roller guide

Z-axis guideway structure: rectangular slide rail (Hardened box way)

Positioning precision: ± 0.005mm

Repeatability precision: ± 0.005mm

Power requirement: 45 KVA

Mechanical area (length × width × height) : 6740 × 3400 × 4350 mm

Machine weight: 18,000 kg
