DMG DMU 80 MONOBLOCK Horizontal Machining centre

X axis travel: 980 mm

Y axis travel: 630 mm

Z axis travel: 630 mm

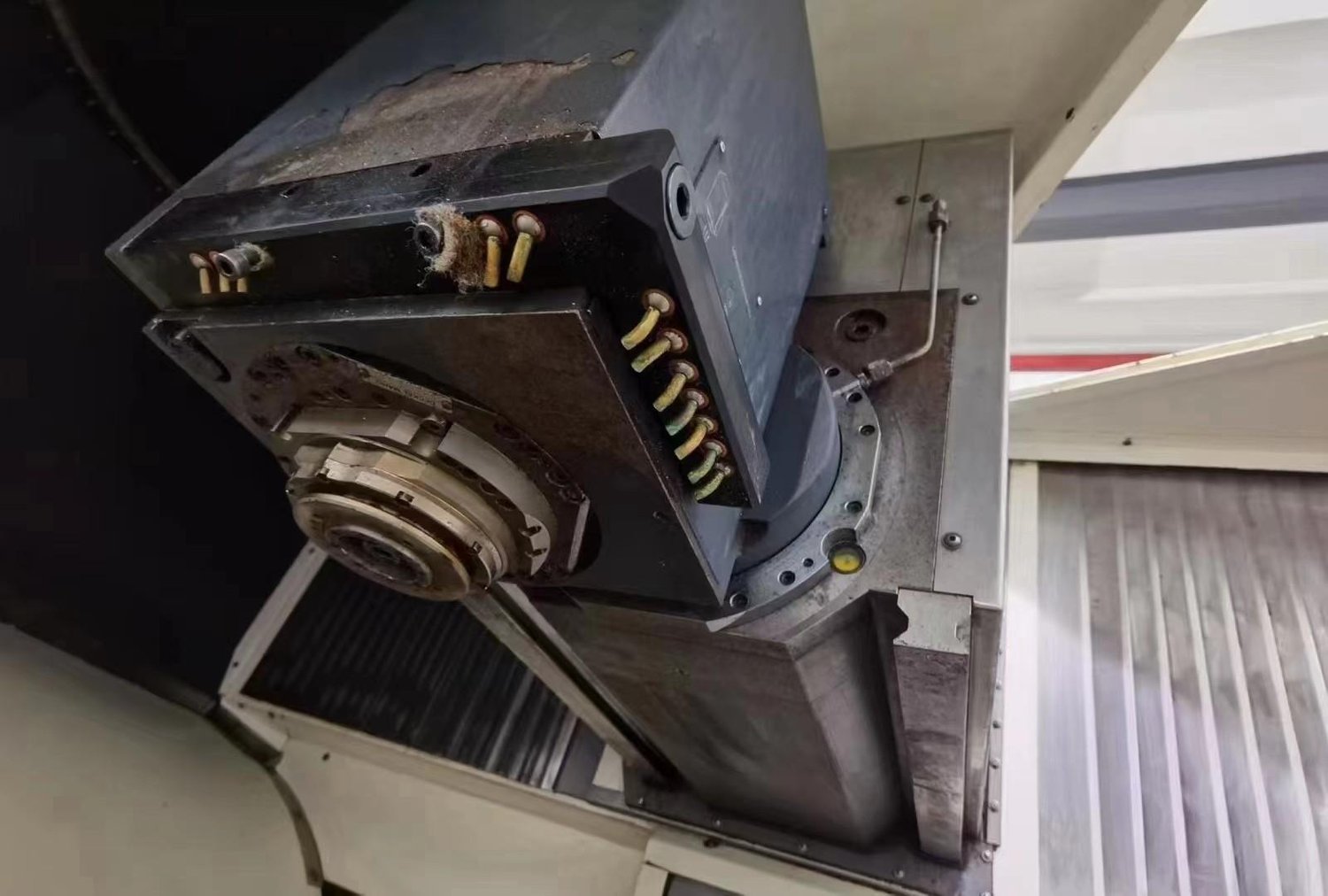

B axis :-120 --+30 deg

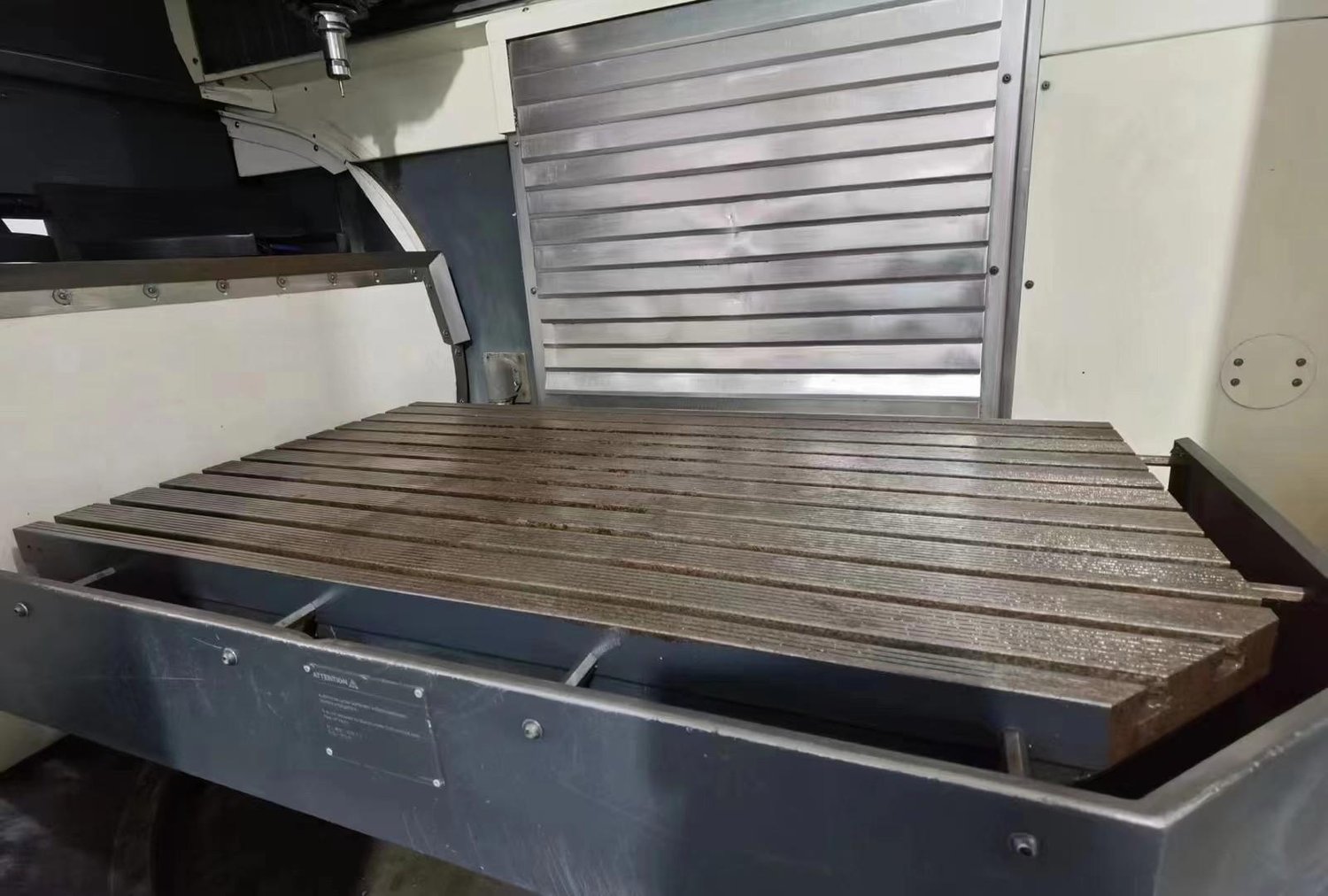

Work table size :1250*700mm

Weight with Clamping  (fixed table) :650Kg

Main spindle power :14.9 kW

X/Y/Z Fast feed rate :50M/Min

Max feeding force :10/15/15KN

Main spindle turning rate :24,000 RPM

Tool holder :HSK-A63

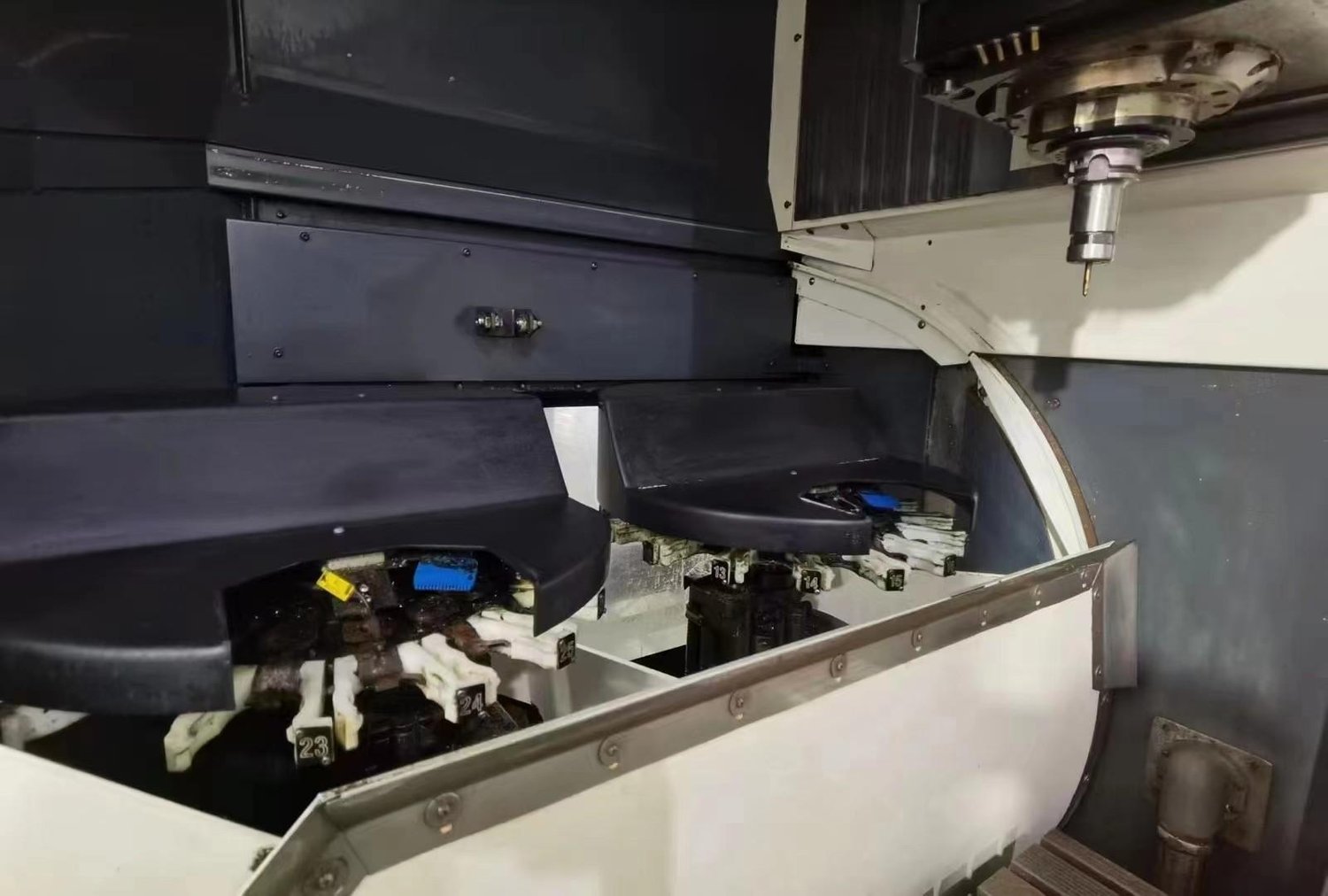

Tool magazine capacity:32

Guideway type:Linear roller guideway

Linear orbit measuring system:glass scale resolution 0.001mm

Temperature compensation:electronic temperature sensor

Machine size :3900 x 2400 x 2900 mm

Machine weight :9000Kg

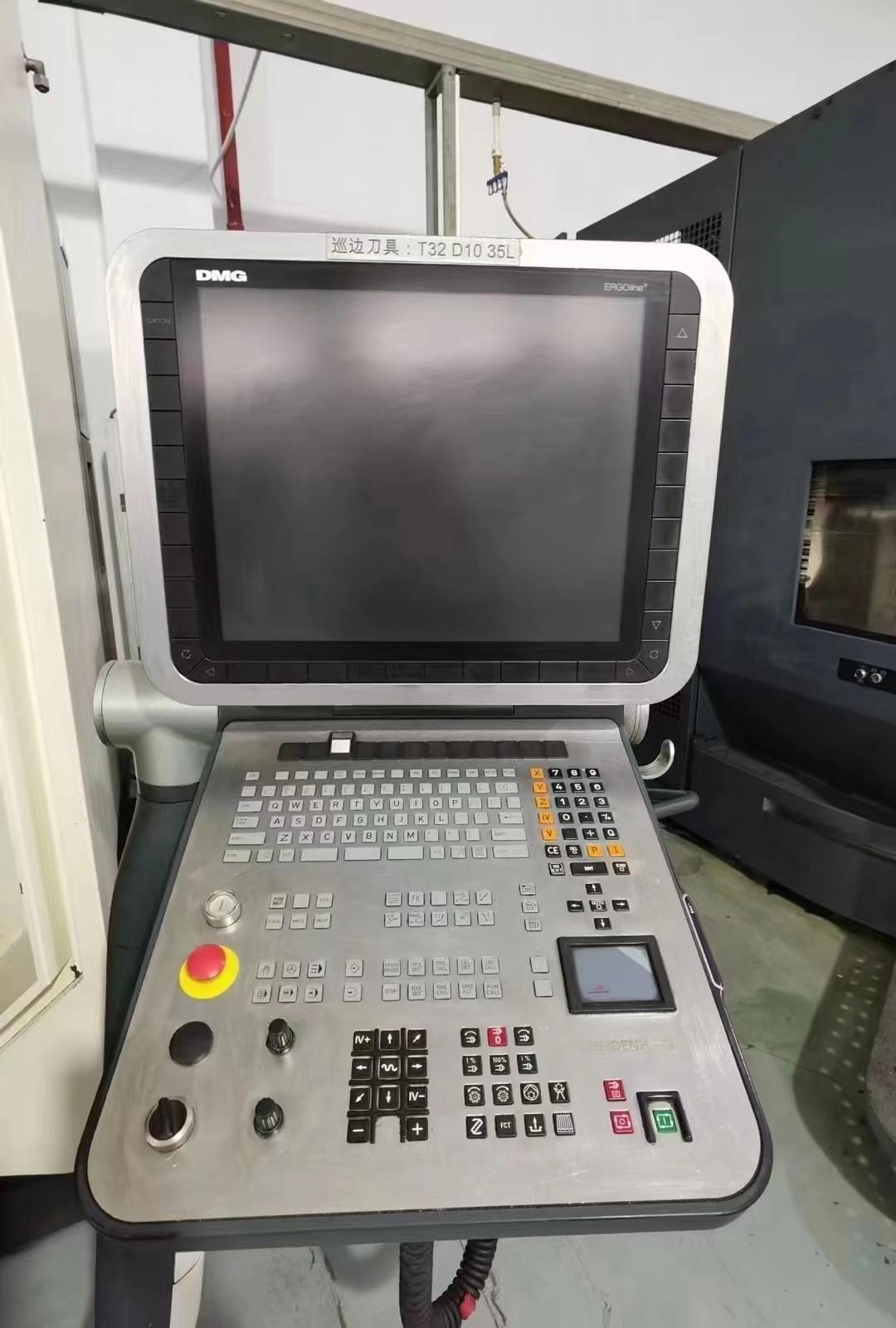

Control System: Heidenhain iTNC-530

Year:2011
