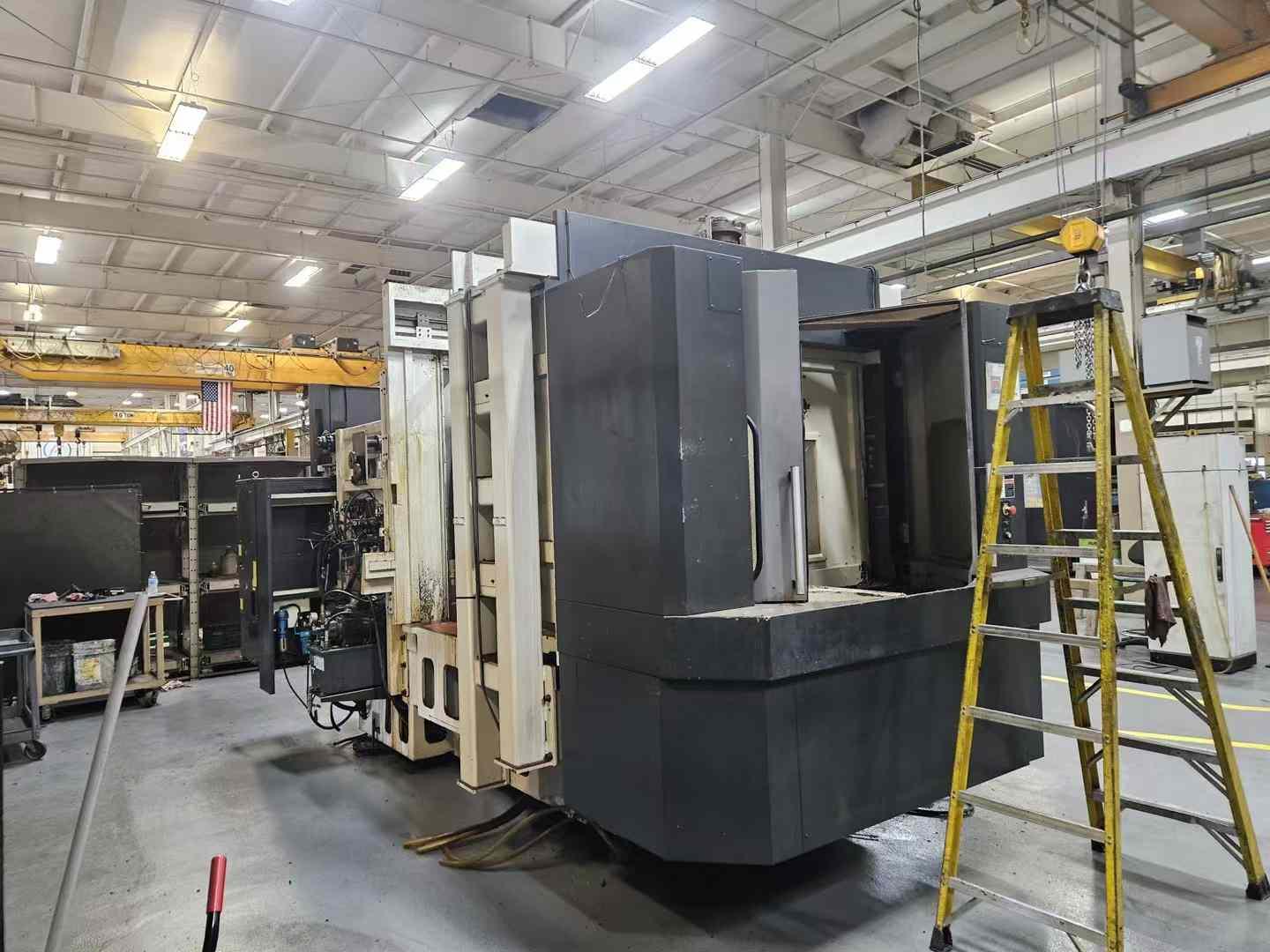

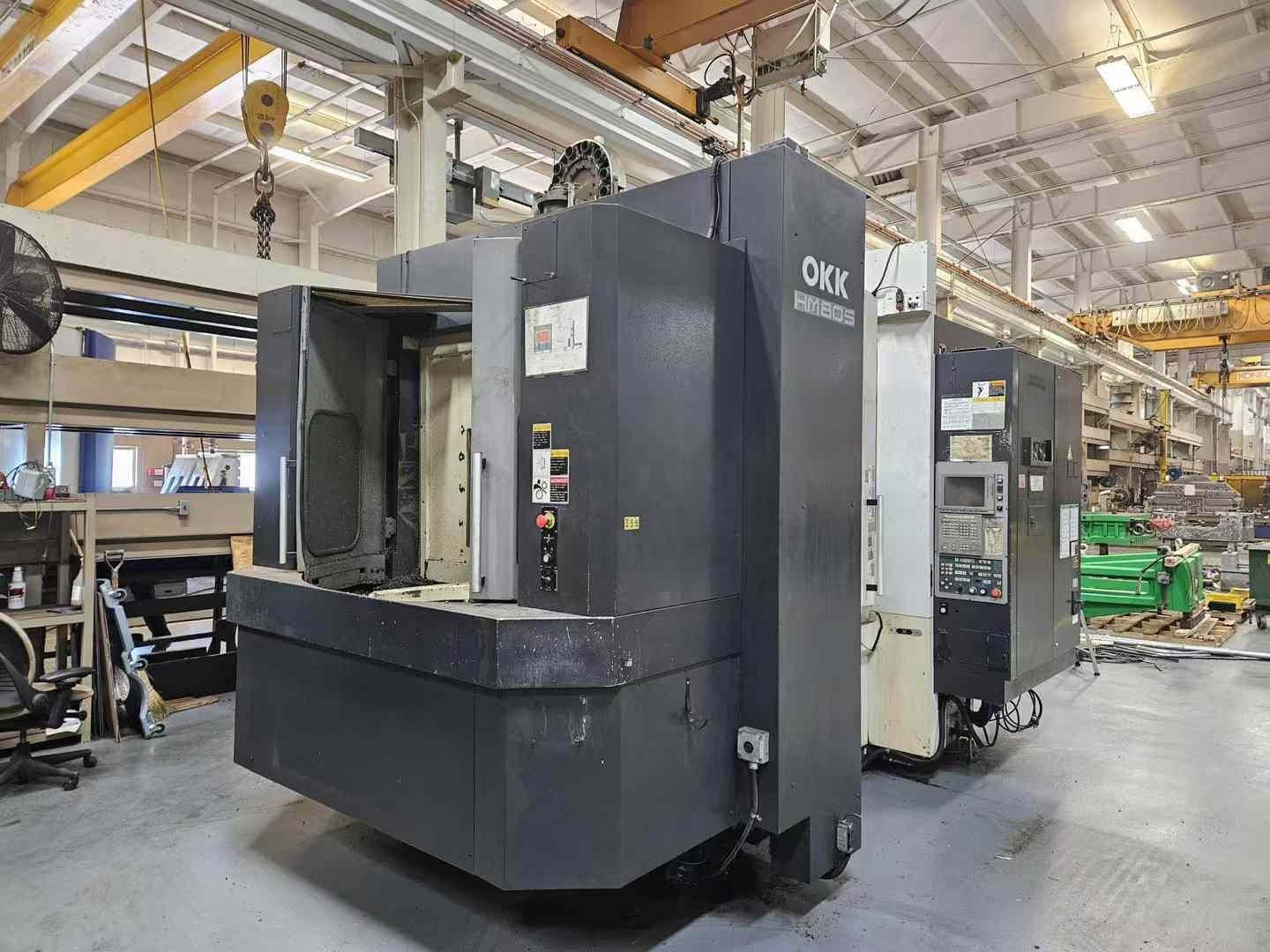

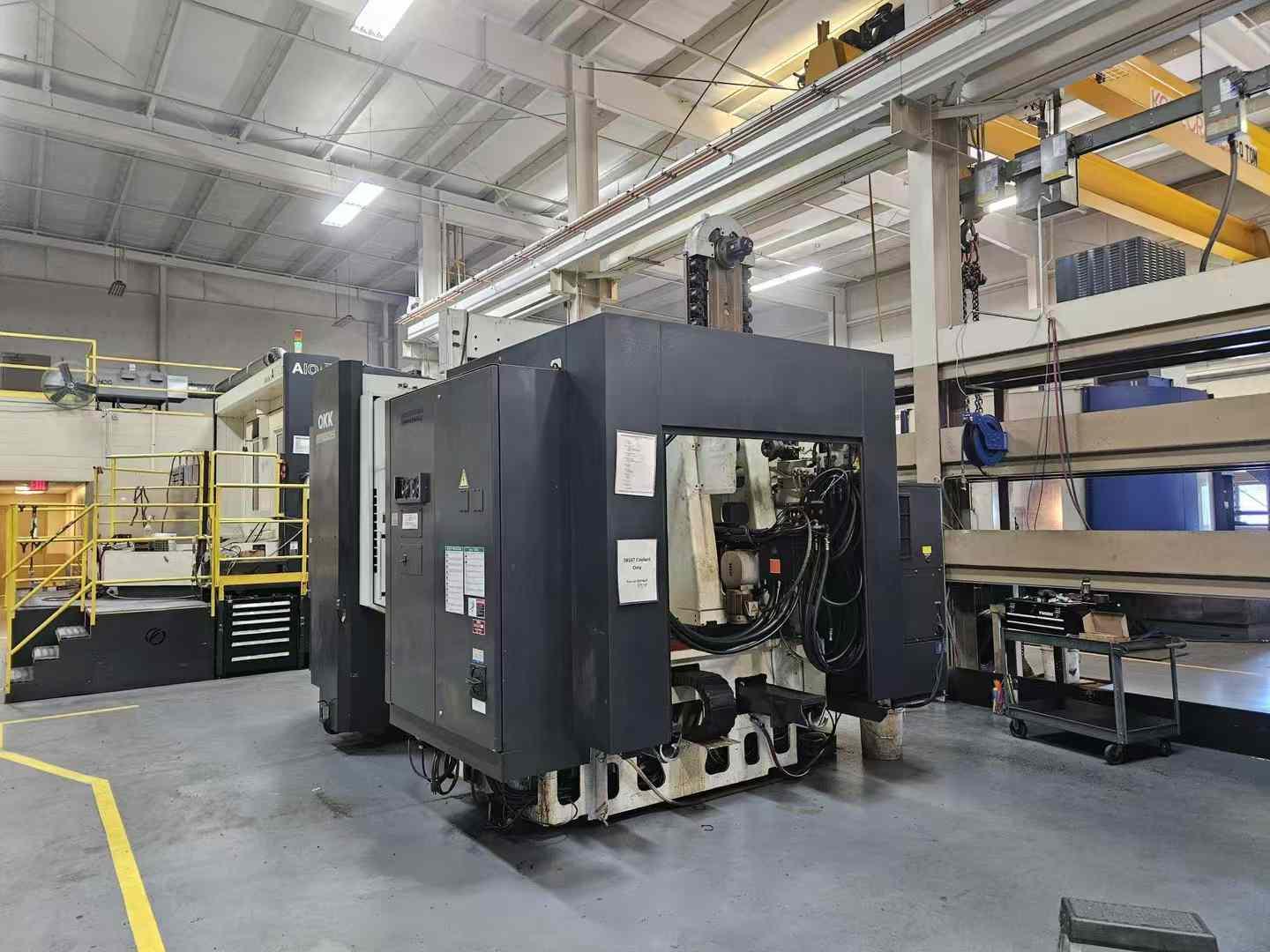

OKK HM80S Horizontal Machining centre

WorkWorktable size: 800x800mm

Distance between the top surface of workWorktable and the center of spindle: 80~1180mm

Distance from center of workWorktable to front end of spindle: 200~1250mm

Maximum load: 2000kg (equal weight)

WorkWorktable indexing: once a point

X/Y/Z axes travel: 1400x1100x1050mm

Spindle speed: 8000 rpm

tools magazine: 40

CNC CNC System: FANUC
