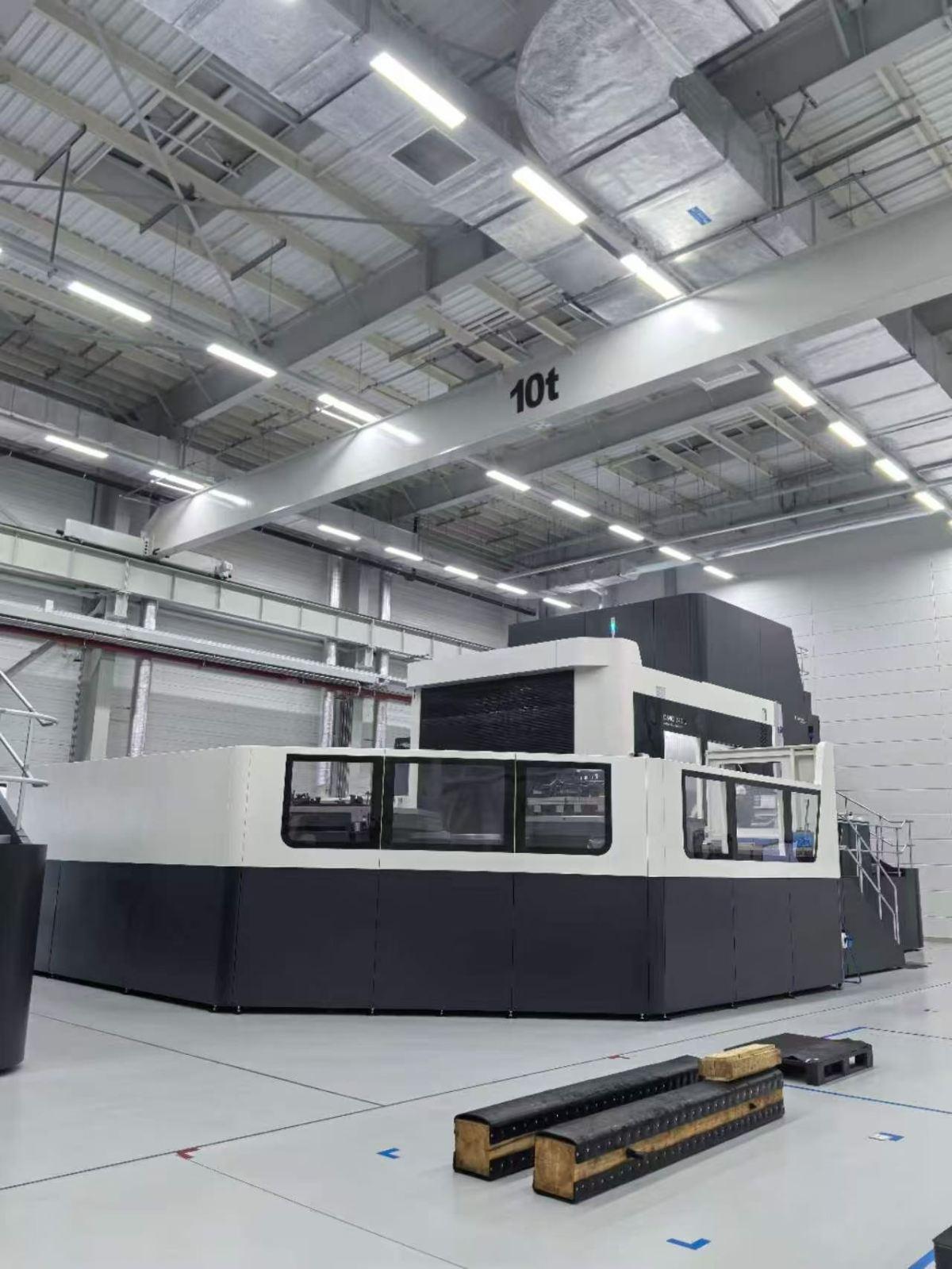

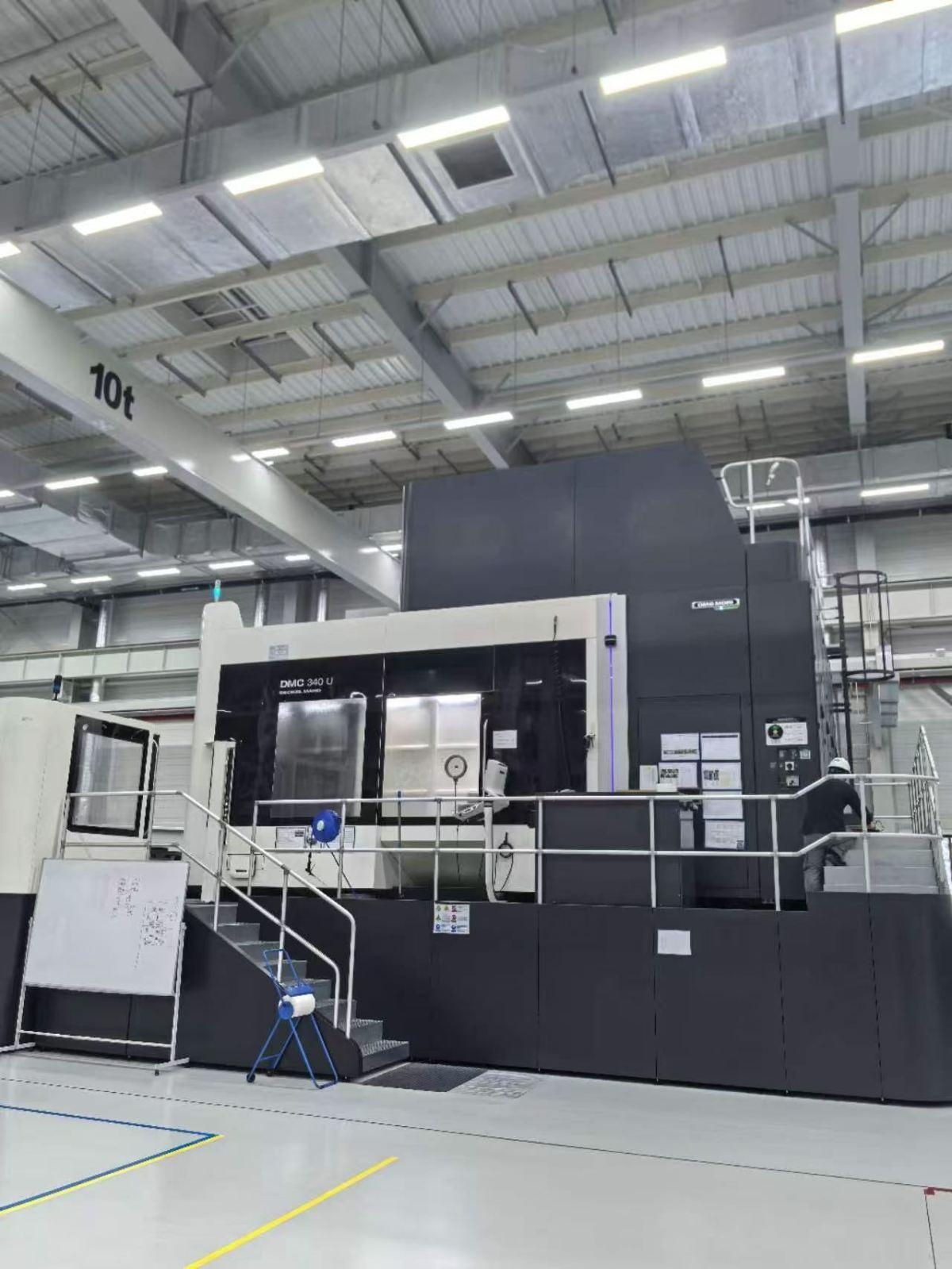

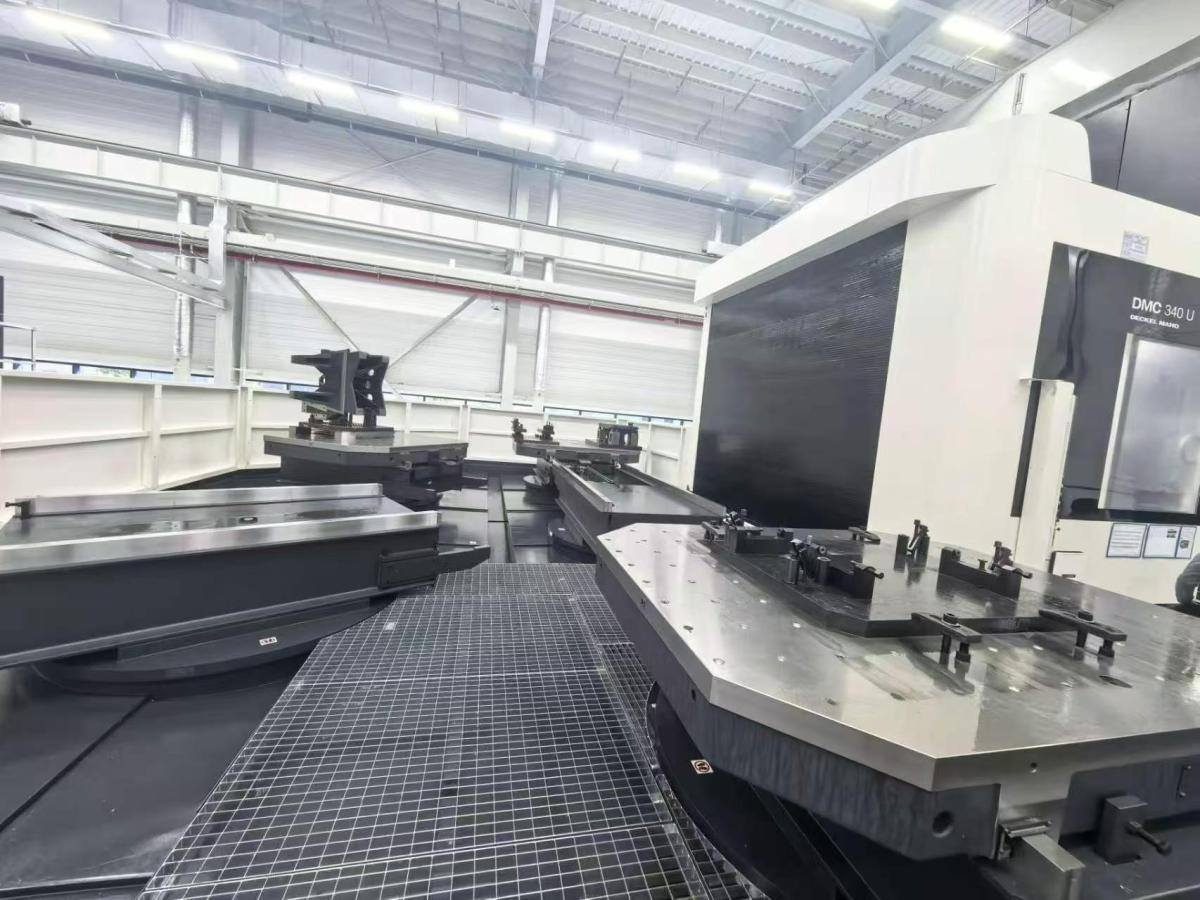

DMG MORI DMC 340 U 5 axis machining centre

The travel of the X/Y/Z axes is approximately 3400 × 2800 × 1500 mm

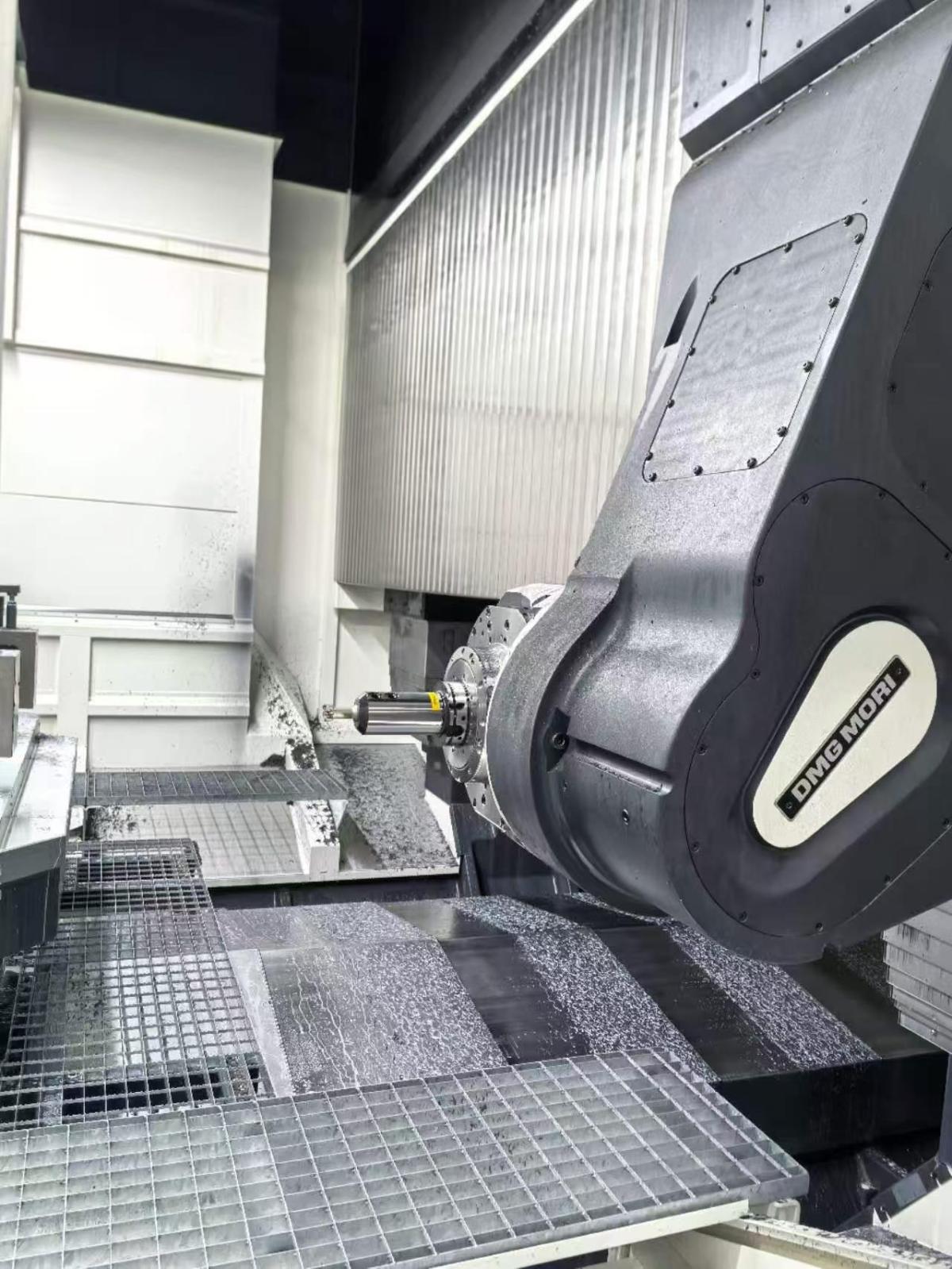

5 axes swing axis range: A-axis: -110° to +110° / C-axis: 360° (continuous rotation)

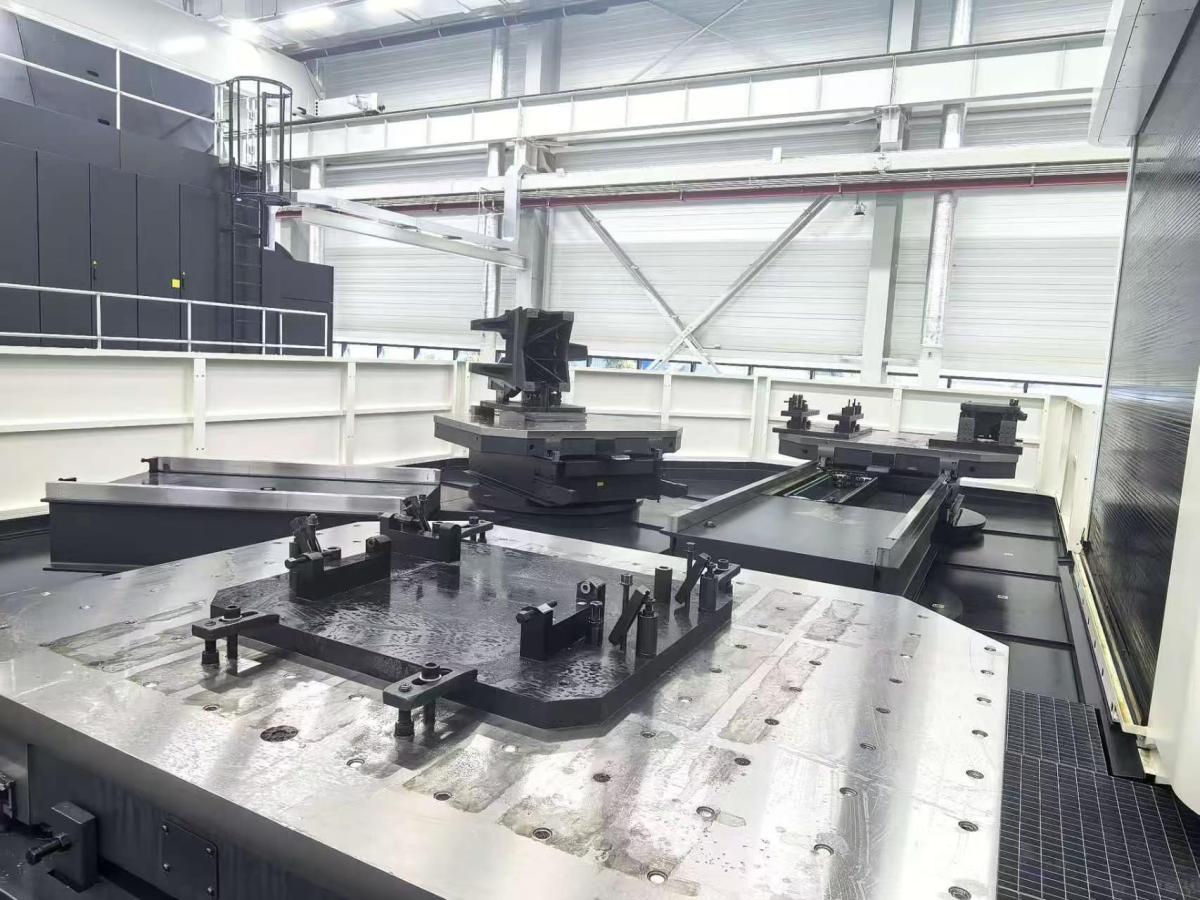

Worktable size: 3400 × 2000 mm or 3400 × 2800 mm (extra-large flat surface)
The maximum load of Worktable: 20,000 kg (20 tons).

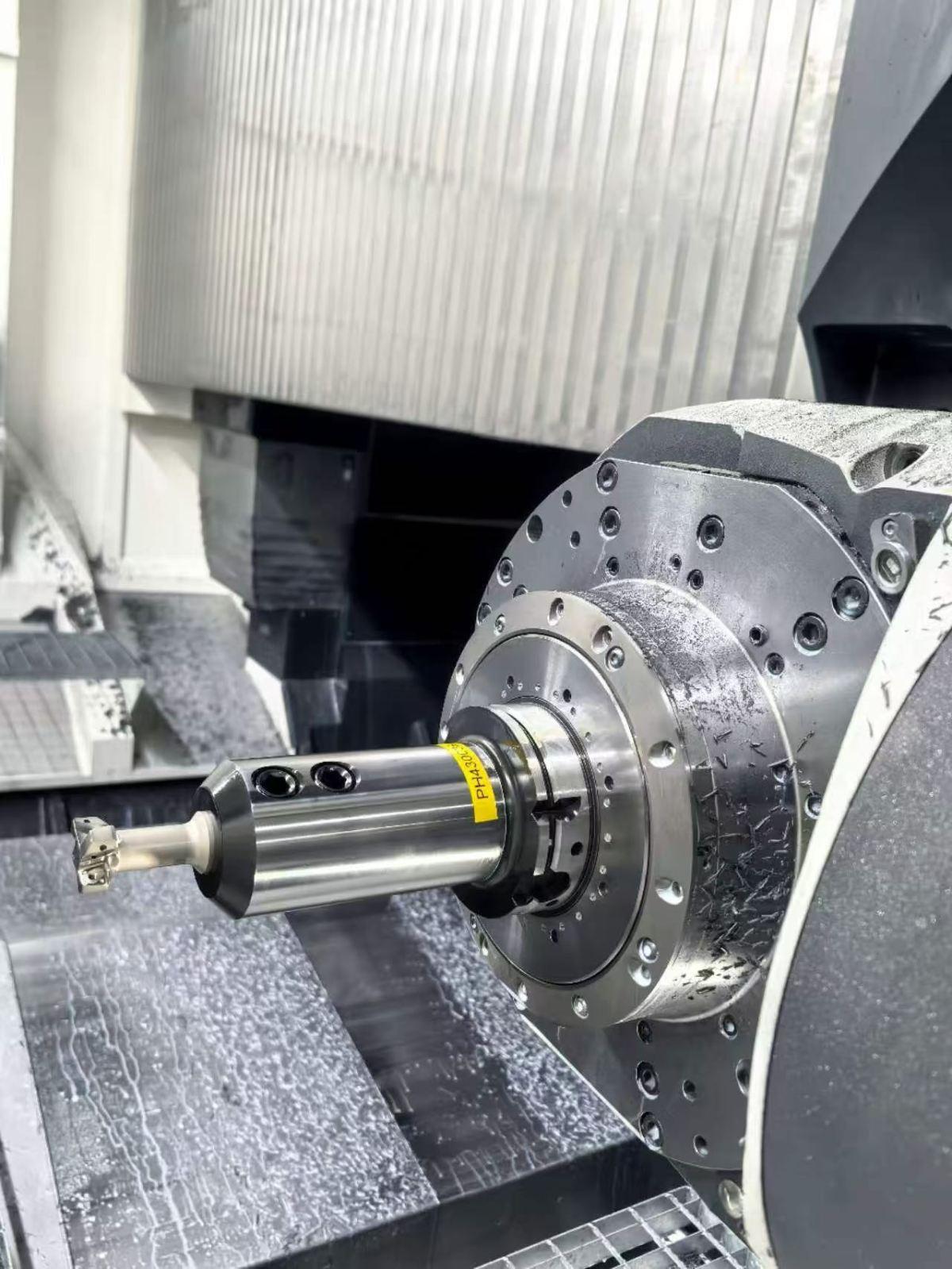

spindle taper/interface HSK-A100 / HSK-A125 / SK40
The maximum speed of spindle is 6,000 to 12,000 RPM (high-torque gear type or direct connection type is optional).
The maximum torque of spindle is over 1000 Nm (specially designed for heavy cutting).
The Fast moving rate (X/Y/Z) is 30 to 60 m/min
The standard magazine capacity (ATC) is 36 to 40 tools (chain type, supporting large-sized tool holders).

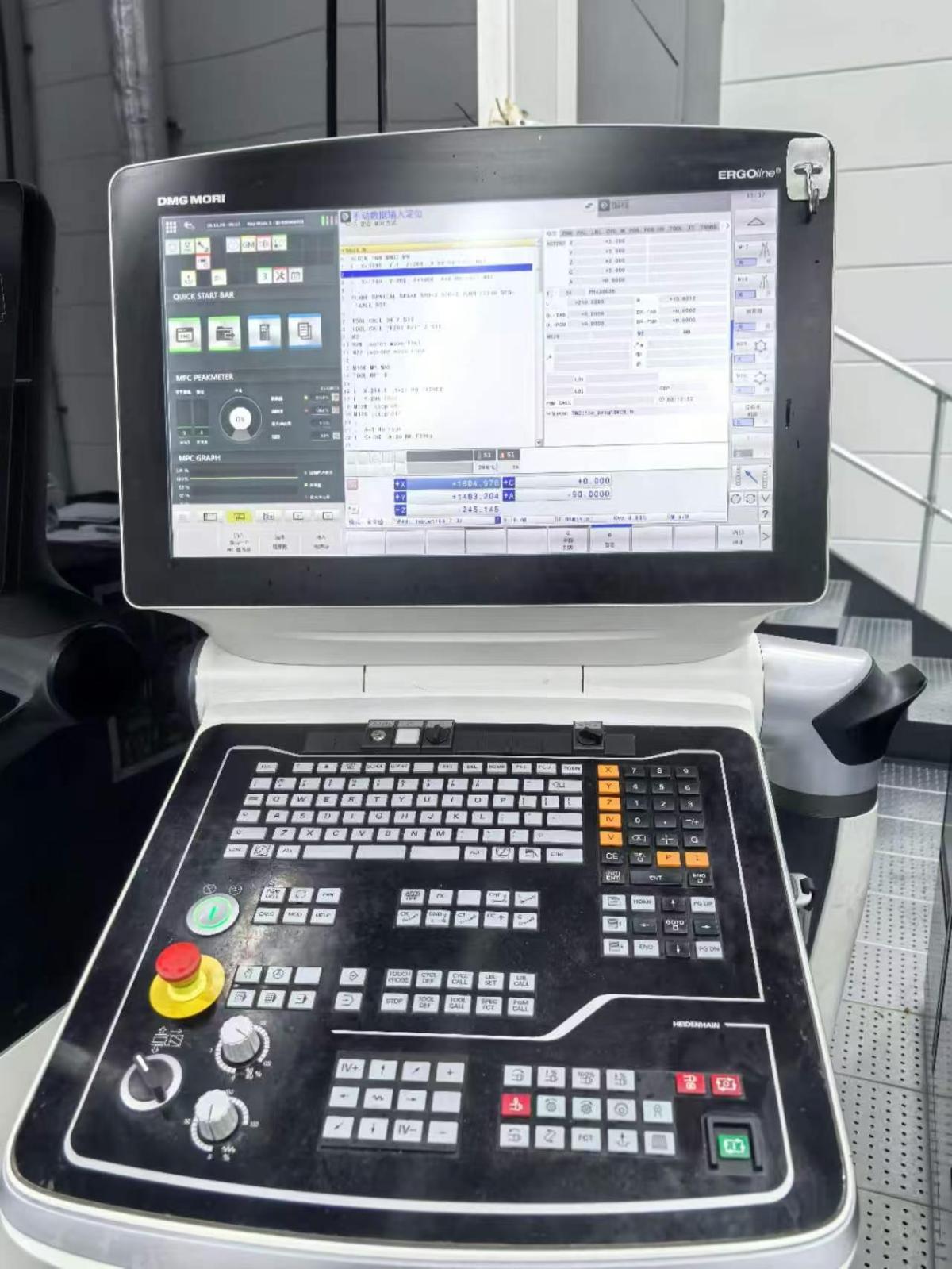

CNC System HEIDENHAIN TNC 640 / CELOS
