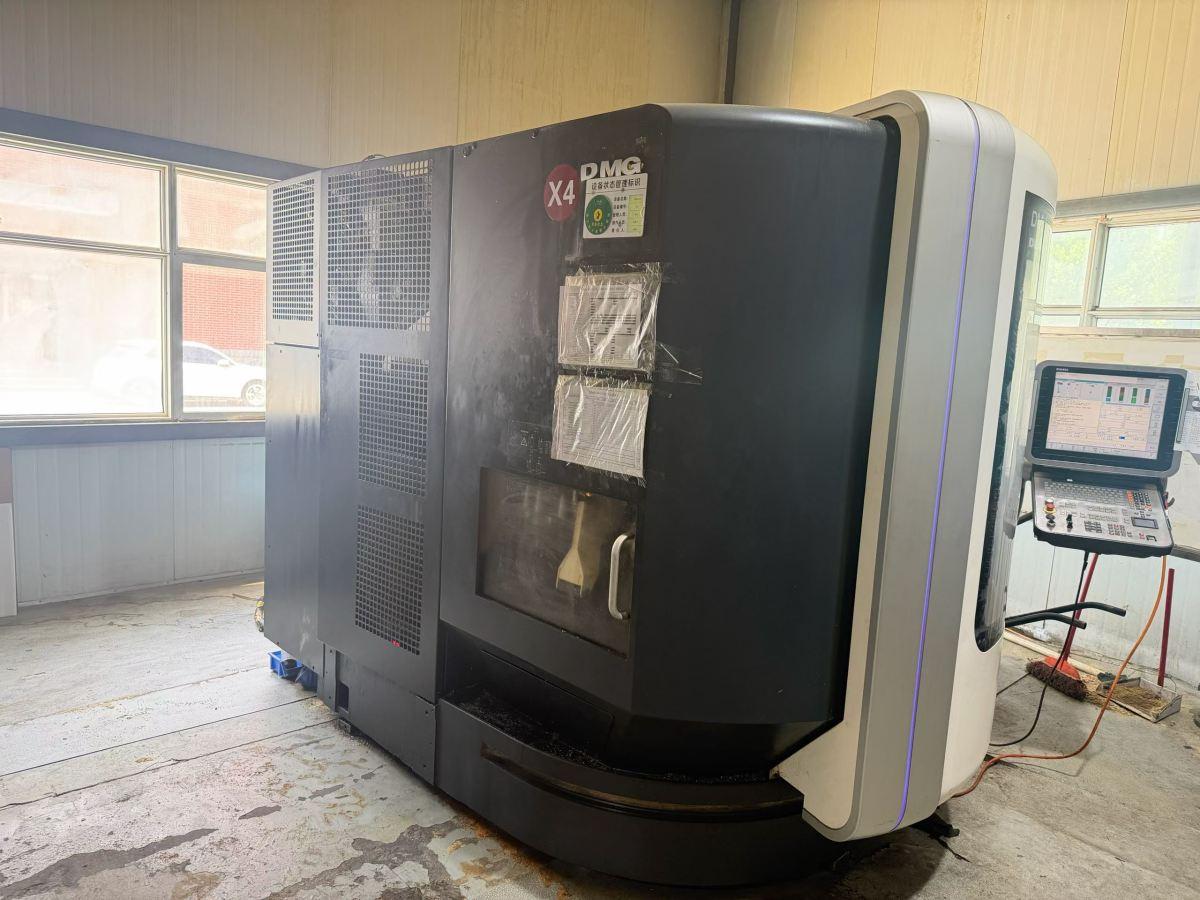

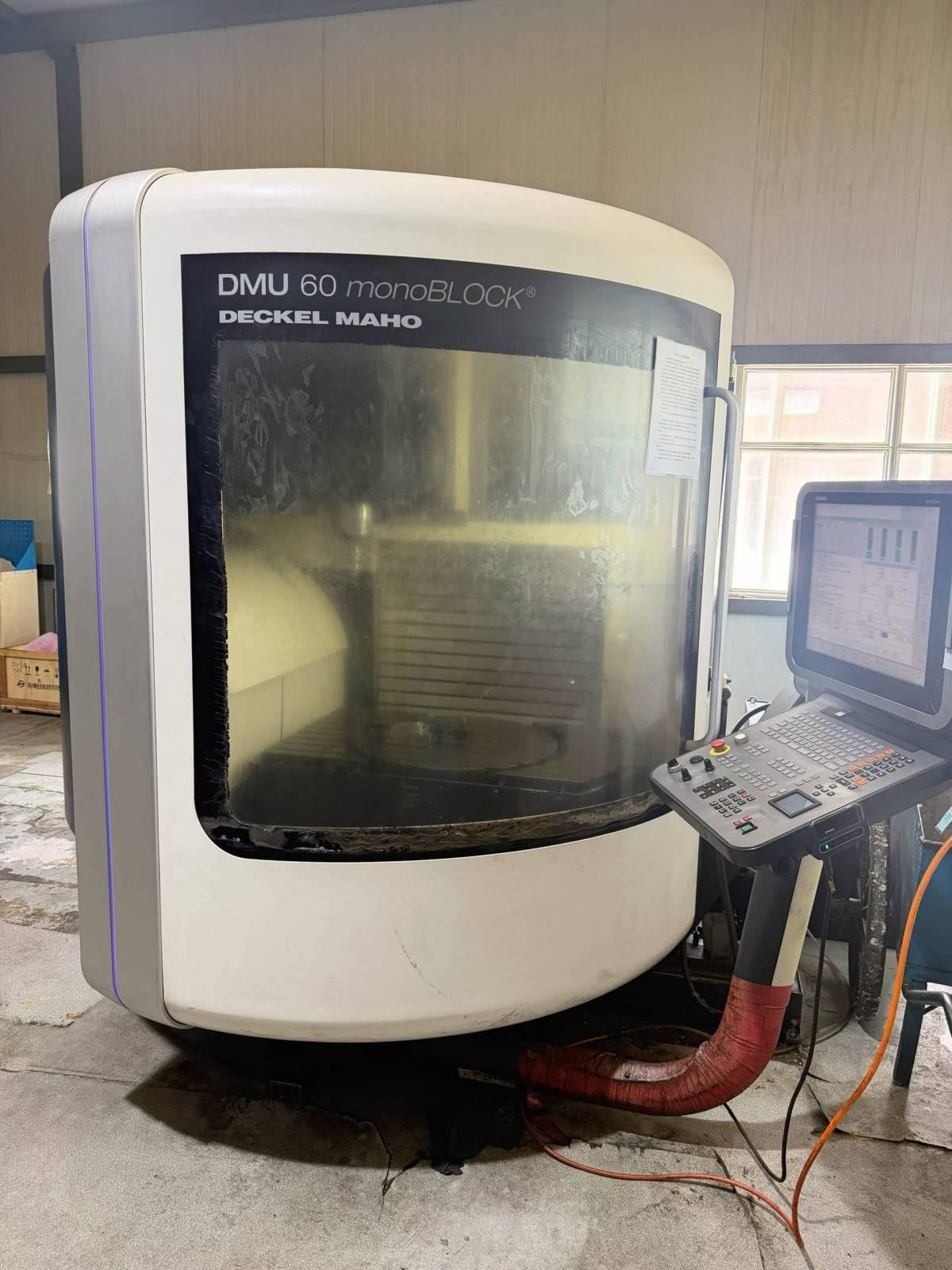

DMG MORI DMU 60 monoBLOCK 5 axis machining centre

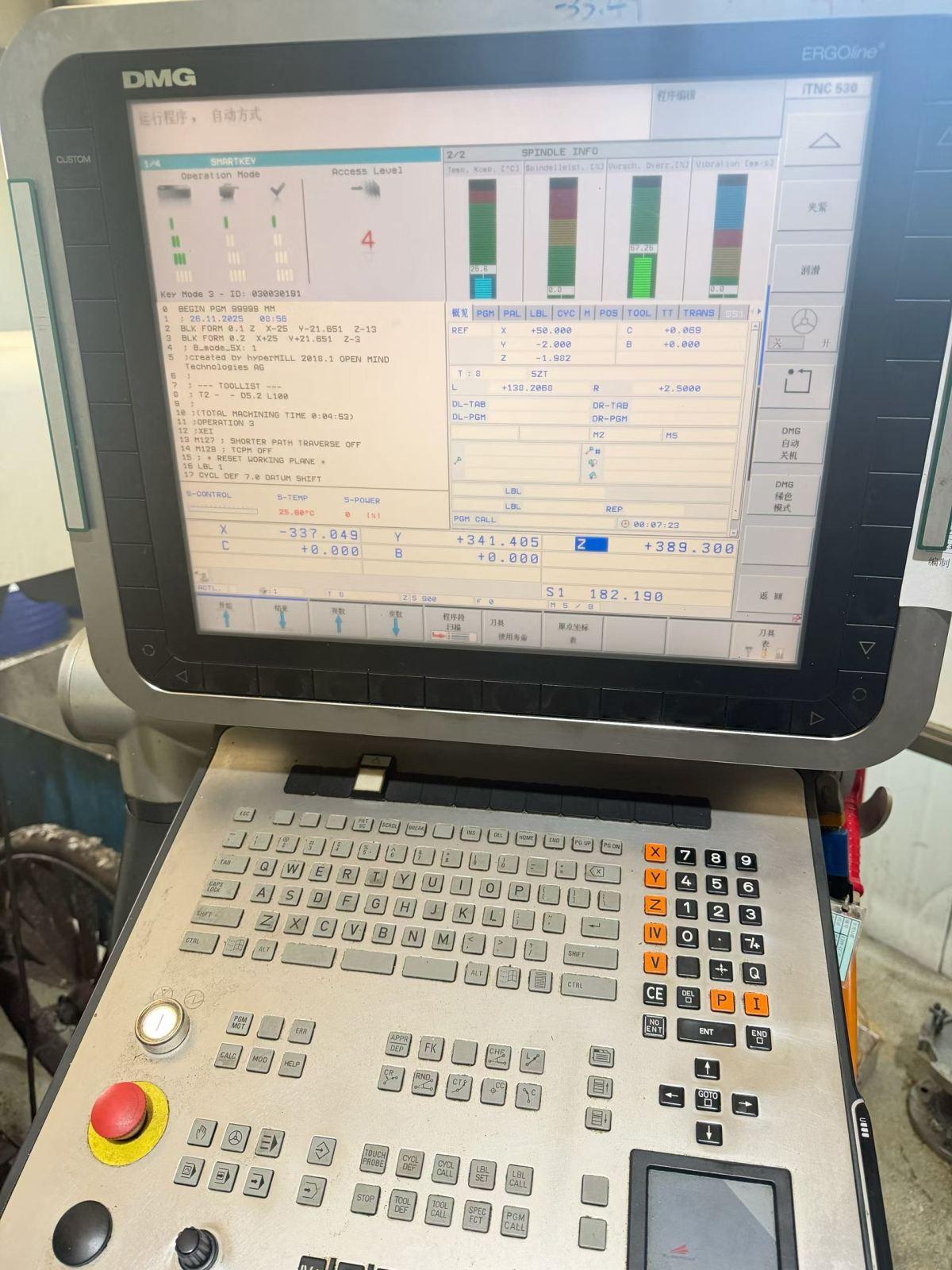

CNC System: Heidenhain iTNC 530
Three-Axis Travel: 730 × 560 × 560 mm

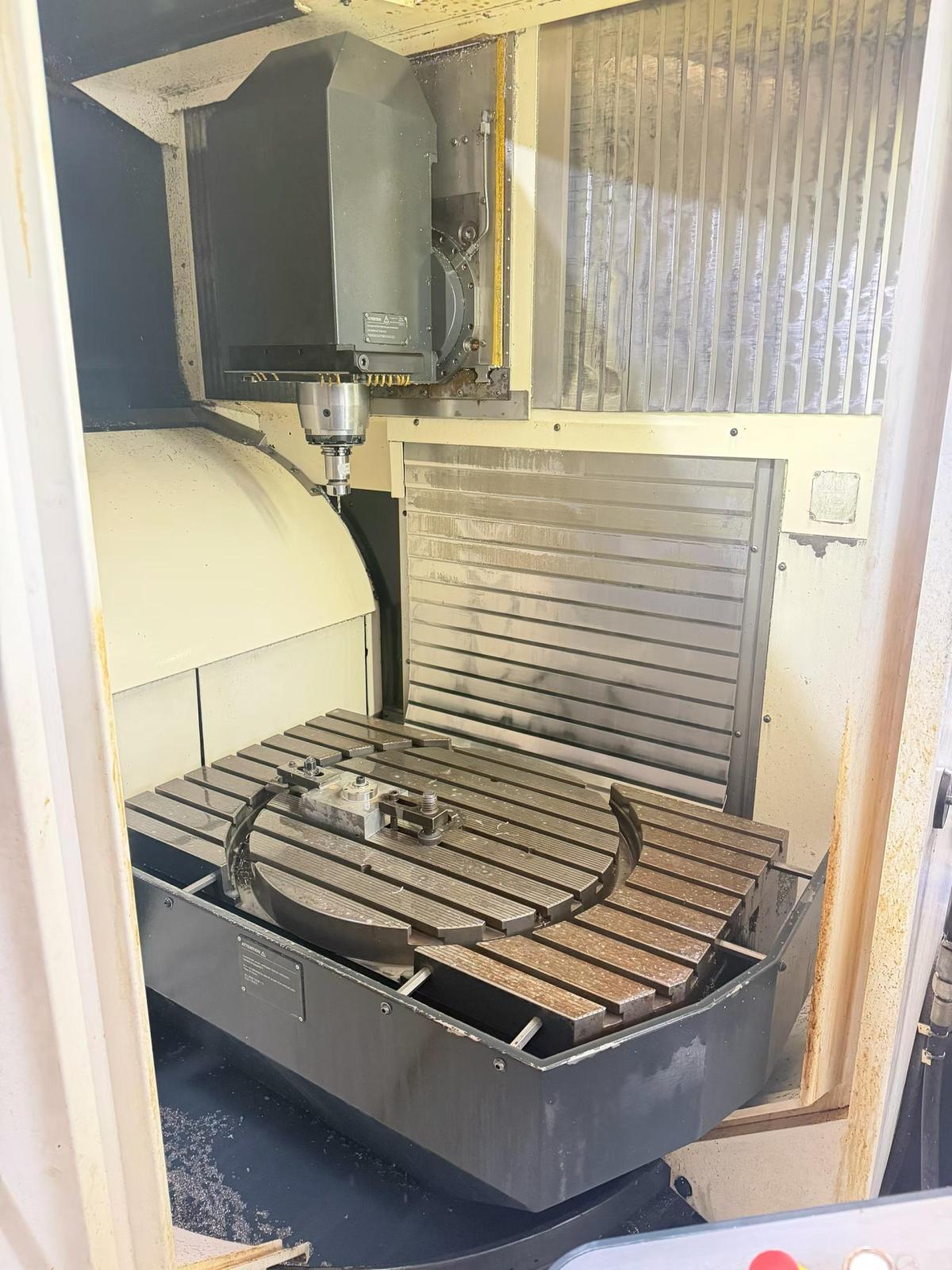

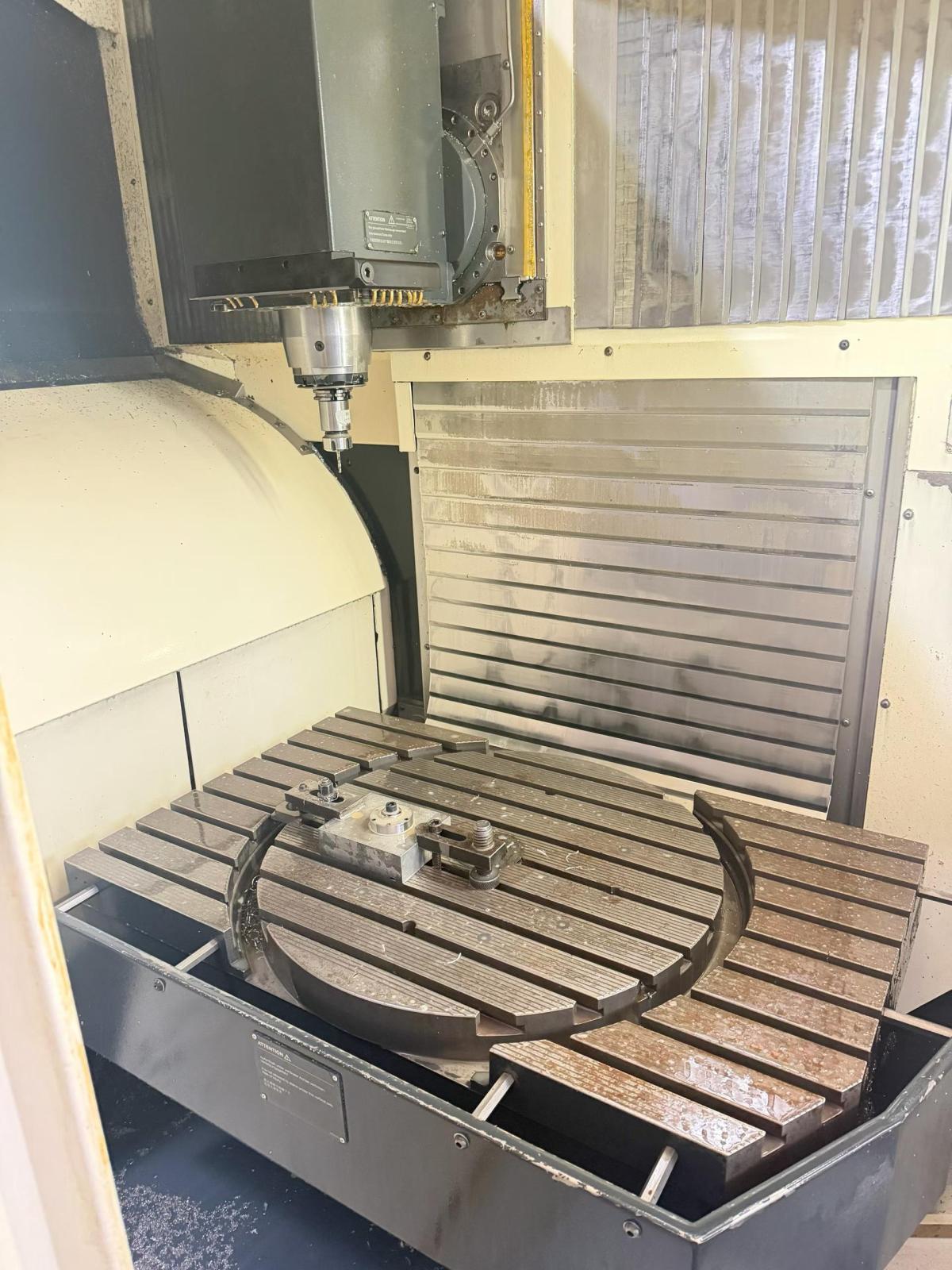

Worktable Size: 1000 × 600 mm
Maximum WorkTable Load: 500 kg
Spindle Speed: 18,000 rpm
Spindle Tool Holder: SK40
Spindle Torque:
40% duty cycle: approx. 119 Nm
100% duty cycle: approx. 85 Nm

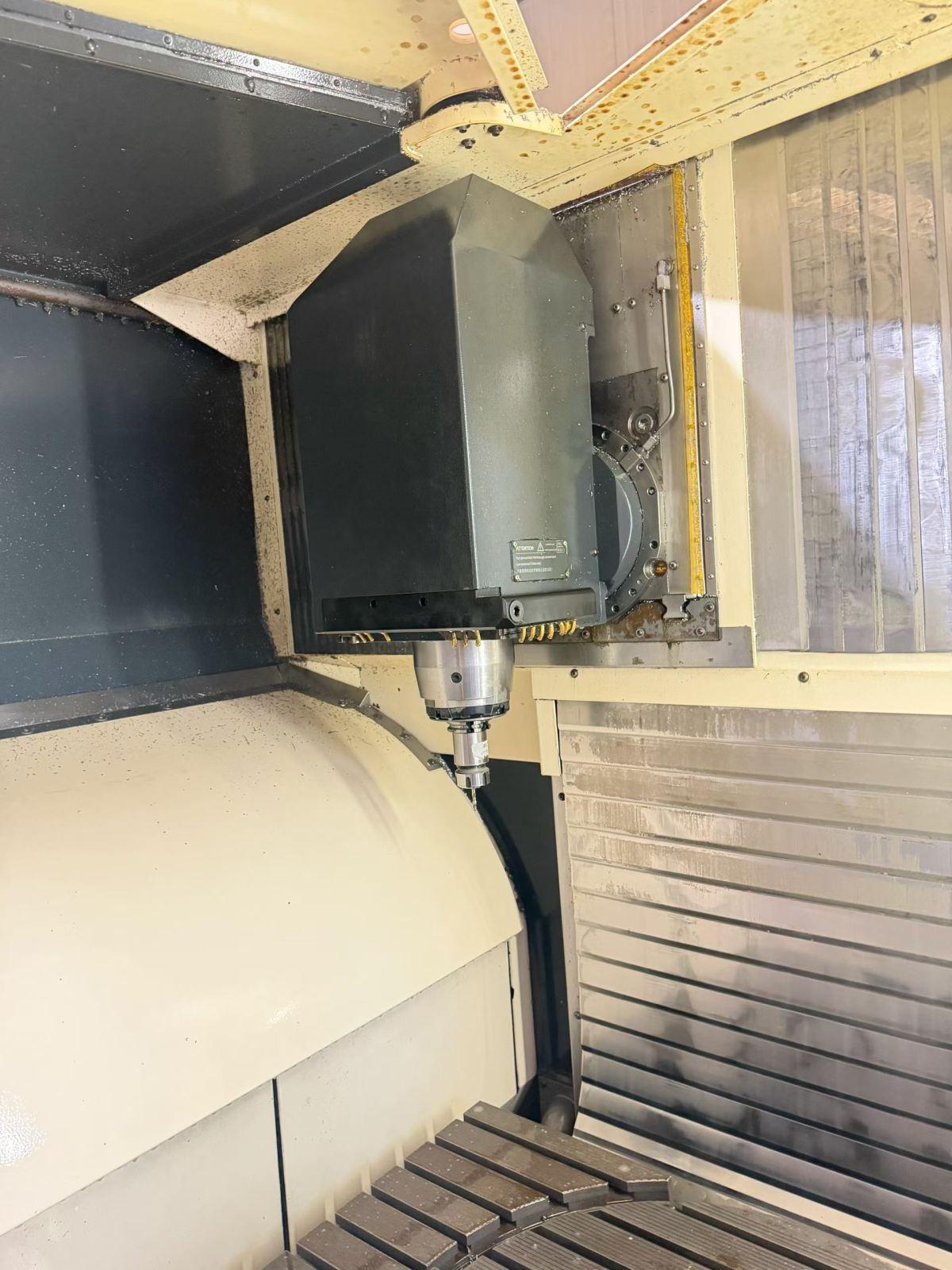

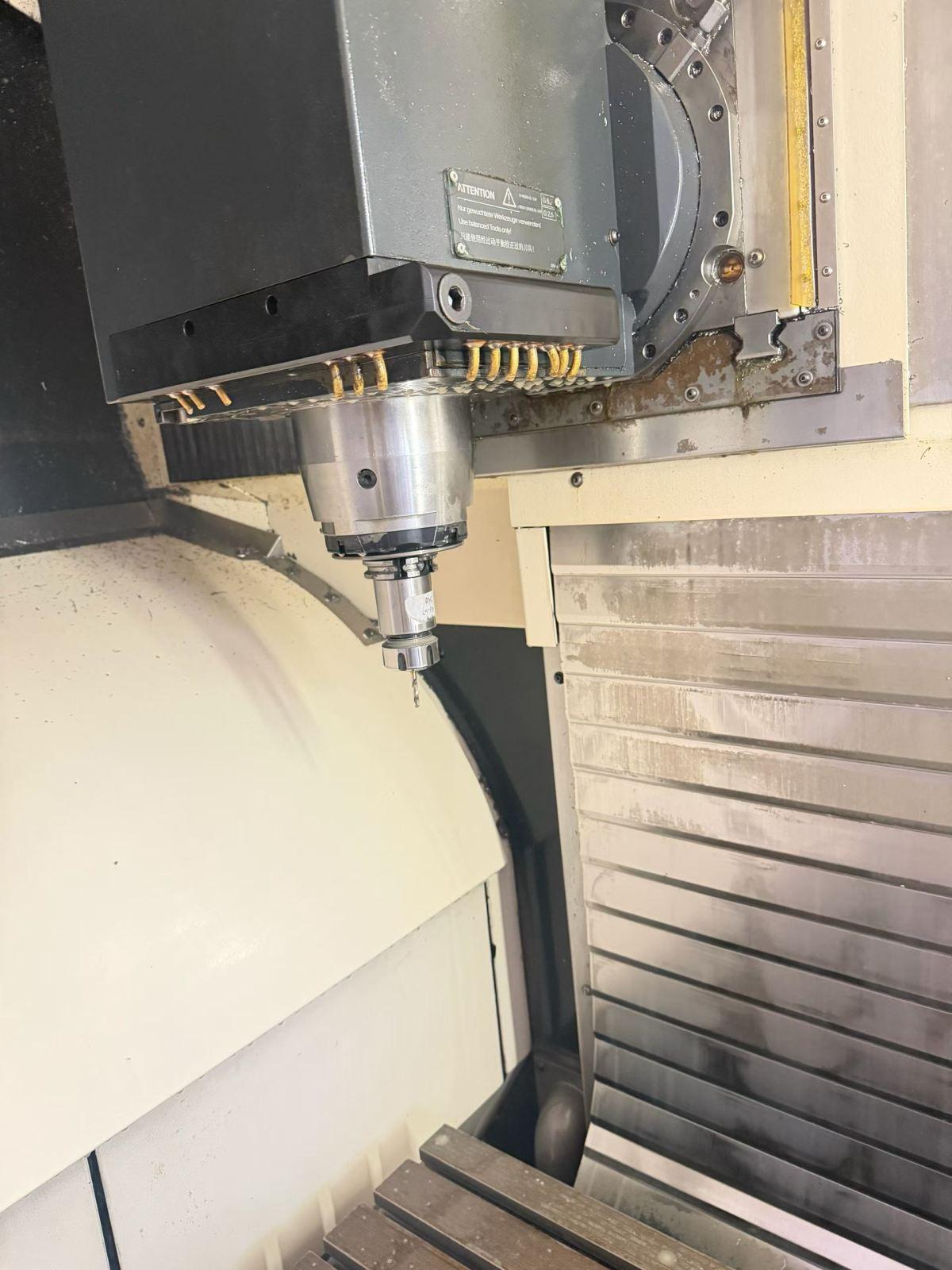

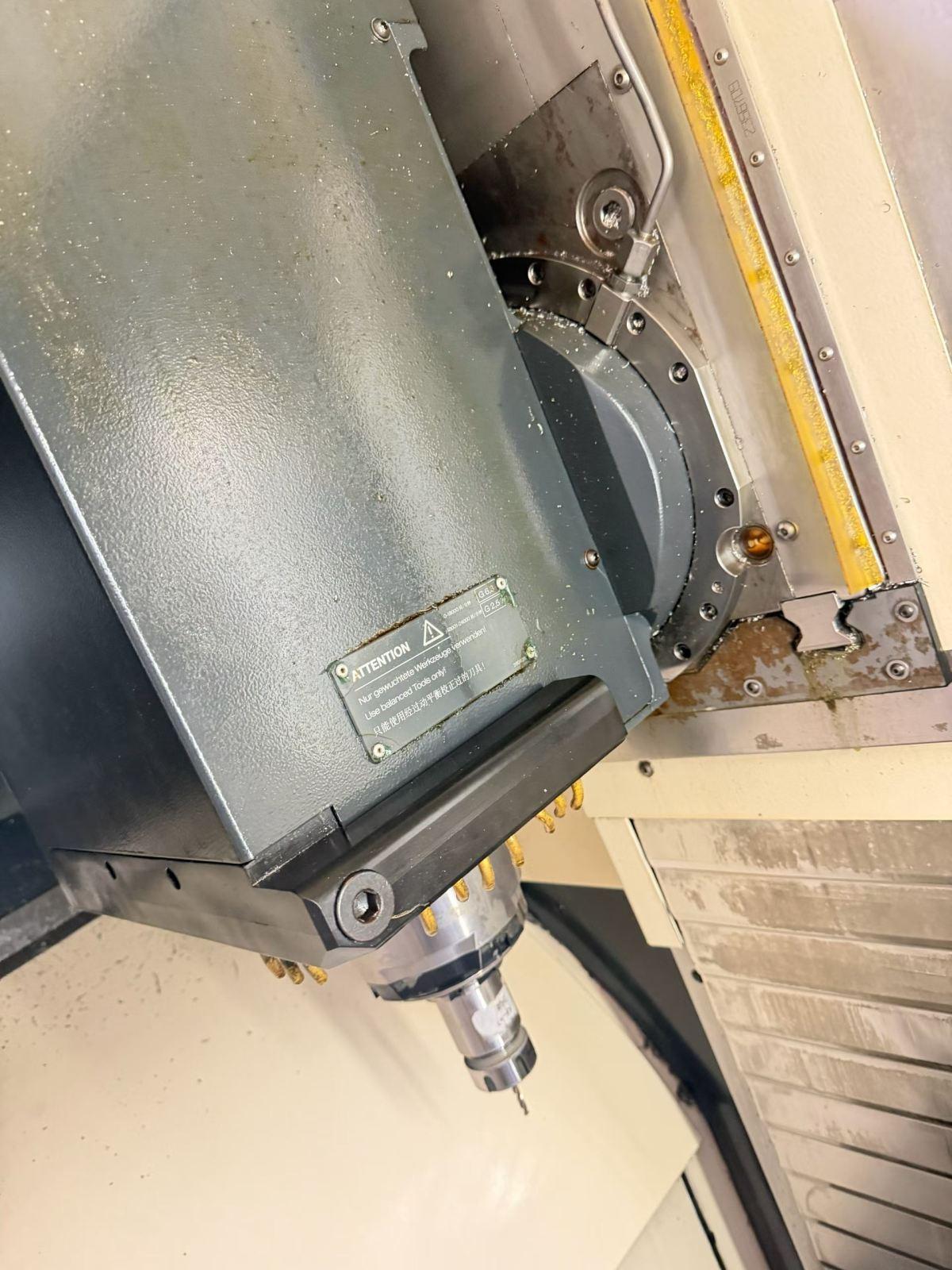

B Axis (Milling Head Swing): -120° to +30°
C Axis (Table Rotation): 360° (Indexing accuracy: 0.001°)
T-slot Specification: 14 mm width, 63 mm spacing
Tools Magazine Capacity: 24
Maximum Tool Diameter:
No adjacent tools: 80 mm
With adjacent tools: 130 mm
Maximum Tool Length: 315 mm
Maximum Tool Weight: 8 kg
Machine Weight: approx. 6,800 kg
