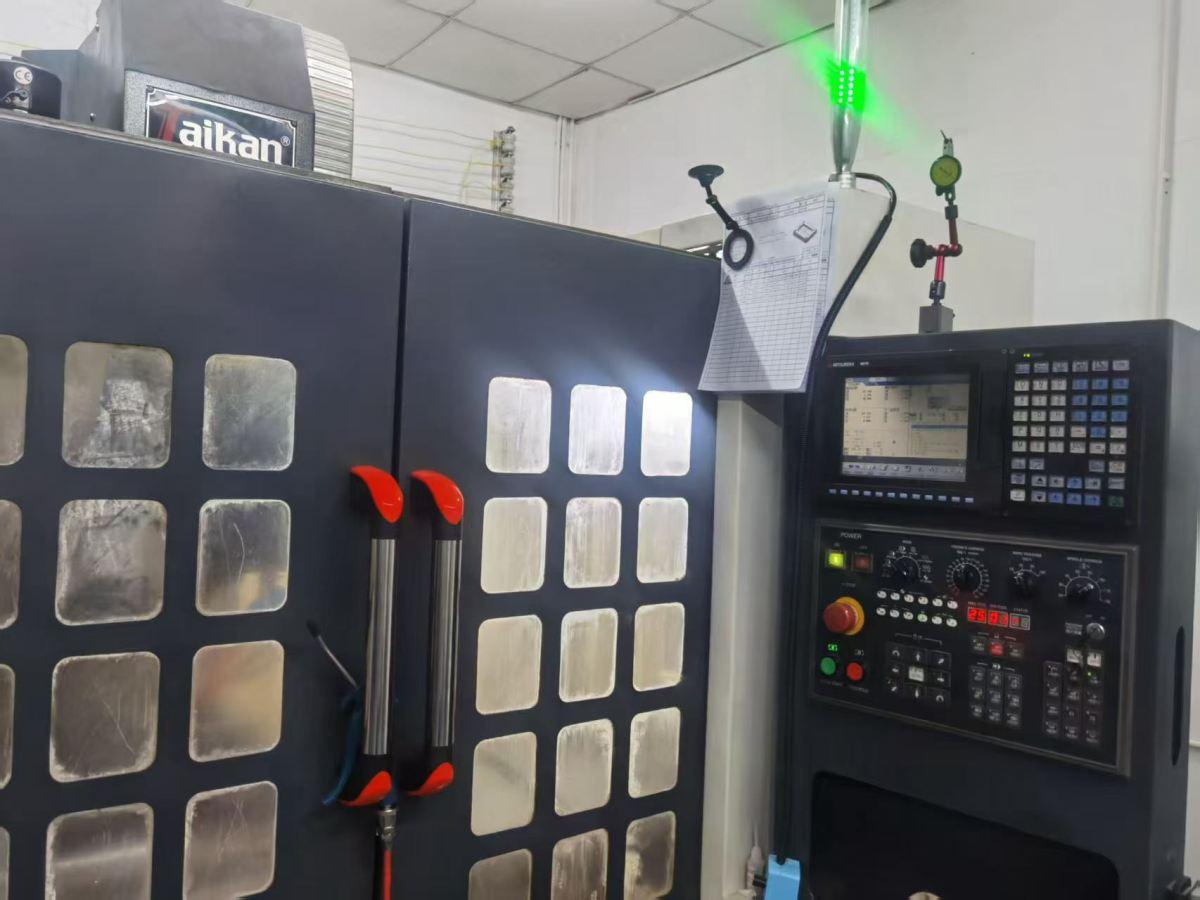

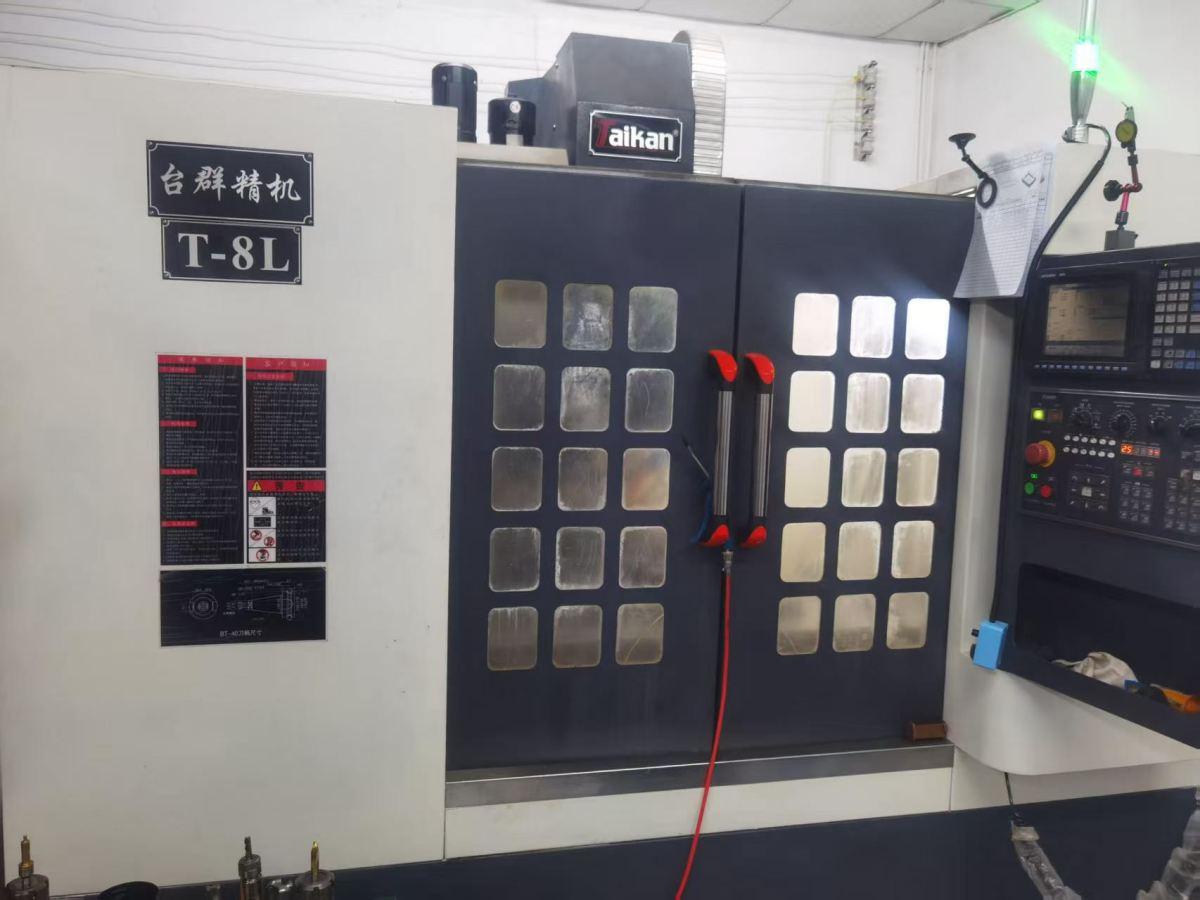

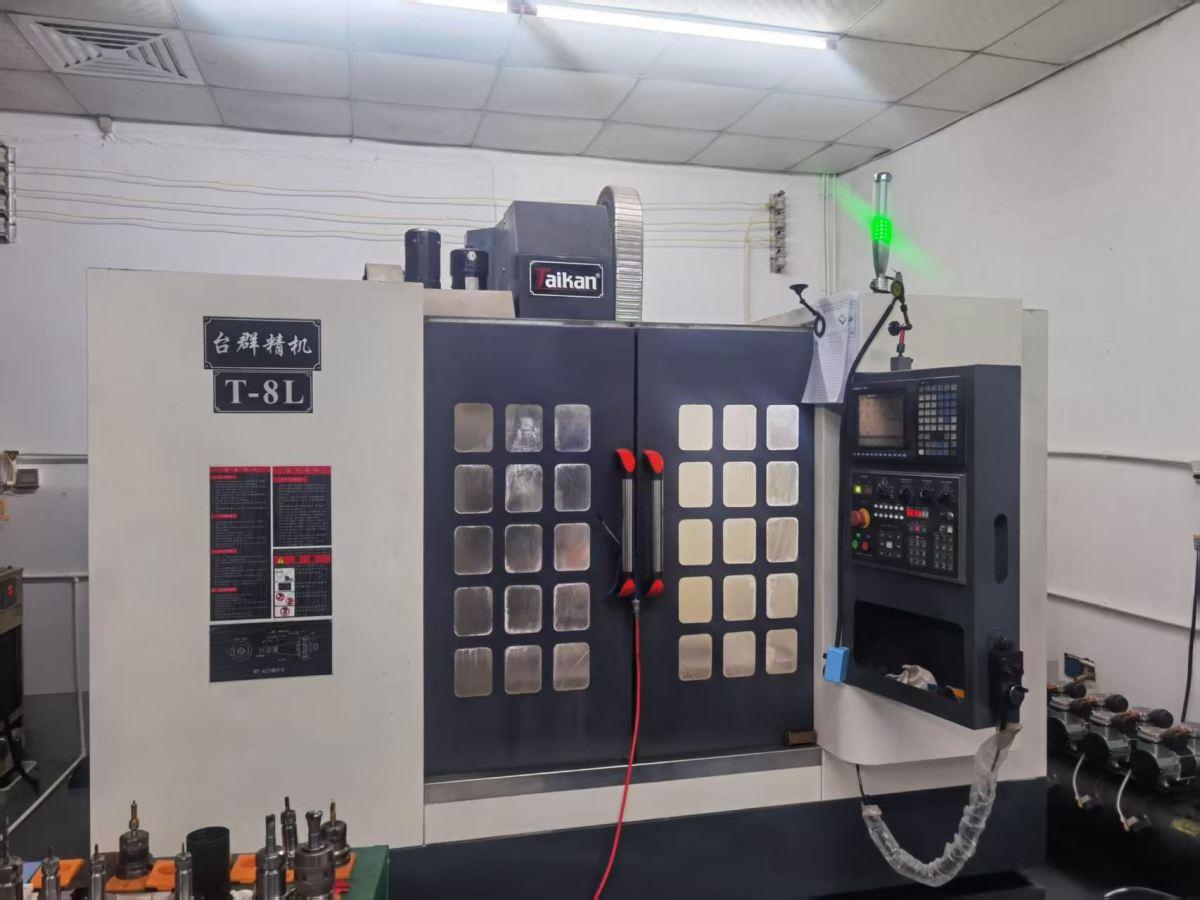

Taikan T-8L Machining centre

travel of X/Y/Z axes: 800 × 500 × 500 mm
Worktable size: 1000 × 500 mm
Distance from spindle nose to Worktable surface: 160 to 660 mm
Distance from spindle center to the column: 560 mm
T-slot (number of slots × slot width × spacing) : 5-18×90 mm
spindle taper: BT40
spindle speed: 8,000 rpm (strap drive, standard with brands such as Taiwan Royal)
spindle motor power: 11 kW (Excellent heavy cutting performance)
Maximum Tool weight: 8 kg
Maximum diameter/length of Tool :φ 100mm / 200mm
Fast moving rate of X/Y axis :24 m/min
The Z-axis Fast moving rate is 16 m/min
The cutting feed rate is 1 to 10,000 mm/min
The tools magazine is equipped with an island-arm tools magazine with a capacity of 24 tools
The Tool changing time (T-T) is approximately 2.0 seconds
