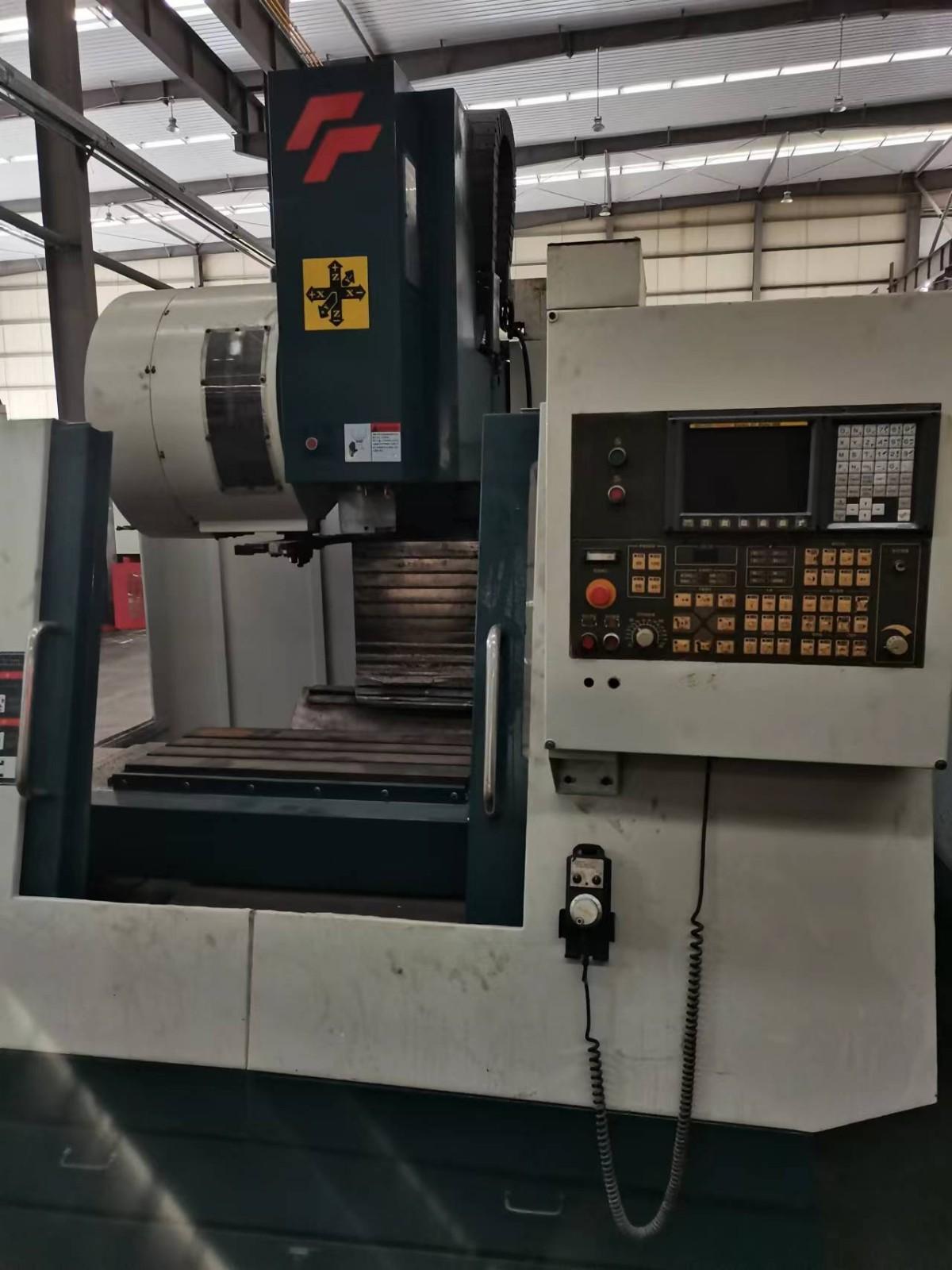

Youjia FVP-800A Machining centre

X-axis travel  800mm

Y-axis travel  500mm

Z-axis travel  505mm

Distance between spindle nose and worktable surface  100-605mm

Distance between spindle center and column guideway surface  510mm

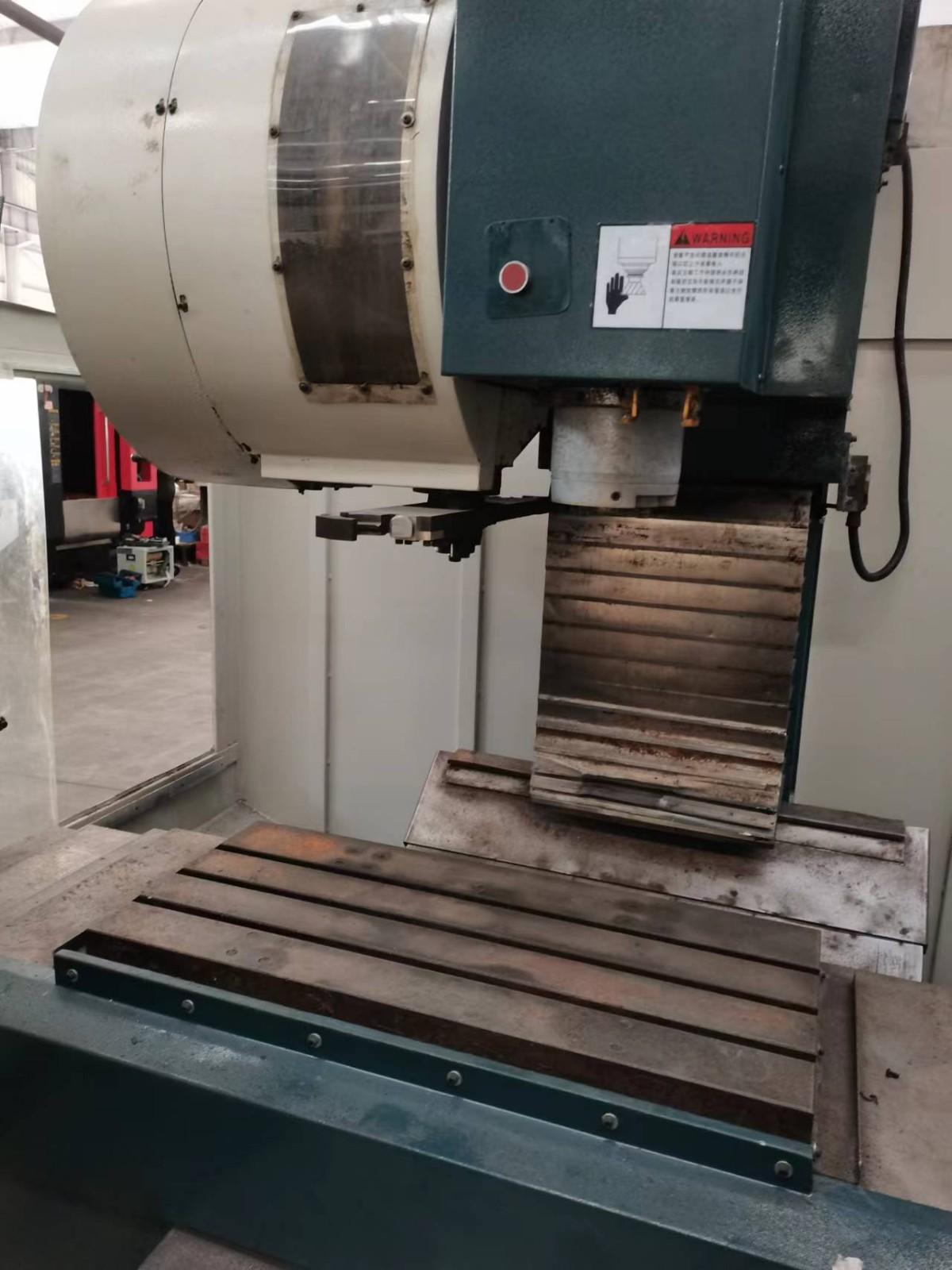

Worktable size  950mmx425mm

Worktable load  800kg

T-slot (width xnumber of slots x spacing)  18x3x100mm

Spindle speed  10000rpm

Spindle hole taper 7/24 Taper No.40

Spindle diameter  70mm

Spindle motor  7.5/11KW

X-axis rapid feed  32m/min

Y-axis rapid feed  24m/min

Z-axis rapid feed  24m/min

Cutting feed rate  15m/min

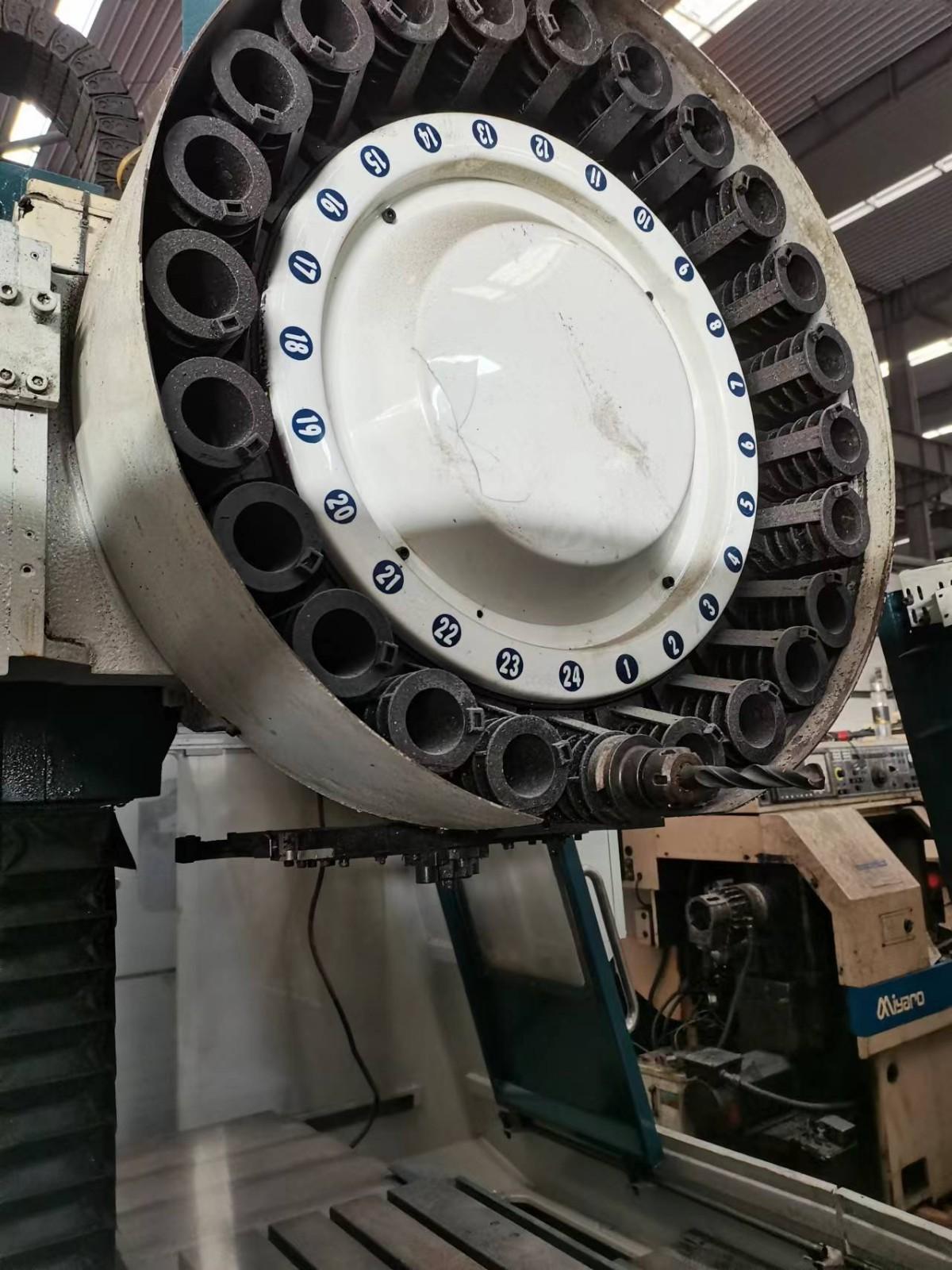

Tool arm type tool quantity  22/(24)

Tool holder bolt  P-40T (45 `)

Tool arm type tool weight  7kg

Tool length  250mm

Tool diameter  80mm

Tool diameter (no adjacent tool)  150mm

Tool arm type tool changing time (tool setting)  2.2/50HZ

Umbrella type tool changing time (tool setting)  7.1/50HZ

Floor area  2.435x2178mm

Machine weight  4850kg

Machine height  2.795mm

Power capacity  25KVA
