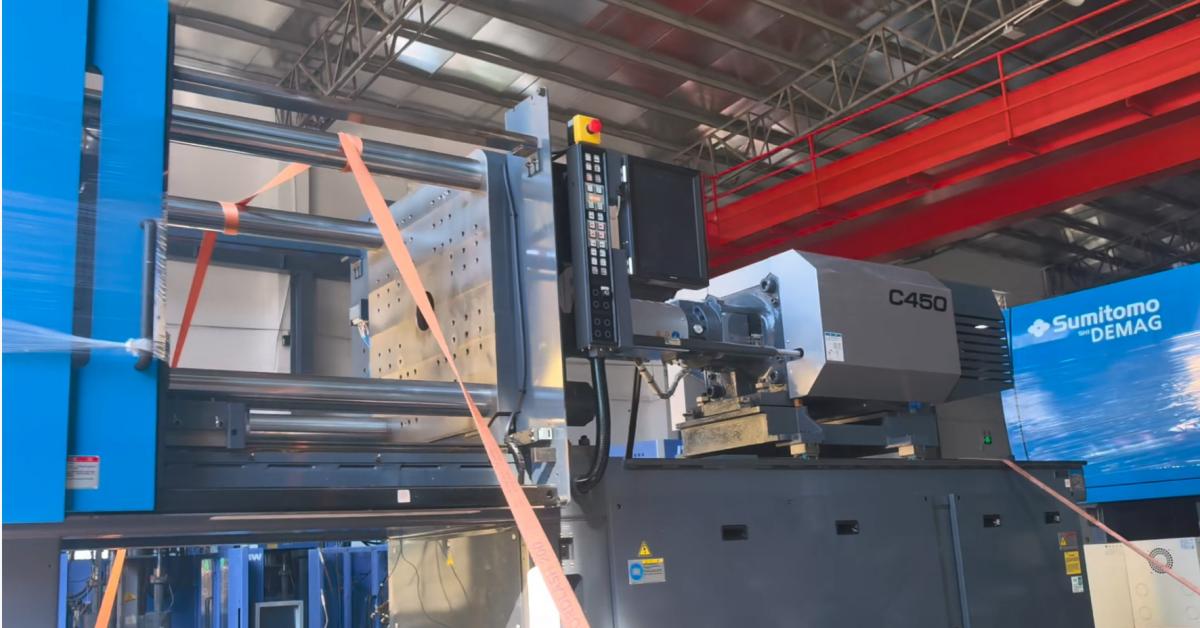

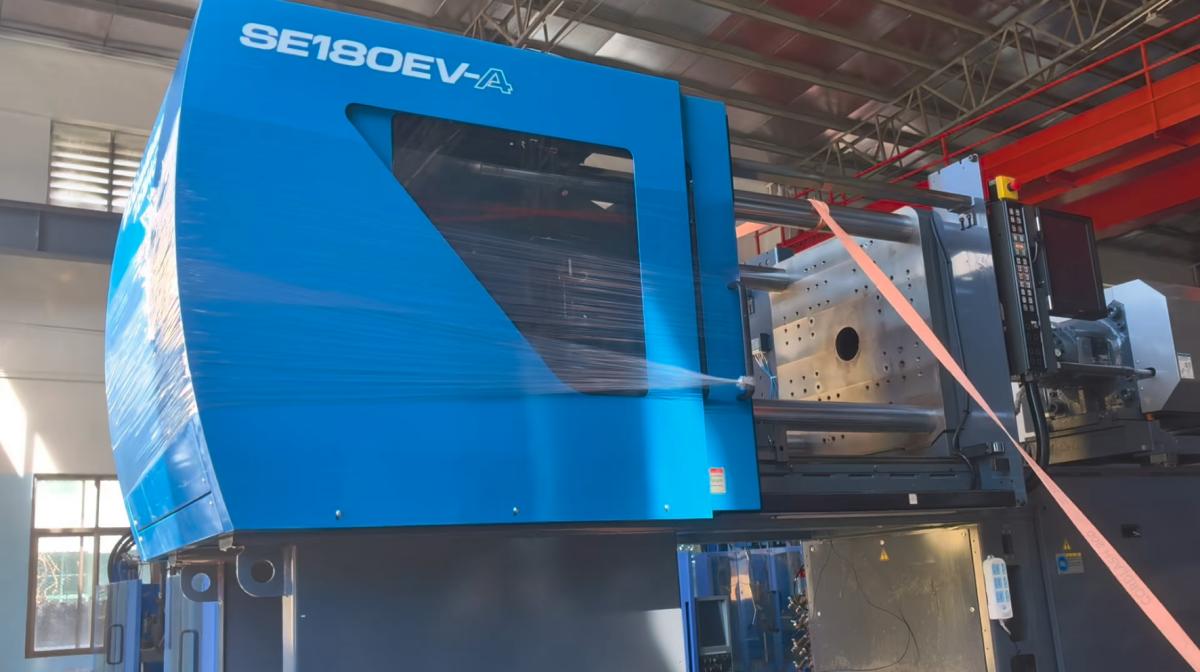

Sumitomo SE180EV-A C450 injection molding machine

Clamping Force: 1800 kN
Tie Bar Spacing: 560 × 560 mm
Platen Size: 800 × 795 mm
Maximum Mold Opening Distance: 900 mm
Maximum Mold Opening Stroke: 450 mm
Minimum Mold Thickness: 200 mm
Maximum Mold Thickness: 550 mm
Maximum Mold Space: 700 mm
C450 Screw Diameter: 36 / 40 / 45 mm
Maximum Injection Speed: 500 mm/s
Injection Weight (GPPS): 83–244 g (varies with screw specification)
Ejector Force: 45 kN
Ejector Stroke: 100 mm
Ejection Speed: Maximum 333 mm/s
Locating Ring Diameter: Ø120 mm
