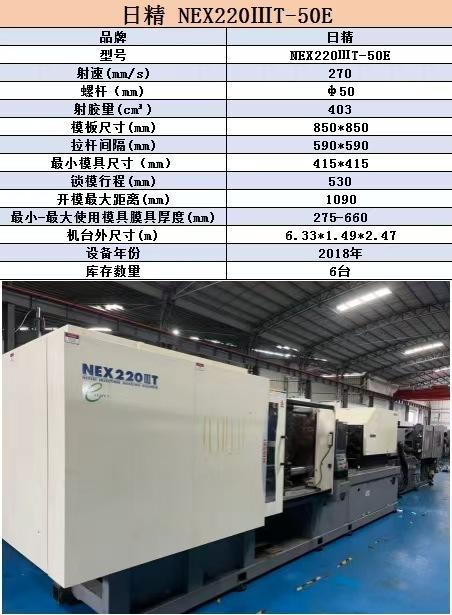

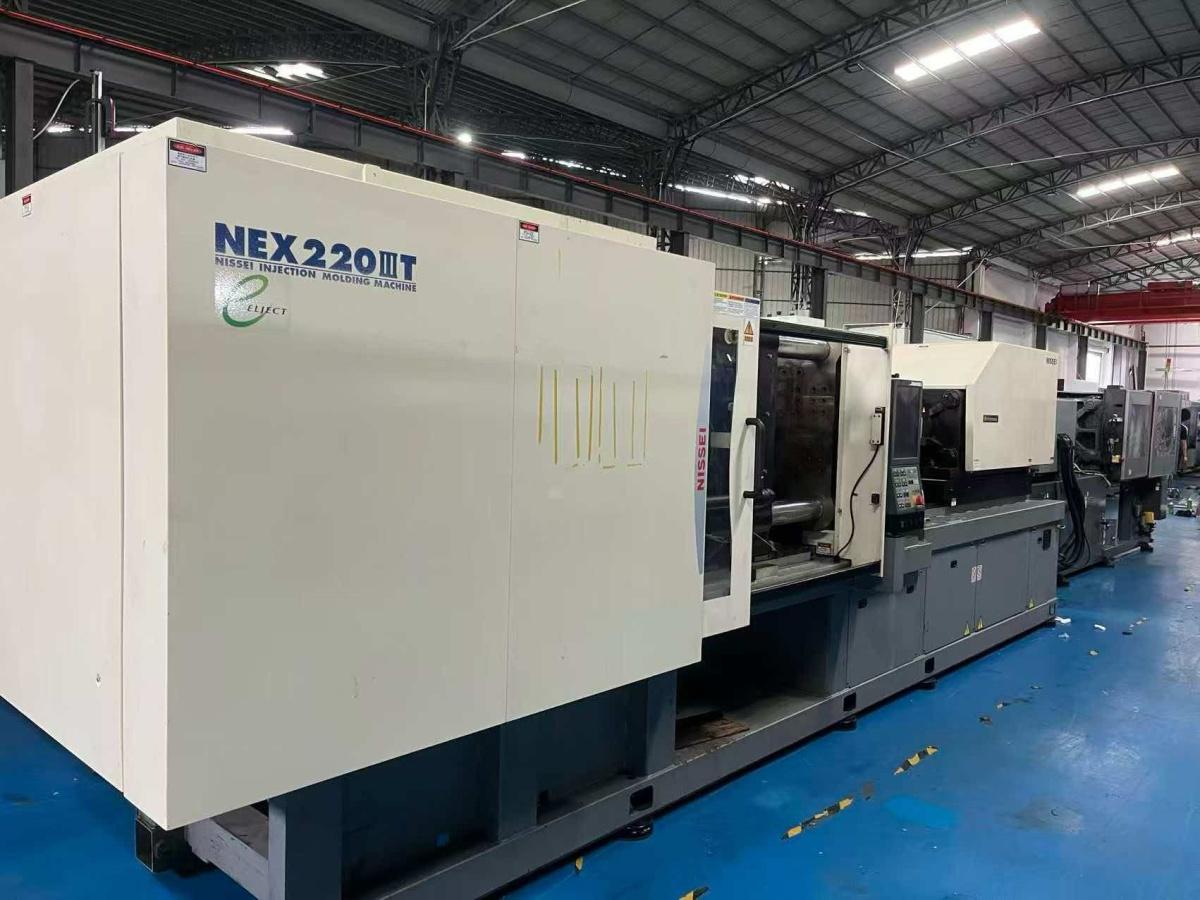

NISSEI NEX220IIIT-50E injection molding machine

Maximum Rate of plastic injection: 270 mm/s
swing diameter: Φ 50mm
Theoretical injection volume: 403 cm³
Molds and mold opening and closing CNC Systems
Template size: 850 × 850 mm
Pull rod spacing: 590 × 590 mm
Minimum mold size: 415 × 415 mm
Maximum mold thickness: 660 mm
Minimum mold thickness: 275mm
Maximum mold opening distance: 1090mm
Mold locking travel: 530 mm
External Footage of machine
The overall floor area of machine: 6.33m (length) × 1.49m (width) × 2.47m (height)
