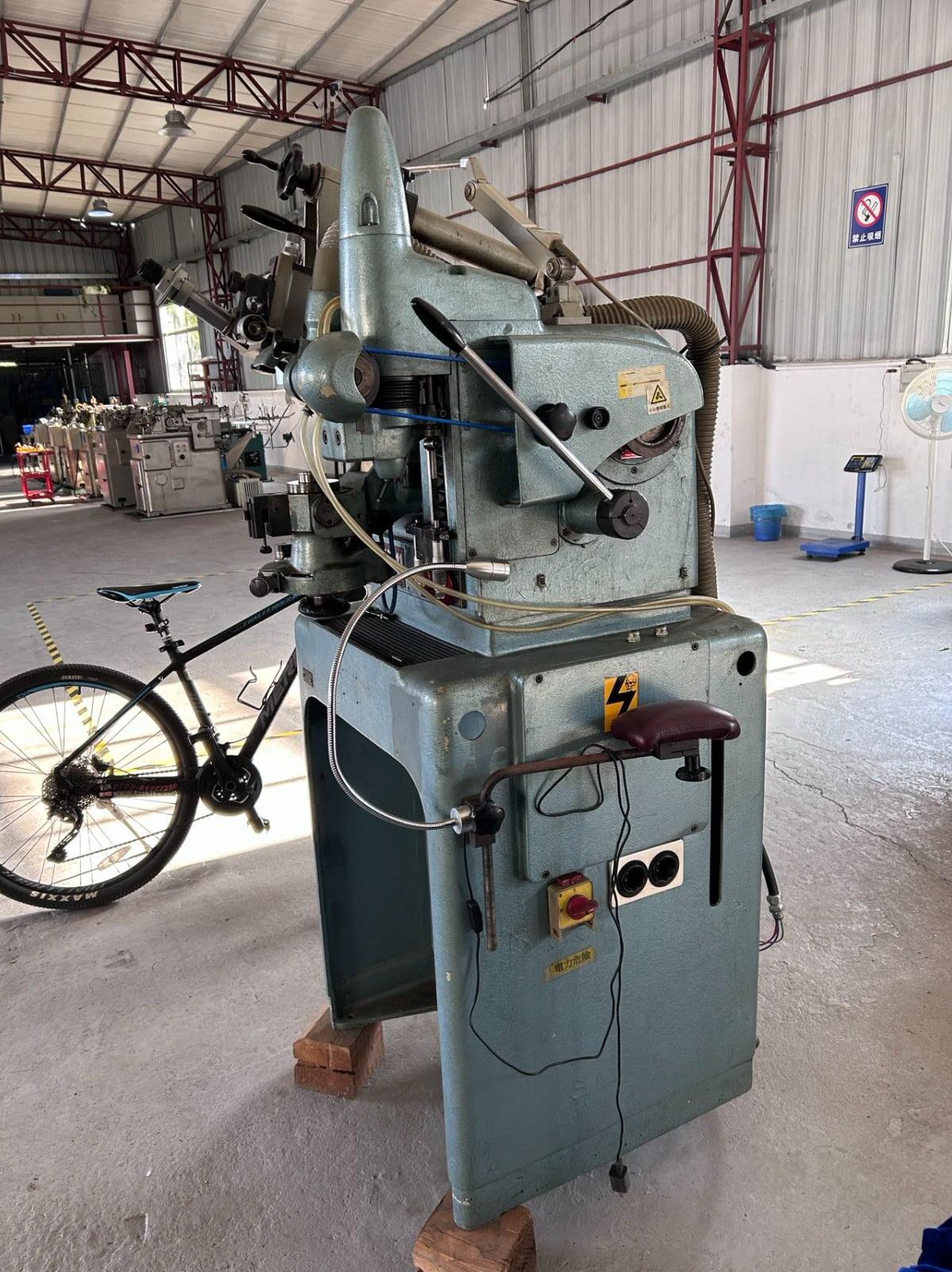

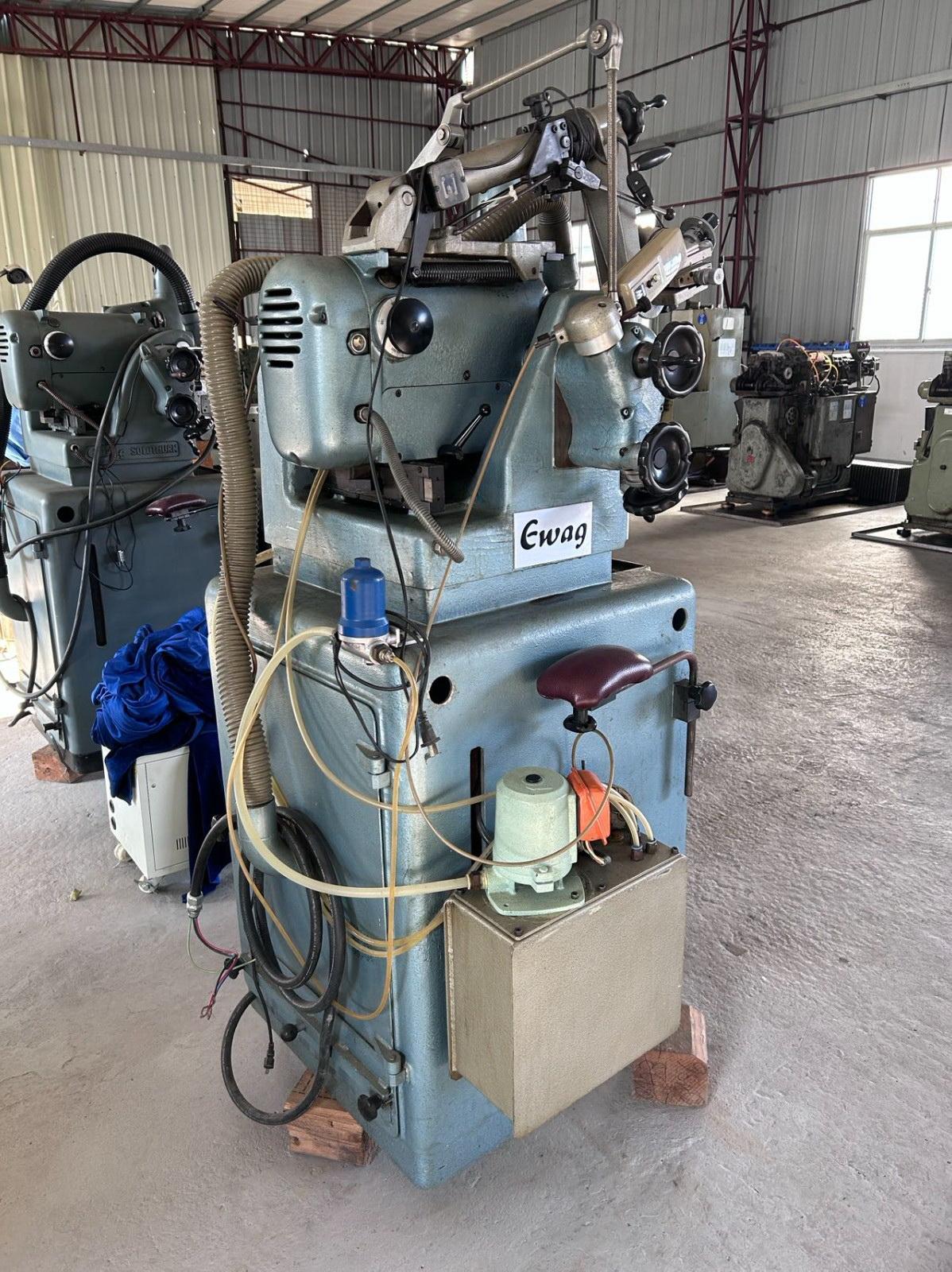

EWAG WS11 Tool grinder

Engine power 0.3KW

X axis travel 100 mm

Y-axis travel 100 mm

Continuous speed change 100-1000 t/min

Z-axis range 100 mm

Feed operation 4E (Z-axis)

Cross feed drive 4Q-M (X-axis)

Grinding travel drive 3H (Y-axis)

Workpiece spindle A-axis Angle adjustment: -135°/+30°

工件主轴倾角：+/-15°

Workpiece spindle speed: 100-1300min-1

Workpiece spindle power: 0.25KW

Indexing accuracy: 2min
