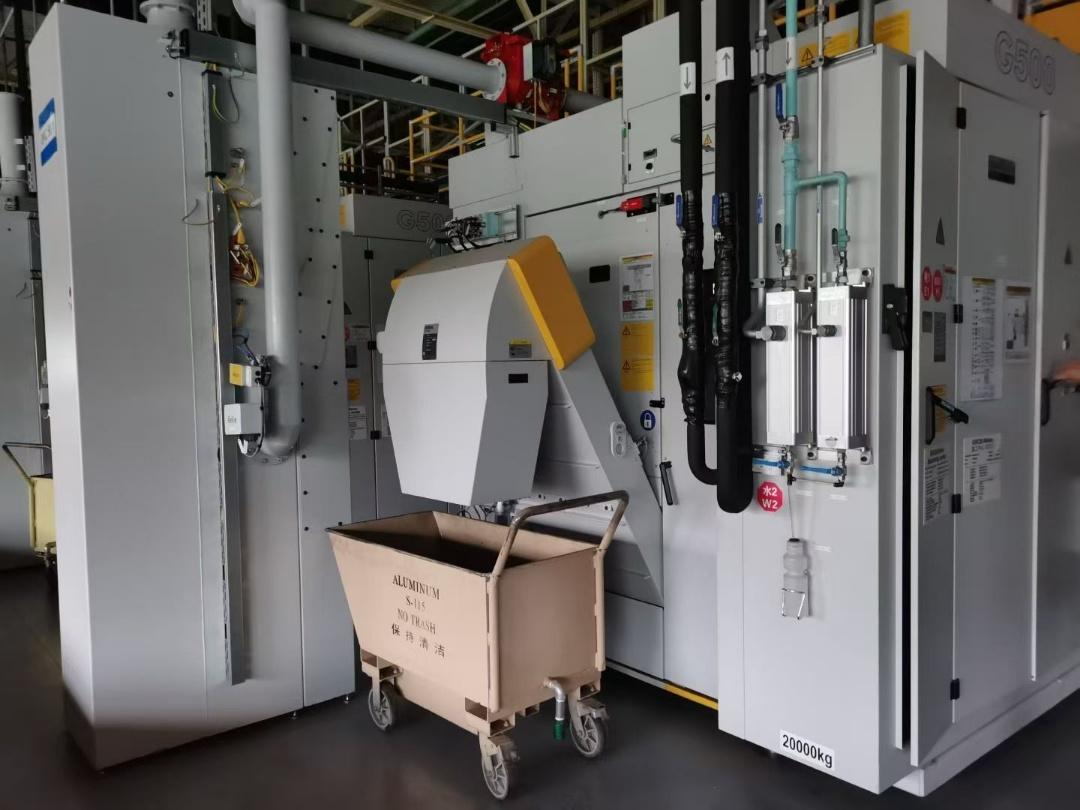

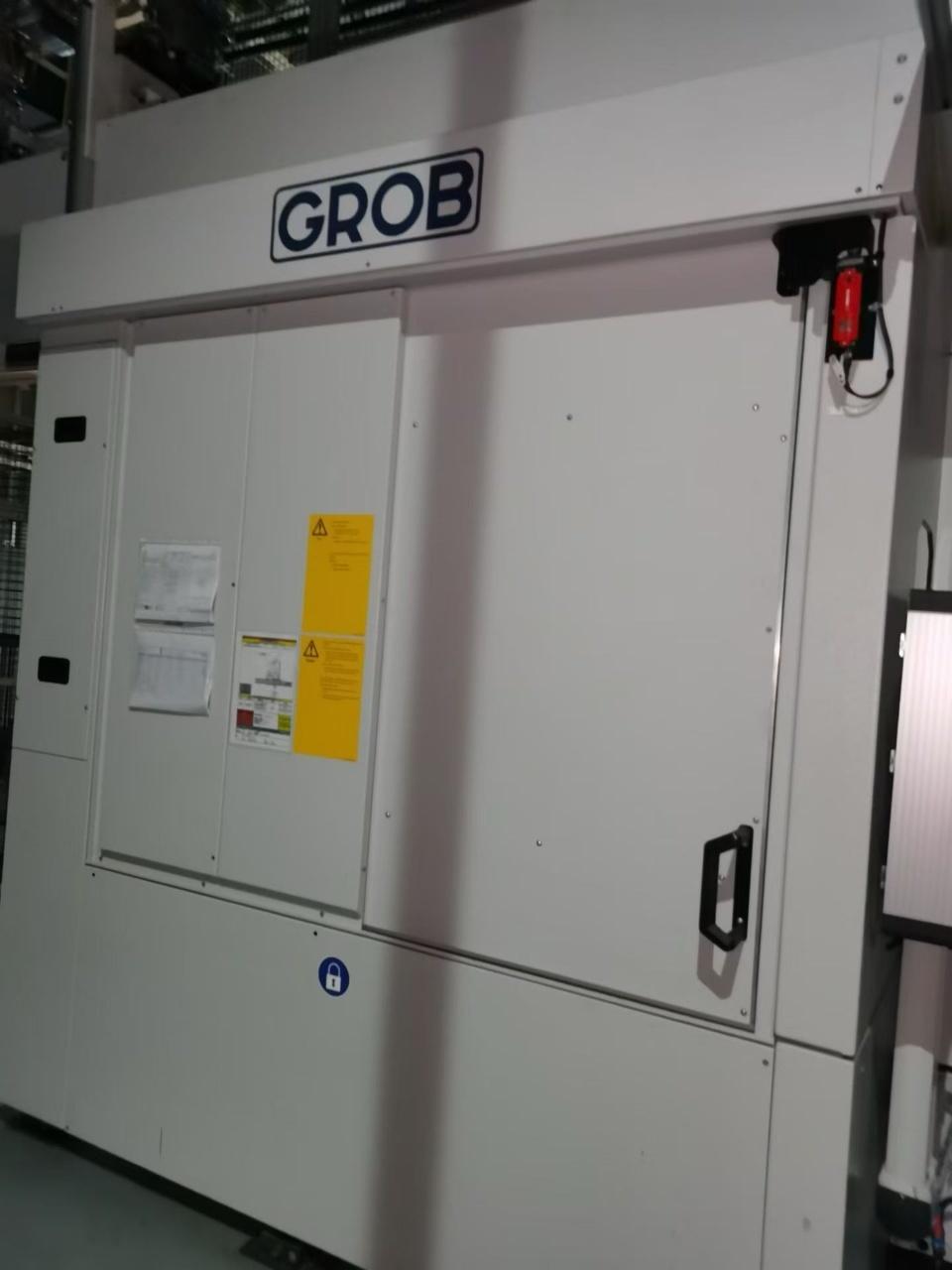

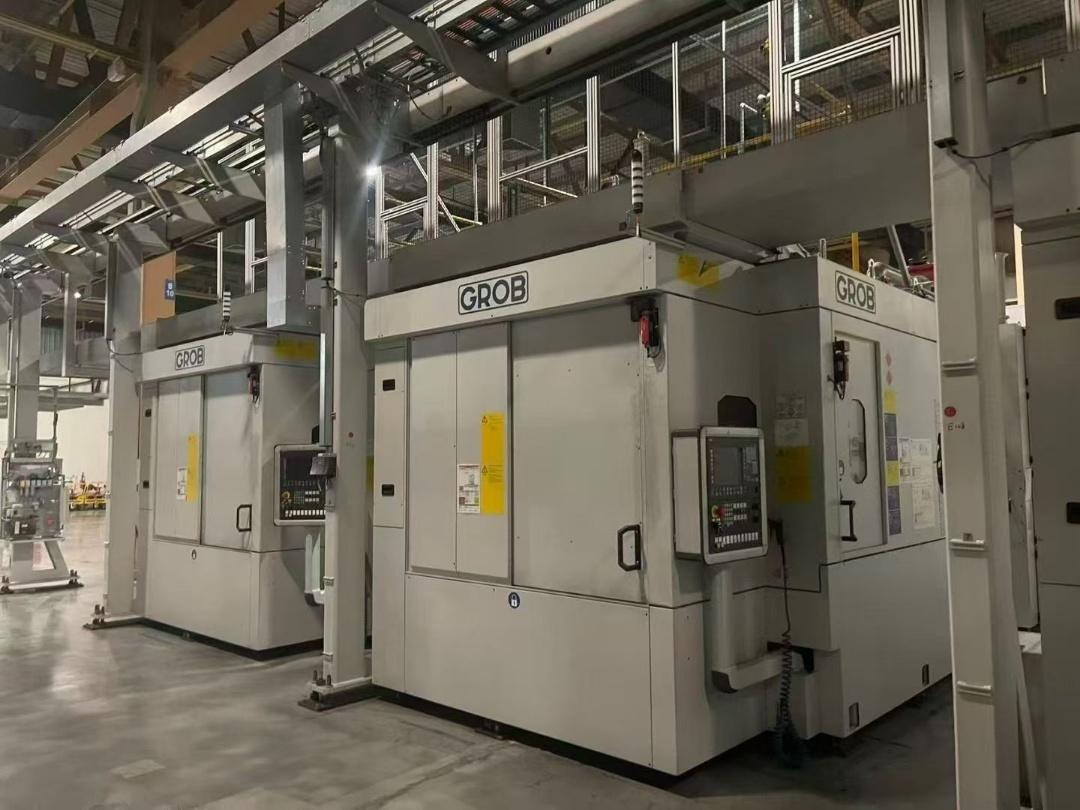

GROB G500 5 axis machining centre

CNC System: Siemens 840DSL
Three-axis travel: 800 × 950 × 970 mm
Maximum spindle speed: 18,000 rpm
Maximum speed along the X × Y × Z axis: 90 × 50 × 100 m/min
Maximum acceleration along the X × Y × Z axis: 8.5 / 4.5 / 14 m/s²
Maximum feed force for the X × Y × Z axis: 8 / 8 / 12 kN
Tool changing time: 2.6 T.min.s (according to VDI 2852)
Maximum worktable load（A' axis): 940 kg
Spindle type: HSK-A100 / HSK-63 (optional)
Tools Magazine capacity: 60

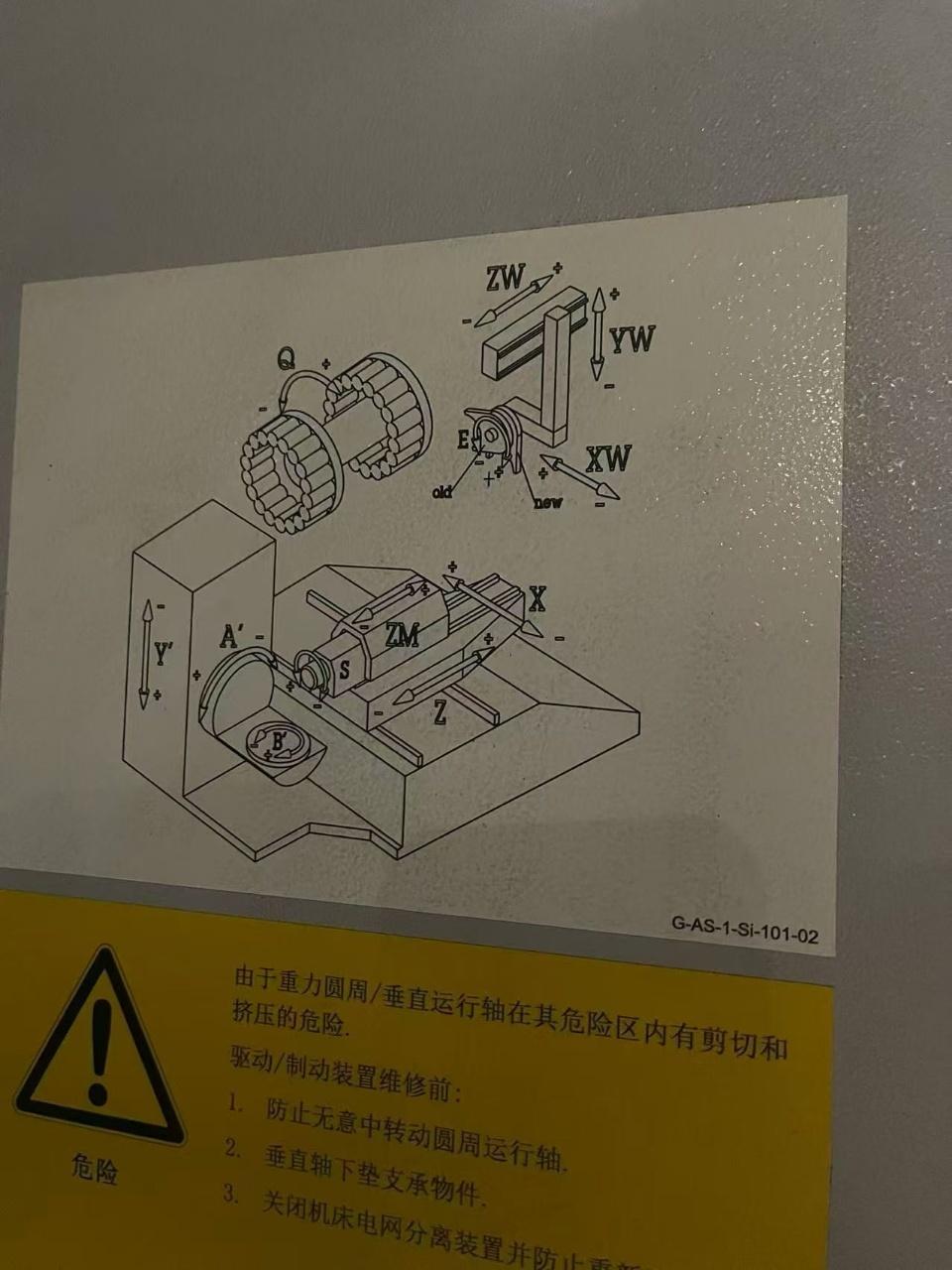

Workpiece rotary worktable: A + B
